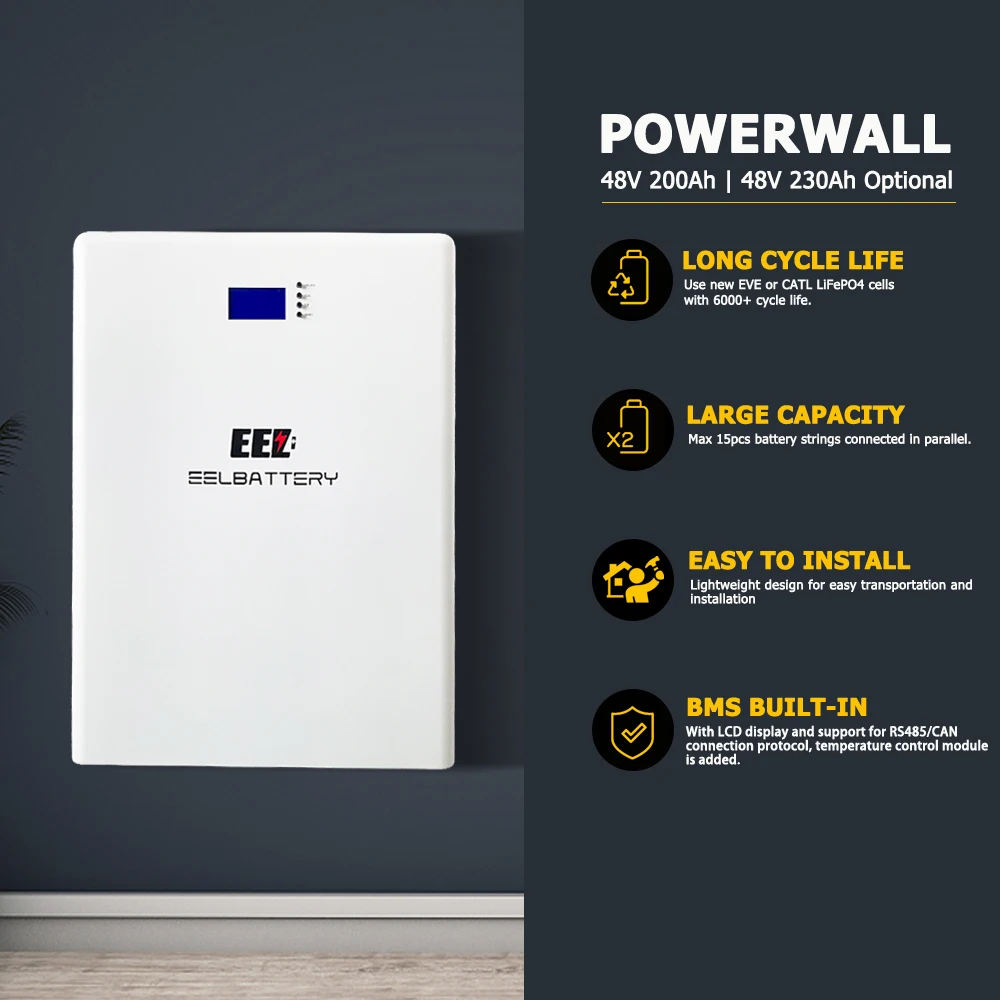

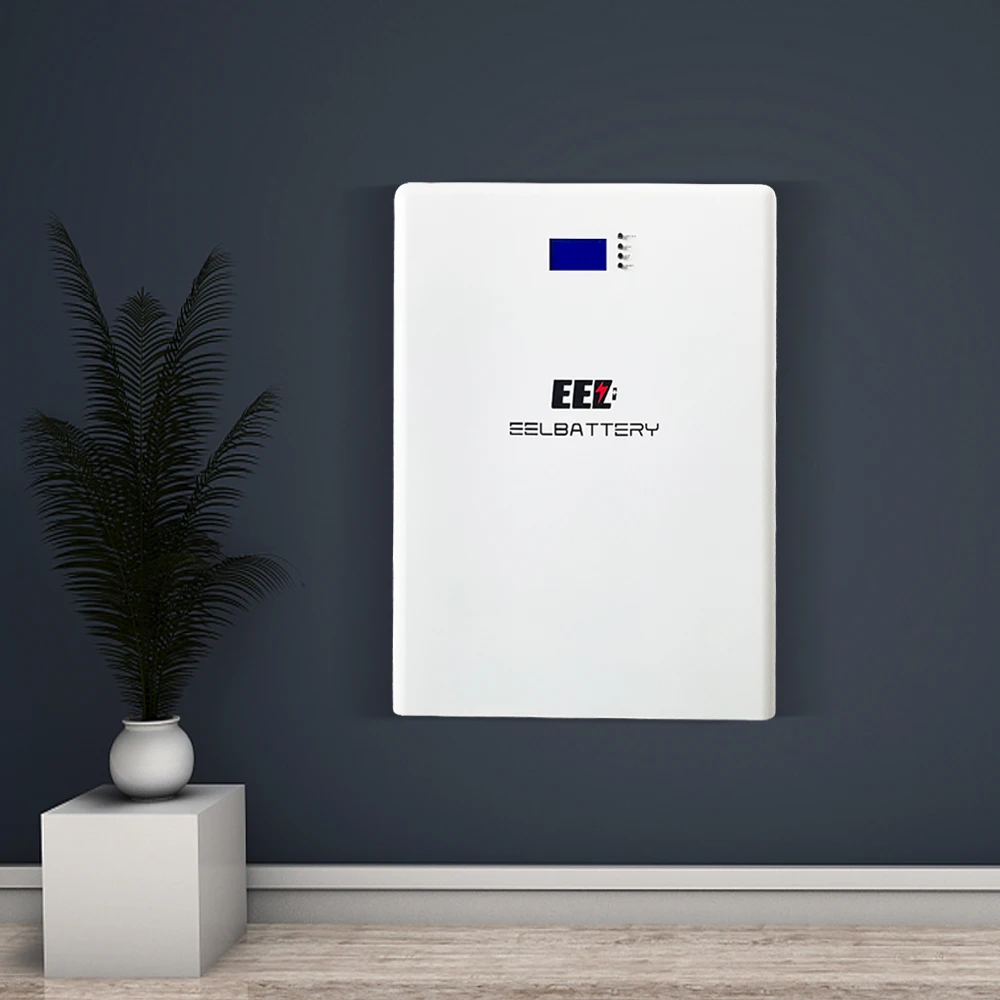

EEL Hot selling 48V Wall Mounted Battery Box LiFePO4 48V BMS 100A 150A 200A lifepo4 White Powerwall Box For Solar Energy System
- Category: >>>
- Supplier: Shenzhen Eel Battery Co. Ltd.
Share on (1600973415125):
Product Overview
Description
Product Paramenters
Item | General Parameters |
Model | EEL Wall-mounted Battery Case |
Nominal Voltage | 48V/51.2V |
Nominal Capacity | 230Ah/280Ah |
Supported battery models | CATL/CALB/E-VE 230AH, 280AH, 302AH, 304AH |
Max Charge Voltage | 58.4V |
Cut-off Discharge Voltage | 40V |
Standard Charge Float Voltage | 55.2V |
Max 10sec. Pulse Current | 380A |
Max. Continuous Discharge Current | 200A |
Max Charge Current | 200A |
Recommended Current | 140A (25±2℃) |
Weight (Approximate) | 25KG/29KG |
Dimensions (L*W*H) | L68.5*W45*H27cm / L82.5*W45*H27cm |
Operating Temperature | Charging: -20~60℃/Discharging: -30~60℃ |
Application | Power Storage System, Electric vehicles, Golf carts and so on |

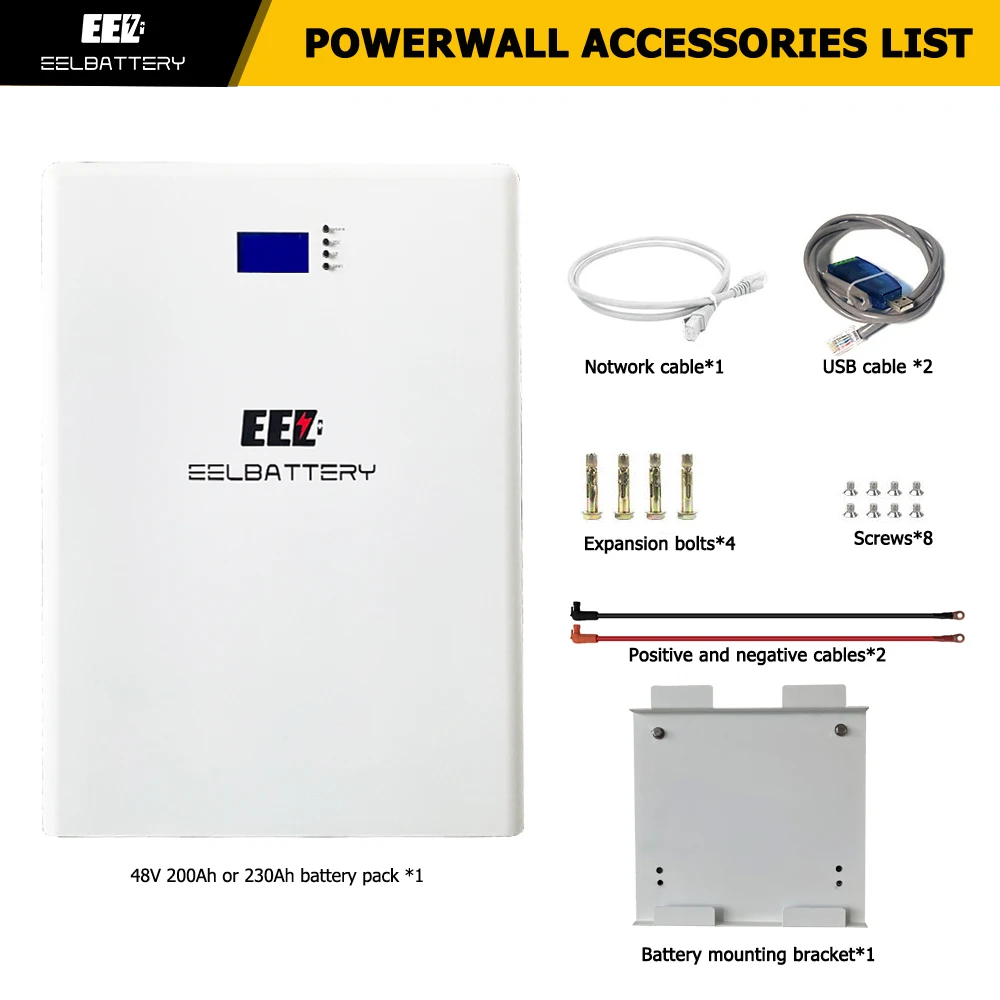

Battery Accessories
Standing case part list:
1*fuse(100A bms-125A fuse,150A bms-180A fuse,200A bms-250A fuse)
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
10 * Epoxy sheet (Between cell and the case2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Stripe
1* Weak electric switch1 * 48V 16S seplos 10E BMS+2*BMS wires
1* LCD Screen+1*LCD Screen wire+4 * Button Cap
5* Long Flexible bus bars (BMS connection
2* Battery Terminals with protective cover(P+ Terminal and p- Terminal)1*Adapter board+2*wires(Adapter and BMS connection)15 * Flexible bus bars (Cell connection)
16* EVA Tape (Between cells)
16*Epoxy sheet (for cells insulation
*Other Small Accessories
Note:
Our kits are equipped with a BMS that is CAN and 485 communication compatible and can be matched to most brands of inverters on the market without complicated commissioning.
FAQ
Q: What is your MOQ?
A: There is no MOQ and we also support a sample service.
Q: How about the payment terms?
A: T/T, Paypal, Wire Transfer and Online Transfer are all acceptable.
A: Yes, our battery kit comes complete with the BMS and all the accessories needed to assemble the battery pack. Customers can assemble their own battery packs if they have enough batteries.
Q: What options are available for the BMS that comes with the battery kit?
A: 100A/150A/200A BMS are availble for customers to choose.
Q: What are the advantages of your battery kits?
A: Our kits have the following advantages:
⭐Stackable
⭐External port can pass 250A current individually
⭐The internal BMS is compatible with CAN and RS485 communication and can communicate with a wide range of inverters without complex commissioning
⭐The PCB boards are soldered with the corresponding wires for the customer to assemble in order

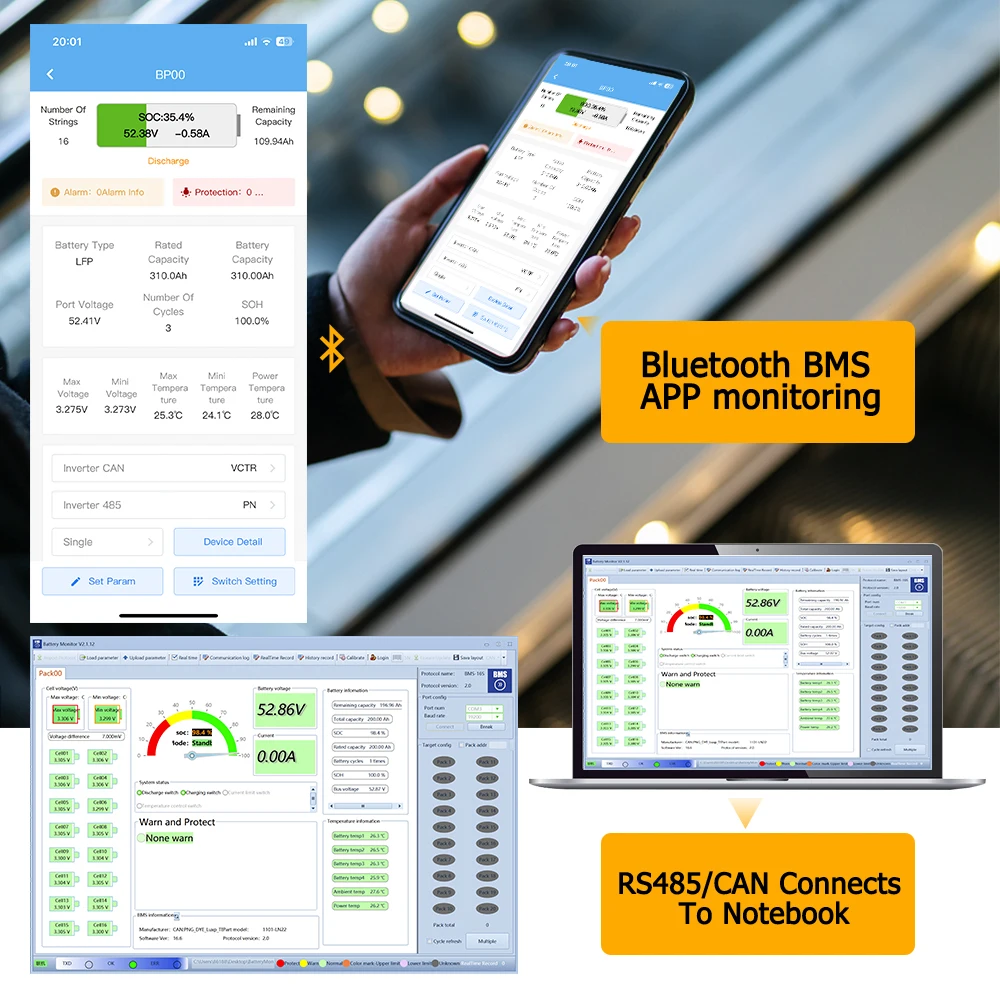

⭐The external LCD display shows the basic parameters
⭐The side clamping plates apply pressure to the battery for better clamping

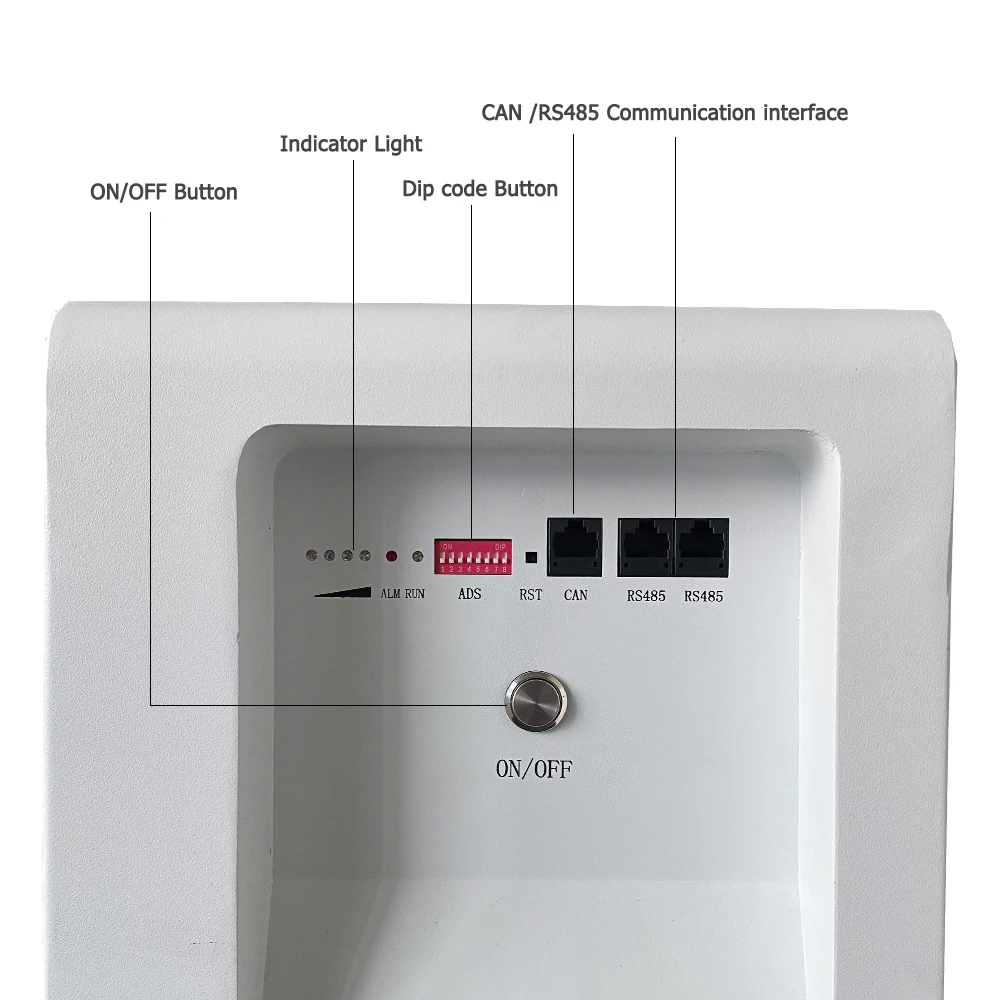

⭐Equipped with a weak switch for greater safety
⭐Complimentary 485 adapter cable for connection to the PC
⭐Stackable
⭐External port can pass 250A current individually
⭐The internal BMS is compatible with CAN and RS485 communication and can communicate with a wide range of inverters without complex commissioning
⭐The PCB boards are soldered with the corresponding wires for the customer to assemble in order
⭐The external LCD display shows the basic parameters
⭐The side clamping plates apply pressure to the battery for better clamping
⭐Equipped with a weak switch for greater safety
⭐Complimentary 485 adapter cable for connection to the PC
Q: What is the shipping time limit for battery kit?
A:The transit time is approximately 35-38 business days.
A:The transit time is approximately 35-38 business days.
Q: What should I do when I receive the battery kits?
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.
A: First open the box when you sign for it to check that the contents have not been damaged in transit, and then double check that the battery kit is complete with all the accessories.
Q: Why has my logistics information not been updated?
A: The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.

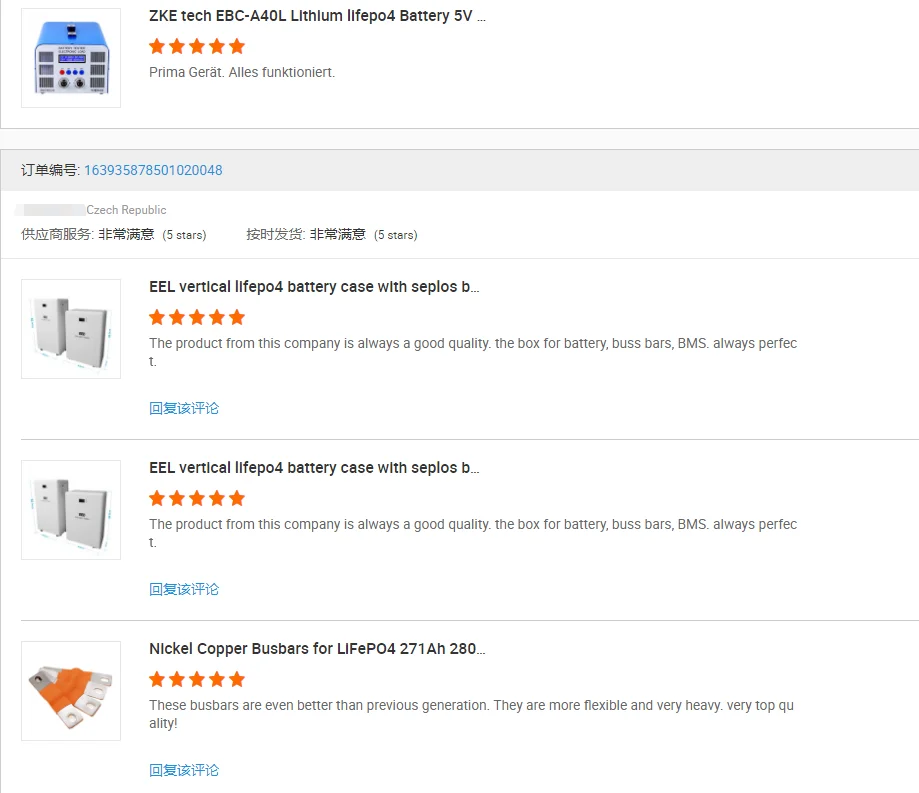

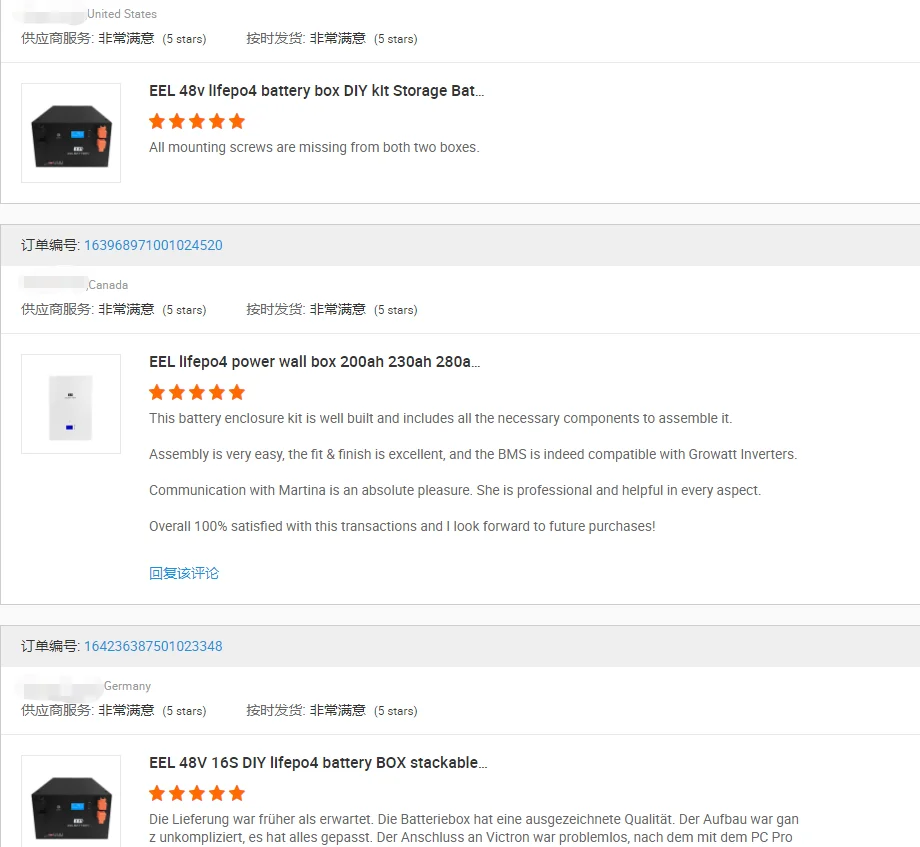

Customers Feedback
Packing & Shipping
About The Shipping Time | ||||||||
1 | USA | Delivery By Sea Freight+Express (DDP Service by UPS, DPD etc.) Approximate time limit: 25 weekdays | ||||||
2 | EU | Delivery By Railway+Express (DDP Service by UPS, DPD etc.) Approximate time limit: 38-40 weekdays | ||||||
3 | USA/EU | Delivery By Air Freight+Express (DDP Service by UPS, DPD etc.) Approximate time limit: 10-12 weekday | ||||||
Note: ⭐UPS order labels are only updated once the goods have been picked up by the local logistics company and the back-end dispatch process will take around 7-12 days. Please contact us if you would like to be kept informed of shipping progress during this period. ⭐For other countries not mentioned in the table, please contact us for shipping costs. | ||||||||
Company Profile
Shenzhen EEL Battery CO.,Ltd
A specialized company which dedicated to R&D, production and marketing of LiFePO4 battery pack, LiFePO4 cell, li-ion polymer battery products. After 10years of rapid development, EEL has accumulated core technology and comprehensive solution for power battery products, meanwhile we have obtained the approval and praise of customers from all over the world.
Depending on professional R&D engineers, enthusiastic sales team and reliable after-sales service, our battery products are widely used in the field of off-grid solar power system, home storage system, solar street light, RV, electric vehicles, golf cart, power tool, backup power, medical device. Our goal is to provide competitive, safe and superior battery products for customers,we also pay attention to environmental protection and take social responsibility, encourage people to use green new energy.
Most of our battery models have MSDS, UN38.3, CE, UL1642 certificates.
Believe in us, EEL will be your trustworthy partner in battery business!
