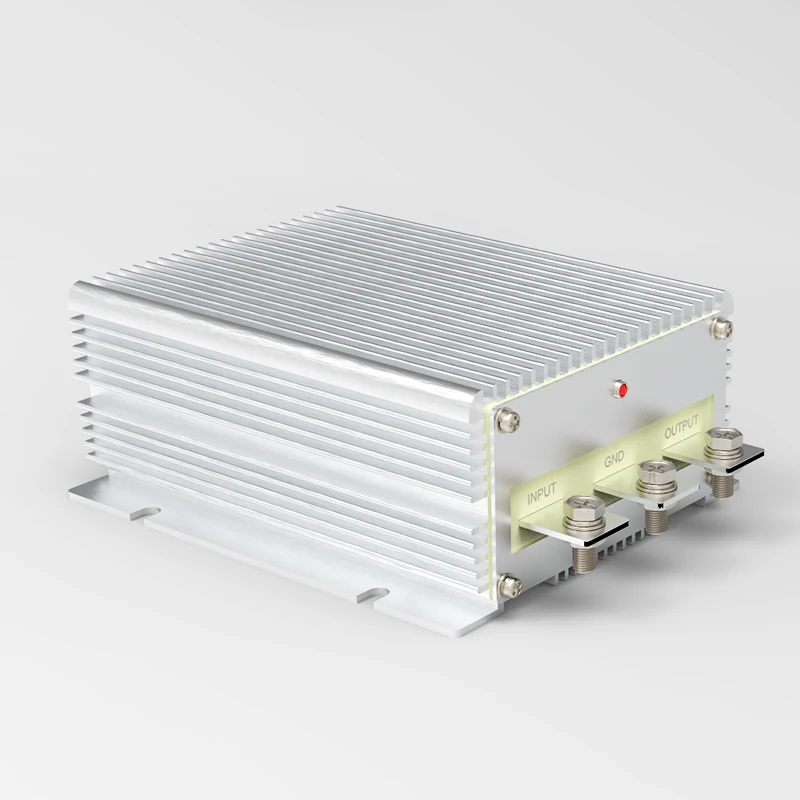

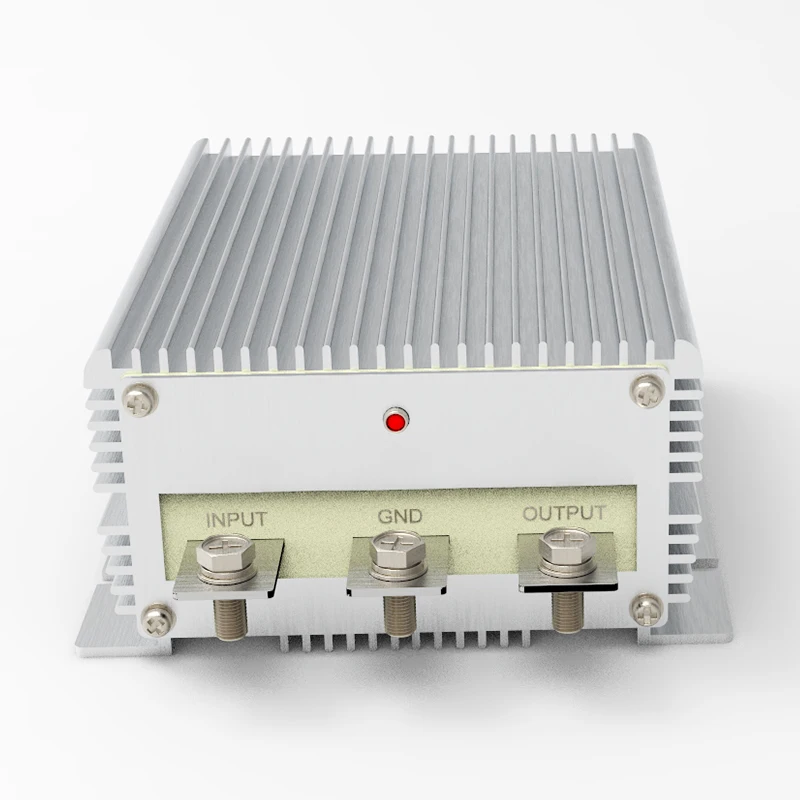

IP 65 Waterproof 48V to 12V 50A 600W DC DC Step Down Converter, Non Isolated
IP 65 Waterproof 48V to 12V 50A 600W DC-DC Step Down Converter, Non-Isolated
IP 65 Waterproof 48V to 12V 50A 600W DC-DC Step Down Converter, Non-Isolated
IP 65 Waterproof 48V to 12V 50A 600W DC-DC Step Down Converter, Non-Isolated
IP 65 Waterproof 48V to 12V 50A 600W DC-DC Step Down Converter, Non-Isolated
IP 65 Waterproof 48V to 12V 50A 600W DC-DC Step Down Converter, Non-Isolated
IP 65 Waterproof 48V to 12V 50A 600W DC-DC Step Down Converter, Non-Isolated

IP 65 Waterproof 48V to 12V 50A 600W DC DC Step Down Converter, Non Isolated

Share on (1600973441198):


Price:$42.00 - $47.00

Quantity:


Product Overview

Description





Specification


Input voltage range 30V to 60V
Stable output voltage 12V
Maximum output current 50A
100% burn-in test
Efficiency up to 95%
IP 65 Waterproof ( excluding terminals, LED lights ) , internal glue sealing , anti-vibration, dust-proof
Self-cooling , easy installation
2 years warranty
Over current protection: when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.
Over temperature protection: When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.
Low voltage protection: When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
Reference standards : EN 61000-6-3 : 2007/ A 1 : 2011/ AC : 2012 EN 55014-1 : 2006/ A 2 : 2011 EN 60950-1 : 2006/ AC : 2011




Product Number
PFDD50-48S12
Efficiency
up to 95%
Input Voltage
30-60V DC
Output Voltage
12V DC
Maximum Output Current
50A
Ripple
200mVp ( measured by 20M oscilloscope)
Line Regulation
± 1 %
Load Regulation
± 1 %
Voltage Accuracy
± 2 %
Waterproof Level
IP 6 5 (except output ports and indicator light)
Dimension
150* 127*63mm
Net Weight
1.2kg
Operating Temperature
-40 ~ 55 ° C
Warranty
2 year








Over current protection:
when the output current is higher than the set value, the output voltage gradually decreases until there is no output voltage.

Over temperature protection:
When the case temperature is ≥ 85 ℃, the power converter stops working, and there is no voltage output.

Low voltage protection:
When the input voltage is lower than the set value, the output voltage gradually decreases until there is no output voltage.
