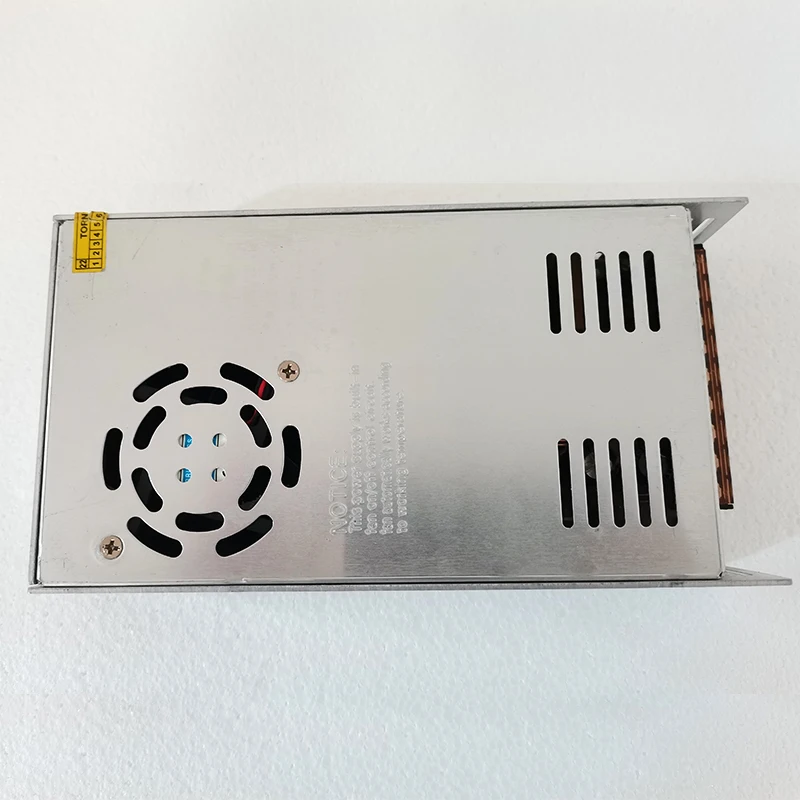

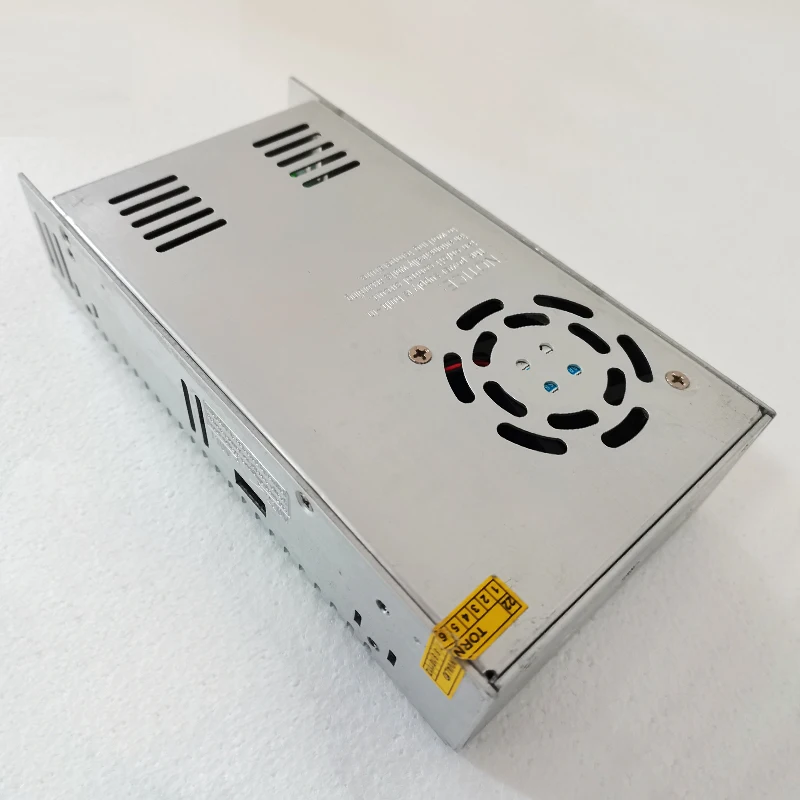

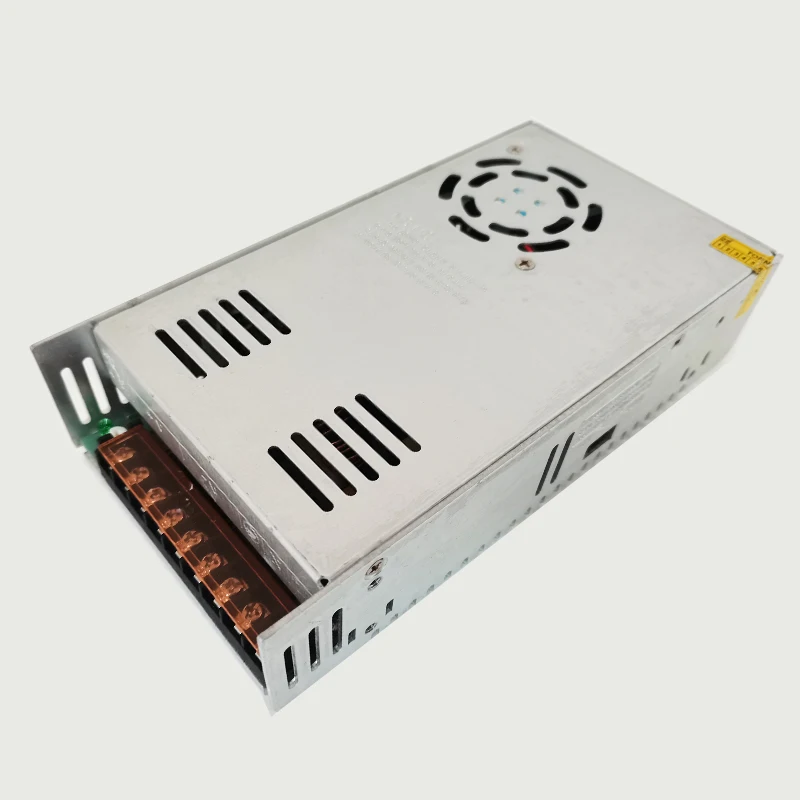

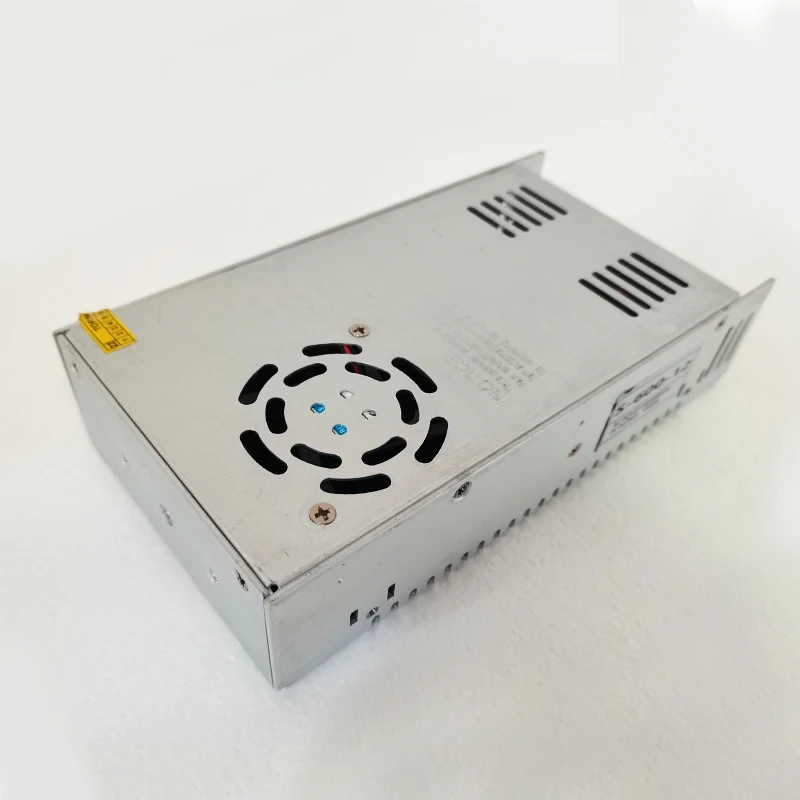

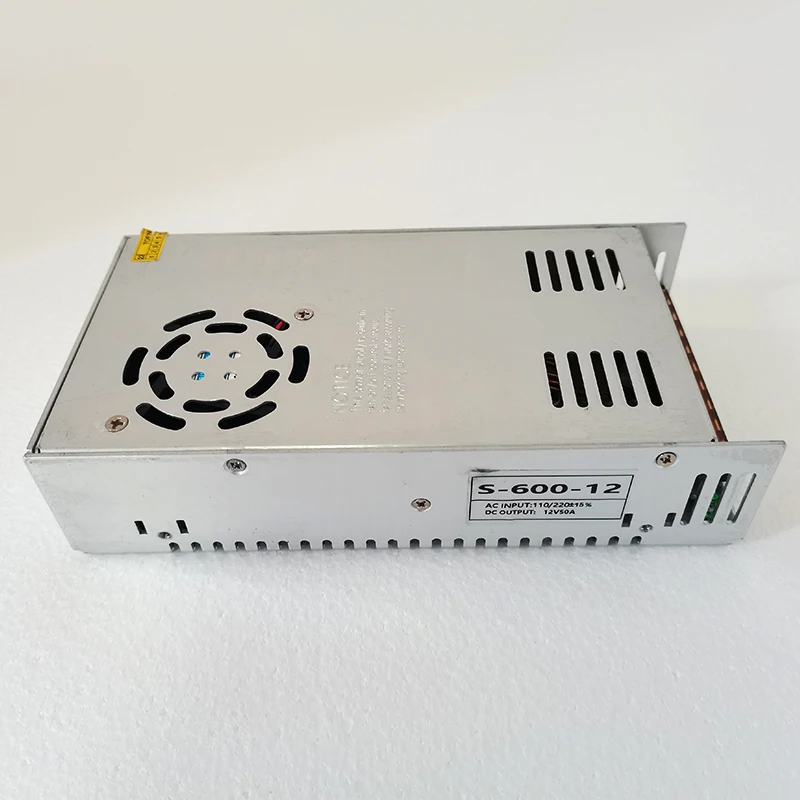

12V 50A 600W led switching waterproof power supply transformer
- Category: >>>
- Supplier: Nanjing Pengtu Power Supply Co. Ltd.
Share on (1600973455350):
Product Overview
Description
Product Display
Item | S-600-5 | S-600-12 | S-600-15 | S-600-24 | S-600-36 | S-600-48 | ||||||||
Output | Dc voltage | 5V | 12V | 15V | 24V | 36V | 48V | |||||||
Output rated current | 100A | 50A | 40A | 25A | 6.9A | 5.2A | ||||||||
Output current range | 0-100A | 0-50A | 0-40A | 0-25A | 0-6.9 A | 0-5.2A | ||||||||
Rated output power | 500W | 600W | 600W | 600W | 600W | 600W | ||||||||
Ripple&noise (Ta is the ambient temp.) | O < Ta 70℃ | 200mV | 200mV | 200mV | 240mV | 300mV | 400mV | |||||||
Output adjustment range | 4.75-5.5V | 10.2-13.8V | 21.6-28.8V | 25.2-30.8V | 32.4-39.6V | 43.2-52.8V | ||||||||
Voltage stabilization accuracy | ± 2% | |||||||||||||
Source adjustment rate @-10-50℃ | ± 0.5% | |||||||||||||
Load adjustment rate | ± 1% | |||||||||||||
Input | Input voltage range | 90-132Vac/180-264Vac through the switch | ||||||||||||
Frequency range | 47Hz~63Hz | |||||||||||||
Efficiency @25 ° C | 83% | 86% | 86% | 88% | 88% | 88% | ||||||||
Protection | Over power | 120%-150% OFF | ||||||||||||
Over voltage | 5.75-6.75V | 13.8-16.2V | 18-21V | 31-36.5V | 41.4-46.8V | 55.2-64.8V | ||||||||
Working Enviro-ment | Operating temperature and humidity | 0℃~50℃; 20%~90%RH No condensing | ||||||||||||
Storage temperature and humidity | -20℃~85℃; 10%~95%RH No condensing | |||||||||||||
Vibration | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X,Y, Z axes | |||||||||||||
Insulation strength | Input-output: 1.5KVac/10mA: Input-Housing: 1.5KVac/10mA: Output-Housing: 0.5KVdc/10mA. The test time is 1min | |||||||||||||
Insulation negative resistance | Input-output: 100M ohms; Input -- housing: 100M ohms; Output -- Housing: 100M ohms | |||||||||||||
Others | Size | 215*115*49mm | ||||||||||||
Design MTBE | 1533.4K hrs min. Telcordia SR-332(Bellcore) ; 301.7K hrs min. MIL-HDBK-217F (25℃) | |||||||||||||
Product Specifications

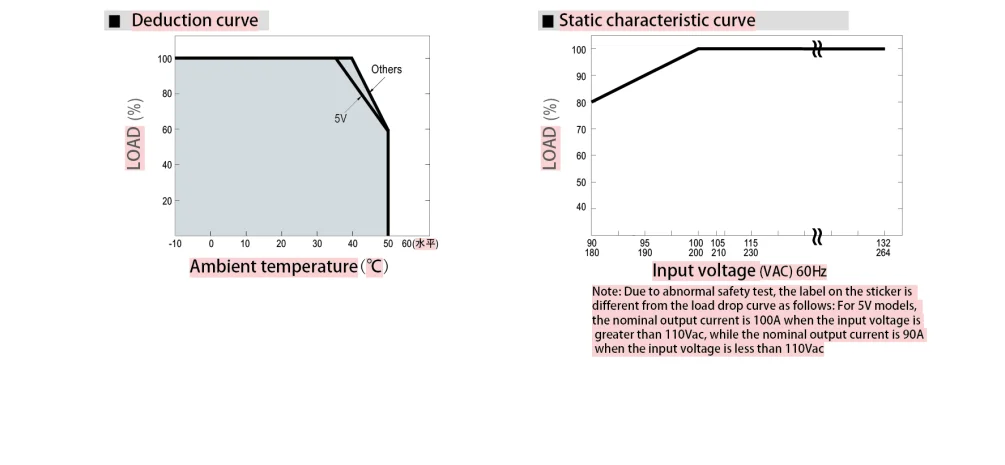

Derating curve

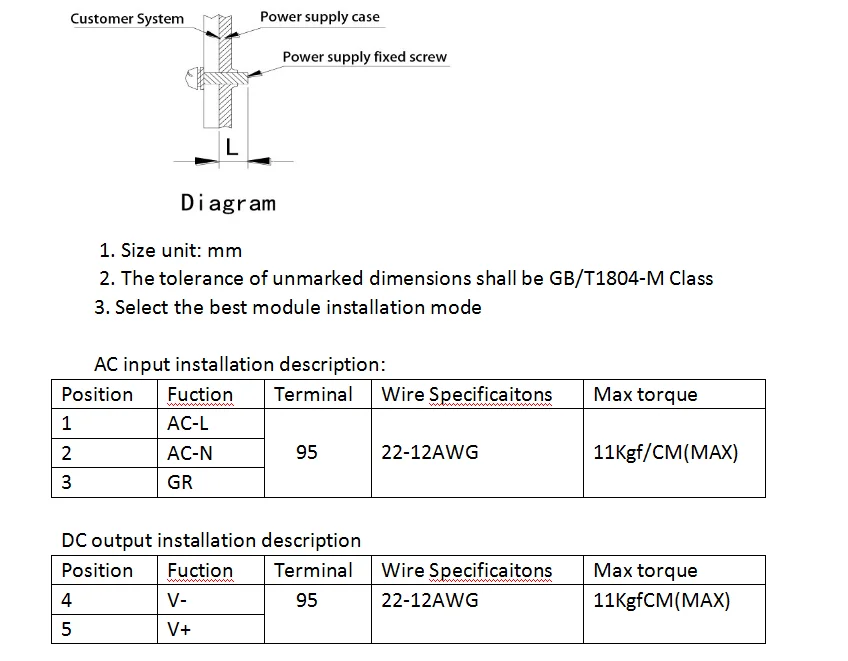

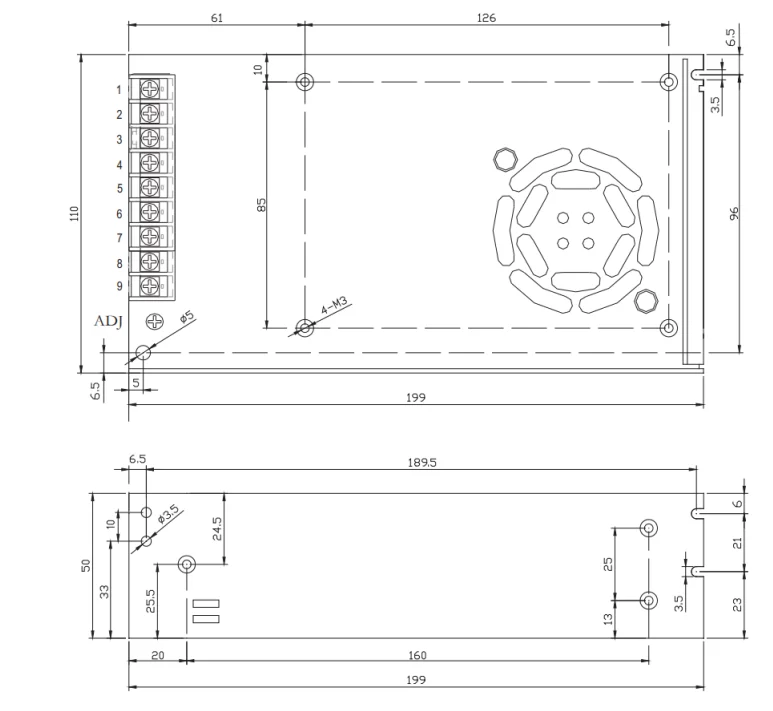

Installation Size
Product Advantage
Company Profile
FAQ
Shipping:
We Ship to Worldwide, except APO/FPO.
Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
Delivery time depends on destination and other factors, it may takes up to 20 business days
Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Warranty and Guarantee:
12 months Warranty. Buy with confidence!
Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide
free new products or components based on the proof-documents.
If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide
paid.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please
contact me before you return it.
Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after
receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will
reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
We Ship to Worldwide, except APO/FPO.
Items are shipped from China using Airmail, reach most of the countries within 10 to 20 business days.
Delivery time depends on destination and other factors, it may takes up to 20 business days
Noted: Fedex Maybe charge handling charges at your country, we are not responsible for this charges.
Warranty and Guarantee:
12 months Warranty. Buy with confidence!
Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, we will provide
free new products or components based on the proof-documents.
If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instuction, we will provide
paid.
If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please
contact me before you return it.
Other Policies:
We are not responsible for any custom duty or import tax.
We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after
receive it.
All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email and we will
reply to you as soon as possible.
Serious Buyer Only! Please place bid only if you agree with all the terms.
