Product Overview
Description
Product Description
GYIMPEX AUDIO PFC SERIES is a powerful amplifier with stable 2ohm working system.
ALLDSP Series 4 channels DSP power amplifier; Application: for single two way line array,three way line array system5inch,6inch,8inch;10inch;12inch;15inch or Dual 5'',6'',8'',10'',12'',15''; subwoofer single or dual 12inch;15inch 18inch and
21inch/3*18inch;3*21inch bass; Working voltage 80V-296V， (Dante also available); We can also produce for buyer with Original Neutrik plug, for Neutrik plug;welcome all kinds of customization from buyer.
---------------------------------------------------------------------------------------------------------------------------

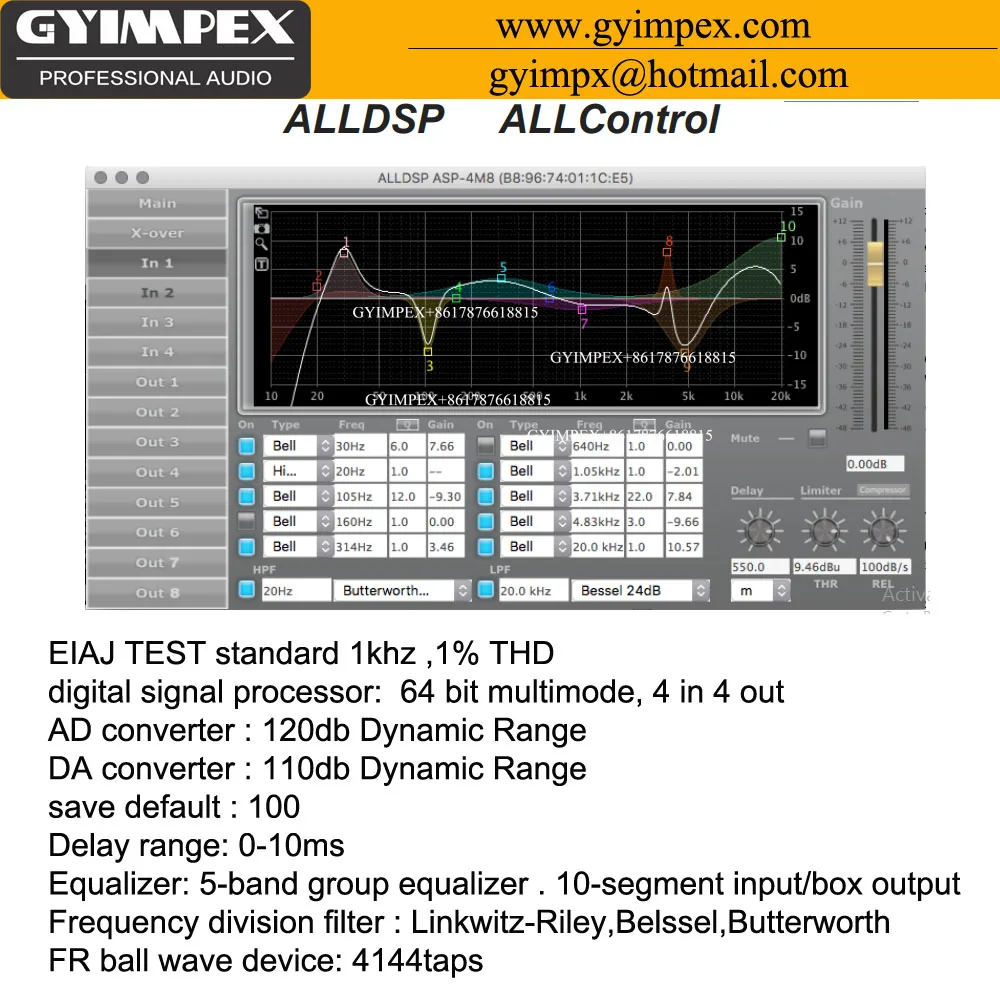

1) EIAJ TEST standard 1khz ,1% THD
2) digital signal processor: 64 bit multimode, 4 in 4 out
3) AD converter : 120db Dynamic Range
4) DA converter : 110db Dynamic Range
5) save default : 100
6) Delay range: 0-10ms
7) Equalizer: 5-band group equalizer . 10-segment input/box output
8) Frequency division filter : Linkwitz-Riley,Belssel,Butterworth
9) FR ball wave device: 4144taps
1) EIAJ TEST standard 1khz ,1% THD
2) digital signal processor: 64 bit multimode, 4 in 4 out
3) AD converter : 120db Dynamic Range
4) DA converter : 110db Dynamic Range
5) save default : 100
6) Delay range: 0-10ms
7) Equalizer: 5-band group equalizer . 10-segment input/box output
8) Frequency division filter : Linkwitz-Riley,Belssel,Butterworth
9) FR ball wave device: 4144taps
---------------------------------------------------------------------------------------------------------------------------

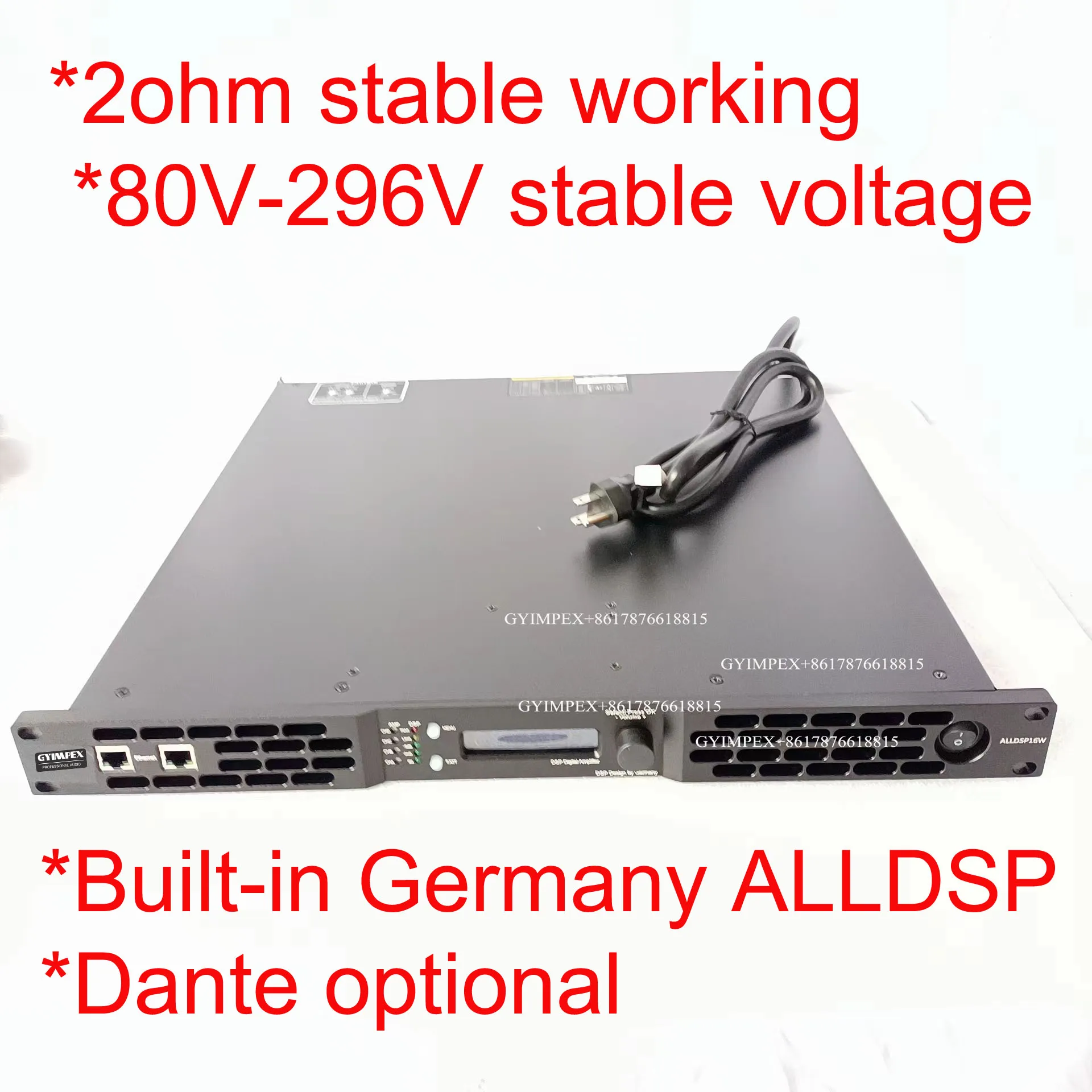

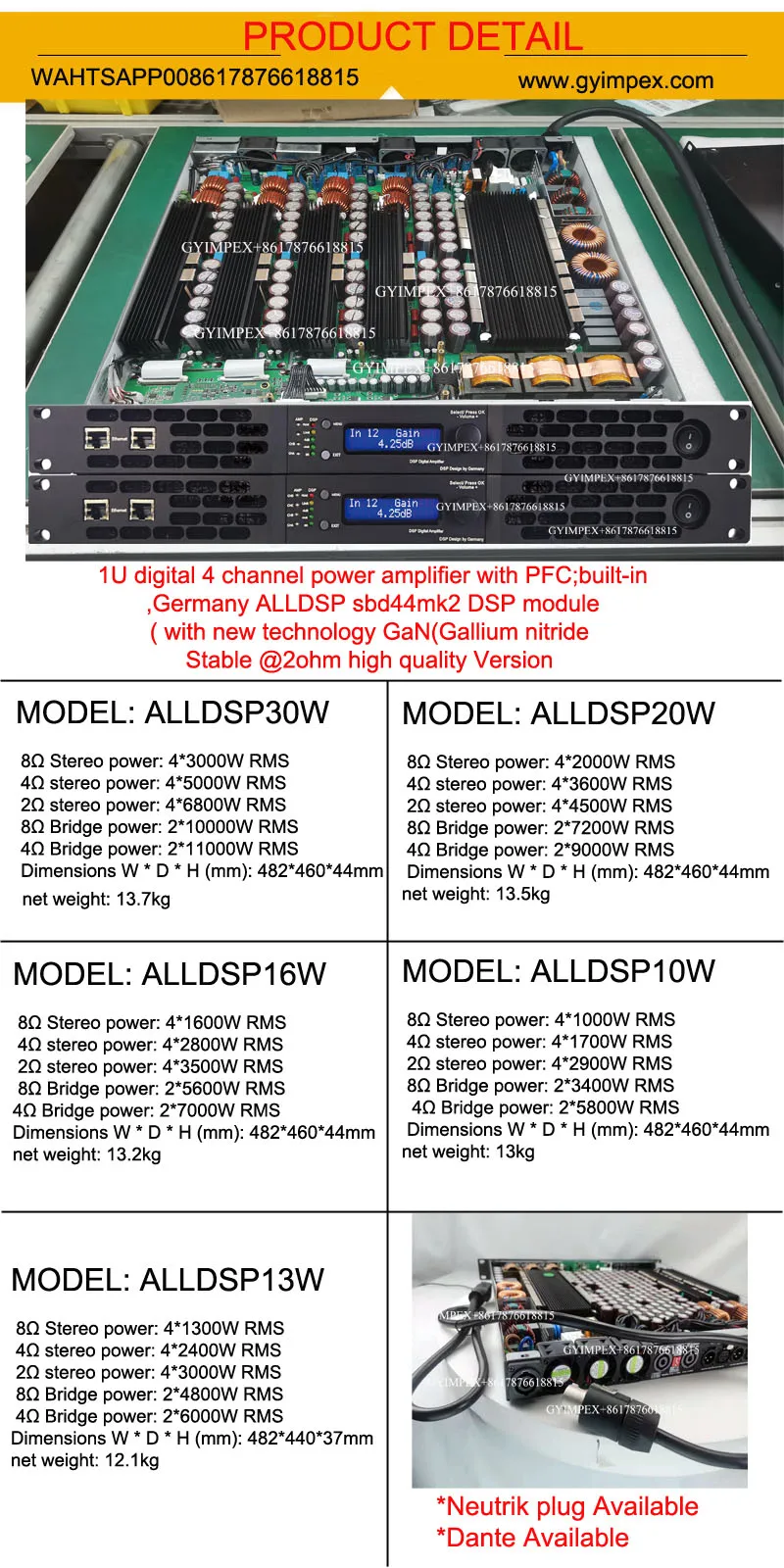

MODEL: ALLDSP30W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*3000W RMS
4Ω stereo power: 4*5000W RMS
2Ω stereo power: 4*6800W RMS
8Ω Bridge power: 2*10000W RMS
4Ω Bridge power: 2*11000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13.7kg
----------------------------------------------------------------------------------------------------------------------------

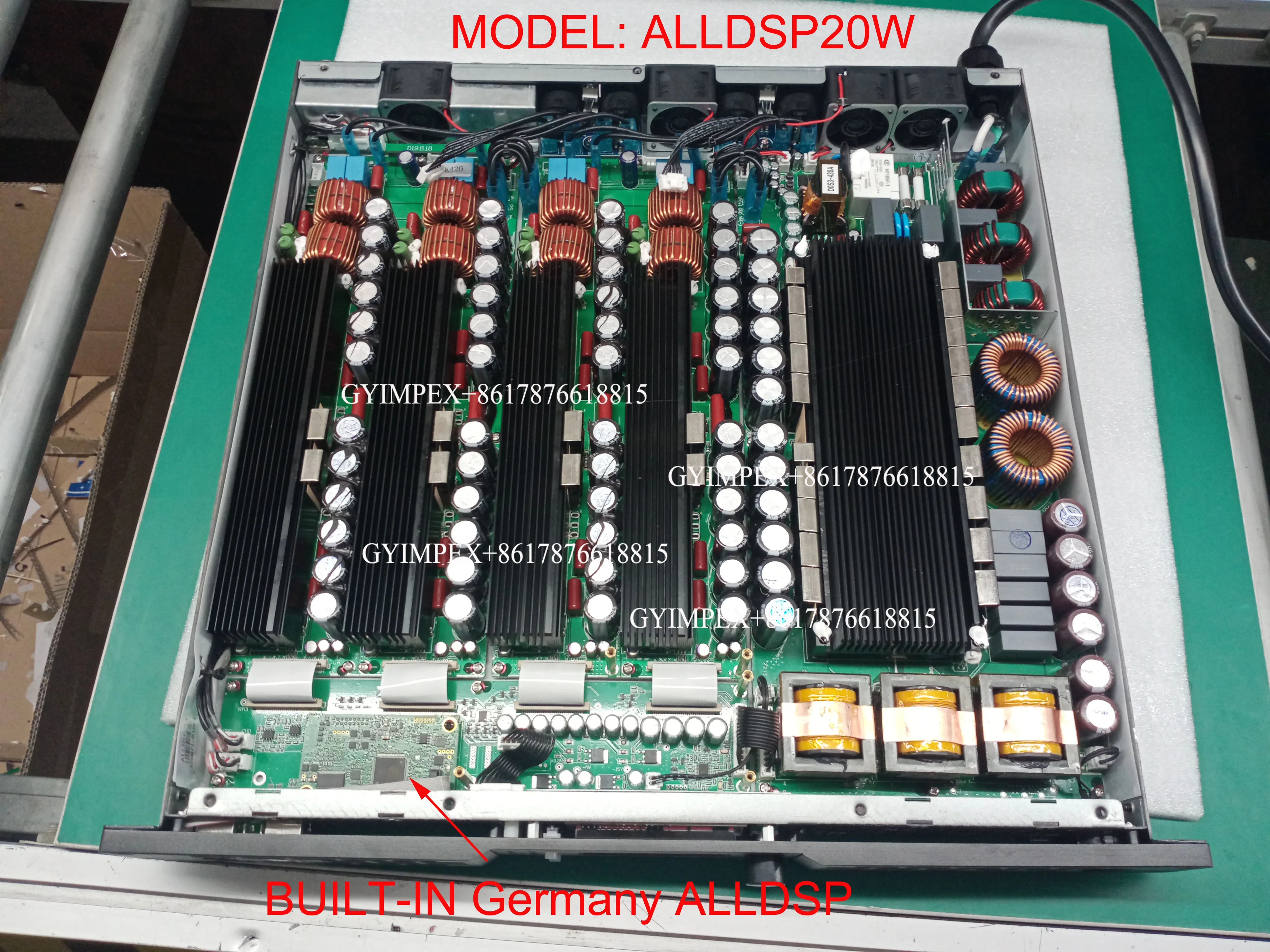

MODEL: ALLDSP20W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*2000W RMS
4Ω stereo power: 4*3600W RMS
2Ω stereo power: 4*4500W RMS
8Ω Bridge power: 2*7200W RMS
4Ω Bridge power: 2*9000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13.5kg
-------------------------------------------------------------------------------------------------------------------------------
MODEL: ALLDSP16W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*1600W RMS
4Ω stereo power: 4*2800W RMS
2Ω stereo power: 4*3500W RMS
8Ω Bridge power: 2*5600W RMS
4Ω Bridge power: 2*7000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13.2kg
--------------------------------------------------------------------------------------------------------------------
MODEL:ALLDSP10W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*1000W RMS
4Ω stereo power: 4*1700W RMS
2Ω stereo power: 4*2900W RMS
8Ω Bridge power: 2*3400W RMS
4Ω Bridge power: 2*5800W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13kg
MODEL: ALLDSP30W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*3000W RMS
4Ω stereo power: 4*5000W RMS
2Ω stereo power: 4*6800W RMS
8Ω Bridge power: 2*10000W RMS
4Ω Bridge power: 2*11000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13.7kg
----------------------------------------------------------------------------------------------------------------------------
MODEL: ALLDSP20W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*2000W RMS
4Ω stereo power: 4*3600W RMS
2Ω stereo power: 4*4500W RMS
8Ω Bridge power: 2*7200W RMS
4Ω Bridge power: 2*9000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13.5kg
-------------------------------------------------------------------------------------------------------------------------------
MODEL: ALLDSP16W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*1600W RMS
4Ω stereo power: 4*2800W RMS
2Ω stereo power: 4*3500W RMS
8Ω Bridge power: 2*5600W RMS
4Ω Bridge power: 2*7000W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13.2kg
--------------------------------------------------------------------------------------------------------------------
MODEL:ALLDSP10W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Galliumnitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*1000W RMS
4Ω stereo power: 4*1700W RMS
2Ω stereo power: 4*2900W RMS
8Ω Bridge power: 2*3400W RMS
4Ω Bridge power: 2*5800W RMS
Dimensions W * D * H (mm): 482*460*44mm
net weight: 13kg
----------------------------------------------------------------------------------------------------------------------
MODEL: ALLDSP13W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Gallium
nitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*1300W RMS
4Ω stereo power: 4*2400W RMS
2Ω stereo power: 4*3000W RMS
8Ω Bridge power: 2*4800W RMS
4Ω Bridge power: 2*6000W RMS
Dimensions W * D * H (mm): 482*440*37mm
net weight: 12.1kg
---------------------------------------------------------------------------------------------------------
If you need our amplifiers with dante, please contact us.
Product features
1) The DSP processor module and operating software are designed and produced in Germany, and Dante function is optional.
2) Application:Suitable for bars, line arrays, performances and sports venues, etc.
3) Gain signal routing, frequency division, delay, pressure limit, FIR and other parameter debugging functions
4) Nitriding technology, high efficiency, low heat generation, reliable and durable, strong resistance to breakdown, clean tone, low distortion
5) Stable and reliable 2ohm drive capability, perfect for line array speaker system ,full range speaker,floor monitor and
subwoofer bass
6) 80V-296V wide voltage operation, can adapt to harsh grid environment
7) Low loss, energy saving and environmental protection, saving operating costs
8) Using active PFC and soft switching technology, the power correction factor can reach up to 099, with strong adaptability
9) With ROSH, CE certification, national quality inspection report, energy conservation and environmental protection certification passed 3C tests
10) Using international high-end manufacturers components, first-class quality, advanced and reliable circuits, complete various protection circuits
11) Through strict reliability, environmental adaptability, user experience testing, extremely strict production process, 24 hours Products aging test, sound test before packing.

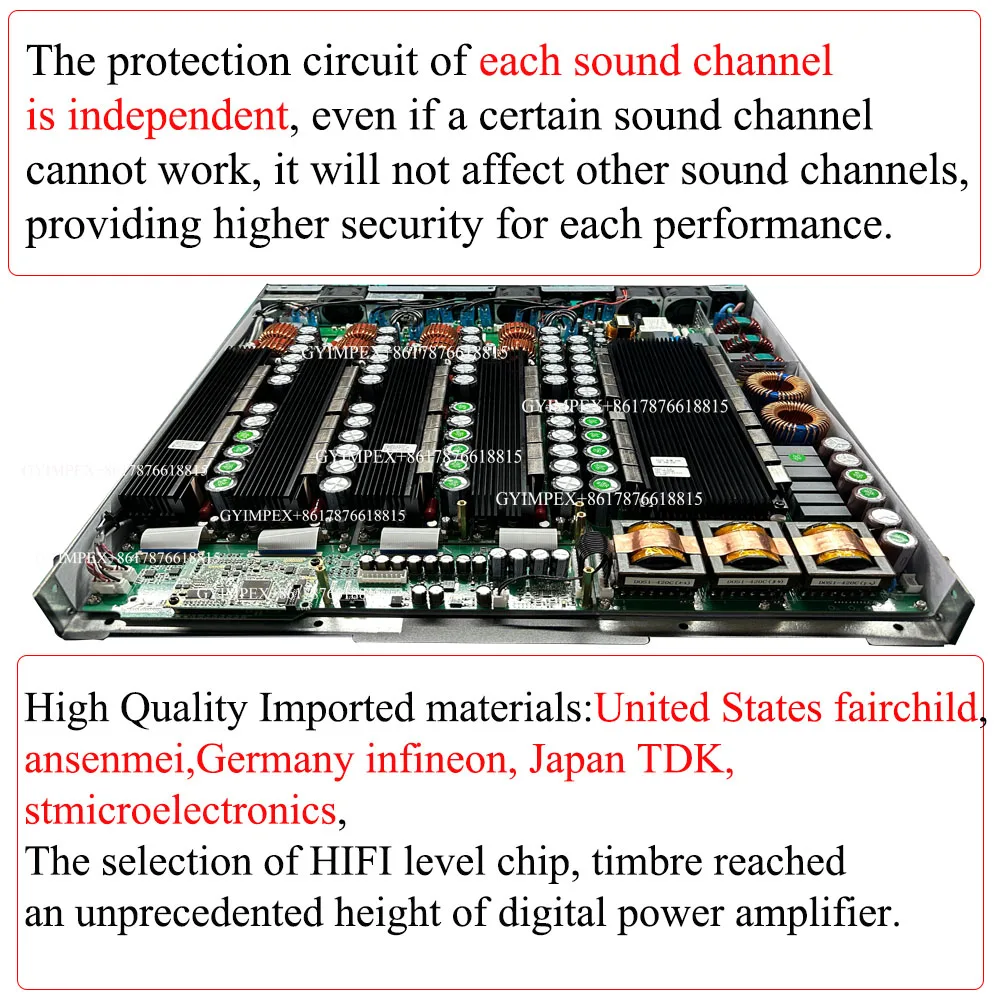

12) The protection circuit of each sound channel is independent, even if a certain sound channel cannot work, it will not affect other sound channels providing higher security for each performance.
13) High Quality Imported materials: United States Fairchild asenmei , Germany Infineon , Japan TDK stmicroelectronics .The selection of HIFI level chip, timbre reached an unprecedented height of digital power amplifier
MODEL: ALLDSP13W
1U digital 4 channel power amplifier with PFC;built-in Germany ALLDSP sbd44mk2 DSP module, with new technology GaN(Gallium
nitride)
Stable @2ohm high quality Version
8Ω Stereo power: 4*1300W RMS
4Ω stereo power: 4*2400W RMS
2Ω stereo power: 4*3000W RMS
8Ω Bridge power: 2*4800W RMS
4Ω Bridge power: 2*6000W RMS
Dimensions W * D * H (mm): 482*440*37mm
net weight: 12.1kg
---------------------------------------------------------------------------------------------------------
If you need our amplifiers with dante, please contact us.
Product features
1) The DSP processor module and operating software are designed and produced in Germany, and Dante function is optional.
2) Application:Suitable for bars, line arrays, performances and sports venues, etc.
3) Gain signal routing, frequency division, delay, pressure limit, FIR and other parameter debugging functions
4) Nitriding technology, high efficiency, low heat generation, reliable and durable, strong resistance to breakdown, clean tone, low distortion
5) Stable and reliable 2ohm drive capability, perfect for line array speaker system ,full range speaker,floor monitor and
subwoofer bass
6) 80V-296V wide voltage operation, can adapt to harsh grid environment
7) Low loss, energy saving and environmental protection, saving operating costs
8) Using active PFC and soft switching technology, the power correction factor can reach up to 099, with strong adaptability
9) With ROSH, CE certification, national quality inspection report, energy conservation and environmental protection certification passed 3C tests
10) Using international high-end manufacturers components, first-class quality, advanced and reliable circuits, complete various protection circuits
11) Through strict reliability, environmental adaptability, user experience testing, extremely strict production process, 24 hours Products aging test, sound test before packing.
12) The protection circuit of each sound channel is independent, even if a certain sound channel cannot work, it will not affect other sound channels providing higher security for each performance.
13) High Quality Imported materials: United States Fairchild asenmei , Germany Infineon , Japan TDK stmicroelectronics .The selection of HIFI level chip, timbre reached an unprecedented height of digital power amplifier
Detailed Images
