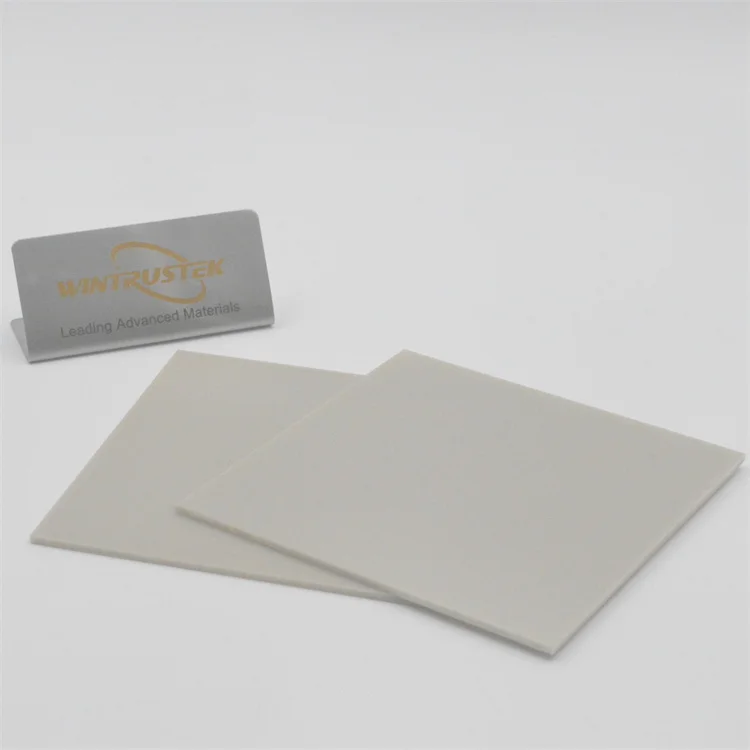

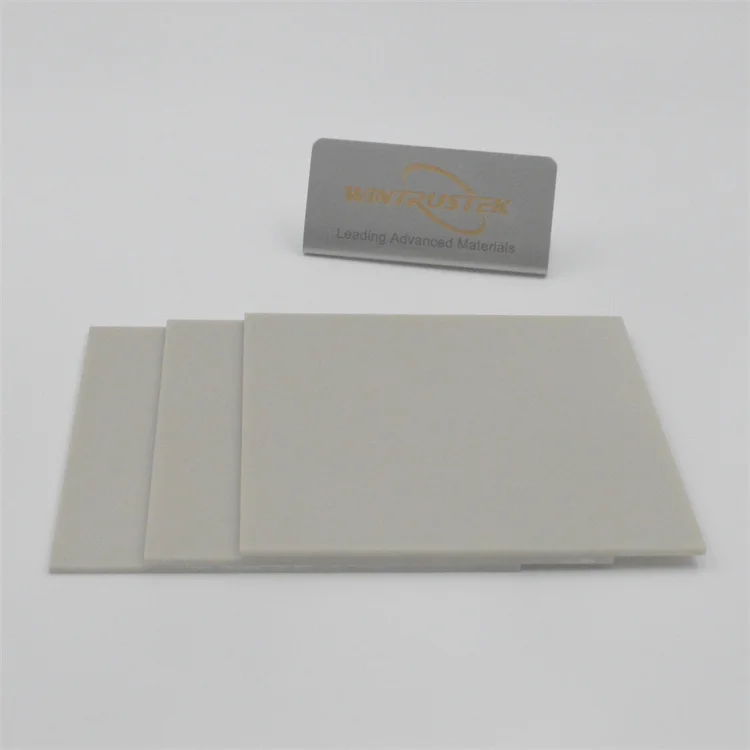

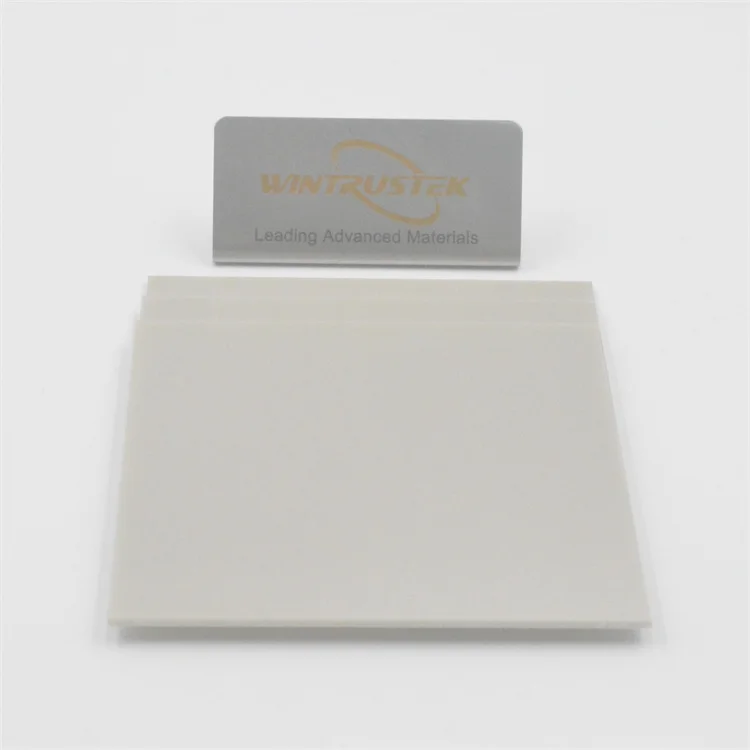

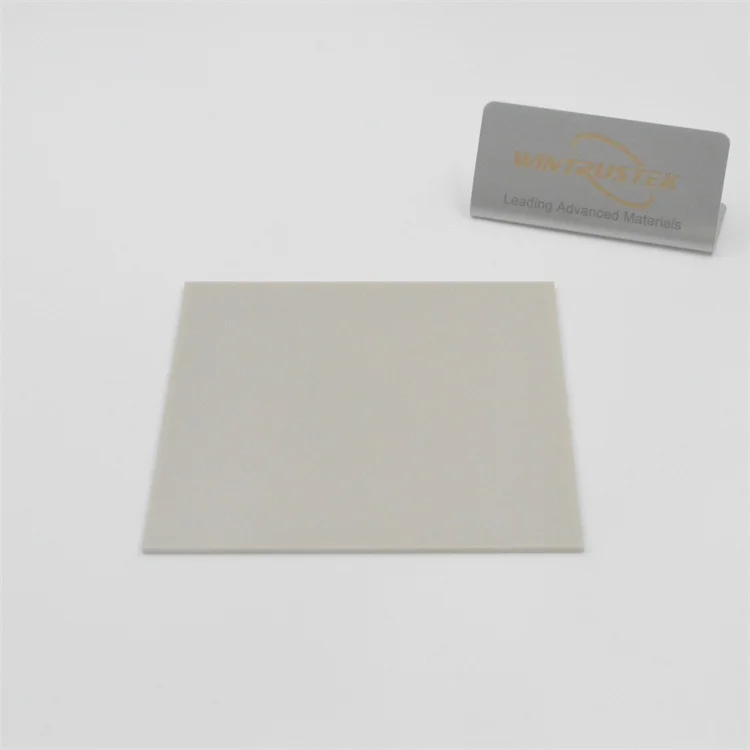

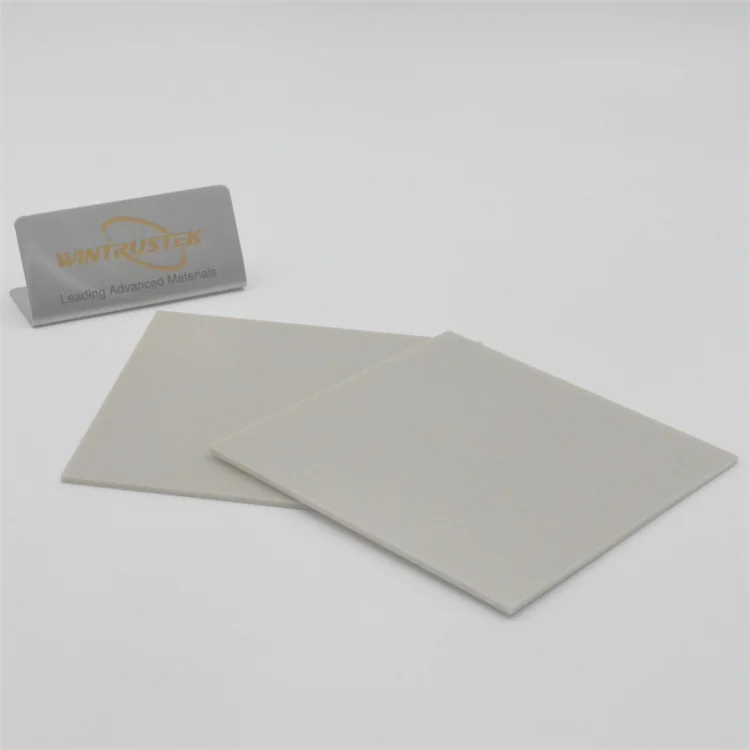

Aluminium Nitride Ceramic Substrate AlN Board Plate
- Category: >>>
- Supplier: Xiamen Wintrustek Advanced Materials Co. Ltd.
Share on (1600973756874):
Product Overview
Description
Product Description
| - Product Name: | Electrical Insulation / Aluminium Nitride / AlN Ceramic Substrate / Board / Plate |
| - Material: | Aluminum Nitride / AlN |
| - Typical Characteristics: | 1. Very High Thermal Conductivity 2. Good Electrical Insulation 3. Corrosion Resistance 4. Good Flatness |
| - Typical Applications: | 1. Power Electronic Device 2. High Brightness LED 3. Communication Device |
Material Properties
| Properties / Material | 96% Alumina | AlN |
| Density (g/cm3) | 3.6 | 3.3 |
| Color | White | Grey |
| Dielectric Strength (KV/mm) | ≥17 | ≥17 |
| Dielectric Constant (1MHz) | 10.6 | 8.9 |
| Volume Resistivity (@20°C, Ω.cm) | ≥1014 | ≥1014 |
| Thermal Conductivity (@20°C, W/mk) | ≥24 | ≥175 |
| Thermal Expansion Coefficient (10-6/°C) | 6.5-8.0 | 4.8 |
Flexural Strength (MPa) | ≥350 | ≥450 |
Regular Size
| Length x Width (mm) | Thickness (mm) | ||||
2'' x 2'' (50.8 x 50.8) | 3'' x 3'' (76.2 x 76.2) | 4'' x 4'' (101.6 x 101.6) | 4.5'' x 4.5'' (114.3 x 114.3) | 5'' x 5'' (127 x 127) | 0.385 |
| 0.5 | |||||
| 0.635 | |||||
| 1.0 | |||||
| Diameter (mm) | Thickness (mm) |
| Φ16 Φ19 Φ20 Φ26 Φ30 Φ35 Φ40 Φ45 Φ50 Φ52 Φ60 Φ75 Φ80 | 1.0 |
| 1.2 | |
| 1.5 | |
| 2.0 | |
| 2.5 |
Product Show
Production Process
Buying Guides
In your inquiry, please provide as detailed imformation as you can for our evaluation.
1. Material:
If you are not sure what exact material you need, please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.
2. Drawing:
Please make sure the drawing is clear with all of your technical requests to get our offer at the soonest.
3. Quantity:
The last but not the least, don't forget to tell us the quantity so that we can quote our best price.
