HAVC system air compressor pressure sensor with factory price
- Category: >>>
- Supplier: Shanghai Zhaohui Pressure Apparatus Co. Ltd.
Share on (1600973809648):
Product Overview
Description
Product Description

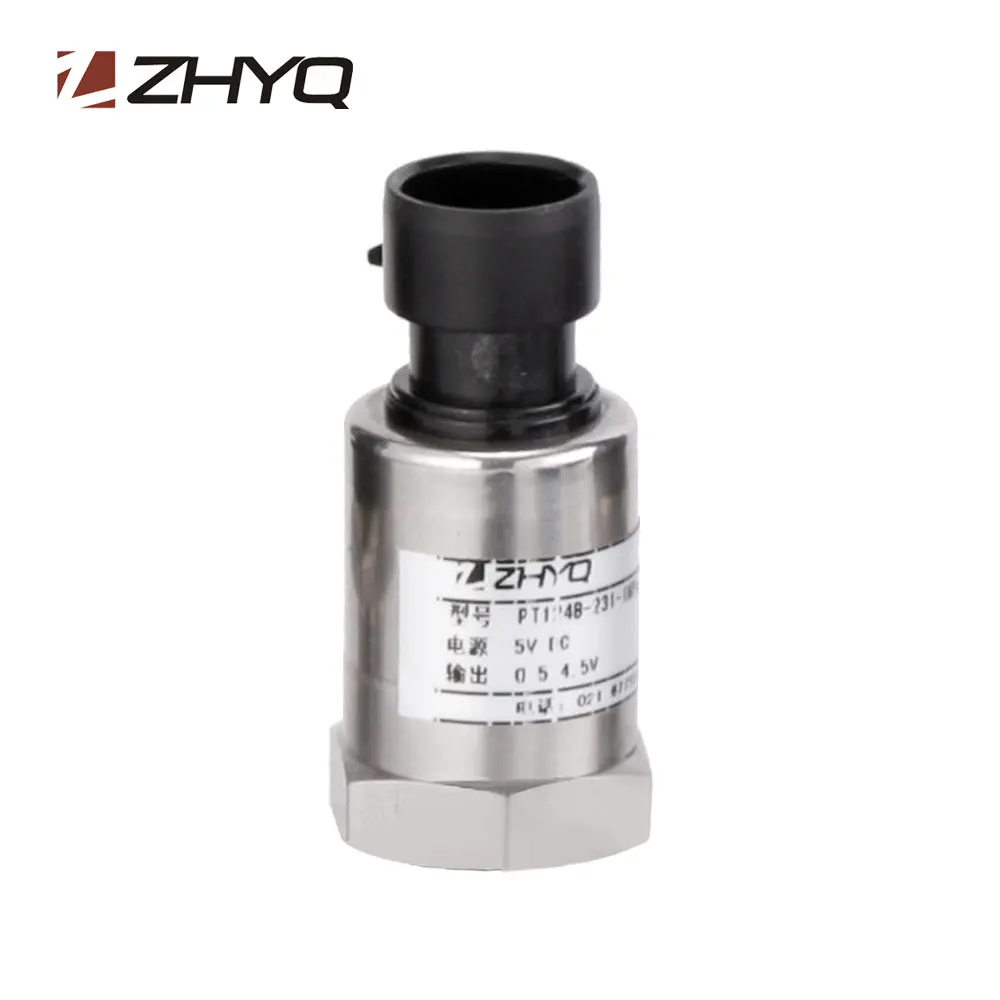

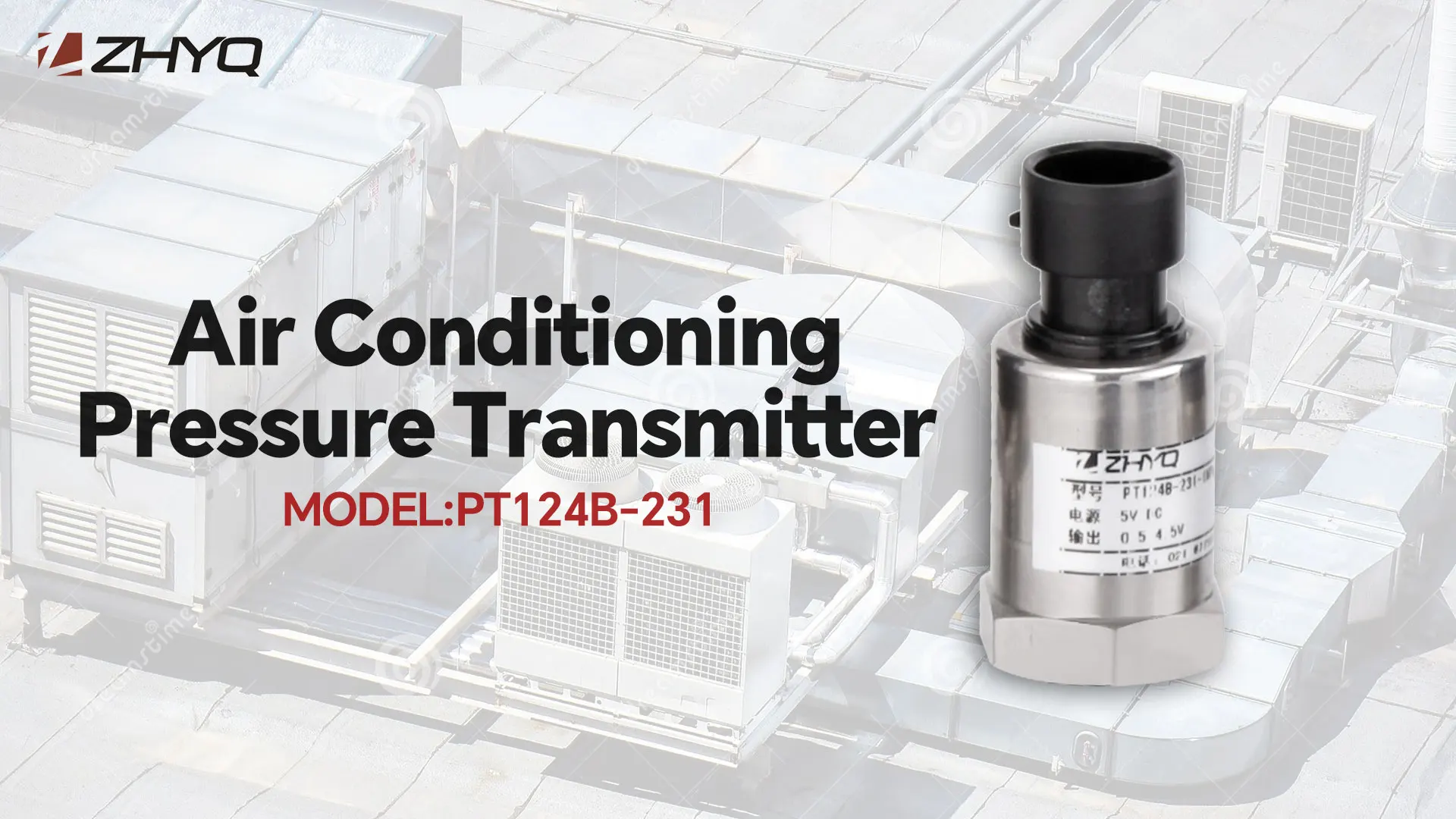

Membrane Cavity Type Melt Pressure Transmitter
1. The PT124B 231 series HVAC system pressure sensor adopts diffused silicon or ceramic piezoresistive sensor chip,
2. Compact configuration, easy to install, and special valve needle design for lead pressure port, perfect electrical performance and long-term stability
3. It's the idea choice for the air-condition and compressor pressure measuring and controlling.
2. Compact configuration, easy to install, and special valve needle design for lead pressure port, perfect electrical performance and long-term stability
3. It's the idea choice for the air-condition and compressor pressure measuring and controlling.
Specification
Name | HVAC system pressure sensor |
Range | 0….1bar to 0….600bar |
Accuracy | 0.5%FS ; 1%FS |
Linearity | 0.02%FS |
Reliability | 0.05%FS |
Output | 4-20mA, 0-5V, 0.5-4.5V,1-5V |
Input Voltage | 24(8-36V)DC |
Operating Temperature | -20°C~100°C |
Temperature Compensation | -10~65°C(Standard Compensation) |
Over Pressure | 150%FS |
Case material | Brass or 304SS |
Electric connection | Packed connector |
Process connection | G1/4, 1/4NPT,1/8NPT, 7/16-20UNF(Optional) |
Features
1.Superior long term stability
2.Temperature compensated over wide range
3.Low power consumption
4.Excellent repeatability/Hysteresis
5.Special design for customer
6.Many OEM options
2.Temperature compensated over wide range
3.Low power consumption
4.Excellent repeatability/Hysteresis
5.Special design for customer
6.Many OEM options
Application
1.Laboratory test apparatus
2.Agricultural chemical equipment
3.Refrigeration and HVAC systems
4.Hydraulic pressure system
5.Gas tank pressure monitoring
6.Coolant pressure measuring
2.Agricultural chemical equipment
3.Refrigeration and HVAC systems
4.Hydraulic pressure system
5.Gas tank pressure monitoring
6.Coolant pressure measuring
Company Profile
ZHYQ found in 1999, is the leading professional manufacturer, Focus on the pressure, flow, temperature, liquid level and refractometer etc. The produces are widely used in the field of industrial process control, energy & electricity, hydrology, construction machinery, medical experiment, military equipment, plastic chemical fiber industry, Smart city construction,
Environmental protection chemical industry etc.
Environmental protection chemical industry etc.
FAQ
Q1. What is your terms of packing?
A: Generally, ZHYQ brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q2. What is your trade terms & payment terms can you accept?
A: Trade terms : EXW, FOB, CFR, CIF for your convenient Payment terms: 100% T/T or credit card or paypal advance before shipment
Q3. How about your delivery time?
A: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q4. What's your MOQ?
A: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q5. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q6. How long your quotation valid?
A: Our quotation valid for 12 months.
Q7. Can you accept OEM brand?
A: Yes, we can accept the OEM brand without extra charge.
Q8. How long is your product warranty?
A: 7 days replacement and 12 months repair free of charge for quality problem.
Q9. How delivery the goods ?
A: We can send goods by DHL, TNT, UPS, SF, EMS for freight prepaid, also canuse your own courier account to do the freight collect, just for your convenience.
Q10. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings
A: Generally, ZHYQ brand colorful cardboard boxes packing.OEM brandbrown cardboard boxes packing.
Q2. What is your trade terms & payment terms can you accept?
A: Trade terms : EXW, FOB, CFR, CIF for your convenient Payment terms: 100% T/T or credit card or paypal advance before shipment
Q3. How about your delivery time?
A: Generally, standard type : 6-7 working days after confirm the order.non-standard type: 8-10 working days after confirm the order.
Q4. What's your MOQ?
A: We have no MOQ demand, 1 piece for test purpose at first is acceptable.
Q5. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.
Q6. How long your quotation valid?
A: Our quotation valid for 12 months.
Q7. Can you accept OEM brand?
A: Yes, we can accept the OEM brand without extra charge.
Q8. How long is your product warranty?
A: 7 days replacement and 12 months repair free of charge for quality problem.
Q9. How delivery the goods ?
A: We can send goods by DHL, TNT, UPS, SF, EMS for freight prepaid, also canuse your own courier account to do the freight collect, just for your convenience.
Q10. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings
