900Mhz 20W GAN RF Power amplifier detect module for anti drone system autel mavic 3 counter fpv C-UAS djis countermeasure



1.The power amplifier uses domestic core key components and can operate normally at low temperatures of -40°C.


2.This document stipulates the radio frequency and monitoring technical indicators of the 900mhz 40W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.


3.This document applies to all aspects of product design, verification, production and quality inspection of the 900mhz 40W power amplifier module.












Product Description

Product Description








































Specification




















































Frequency



900mhz



Power



20W



Supply Voltage



DC 24-28V



Power Flatness



1-1.5dB



Input/Output VSWR



1.5dB



Supply Current



2.1-2.4A



Size



29.7*131*15.5mm



Weight



136 g



Operating Temperature



-20-80



RF Connector



SMA

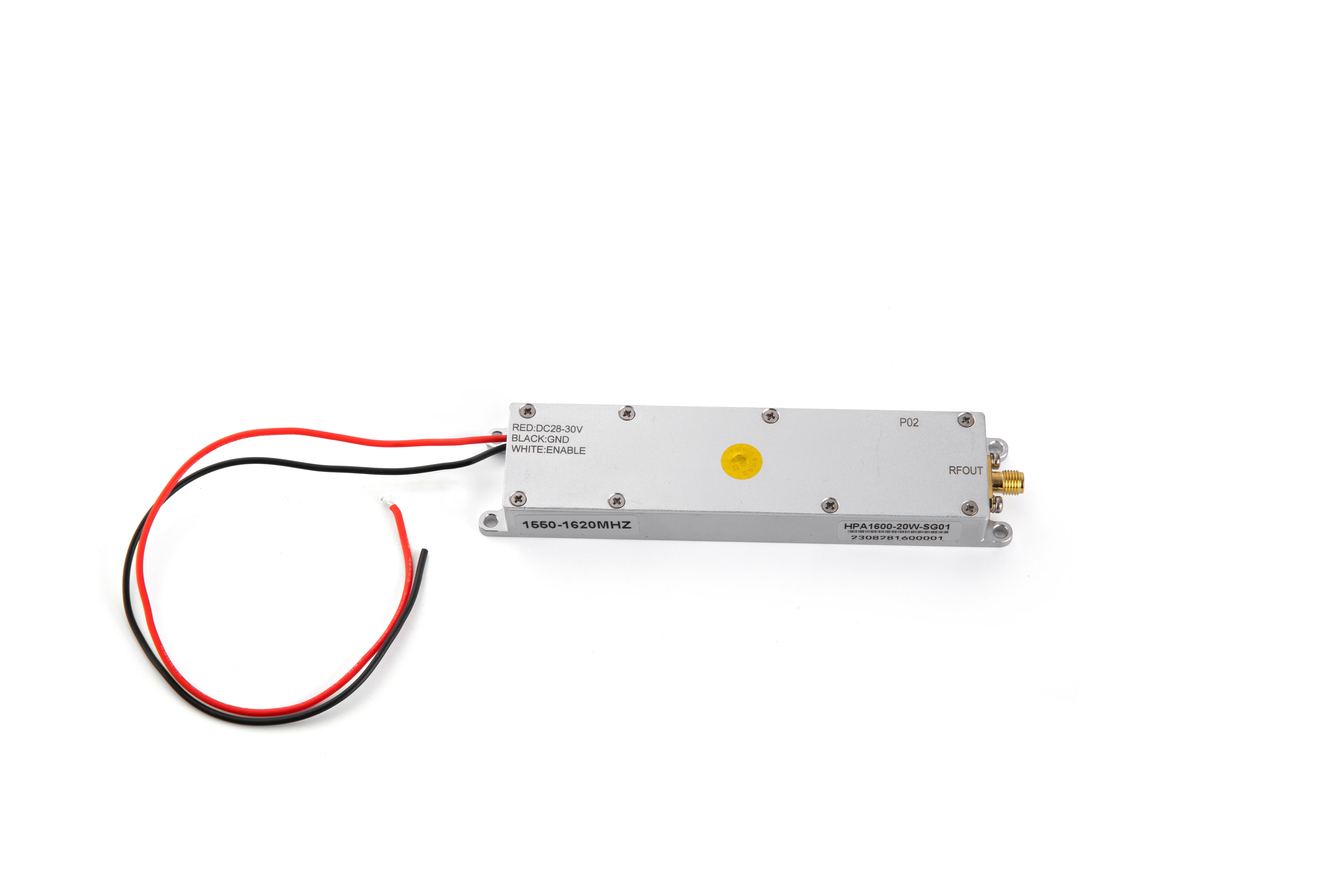

Connect line



RED:DC 24-28V


BLACK:GND


WHITE:ENABLE









Packing & Delivery

Packing & Delivery






Each one is packed in bubble bag and put into carton
