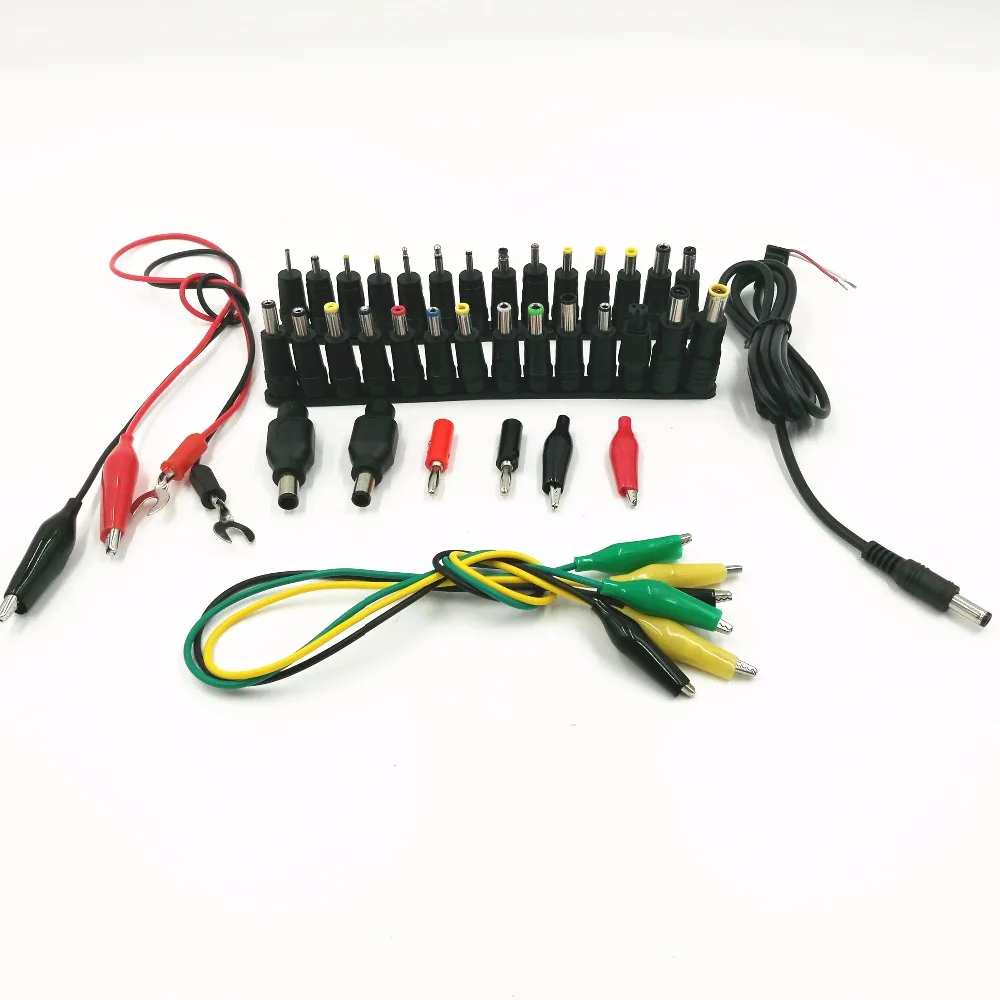

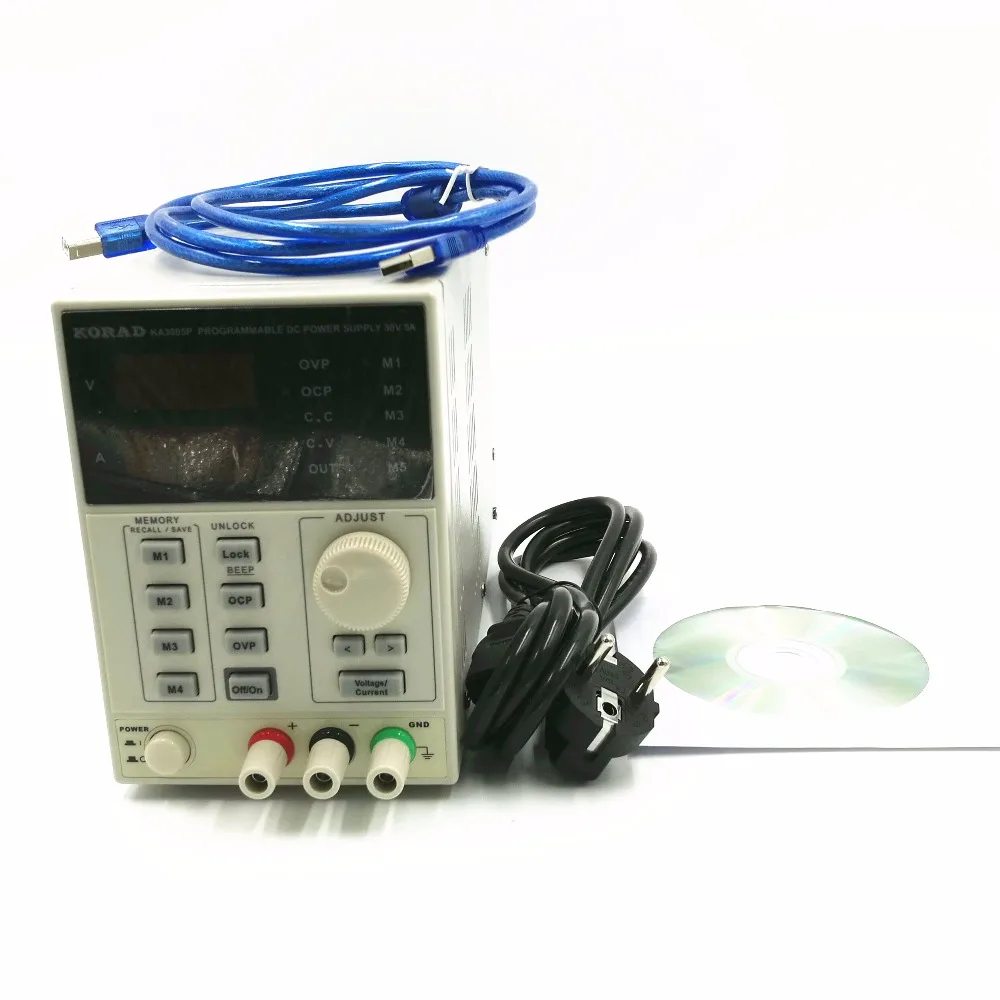

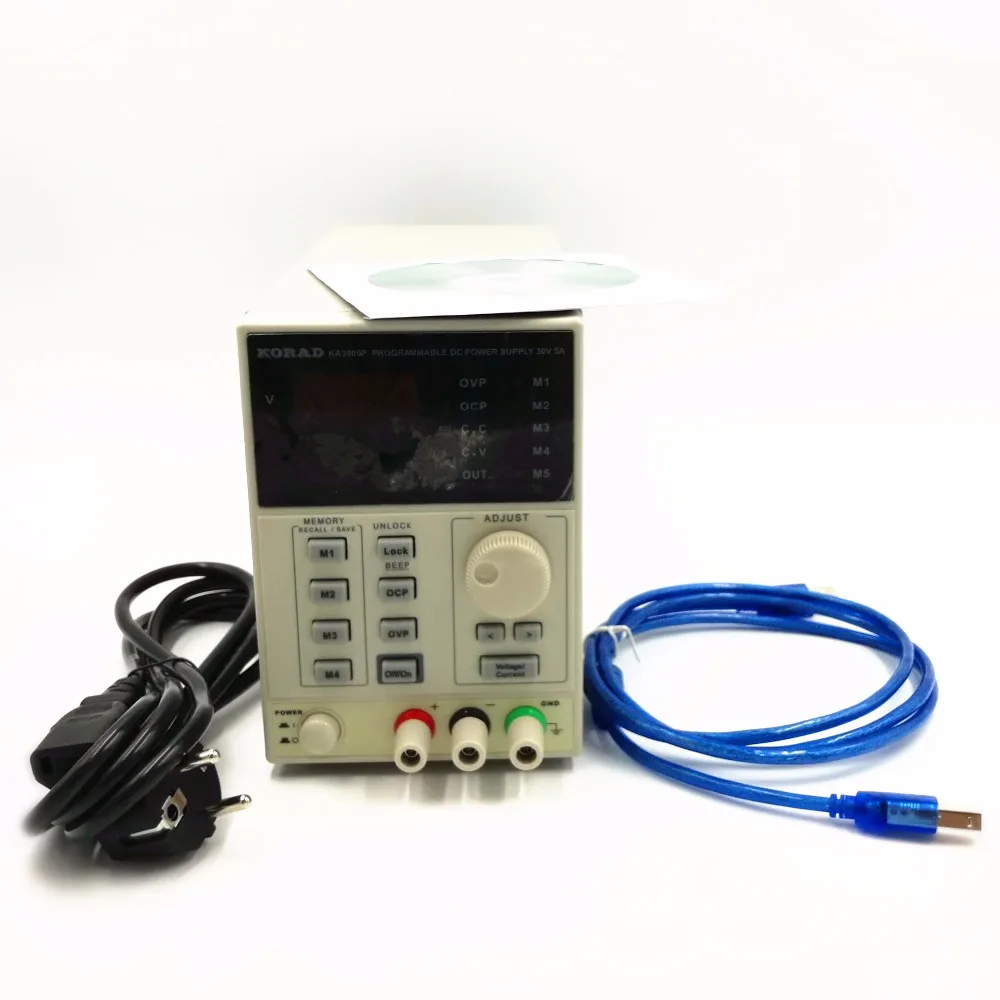

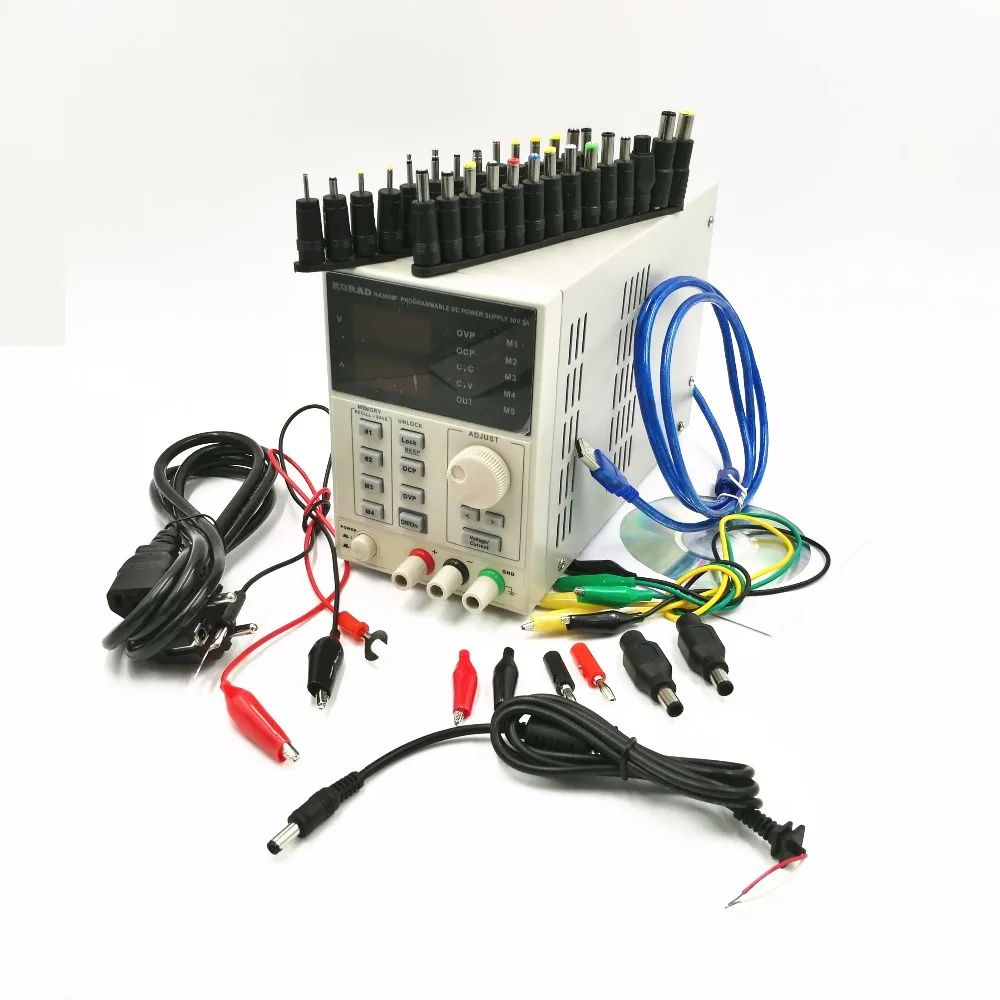

30V / 5A KA3005P Programmable Adjustable DC Linear Power Supply with USB and software 39 PCS notebook interface powe adapter

Product Description:

Features:

1. Simple and intuitive operation, can achieve fast and accurate selection of voltage and current
2. CV / CC constant voltage and constant current mode
3.
Highly reliable OCP, OVP, any set protection
4. Output switch control, power memory function
5. All digital control single DC power supply, built-in 5 groups of parameter storage
6. Low noise and ripple, keyboard lock to prevent misuse
7. Just press the recall and save button to call up a user stored data and save the user settings
8. Intelligent temperature control fan cooling

  Programmable power

10mV/1mA high accuracy and resolution

Low noise and ripple

CV / CC given voltage and constant current mode

The highly reliable OCP, OVP, any set protection

Built-in set of parameters stored

Output switch control

Power and memory function

Keypad lock to prevent misuse

USB data storage, and automatic control functions

Optional quota RS232, USB interface

Easily replace traditional digital power

Technical parameters:

Model
KA3005P

Voltage / current range
0-30V / 0-5A

Load regulation
: ≤ 0.01% +2 mV voltage / current: ≤ 0.1% +5 mA

Linear regulator
: ≤ 0.01% +3 mV voltage / current: ≤ 0.1% +3 mA

Set the resolution
Voltage: 10mV / current: 1mA

Setting accuracy (25  + - 5 )
: ≤ 0.5% +20 mV voltage / current: ≤ 0.5% +10 mA

Ripple (20hz-20M)
Voltage: ≤ 2mVrms / current: ≤ 5mArms

Temperature Coefficient
: ≤ 100ppm +10 mV voltage / current: ≤ 100ppm +5 mA

Readback resolution
Voltage: 10mV / current: 1mA

Readback temperature coefficient
Voltage: ≤ 100ppm +10 mv / current: ≤ 100ppm +5 mA

Reaction time (10% of the rated load)
Voltage: ≤ 100mS / current: ≤ 100mS

Operating environment
Indoor use

Altitude: ≤ 2000m

0 ~ 40 ambient temperature

≤ 80% relative humidity

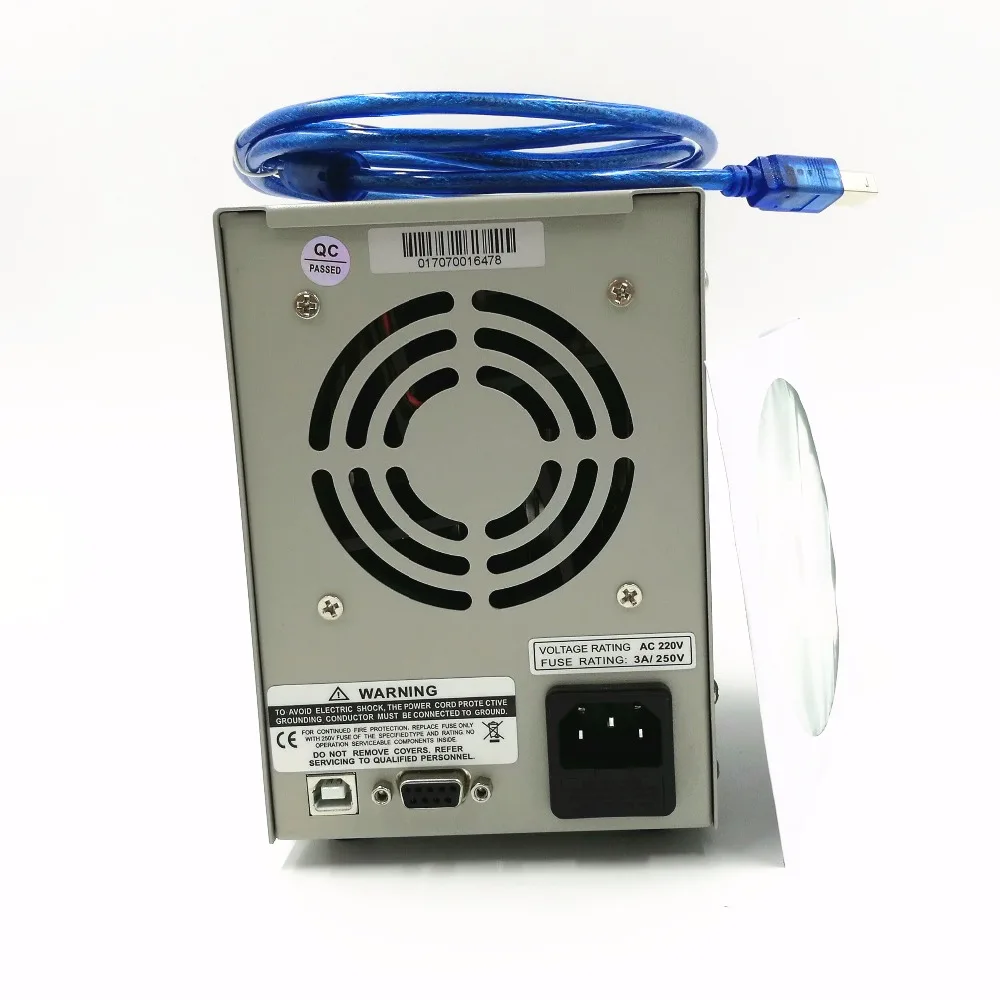

Interface
Optional interfaces: RS232, USB

Fitting
Manual, power cord (1.2M), USB Cable (1.2M)

Weight and dimensions
4.3 kg / 110 (W) X156 (H) X 260 (D)

Storage environment
Ambient temperature -10  - 70

≤ 70% relative humidity
