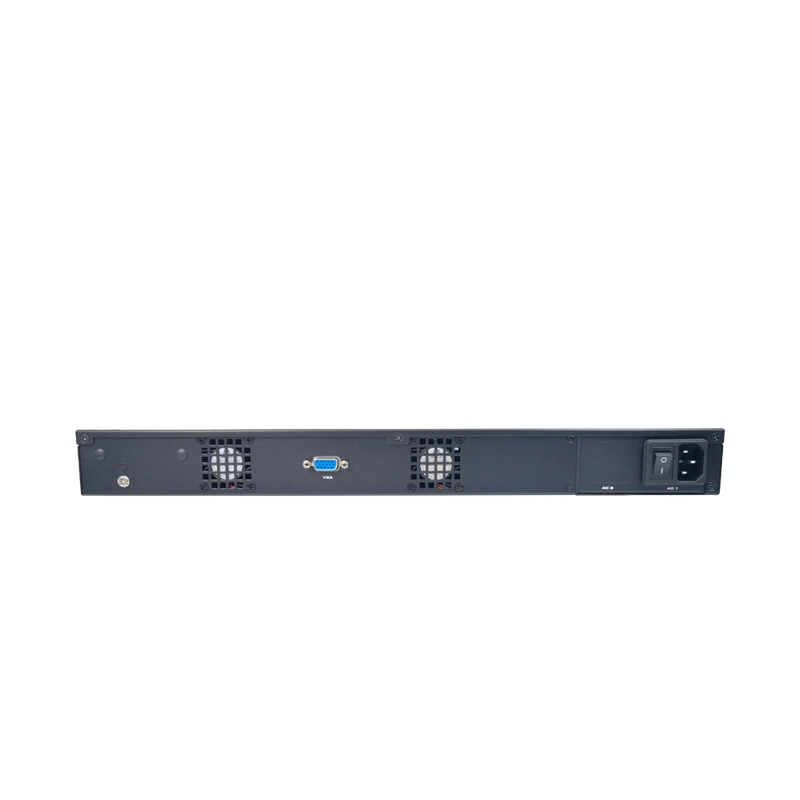

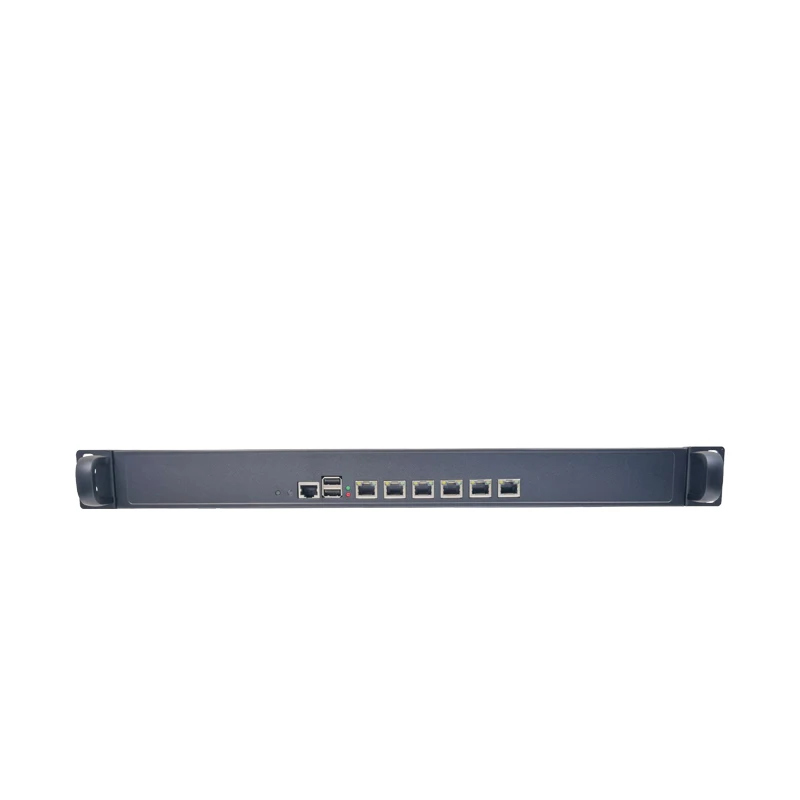

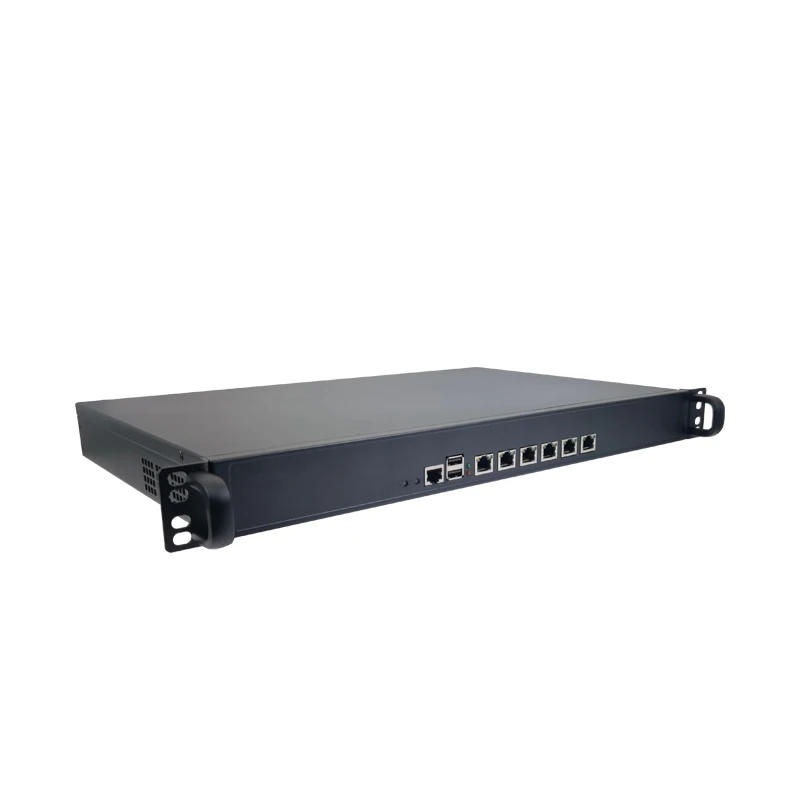

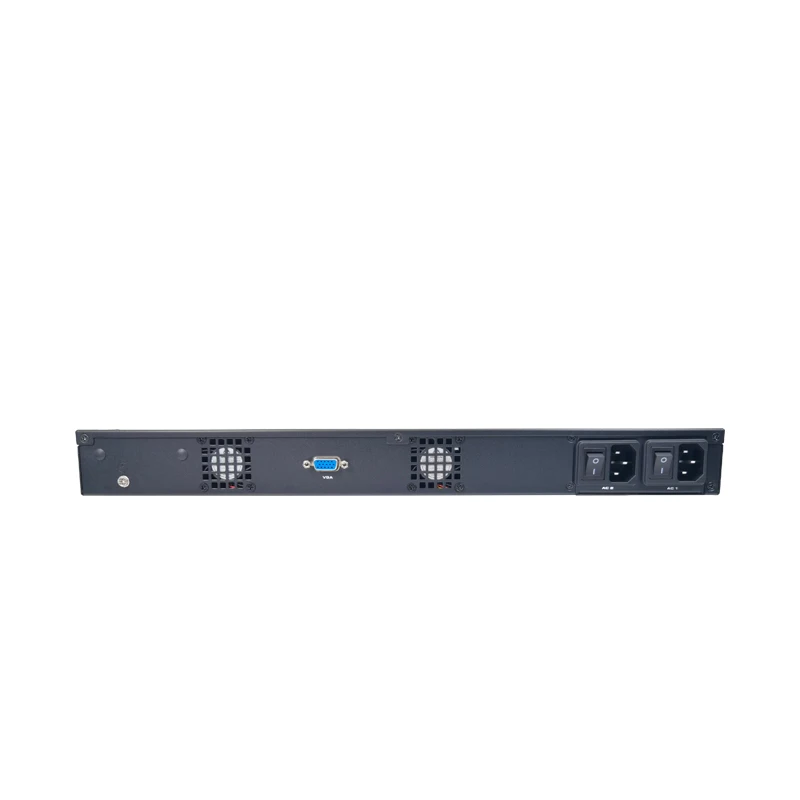

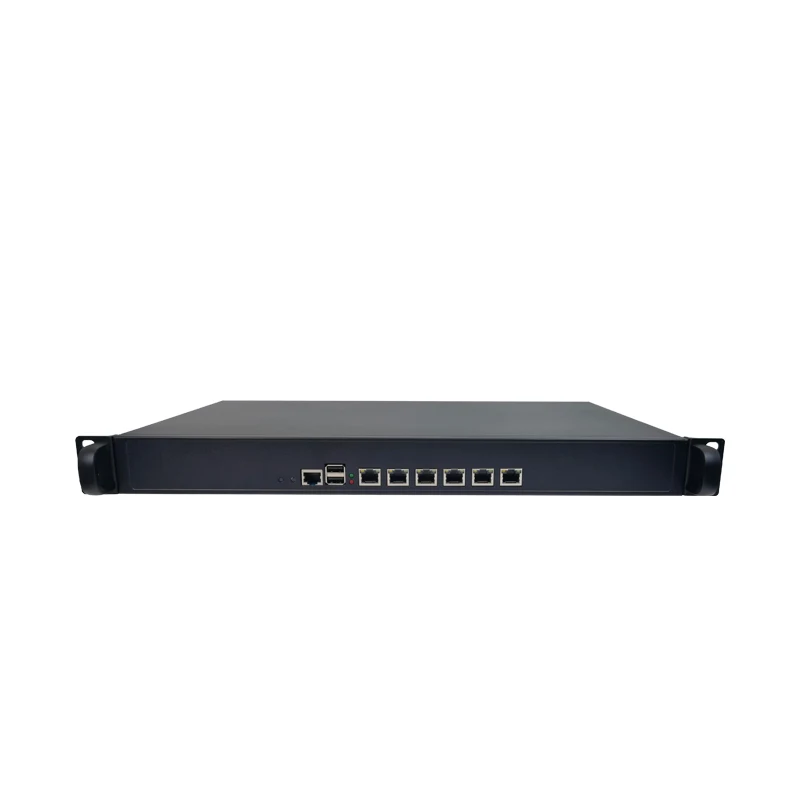

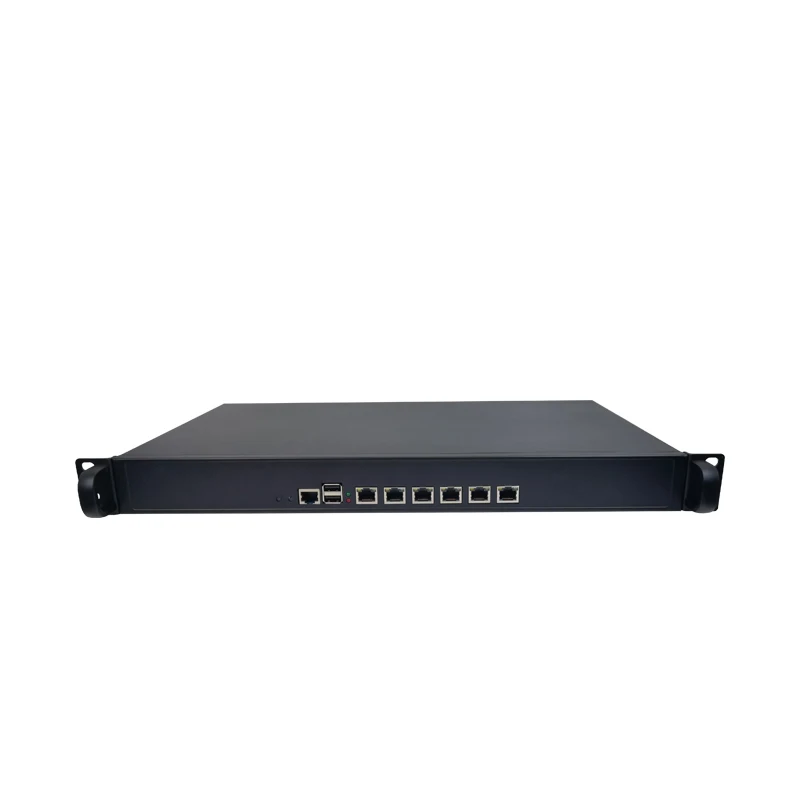

Jiu Hua 1 U rack mount Firewall J6412 Server Router Core 6 Ports Firewall Appliance Network Security Router



General | |
CPU | Intel® Celeron J6412/2.0GHz 4 core,Support Intel® Elkhart Lake CPU |
Chipset | SOC, TDP 10W |
Memory | 2*DDR4, 1*SO-DIMM, Up to 32GB |
Storage | 1*SATA 3.0 1*MSATA 3.0 |
Expansion Interface | 1*MINIPCIE(Wifi+BT,3G/4G) |
BIOS | AMI UEFI BIOS |
System | Windows 10, Linux |
I/O Interface | |
Ethernet | 6*IntelI225V,2.5Gbps PCIe Ethernet Controller, RJ45 |
Serial | 1*RS232 |
USB | 2*USB 3.0 |
GPIO | 8*Programmable GPIO |
Display | |
Display Interface | 1*VGA:max resolution up to 1920*1080@60Hz |
Mechanical & Environment | |
Function | Power on operation,Network wake up,PXE,Watchdog |

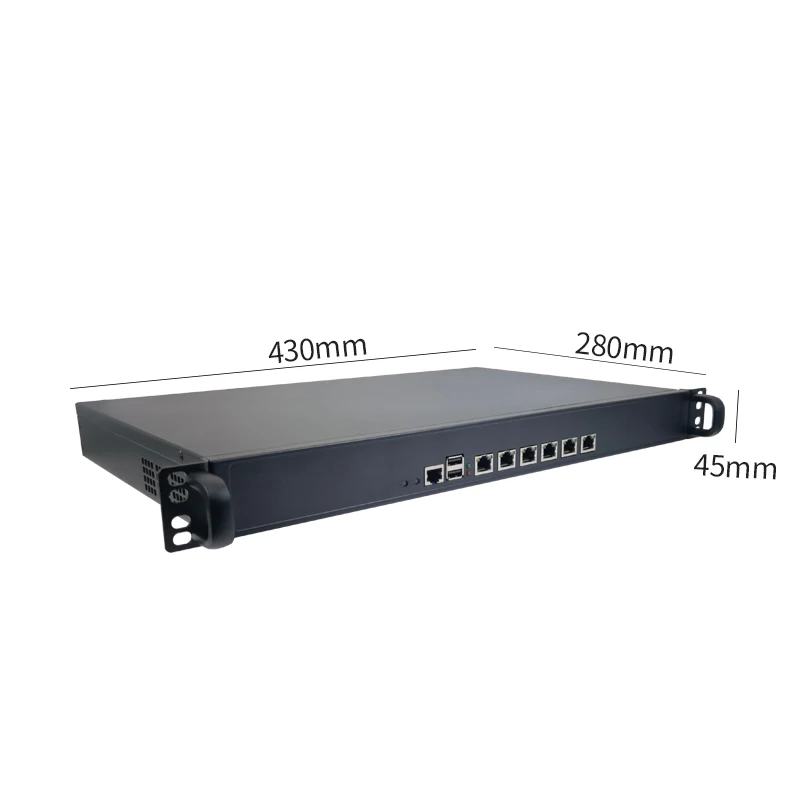

Product size | 430*280*45mm |
Package size(1PCS) | 330*265*90mm |
Package size(5PCS) |
|
Gross weight(1PCS) | 2kg |
Gross weight(5PCS) |
|
Colour | Black |
Power Input | DC 12V(5.5*2.5MM) |
Temperature | Operation: -10℃~60℃, Storage: -20℃~70℃ |
Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |






Q1: Can you put Our brand name (logo) on these products
A1: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Q2: What payment method do you accept?
A2: T/T,Western Union,PayPal.
Q3: What is the Minimum Order Quantity(MOQ)?
A3: We can sell one piece sample for your test.
Q4: What is the lead time of your products?
A4: 1-3 days for one sample, 15 working days for a large quantity.
Q5: Will it be ok to run the device 24 hrs a day 7 days a week, just like a desktop pc? will it be overheated?
A5: There's no problem with running the device 24/7. I've done it for about a month and have had no problems. Just set your monitor to sleep when you're not using the computer.
Q6: How does your factory do related quality control?
A6: Quality is top priority. We firstly check the motherboard quality after manufacturing, secondly check the computer before storage in warehouse and thirdly check before shipping out.
Q7: What’s the warranty of motherboard or MINI PC?
A7: Non-artificial damage,1 years warranty,the second year and the third year,
we can repair it free. but we will charge for the parts that need to change.
Q8: Are you a factory or trading company?
A8: We are the professional consumer electronics manufacturer which located in SHENZHEN, China
Q9: If we come to China, can you arrange the visiting to your factory?
A9: We warmly welcome and look forward to your visiting to our factory at any time.
"Quality assurance" is our eternal pursuit and promise. Welcome your any inquiry about
our products. We will try our best to help you.
