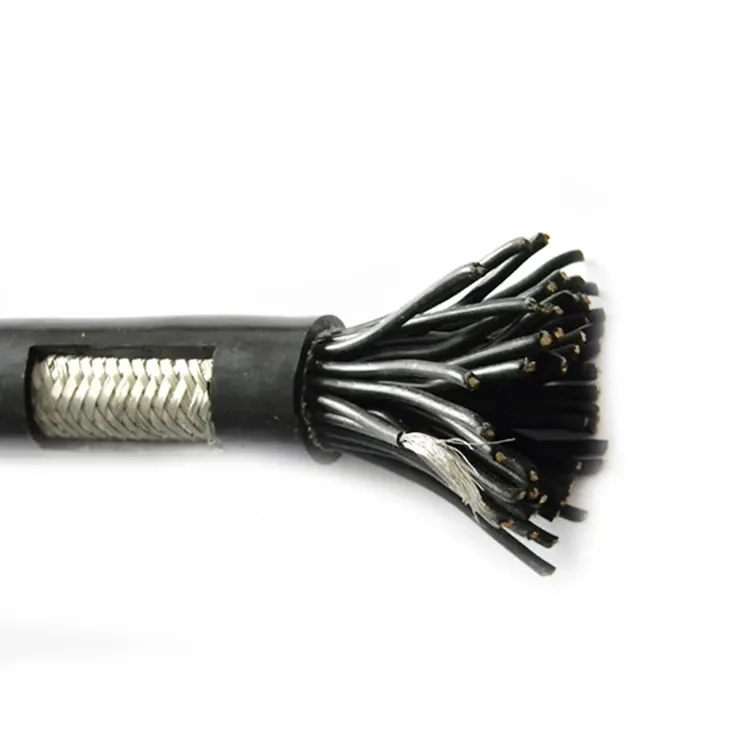

Steel tape armoured 7 core 1mm control cable
- Category: >>>
- Supplier: Zhengzhou Huadong Cable Co. Ltd.
Share on (1600974146366):
Product Overview
Description
Product Description
Flame Retardant ZR KVVRP RVV Fire Resistant RVV Flexible Control Cable
Application:
To be used as a termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and machineryConstruction:
Conductor Material : Copper
Insulation Material : PVC
Conductor Material : Copper
Insulation Material : PVC
Sheath Material : PVC
Working Temperature : -5 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
Working Temperature : -5 °C to 70 °C
Standard : IEC 60227,GB9330,BS,VDE or other standards
KVV Control Cable
4*1.0 mm
KVVR Control Cable
7*1.5 mm
KVV Control Cable
12*2.5 mm
KVVP3 Control Cable
12*1.5 mm
KVVP3 Control Cable
18*1.5 mm
KVVR Control Cable
24*1.5 mm
Type | Name | Application Site |
KVV | Copper conductor PVC insulated and sheathed control cable | For laying indoors, in trenches, and in ducts for the fixed installation |
KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened control cable | For laying indoors, in trenches, and in ducts for the fixed installation |
KVVP2 | Copper conductor PVC insulated and sheathed control cable with steel tape shied | For laying indoors, in trenches, and in ducts for the fixed installation |
KVV22 | Copper conductor PVC insulated and sheathed control cable with steel tape armoured | For laying indoors, in trenches, in ducts and in ground, able to with stand heavier mechanical force and for fixed installation |
KVVR | Copper conductor PVC insulated flexible control cable | For laying indoors, movable and flexible |
ZR-KVVP | Copper conductor PVC insulated & sheathed copper wire braiding screened flexible control cable | Fixed laying indoors with capability of moving and screening |
ZR-KVV | Copper conductor PVC insulated and sheathed flame retardant control cable | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
ZR-KVVP2 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape shield | For laying indoors, in trenches, in ducts and for fixed installation. the cable should be flame retardance |
ZR-KVV22 | Copper conductor PVC insulated and sheathed flame retardant control cable with steel tape armoured | For laying indoors, in trenches, in ducts and for fixed installation, the cable should be flame retardance and able to bear beavier extermal mechanical force and for fixed installation |
ZR-KVVR | Copper conductor PVC insulated and sheathed flame retardant flexible control cable | For laying indoors, and the cable should be flame-retardant flexible and movable |
Certifications
Company Profile
Zhengzhou Huadong Cable Co.,Ltd is an import and export trade company in Zhengzhou City, Henan province, China, which is a branch of Henan Huadong Cable Group. Our factory occupied 150,000 square meters, and specialize in overhead ABC cable, AAC, ACSR, AAAC,0.6-35KV power cable, control cables, welding cables, rubber cables, mining cables. We can provide standard cables with GB, IEC,BS, ICEA, ASTM, DIN, VDE and JIS standards. What's more, We can design cables according to your requirement. Now you can send the inquiry, leave your email, then our sales manager will send you quotation as soon as possible.
Cooperative Customer
Product packaging
FAQ
1.What is our payment term?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.What is the lead time?
The lead time usually is 10 – 30 working days.
3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.What is the lead time?
The lead time usually is 10 – 30 working days.
3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.
4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.
Please feel free to leave your requirement, We will reply you in 12 hours.
