New Energy Inverter Air Source Heat Pump R32 Swimming Pool Heat pump For Houses
- Category: >>>
- Supplier: Shandong Shenzhou Refrigeration Equipment Co. Ltd.
Share on (1600974199976):
Product Overview
Description
1.Heat exchanger 2.Heat pump 3.Primary hot water circuit 4.Thermostat
5.Gate valve 6.Check valve 7.Circulator 8. Secondary circuit (pool water)
9. Filter 10. Pump 11. From pool 12. Return pool
13. Waste
5.Gate valve 6.Check valve 7.Circulator 8. Secondary circuit (pool water)
9. Filter 10. Pump 11. From pool 12. Return pool
13. Waste
MULTIPLE PROTECTION FUNCIONS
WIDE APPLICATIONS

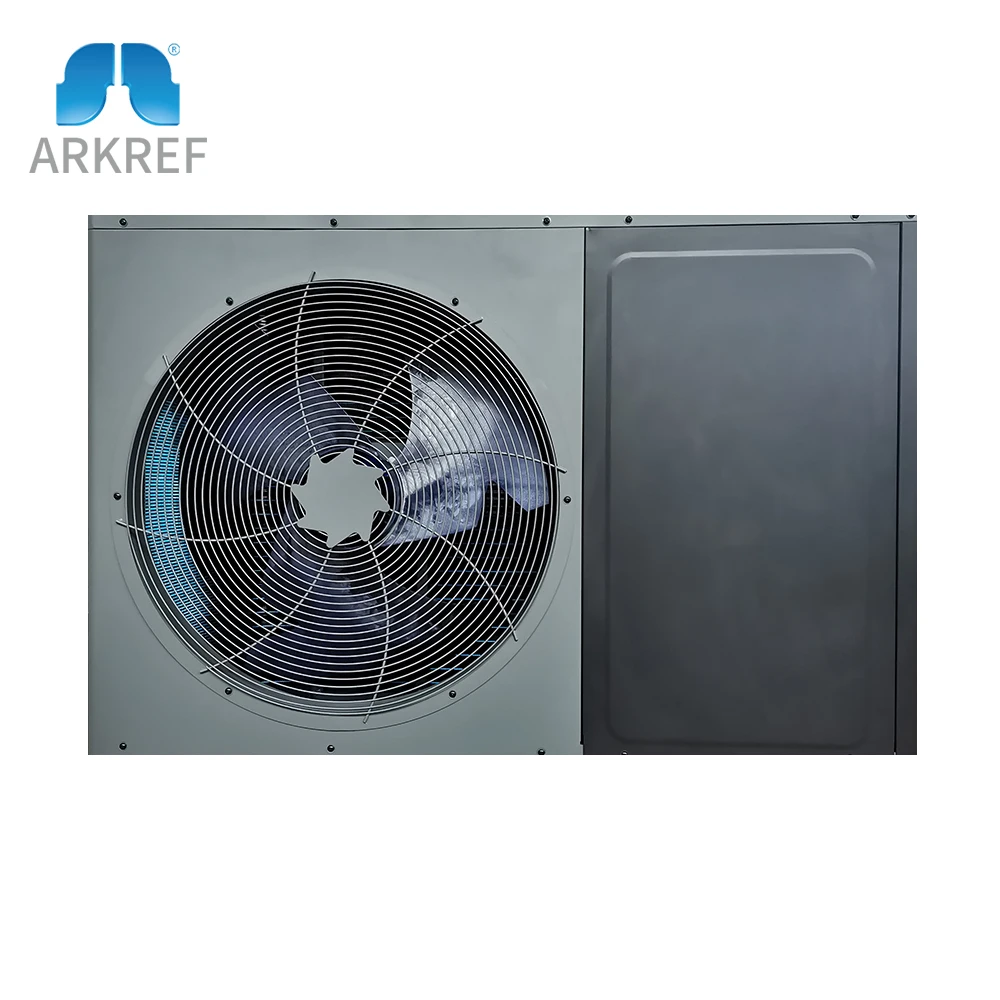

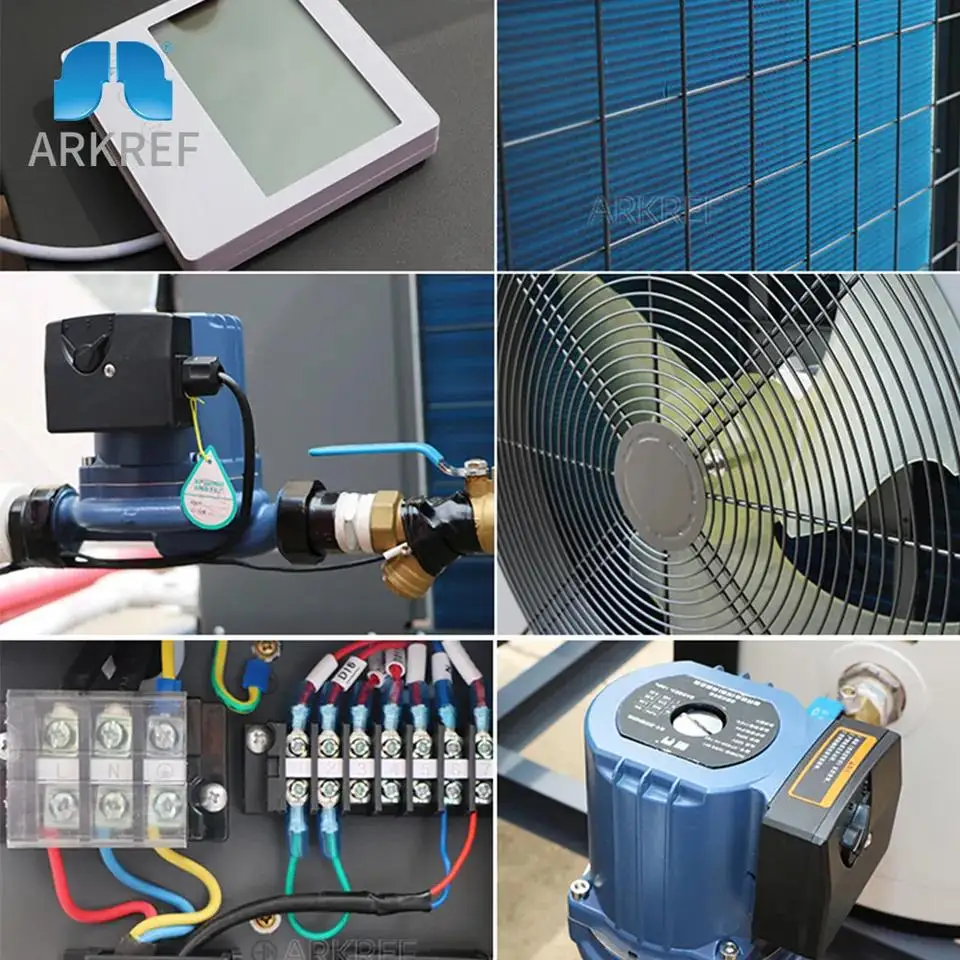

Product display
Model | SZ-BKR015YBP | SZ-BKR02YBP | SZ-BKR03YBP | SZ-BKR04YBP | SZ-BKR05YBP | SZ-BKR06YBP | SZ-BKR08YBP | |||||||||
Heating at air temperature(DB /WB) 24°C/19°C , water inlet/outlet temperature 26/28°C | ||||||||||||||||
Heating capacity | 5.6 kw | 7 kw | 9 kw | 12 kw | 18 kw | 22 kw | 30 kw | |||||||||
Power input | kw | 1.04 kw | 1.27 kw | 1.64 kw | 2.03 kw | 3.05 kw | 3.73 kw | 5.08 kw | ||||||||
COP | w/w | 5.4 w/w | 5.5 w/w | 5.5 w/w | 5.9 w/w | 5.9 w/w | 5.9 w/w | 5.9 w/w | ||||||||
Heating at air temperature(DB /WB) 15°C/12C , water inlet/outlet temperature 26/28°C | ||||||||||||||||
Heating capacity | kw | 4.5 kw | 6 kw | 7.2 kw | 9.5 kw | 14 kw | 18 kw | 24 kw | ||||||||
Power input | kw | 0.96 kw | 1.28 kw | 1.53 kw | 1.98 kw | 2.92 kw | 3.75 kw | 5 kw | ||||||||
COP | w/w | 4.7 w/w | 4.7 w/w | 4.7 w/w | 4.8 w/w | 4.8 w/w | 4.8 w/w | 4.8 w/w | ||||||||
Heating at air temperature(DB /WB) 7°C/6°C , water inlet/outlet temperature 26/28°C | ||||||||||||||||
Heating capacity | kw | 3.7 kw | 4.9 kw | 5.6 kw | 7.4 kw | 11 kw | 15 kw | 19 kw | ||||||||
Power input | kw | 0.97 kw | 1.26 kw | 1.44 kw | 1.9 kw | 2.82 kw | 3.85 kw | 4.87 kw | ||||||||
COP | w/w | 3.8 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | 3.9 w/w | ||||||||
Power supply | V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | 220-240/1/50 V/Ph/Hz | ||||||||
Compressor type | N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary N/A | Rotary | ||||||||
Compressor quantity | pc | 1 PC | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
Fan type | N/A | Axial N/A | Axial | Axial | Axial | Axial | Axial | Axial | ||||||||
Fan quantity | pc | 1 PC | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
Refrigerant | R410A/R32 N/A | |||||||||||||||
Refrigerant control | N/A | Electronic expansion valve N/A | ||||||||||||||
Defrosting | N/A | Four way valve reverse defrosting N/A | ||||||||||||||
Heat Exchanger | N/A | PVC Titanium heat exchanger N/A | ||||||||||||||
Water connection | Inch | 2 Inch | 2 | 2 | 2 | 2 | 2 | 2 | ||||||||
Sound level | 50 dB(A) | 50 dB(A) | 50 dB(A) | 52 dB(A) | 52 dB(A) | 52 dB(A) | 52 dB(A) | |||||||||
Max water temperature | ℃ | 40 ℃ | 40 | 40 | 40 | 40 | 40 | 40 | ||||||||
Outdoor temp.Operating limits | Min: -15°C/ Max: +43℃ | |||||||||||||||
Degree of protection | N/A | IPX4 N/A | ||||||||||||||
Net Weight | kg | 55 kg | 58 kg | 62 kg | 78 kg | 80 kg | 110 kg | 120 kg | ||||||||
