Hydrogeological Geophysical Well Logging System Borehole Logger for Geophysical Exploration

Product Overview

Description

Hydrogeological Geophysical Well Logging System Borehole Logger for Geophysical Exploration



Borehole Well Logging Tool proved invaluable for quickly and accurately determining fresh water producing formations from borehole logs in underground water exploration from 100m to 3000m depth borehole.



Well logging tool portable, easy use instruments have proven  quickly identifying fresh water producing formations from well logs. it enables the driller or geologist/geophysicist to check the critical characteristics of a potential well that are unobtainable by other methods.



The well logging equipment equipped with a basic combination gamma and electric logging probe positively identify fresh water formations, precisely delineate their thickness, and reveal the undesirable intrusion of clay lenses or brackish water.

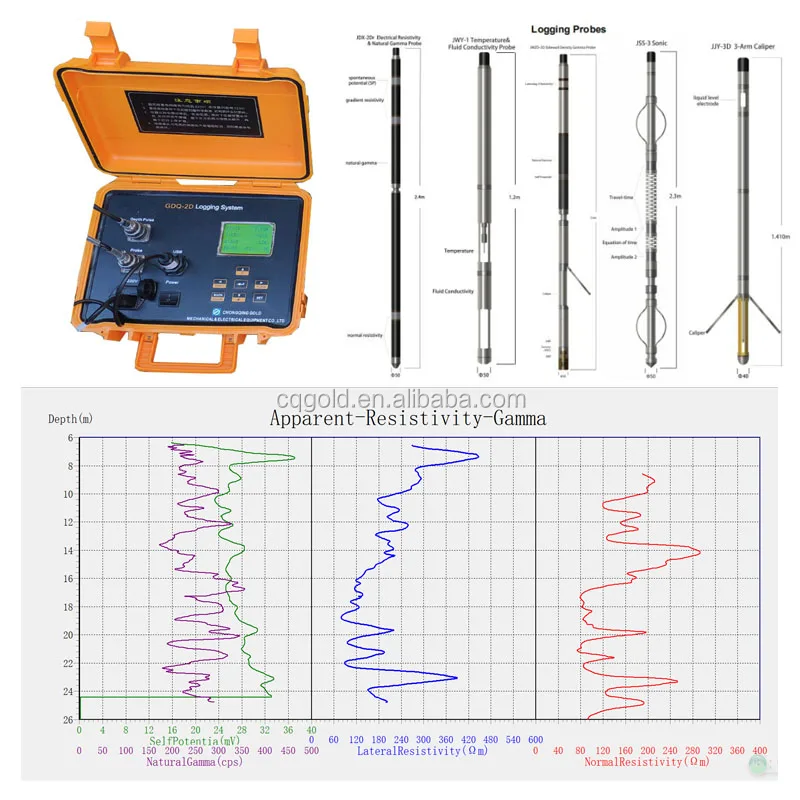

Probes for Hydrogeological Geophysical Well Logging System Borehole Logger for Geophysical Exploration



No.	Name	Parameters
1	Resistivity and gamma	SP, apparent resistivity, natural gamma
2	Combined porbe	16/64 resistivity, SP, natural gamma, temperature, SPR
3	RES and IP	16/64 resistivity, SP, IP
4	Three component magnetometer	Magnetic Tri-component
5	Temperature and fluid resistivity	Temperature, fluid resistivity
6	Thee arm	Diameter, liquid level
7	Sonic	Travel time, equation of time, amplitude
8	Combined density	Density, laterolog resisitivity, natural gamma, sp,caliper
9	Neutron and gamma	Natural gamma, porosity

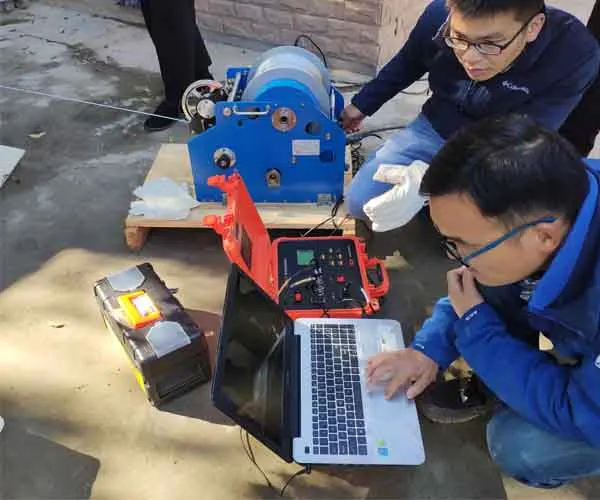

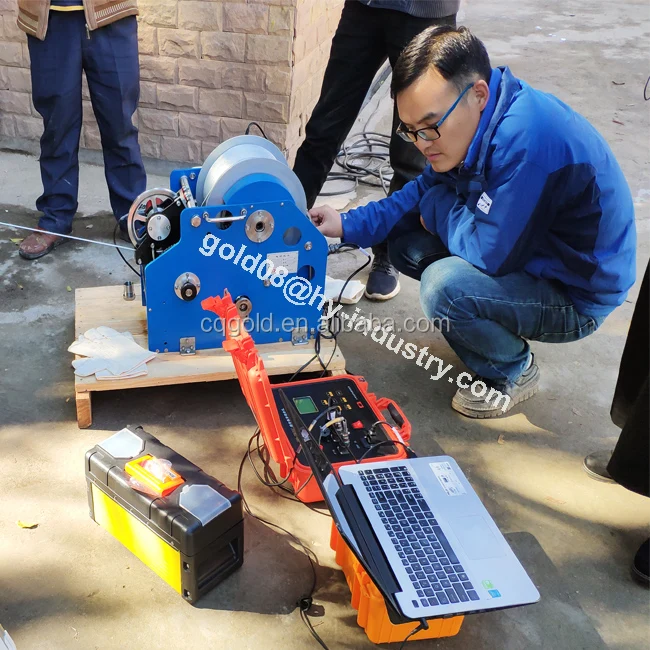

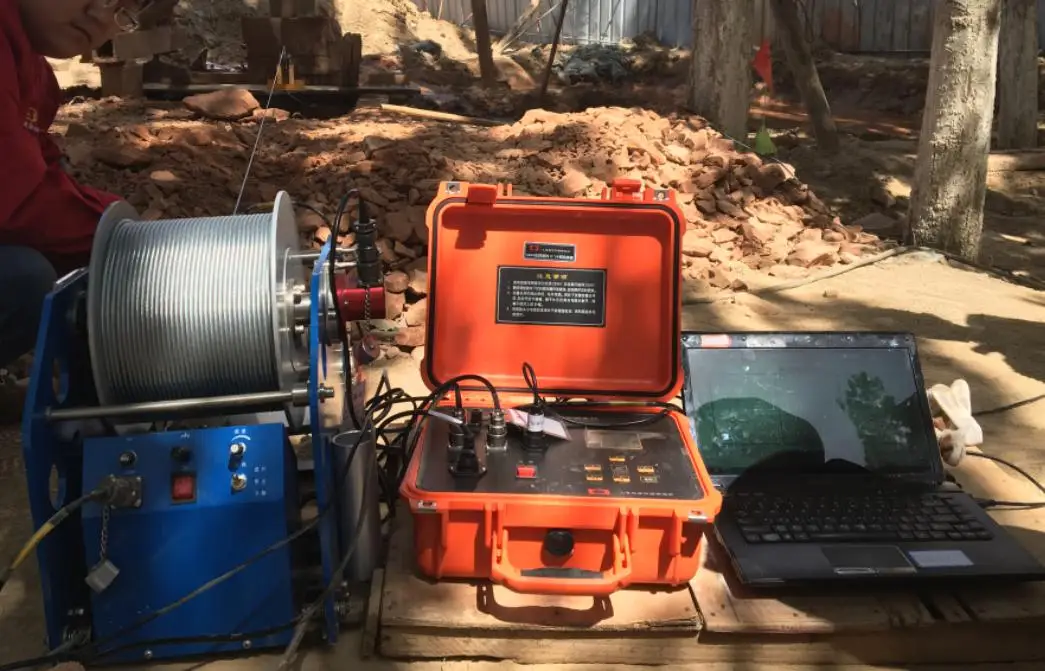

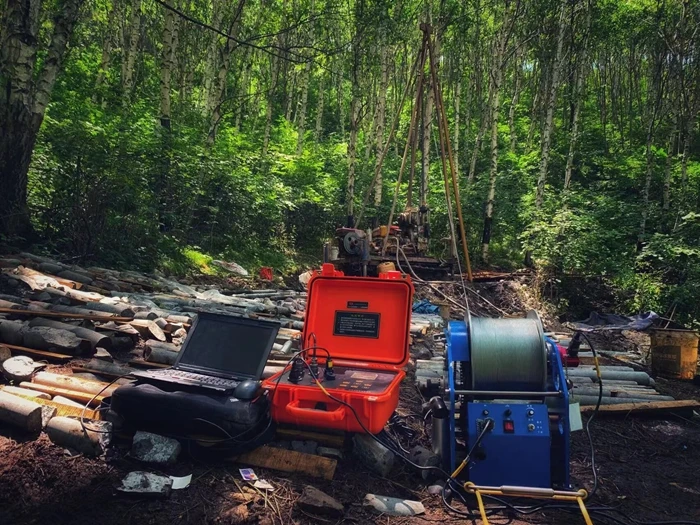

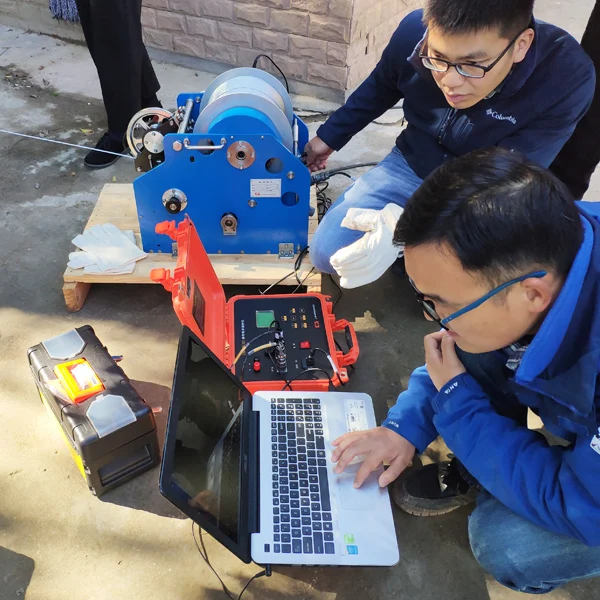

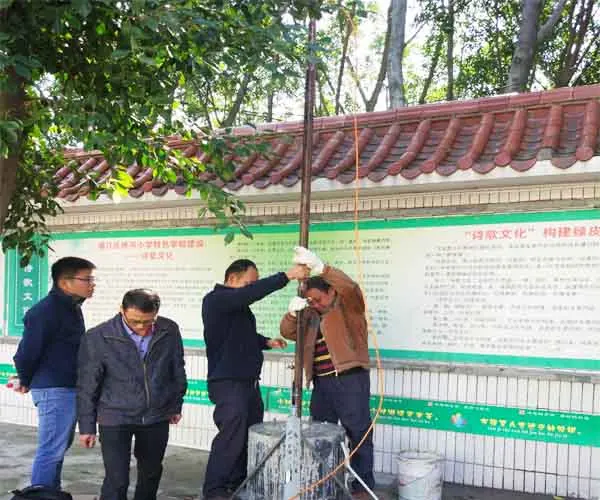

Borehole Well Logging At Site







Support and Services:

We provide technical support and service for our Geophysical Instrument. Our team of specialists is available to help you with any issues you may have. We offer a range of services, including:

• Installation and setup


• Troubleshooting and diagnostics


• Software updates and upgrades


• Hardware repairs and replacements

We also provide training on the use of the instrument, and ongoing support as needed. If you have any questions or concerns, please contact us. We are here to help.
