Post Tension Equipment High Quality Easily Processes Cutting Galvanized Spiral Duct Pipe Making

Product Overview

Description

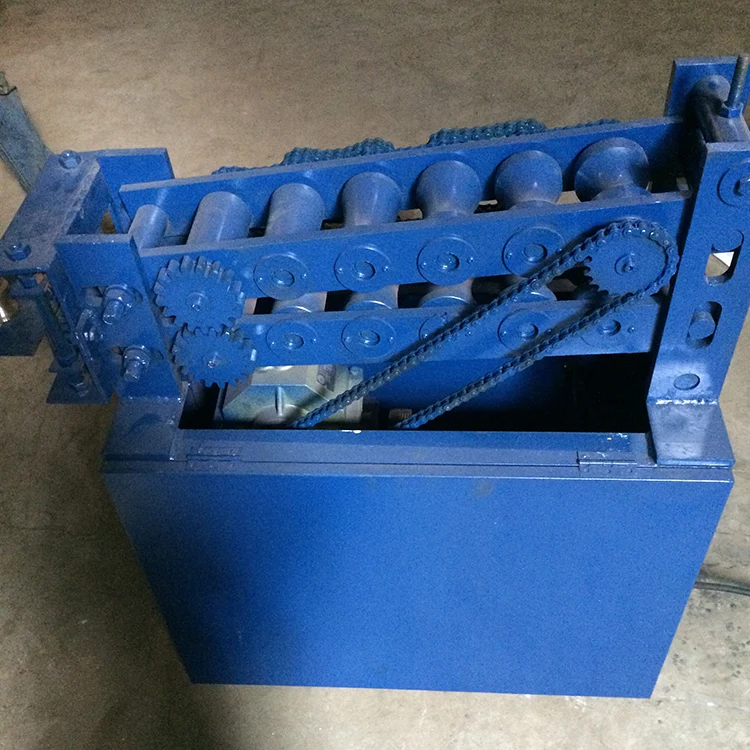

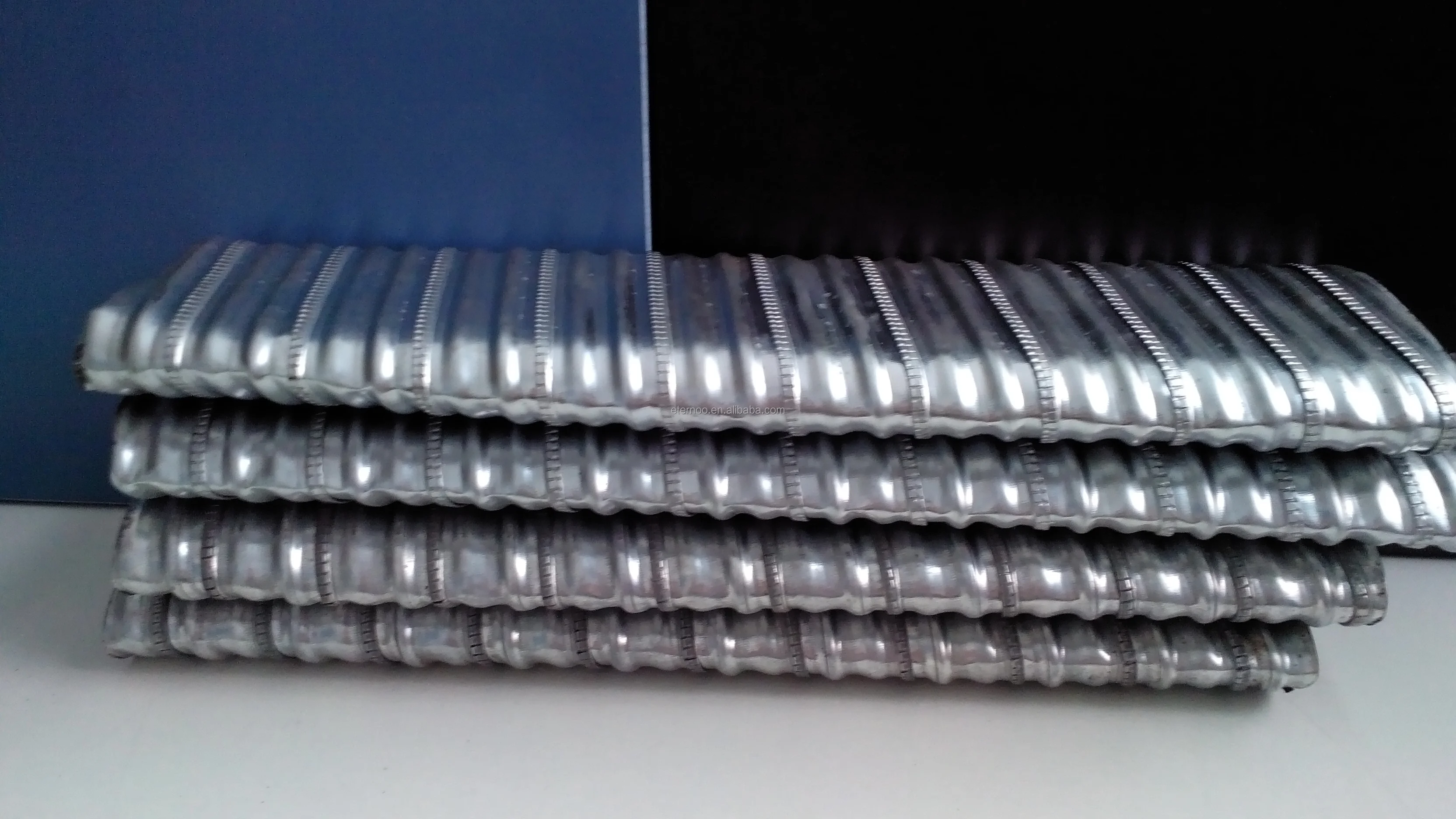

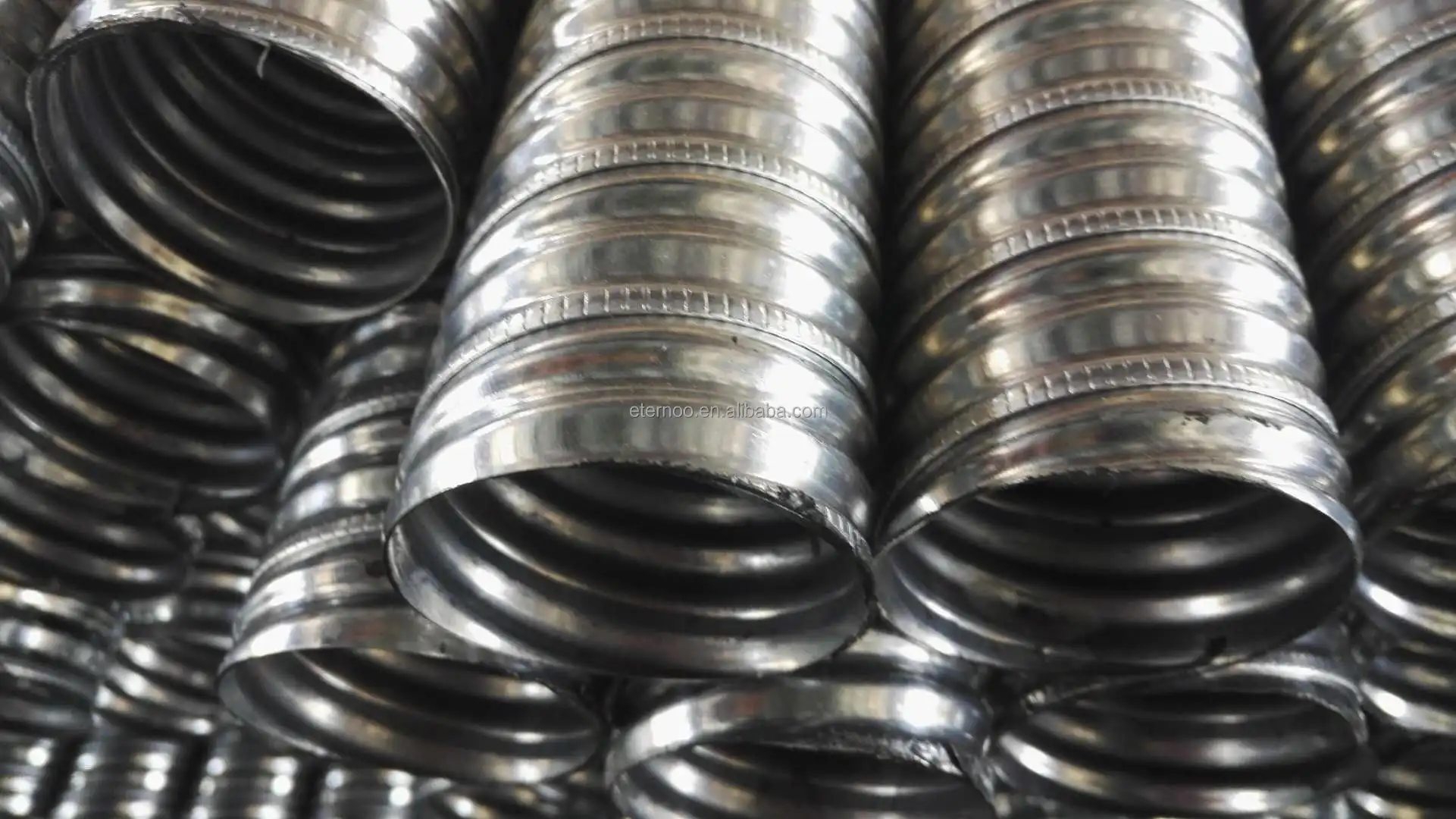

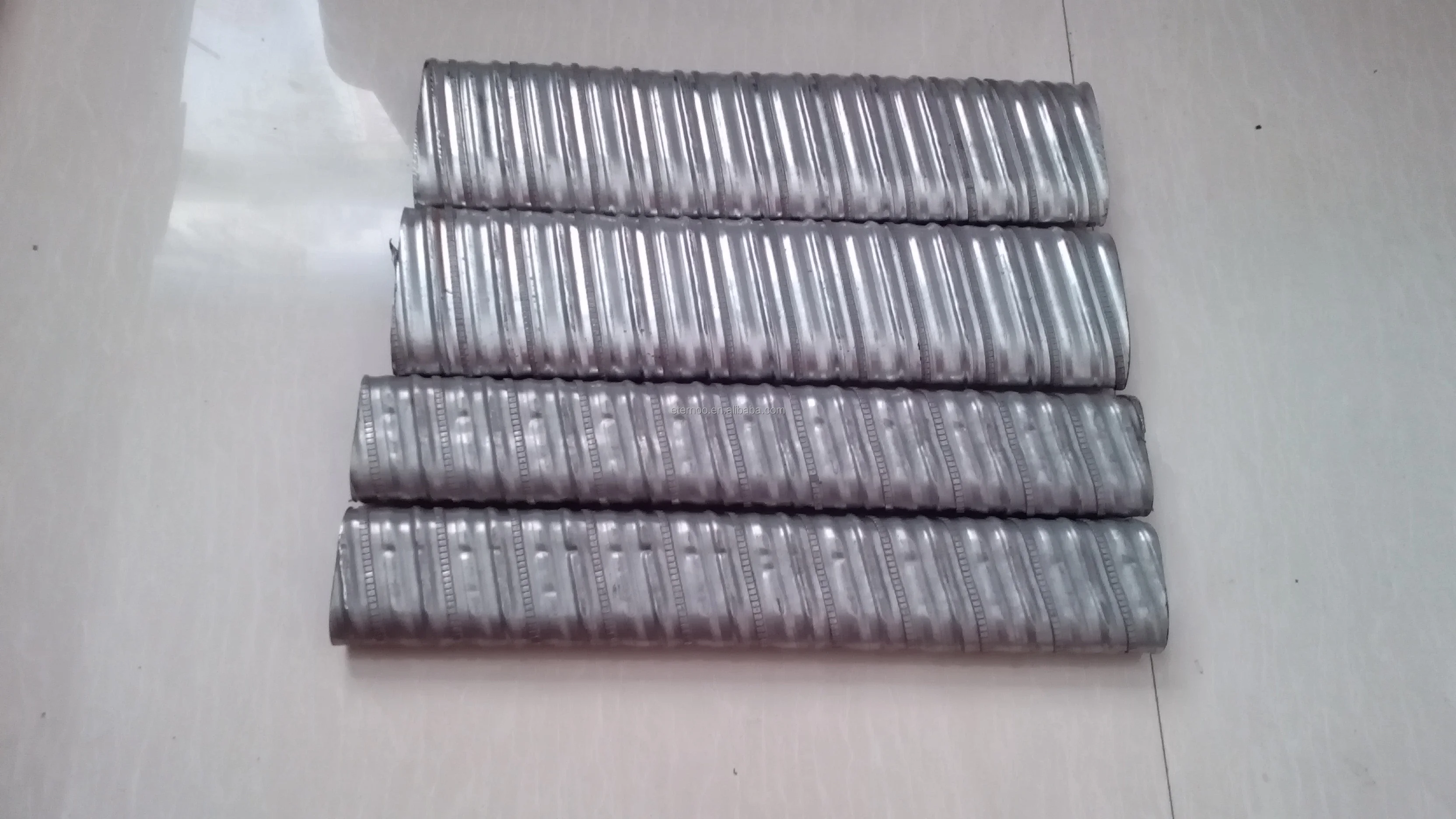

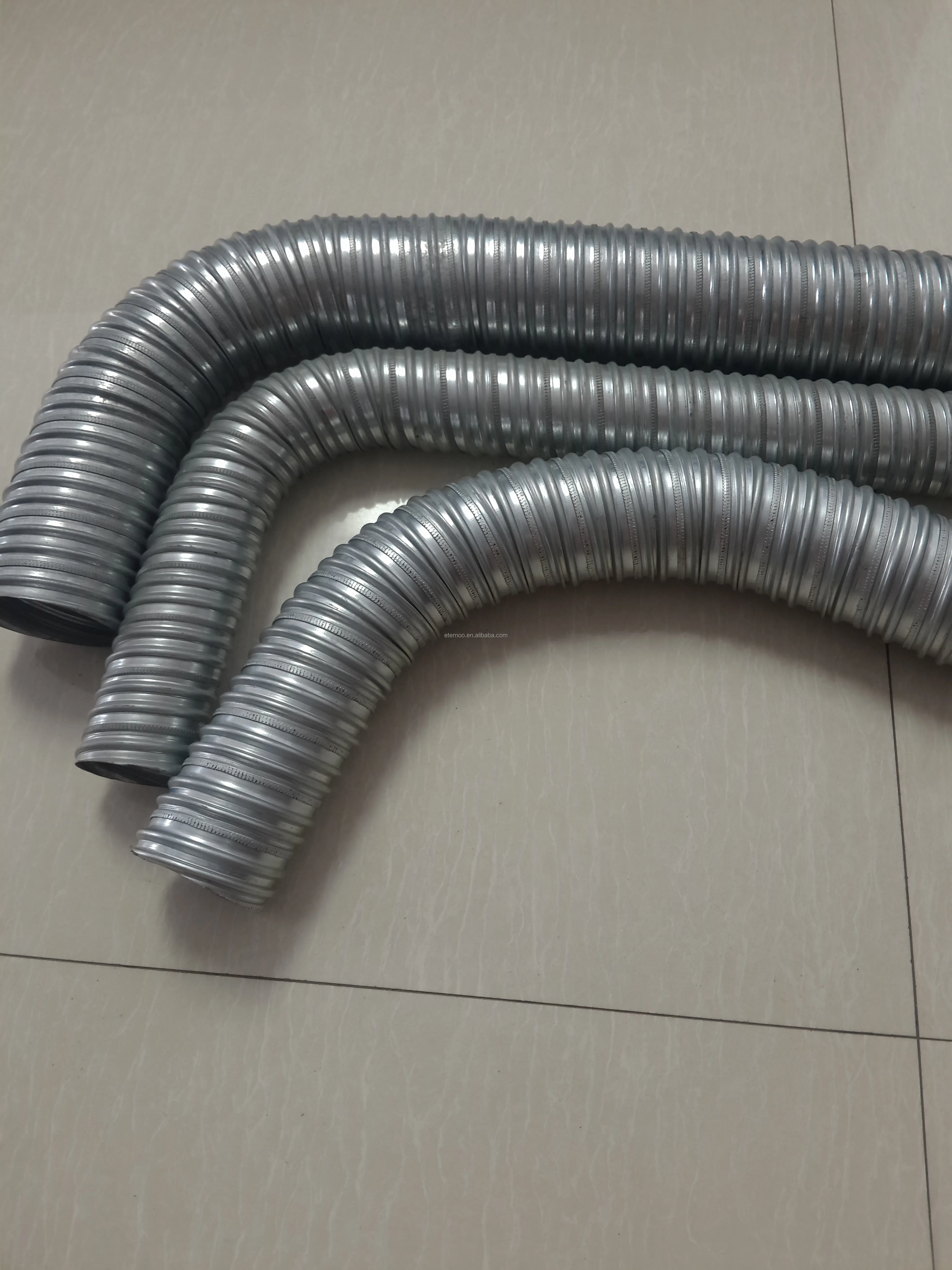

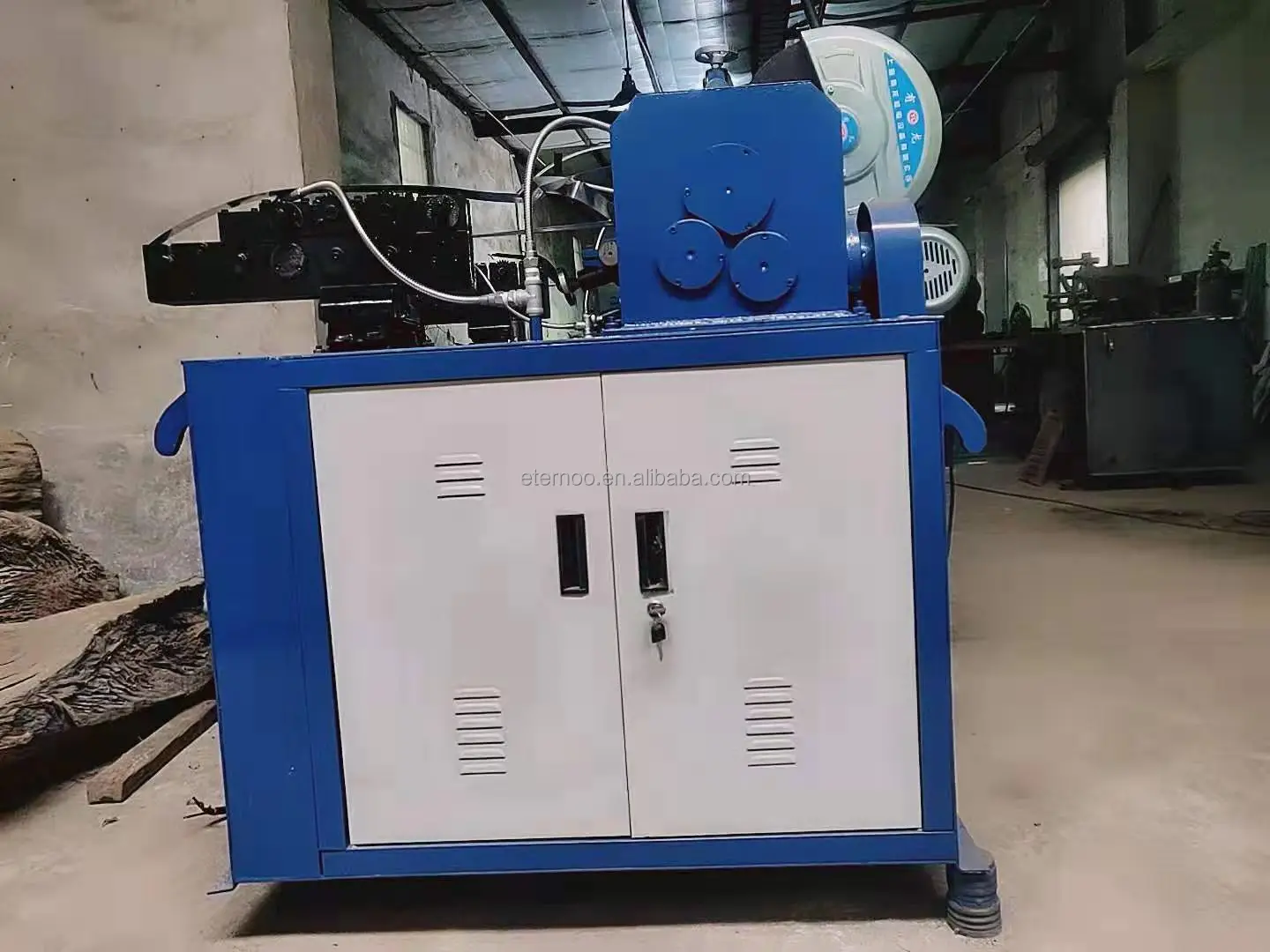

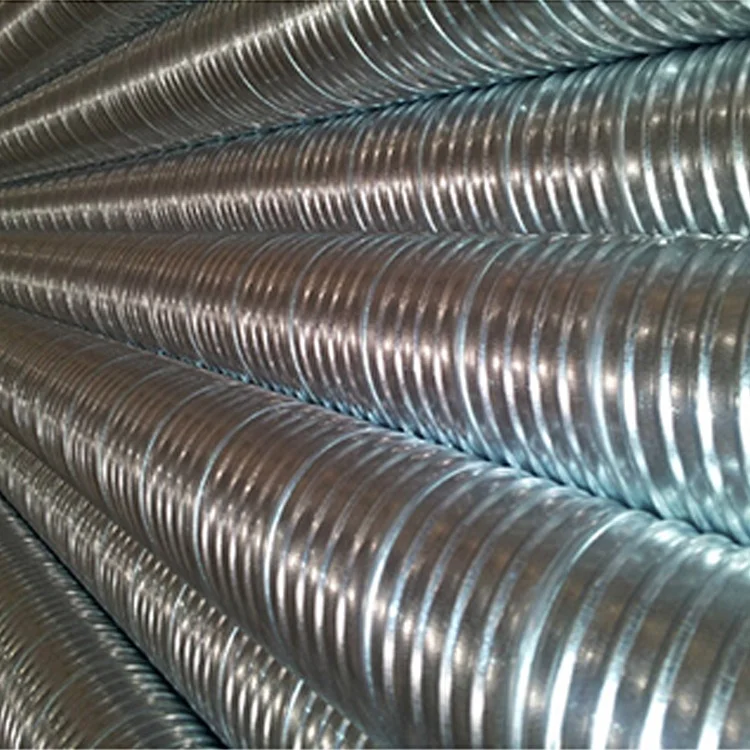

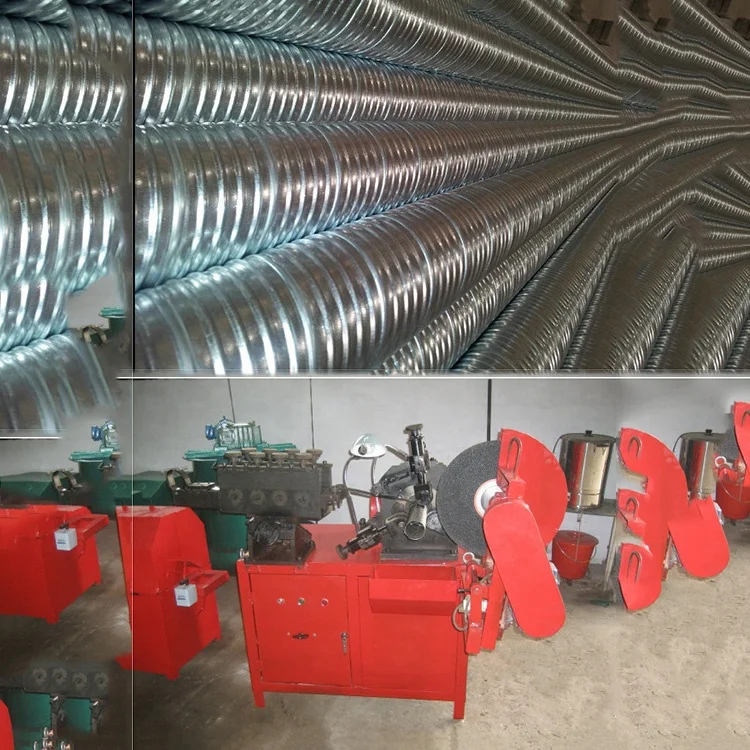

double waves bellows making machine is for manufacturing the bellows used for prestressed concrete, whose features are small size, high efficiency and simple operation and maintence, adaptable to factory or working site using.



Technical parameters:



1,         Main motor power:N=3KW n=1430rad/min



2,         Steel belt width:b=36mm



3,         Steel belt thickness:a=0.25~0.3m



4,         The diameter range of pipe: 35~135mm



5,         Manufacturing speed: 35~65   4m/min



                70~135  2m/min

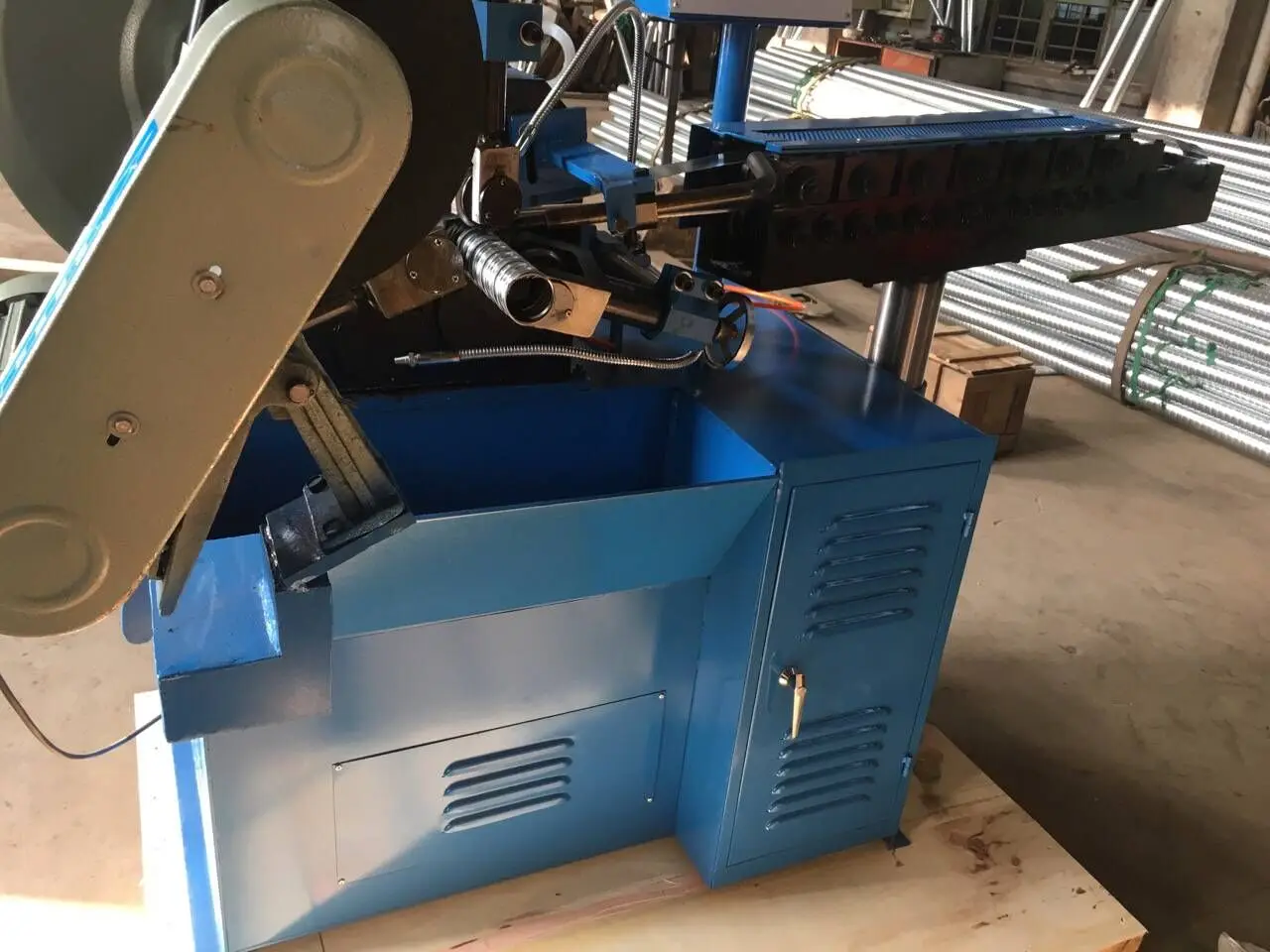

6,            Cutting machine power:N=0.75KW n=1380rad/min



inner diameter	35mm	40mm	45mm	50mm	55mm	60mm	65mm	70mm	75mm
outer diameter(mm)	40mm	45mm	50mm	55mm	60mm	65mm	70mm	75mm	80mm
gross weight(kg/m)	0.37	0.43	0.48	0.56	0.63	0.7	0.76	0.86	0.96





80mm	85mm	90mm	95mm	100mm	105mm	110mm	115mm	120mm	125mm	130mm
85mm	90mm	95mm	100mm	105mm	110mm	115mm	120mm	125mm	130mm	135mm
1.06	1.16	1.26	1.36	1.46	1.56	1.66	1.8	2.02	2.3	2.55
