Flygoo Factory Air Treatment 30g 40g 50g Air Cooled Ozone Generator Air Purifier Machine
- Category: >>>
- Supplier: Flygoo Eco-Technologies (Guangzhou) Co. Ltd.
Share on (1600974295673):
Product Overview
Description
Flygoo Factory Air Treatment 30g 40g 50g Air Cooled Ozone Generator Air Purifier Machine
Product Description
The FG-AF series units are designed for heat-resistant quartz glass structure dielectric (patent), with large power IGBT modules.The structure is extremely stable, long lifespan and high discharge efficiency. The units are air-cooled and feature in-built in air pump. The units generating components are housed in an all stainless steel enclosure and touch screen are easy to use and view.The unit feature: timer remote control, LCD display, IOT WiFi control, ozone output(10-100%).

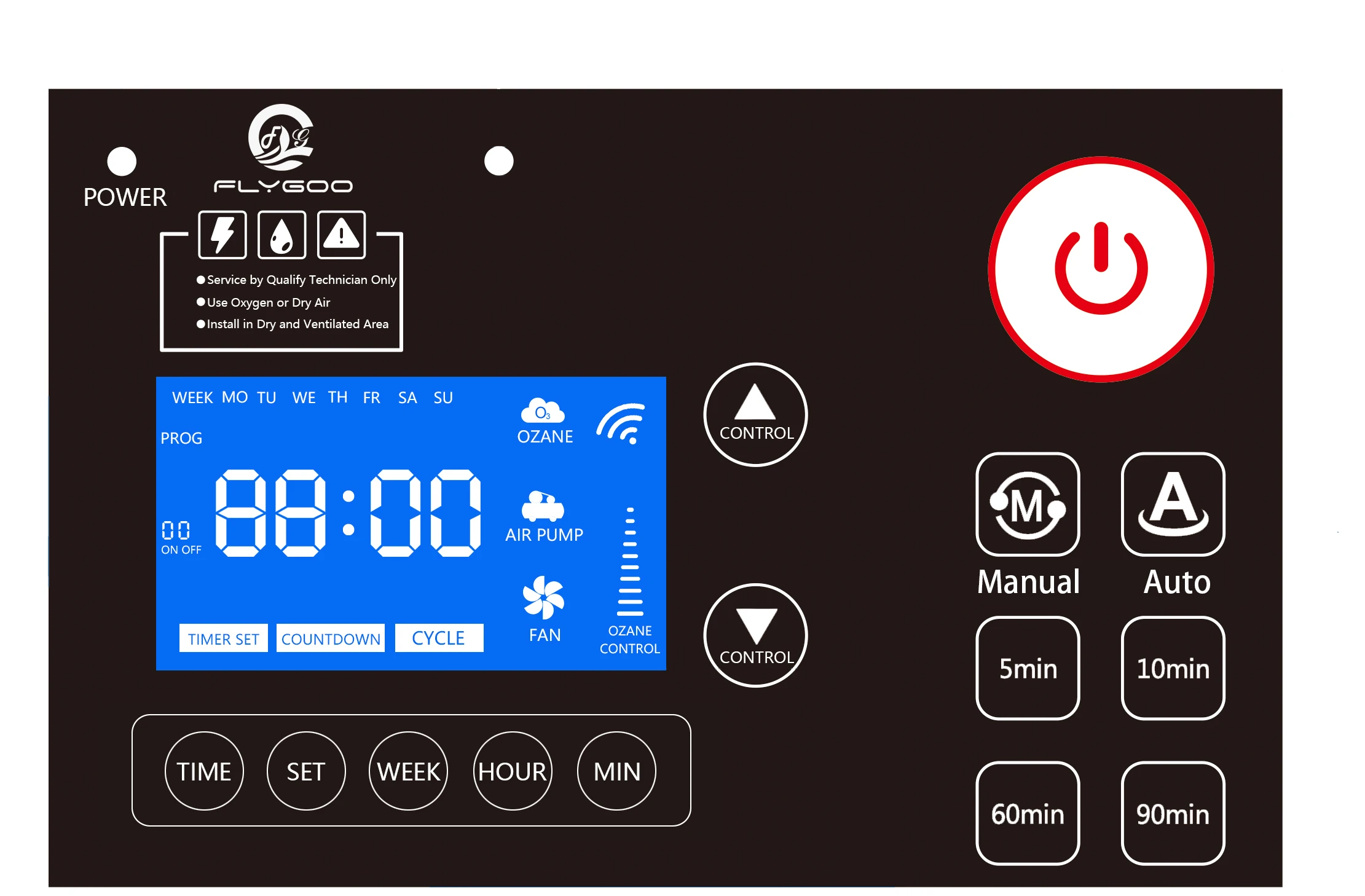

New FG Ozonator Control Panel Instructions：Weekly Programmable Timer Setting Mode；Countdown Control；Cycle Time Control；Manual Control
Product Paramenters
Item | Unit | FG-AF | ||||||||
Ozone Output | g/hr | 30 | 5 | 40 | 15 | 50 | ||||
Power | W | 530 | 550 | 620 | 700 | 700 | ||||
Electric | VAC/Hz | 220~240/50~60 ; 110/50,60 | ||||||||
Ozone Concentration | mg/l | Air supply:5~15 | ||||||||
Size(L*W*H) | mm | 500*370*880 | ||||||||
Weight | kg | 37 | 43 | 39 | 44.5 | 41 | ||||
Cooling Way | / | Water Cooling | ||||||||
Water Flow Rate | m3/h | 0.2-0.3 | ||||||||
Inner Air Compressor | Yes/No | Yes | ||||||||
Inner Air Dryer | Yes/No | Yes | ||||||||
Ambient Humidity | % | <70 | ||||||||
Ambient Temperature | ºC | <40 | ||||||||
Warranty | Year | 1 | ||||||||
Core technique
Product Features
New FG Ozonator Control Panel Instructions
Ozone Generator Features:
1. Multi-point malfunction detection of power supply: Over voltage, over current, and over temperature protection.
2. The equipment utilized large power IGBT modules,extremely stable, high-efficiency dehydroxylation quartz tube structure.
3. Adjustable ozone output, which will change ozone output & concentration for meeting with different lines requirements.
4. With condenser and filters for remove water which can protect the ozone unit for long service life in good working condition.
5. Water cooling system: 24/7 continuous working.
6. Corona discharging ozone technology
7. Variable timing control
8. Stainless steel enclosure
9. CE, ROHS Certification
1. Multi-point malfunction detection of power supply: Over voltage, over current, and over temperature protection.
2. The equipment utilized large power IGBT modules,extremely stable, high-efficiency dehydroxylation quartz tube structure.
3. Adjustable ozone output, which will change ozone output & concentration for meeting with different lines requirements.
4. With condenser and filters for remove water which can protect the ozone unit for long service life in good working condition.
5. Water cooling system: 24/7 continuous working.
6. Corona discharging ozone technology
7. Variable timing control
8. Stainless steel enclosure
9. CE, ROHS Certification

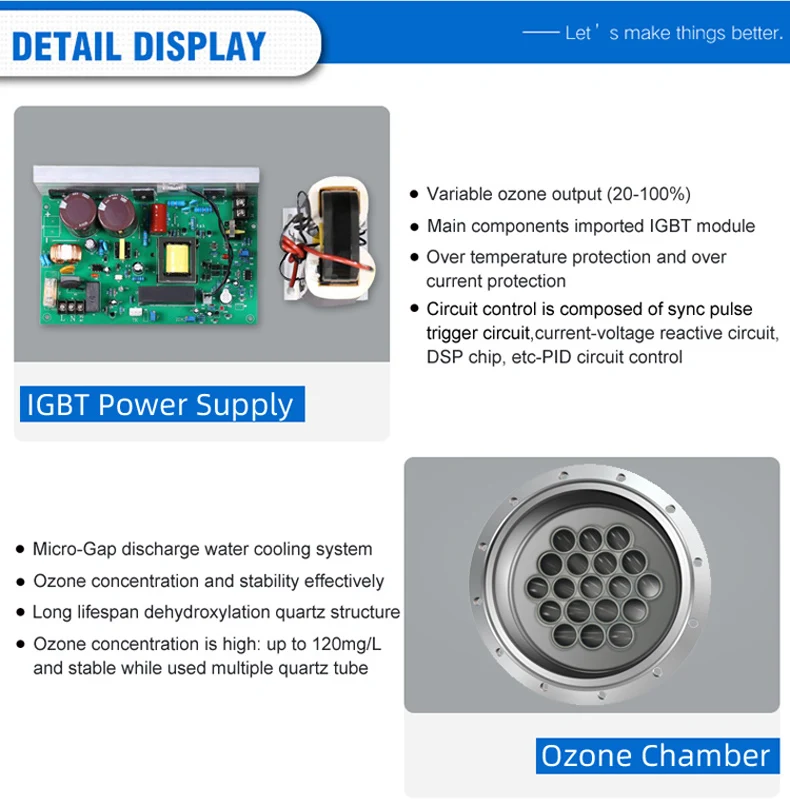

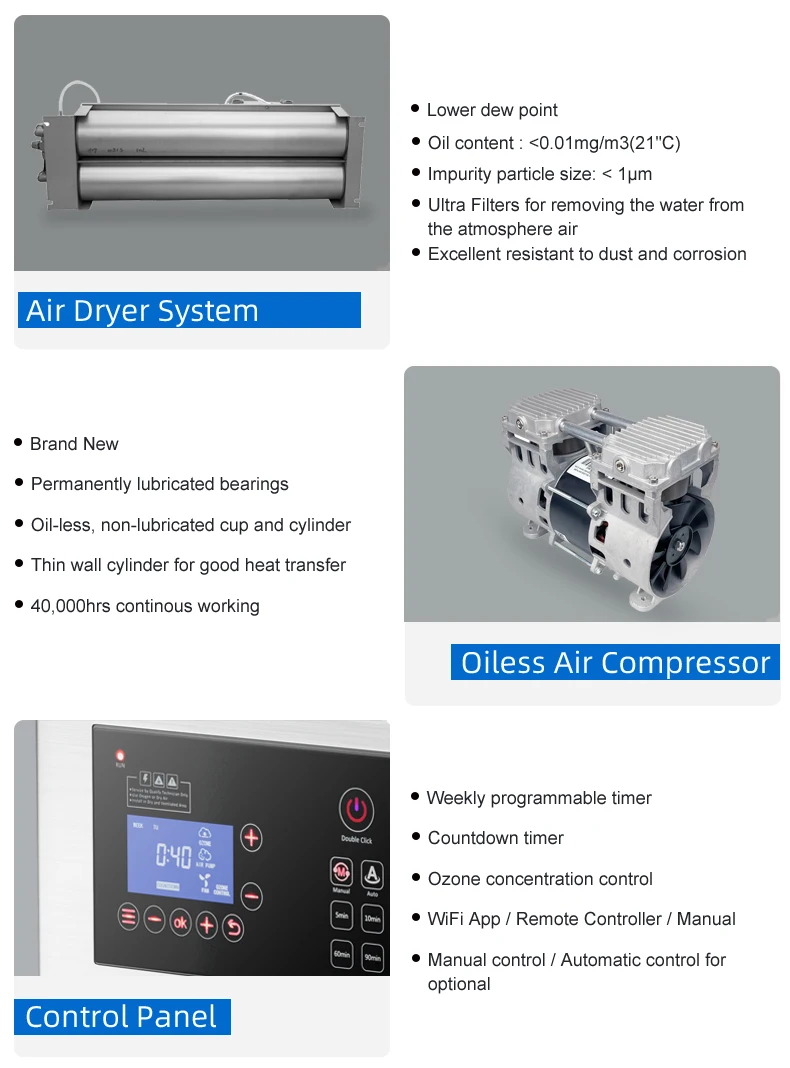

Detail Pictures
Application
