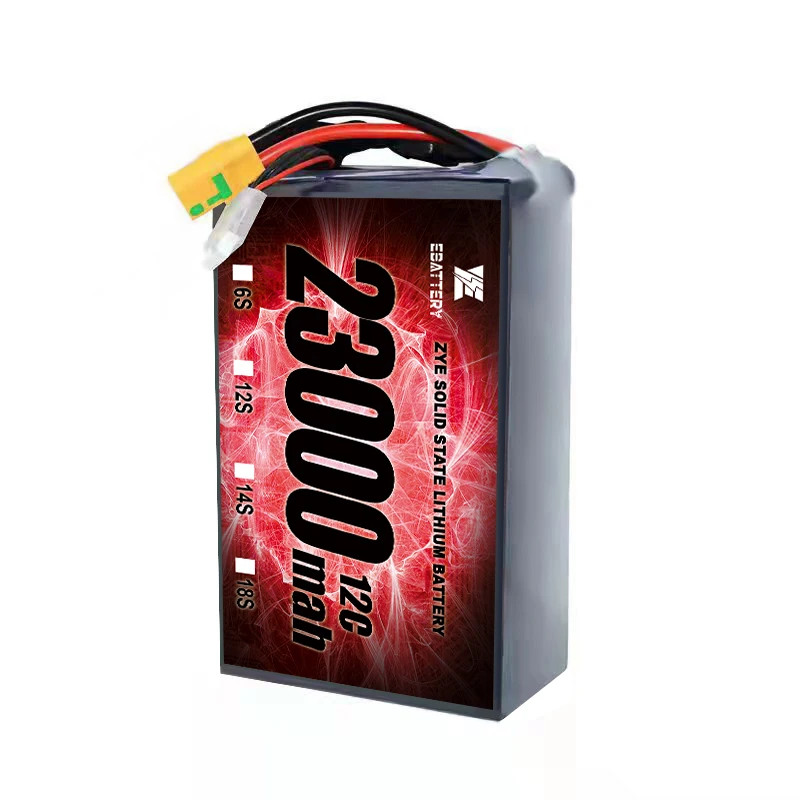

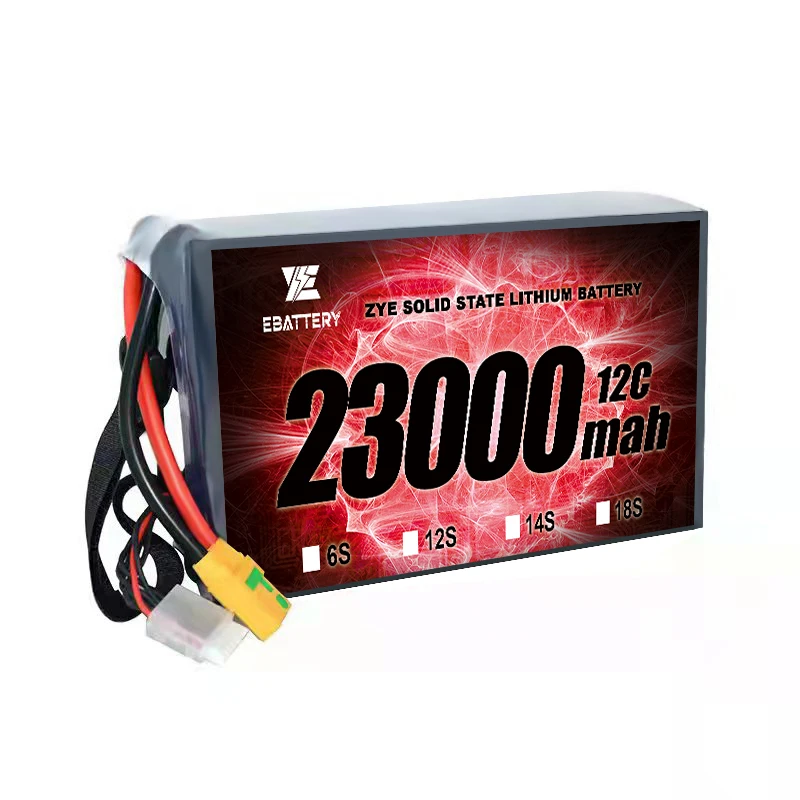

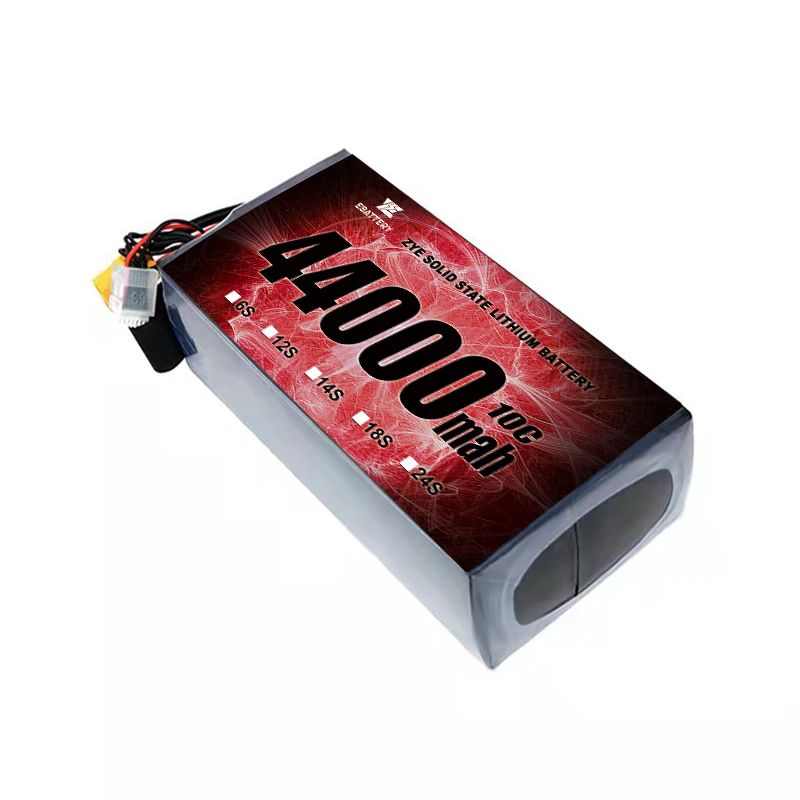

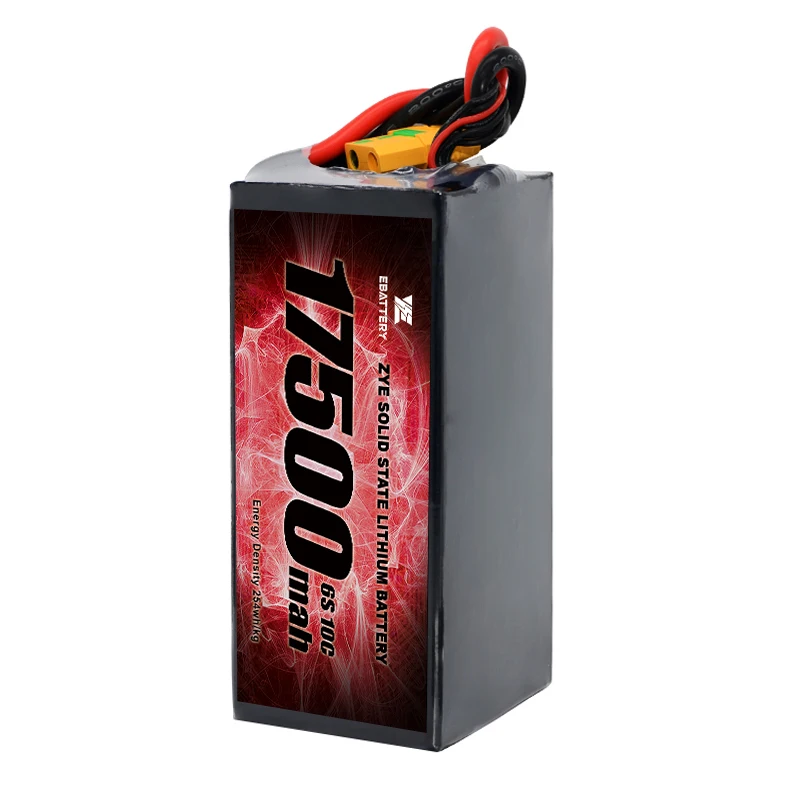

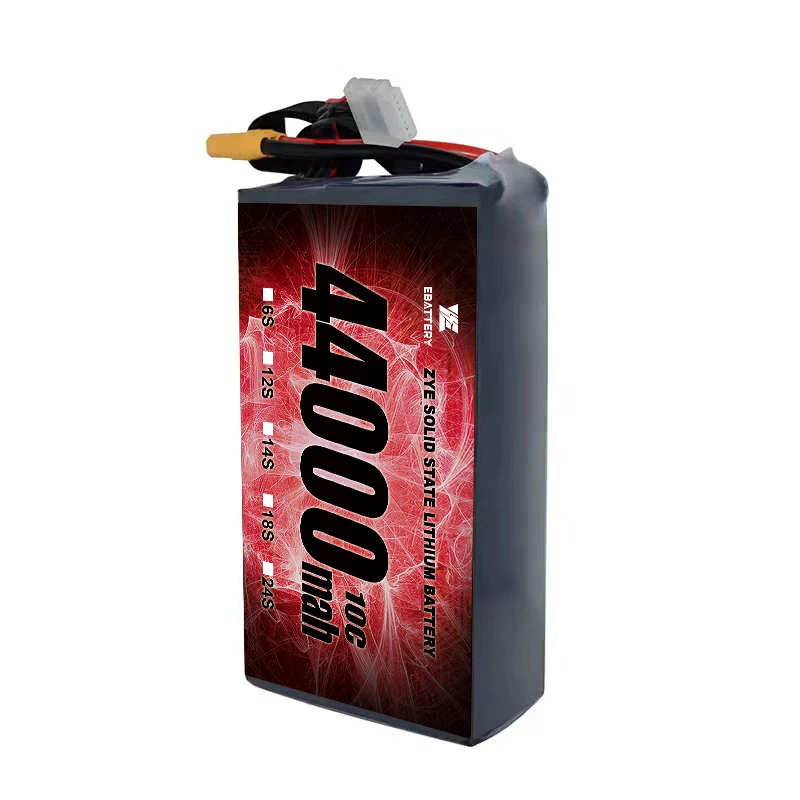

Custom LIHV 6S 7S 8S 12S 14S 17500mah 23000mah 44000mah Solid State Lithium Battery Pack for RC car UAV

Product Overview

Description

Solid state batteries advantages

1. Charge and discharge without thermal expansion;
2. Greatly improved cycle life ;
3. Light weight, small sizehigh, energy density (≥ 280wh / kg);
4. HV platform,upper and lower voltage limits wide range;
5. Wider ambient temperature for use and storage;
6. No liquid,safer.



ZYE SOLID STATE HIGH ENERGY DENSITY PACK
Nominal  capacity	Size L*W*THK			Pack weight (g)			Specific energy
	3S(11.8)	4S(15.8V)	6S(23.7V)	3S	4S	6S
2500mah	72*34*25	72*34*33	72*34*50	114g	152g	223g	266wh/kg
5200mah	125*38*26	125*38*35	125*38*51	239g	314g	473g	275wh/kg
6500mah	145*53*19	145*53*25	145*53*38	290g	390g	582g	264wh/kg
7500mah	138*61*21	138*61*26	138*61*38	360g	480g	720g	247wh/kg
10000mah	100*73*35	138*73*35	200*73*75	470g	620g	900g	263Wh/kg
***	6S(23.7V)	12S(47.4V)	14S(55.3V)	6S	12S	14S	***
12000mah	143*71*54	143*110*71	143*110*83	1225g	2450g	2860g	271wh/kg
17500mah	168*65*64	168*132*64	168*132*78	1480g	2964g	3458g	280wh/kg
22000mah	220*73*68	220*73*136	220*73*158	2050g	3900g	4788g	267wh/kg
30000mah	205*91*64	205*91*128	205*91*150	2600g	5200g	6100g	274wh/kg
35000mah	205*138*62	205*138*124	205*138*145	3580g	7150g	8150g	231wh/kg
45000mah	220*140*66	220*140*126	220*140*169	4032g	8060g	9370g	2650wh/kg
54000mah	240*122*80	240*122*159	240*122*186	4700g	9410g	10980g	272wh/kg



More capacity and sizes can be provided.

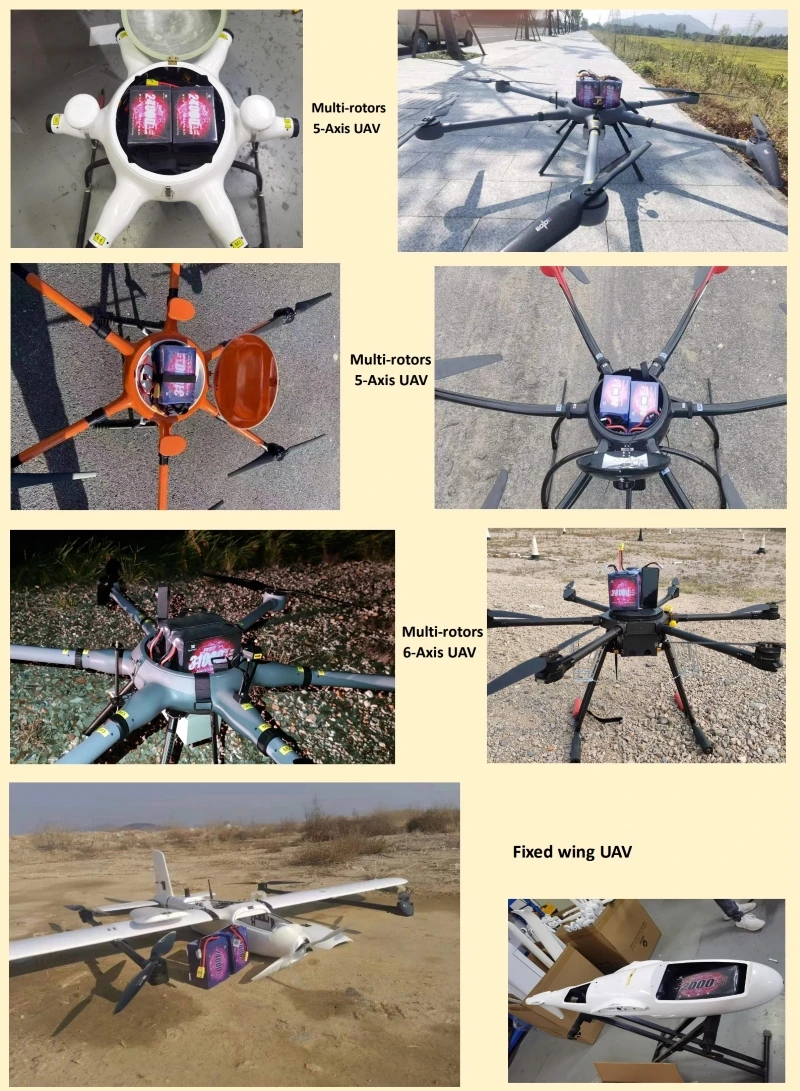

Applied to multiple UAVS
 Factory Direct Seller

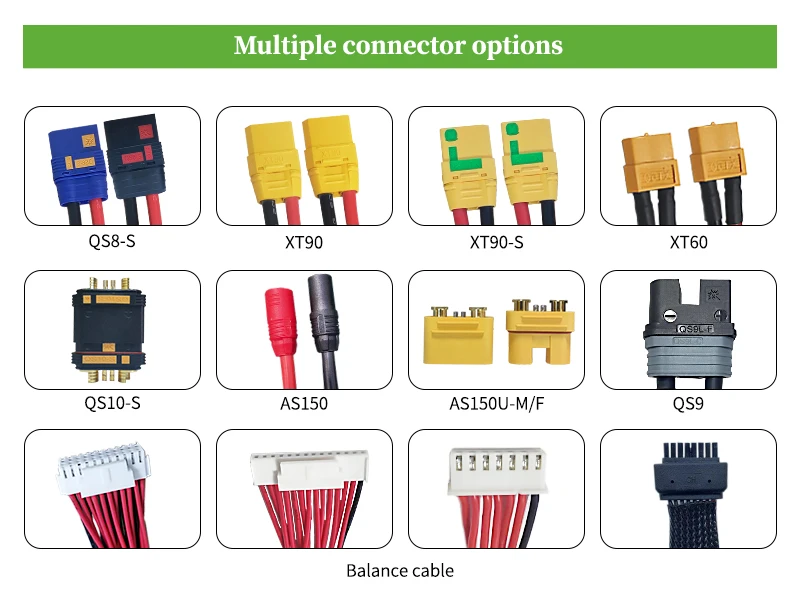

 Various Connector
