2L mini extract spray dryer drying machine for sale
- Category: >>>
- Supplier: Liaoning Koen Machinery Co. Ltd.
Share on (1600974341496):
Product Overview
Description
Products Description

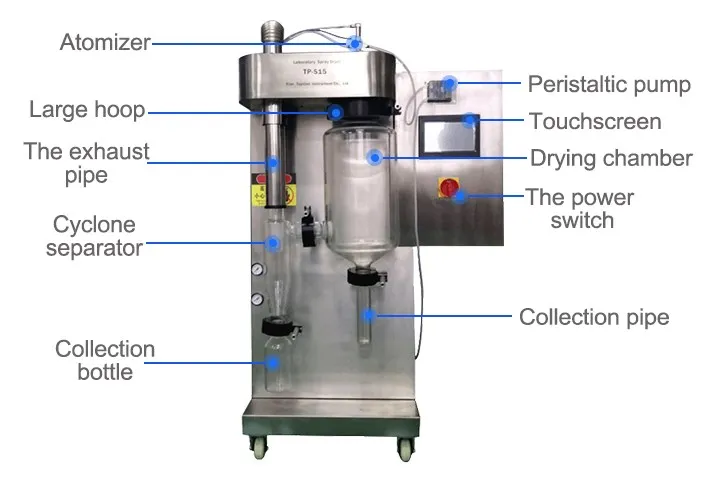

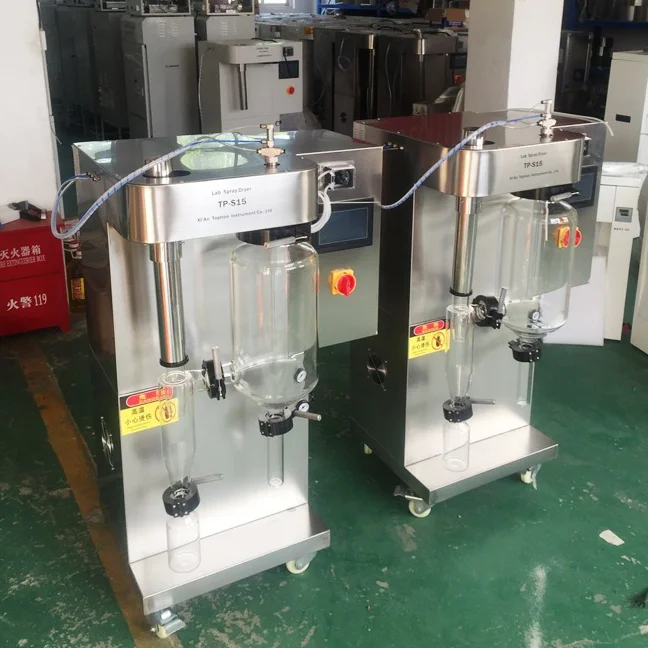

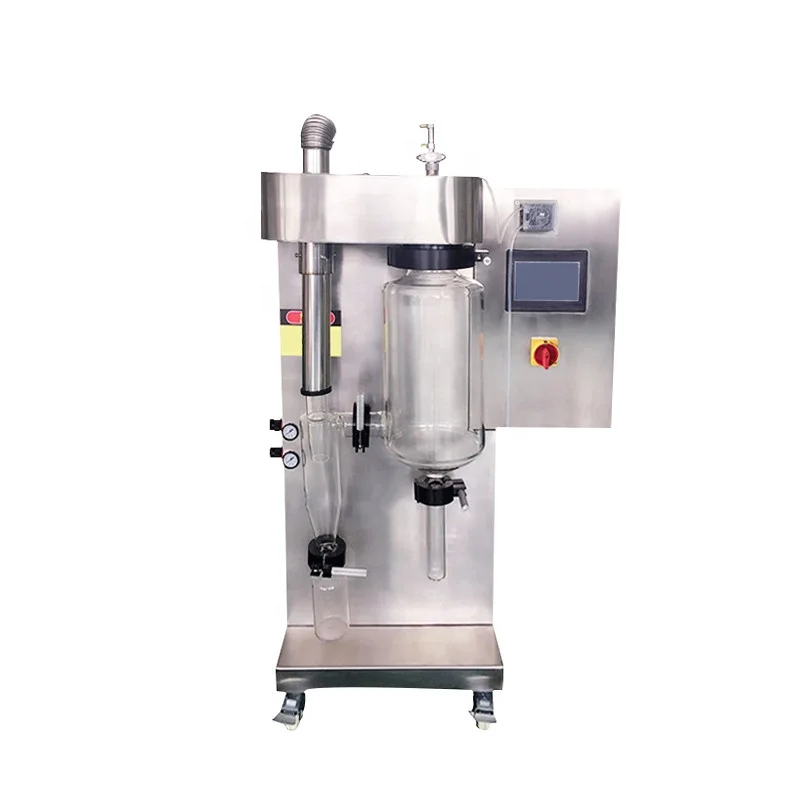

LPG centrifugal spray dryer machine
Atomizing drying machine is the high efficient drying equipment, to make dry powder or granule from liquid solution, emulsion, suspension and pumpable pasty liquid, especially for thermosensitive material, it can keep color, original flavor and chemical feature of raw material, and the finished dry powder or granule have good quality,purity, fluidity and solubleness. This equipment features by high accuracy & speed & efficiency, simple production process, labor-cost saving, widely applied in the industry of chemical, food, pharmacy, biochemistry, light industry,etc.
Main Feature：
* High drying efficiency
* The finished power or granule has good homogeneity, fluidity and solubility.
* Simple and convenient operation

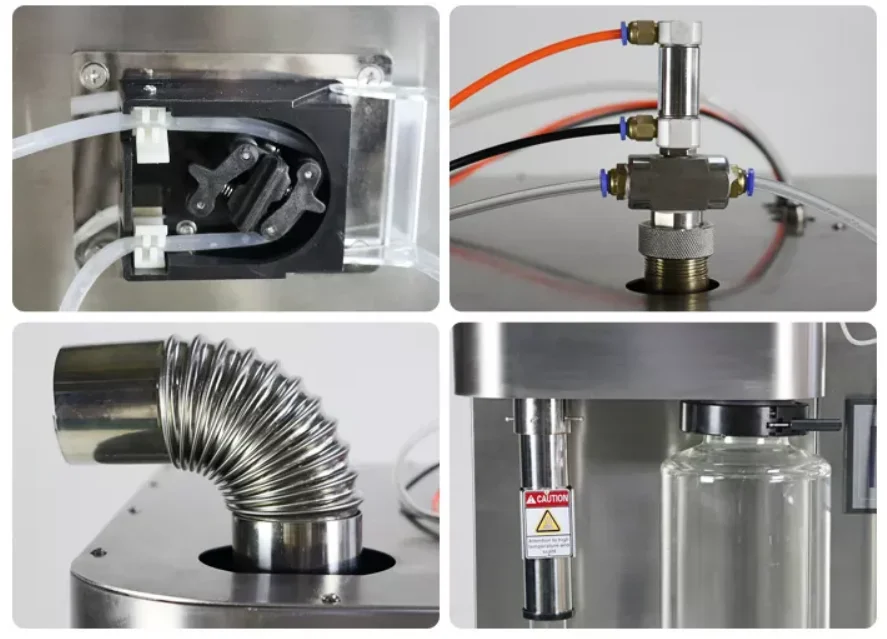

* Mechanical atomizer is adopted, and driven by gear, speed is stable, which make sure the fogdrop is uniform.
* The direction and angle of hot air distributor is adjustable, which ensure the fogdrop fully contact hot air.
* Conjunction elbow is made of sanitary degree steel pipe, smooth enough to avoide matereial blocked inside the pipe.
* Wide application: food, chemicals, ceramics, basic dyestuff, etc.
* High drying efficiency
* The finished power or granule has good homogeneity, fluidity and solubility.
* Simple and convenient operation
* Mechanical atomizer is adopted, and driven by gear, speed is stable, which make sure the fogdrop is uniform.
* The direction and angle of hot air distributor is adjustable, which ensure the fogdrop fully contact hot air.
* Conjunction elbow is made of sanitary degree steel pipe, smooth enough to avoide matereial blocked inside the pipe.
* Wide application: food, chemicals, ceramics, basic dyestuff, etc.

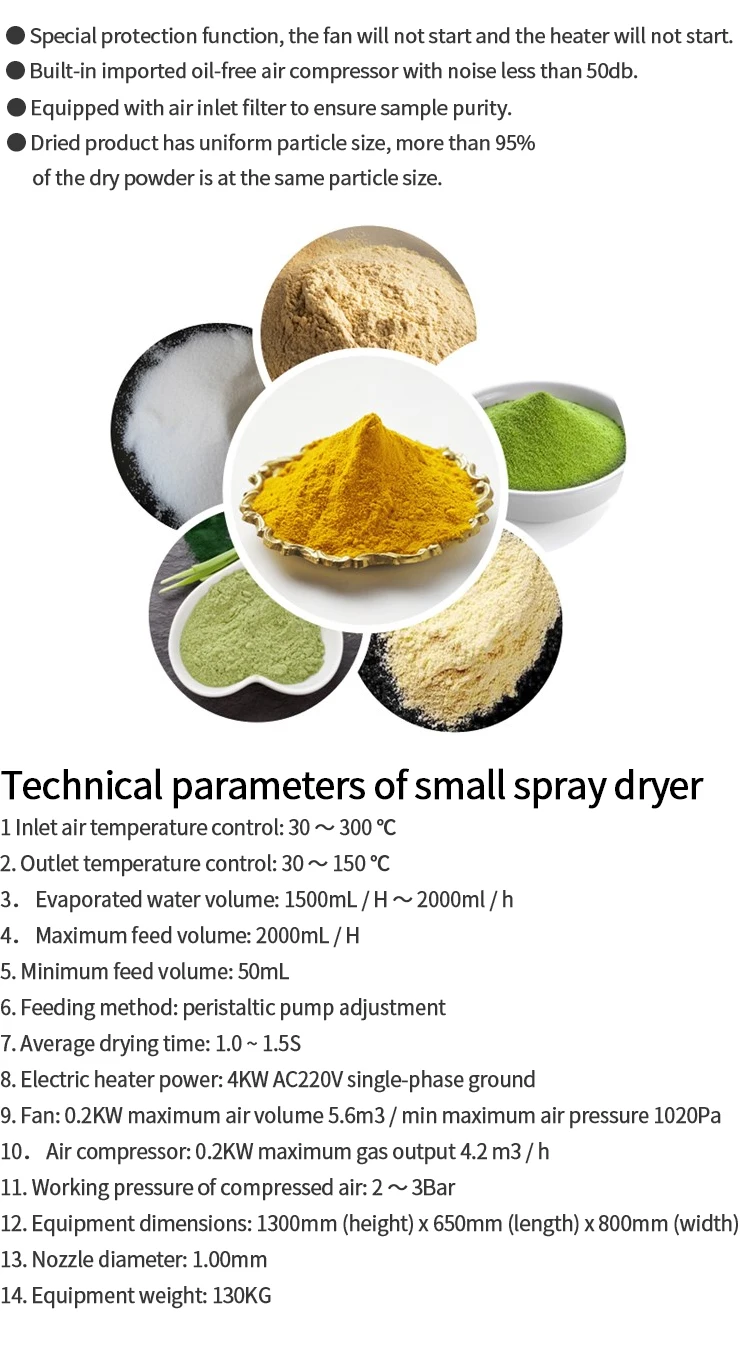

Inlet air temperature control: | 30~300℃ |
Outlet temperature control: | 30~150℃ |
Evaporated water: | 1500mL/H ~ 2000ml/h |
Maximum feed volume: | 2000mL/H |
Minimum Feed Quantity: | 50mL |
Feeding method: | Peristaltic pump adjustment |
Average drying time: | 1.0~1.5S |
Electric heater power: | 3.5KW AC220V single-phase grounding |
Fan: | 0.55KW |
Maximum air volume | 5.6m3/min |
Maximum wind pressure | 1020Pa |
Air compressor: | 1.2KW |
Maximum gas production | 4.2 m3/h |
Compressed air working pressure: | 2~3Bar |
Equipment Dimensions (L*W*H): | 600mm * 700mm * 1200mm |
Nozzle diameter: | 1.00mm |
Equipment weight: | 130KG |
Details Images
Recommend Products
Packing
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Changzhou, China.If want to visit our company , you can fly to Shanghai Pudong Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
