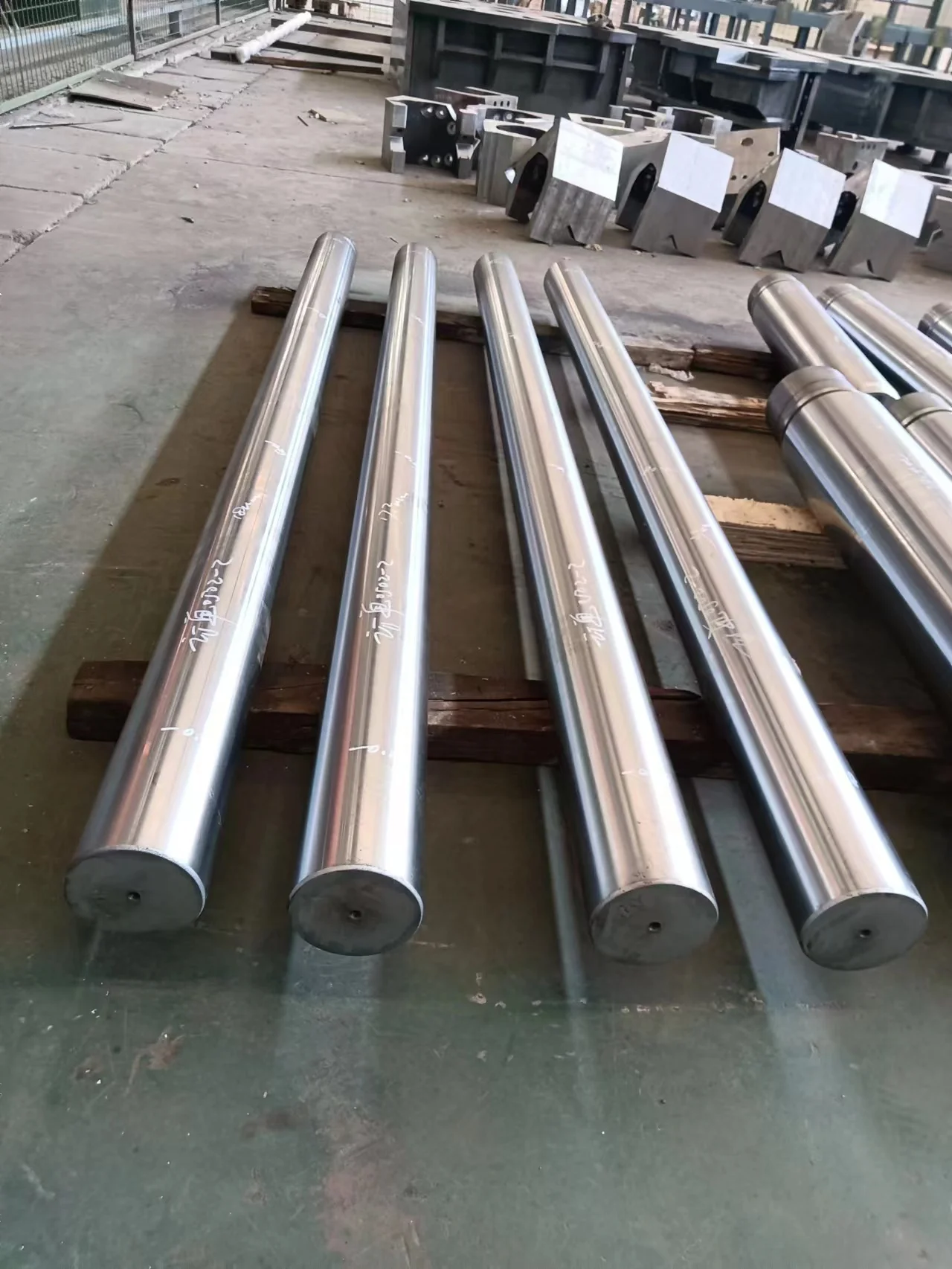

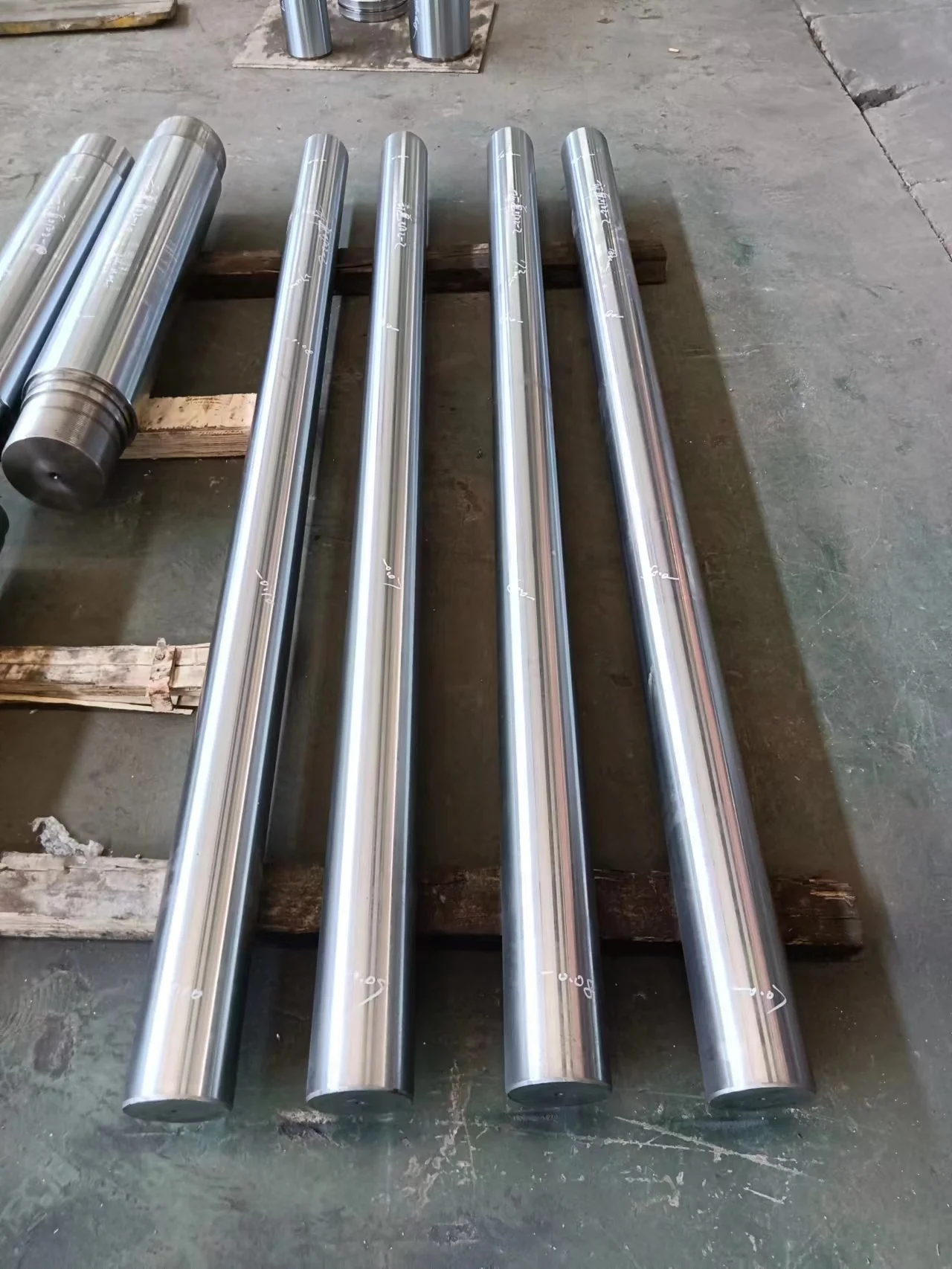

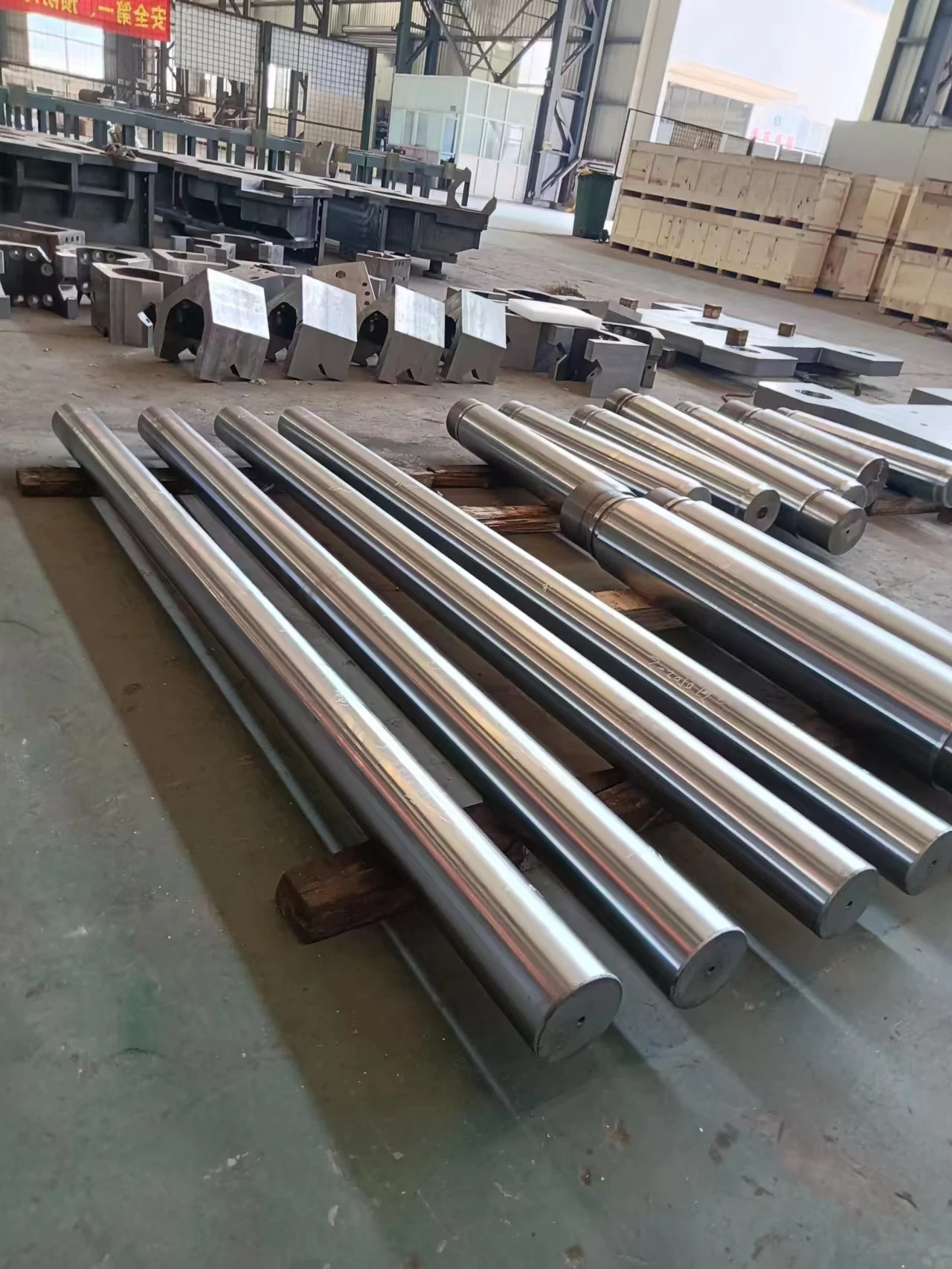

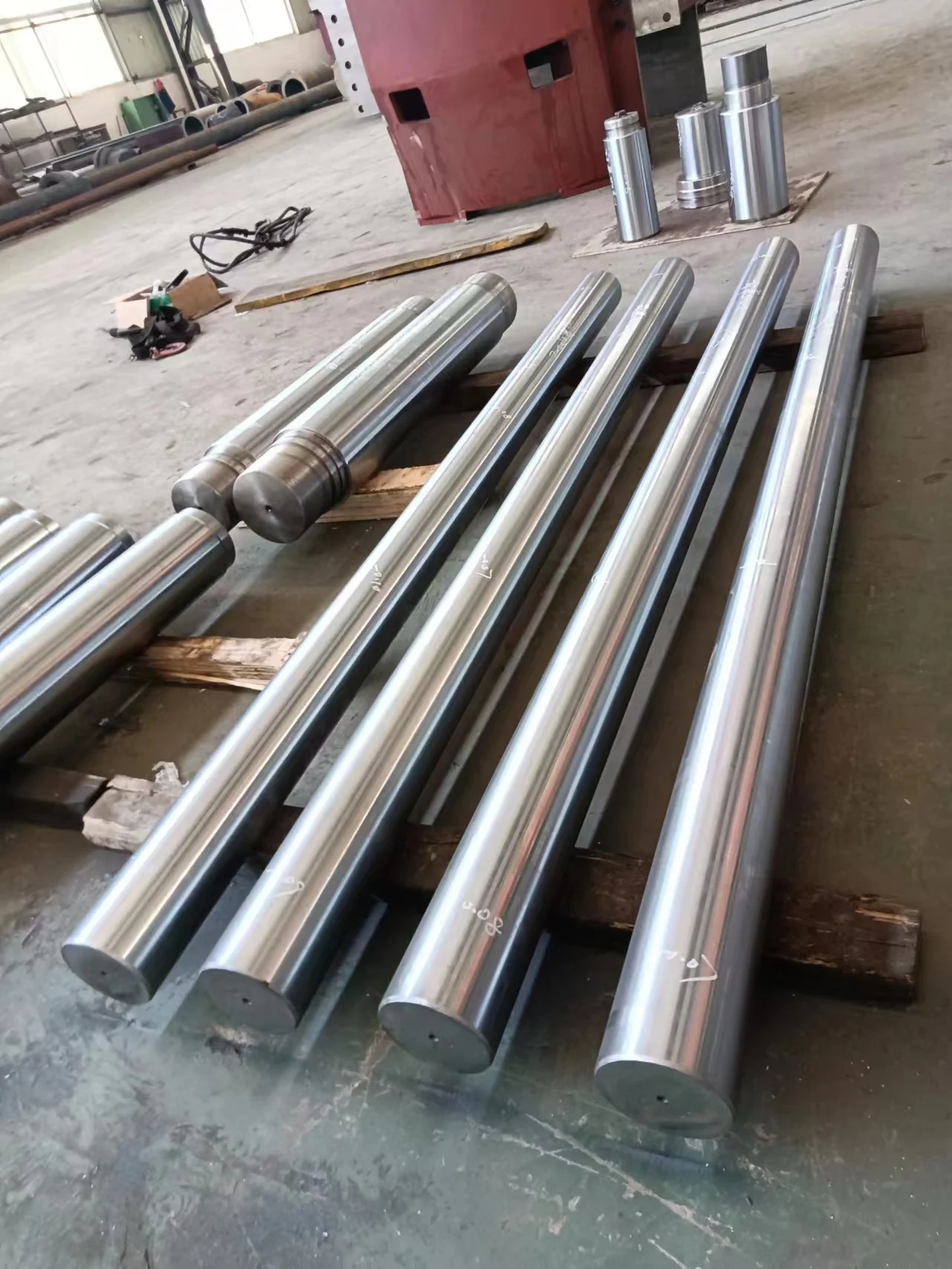

Stainless Steel Linear Shaft for CNC Turning Machining

Product Overview

Description





Stainless steel shafts



We offer hot and cold shafted forged steel shafts as well as a wide range of steels for various shafting processes.



With sheet shaft as the main product, the company can produce hot and cold shafted forged steel shafts. In addition, we offer a full range of steel types for various shafting processes. Our manufacturing facilities make full use of unique proprietary technology, in close cooperation between our research and development, manufacturing, technical services and sales units to meet user needs.



Characteristic

Forged steel hardening shaft
Standard work shaft
CPI volume
By improving the process, we have reduced the cost to the minimum. Cost-effective to achieve the same functions as the conventional 5Cr standard type. The hardening depth is φ60

The CPI-SD volume

With the same basic shafting performance as the CPI shafter, the hardening depth is increased to φ80.





High performance work shaft

No damage shaft
The surface roughness is uniform and the grindability is good



· High speed mill shaft
The combustion frequency of high speed and high pressure shafting is reduced by contshafting the distribution of carbide.



High toughness, semi-high speed cutter shaft
This steel can be used in many manufacturing applications, such as high wear resistance, good defect prevention properties and good grindability.

High performance intermediate shafter

Wear-resistant hot die intermediate shaft, wear-resistant high chromium intermediate shaft

Support shaft for foundation reinforcement

By improving the hardening process and adjusting the alloy composition, the toughness of the forged steel back-up shaft is greatly improved.



explore

Forged steel hardening shaft application

Cold shaft
Universal shaft
Used for shafting steel, stainless steel and aluminum products



Mill shaft

Skin pass shafter for coating sheet, stainless steel sheet, copper sheet and brass sheet

Back-up shaft
For black and non-ferrous materials

A long time product
Suitable for calendar shafter, straightening shafter, etc.

Hot shafting bar

shaft
Aluminum, copper, brass coil

Back-up shaft
For black and non-ferrous materials



Size range:

The maximum diameter is 1250mm and the width of the shafter working surface is 4500mm

shafter material: 50Mn, 37CrMnSi, 38CrMnMo, 9Cr2, etc



No.	C	Si	Mn	Cr	Ni	Mo	V	W
H-1	0.55-0.65	0.17-0.40	0.50-1.00	0.50-1.2	≤0.25	0.20-0.4	-	-
H-2	0.55-0.65	0.20-0.40	0.60-1.00	0.70-1.0	1.50-2.0	0.10-0.3	-	-
H-3	0.45-0.65	0.20-0.50	0.50-0.90	3.00-3.6	-	0.40-1.2	0.1-0.35	-
H-4	0.60-0.80	0.30-0.80	0.40-0.90	2.50-3.5	0.40-0.6	0.20-0.6	-	-
H-5	0.30-0.40	≤0.40	≤0.40	2.20-2.7	-	-	0.2-0.50	7.50-9
H-6	0.32-0.43	0.80-1.20	0.20-0.50	4.50-5.5	-	1.00-1.6	0.30-0.6	-
H-7	0.80-0.95	0.25-0.45	0.20-0.55	1.70-2.4	-	0.20-0.4	≤0.15	-
H-8	0.13-0.23	≤0.30	≤1.00	0.80-1.2	-	0.80-1.2	0.15-0.3	-
H-9	0.30-0.42	0.17-0.50	0.25-0.50	1.20-1.6	3.00-3.5	.25-0.45	0.1-0.25	-
H-10	1.45-1.70	≤0.40	≤0.40	11.-12.5	-	0.40-0.6	0.15-0.3
