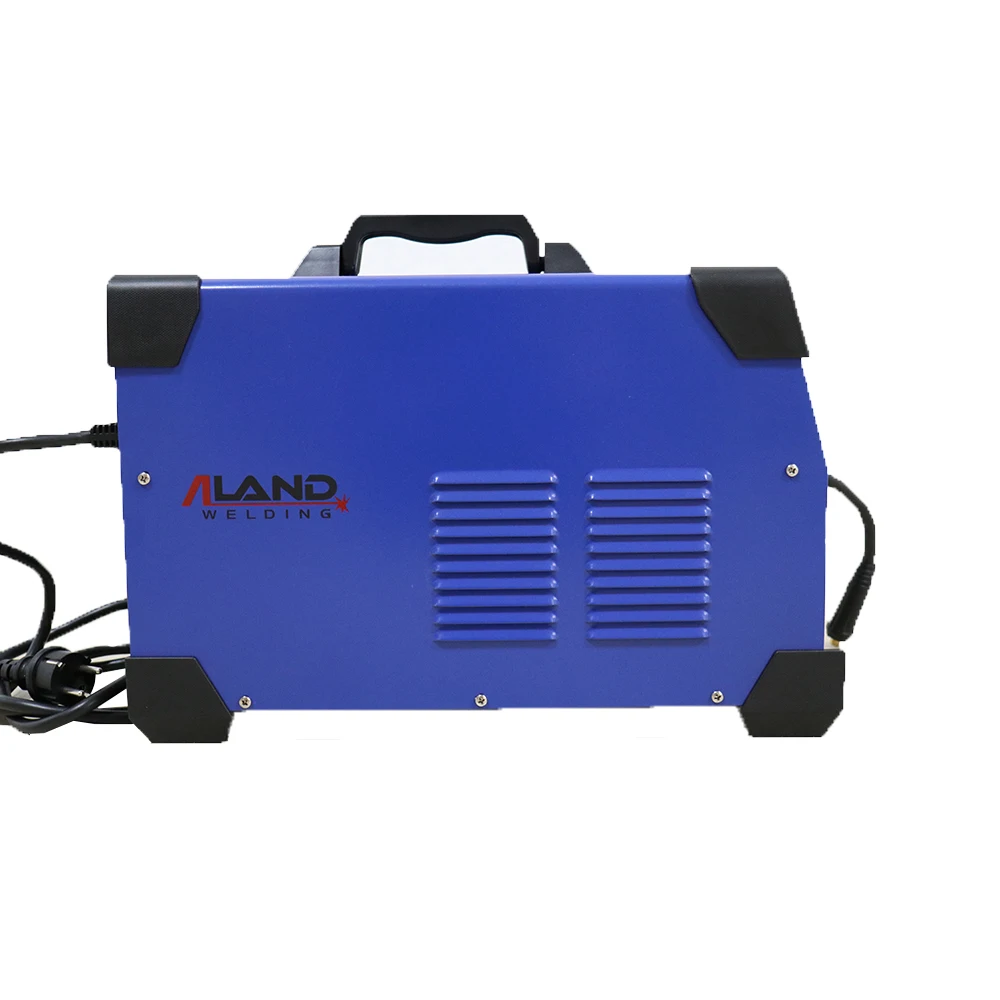

Multi Function 230V Welding Machine MIG/MMA/Lift TIG 3 IN 1 Machine Mig Mag Inverter Welding Machine
- Category: >>>
- Supplier: Beijing Aland Welding Co. Ltd.
Share on (1600974403098):
Product Overview
Description
MIG-180S2 | MIG-200S2 | MIG-250S2 | |
Power supply voltage | AC110/230V:10%(50/60HZ) | AC110/230V+10%(50/60HZ) | AC110/230V10%(50/60HZ) |
Max.Power consumption | 4.3KVA | 5.2KVA | 6.1KVA |
Rated input current | 110V:37.0A 230V:27.6A | 110V:41.1A 230V:38.0A | 110V :43.1A 230V:38.5A |
No-load voltage | 16.5-23V | 16.5-24V | 16.5-25.5V |
Wire Size | 0.8mm ,0.9mm ,1.0mm | 0.8mm ,0.9mm ,1.0mm | 0.8mm ,0.9mm 1.0mm |
Protective class | IP21S | IP21S | IP21S |
Wire Feeder | Inside | Inside | Inside |
Weight | 14Kg | 14.5Kg | 14.5Kg |
Output current | 110V:30-130A 230V:40-180A | 110V:40-140A 230V:40-200A | 110V:40-150A 230V:40-250A |
Wire feeding speed | 2.5-14m/min | 2.5-14m/min | 2.5-14m/min |
Usable thickness | 0.8above(mm) | 0.8above(mm) | 0.8above(mm) |

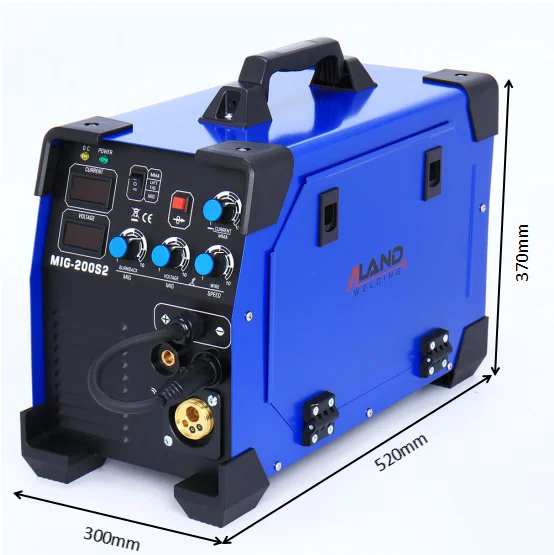

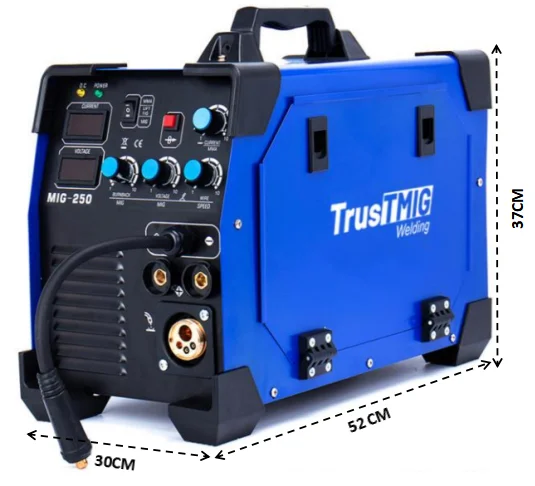

Dimension | 520mmx300mmx370mm | 520mmx300mmx370mm | 520mmx300mmx370mm |
Product advantages

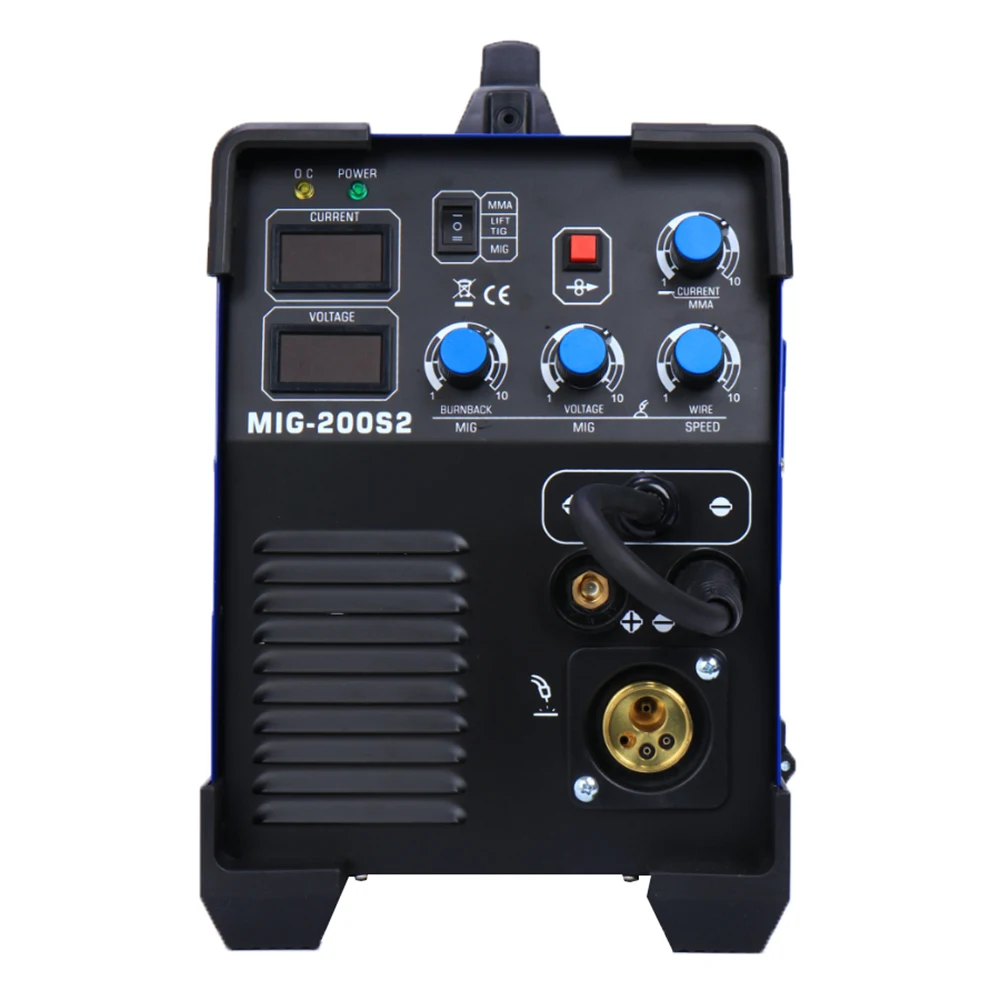

1.Adopt Advanced IGBT inverter and PWM technology. 2.MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start. 3.

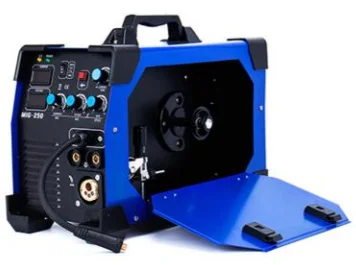

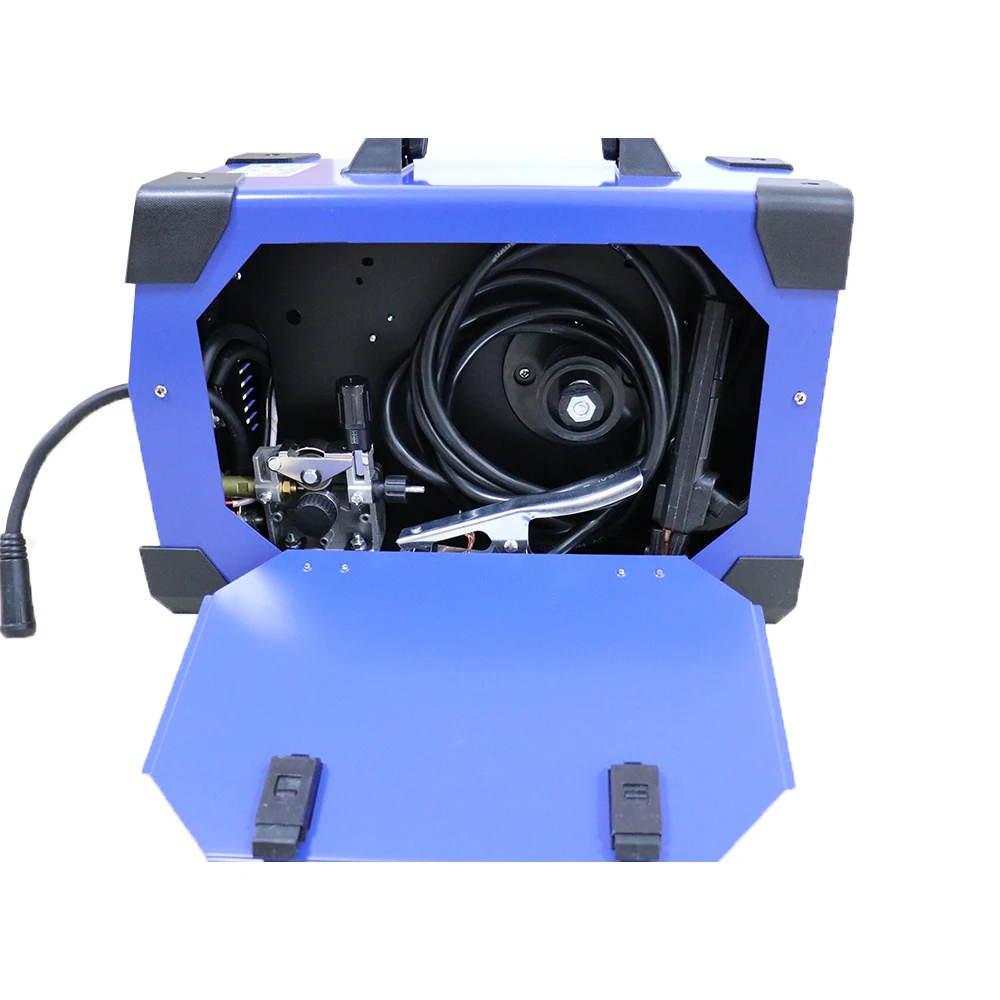

Internal wire feeder, gear driven, support MAX 5kgs wire feeding. 4. Burn-back function is adjustable, easy to remove tip ball.
Internal wire feeder, gear driven, support MAX 5kgs wire feeding. 4. Burn-back function is adjustable, easy to remove tip ball.
5.With GAS(solid) and GASLESS (flux) wire function.
6. 3PC structure is available, high duty cycle and easy to repair.

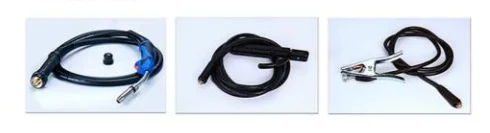

Comes with accessories
