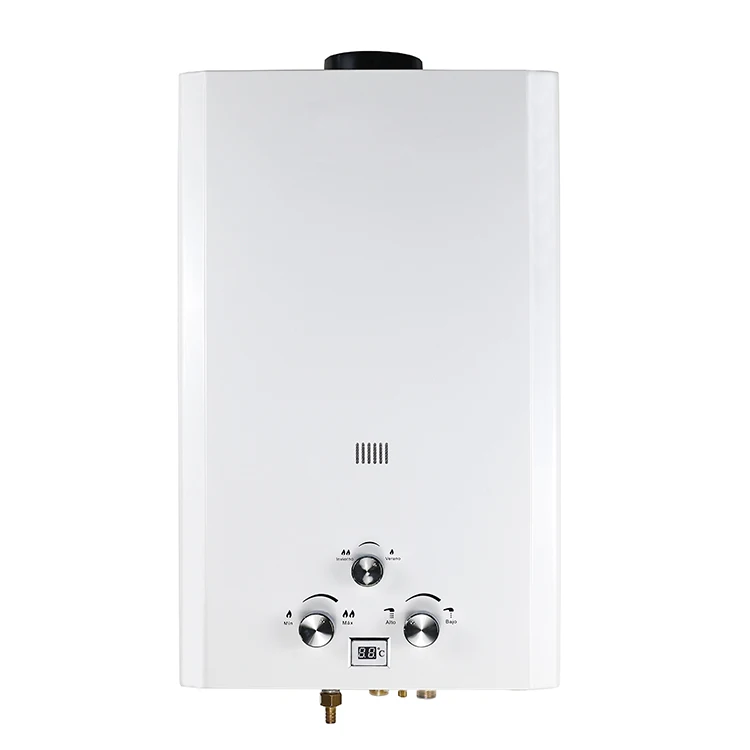

20l wholesale price instant natural gas operated water heater for home
- Category: >>>
- Supplier: Zhejiang Dingxin Electric Appliance Co. Ltd.
Share on (1600974805763):
Product Overview
Description
Product Description
Product Features
1- Low water pressure starup function.
2- Instant water heating, 3-5 seconds supply hot water.
3- Double ignition pin,Water control automatic impulse ignition by Water-gas interlock valve.
4- Flame out failure protection , Anti-dry combustion.
5- Over heating and 20 minutes timer protection device.
6- Panel in new and good design, Metal with coating/glass/stainless steel optional.
7- Winter-summer switch for gas saving.
8- Good pulse ignitor to keep the battery funtional in one year.
9- Excellent heat exchanger asorbs heat more efficiently.
10- Special Cold and hot water convert.
2- Instant water heating, 3-5 seconds supply hot water.
3- Double ignition pin,Water control automatic impulse ignition by Water-gas interlock valve.
4- Flame out failure protection , Anti-dry combustion.
5- Over heating and 20 minutes timer protection device.
6- Panel in new and good design, Metal with coating/glass/stainless steel optional.
7- Winter-summer switch for gas saving.
8- Good pulse ignitor to keep the battery funtional in one year.
9- Excellent heat exchanger asorbs heat more efficiently.
10- Special Cold and hot water convert.
Flue type | 20L/Min | |
Nominal power | 38KW | |
Body size | 700*440*188mm | |
Color | White coating front panel &Grey bottom | |
Heat exchanger | 4.0kg Tin coated copper | |
Valve | Brass super big valve,0.025-0.8Mpa | |
Ignitor | DC3V(2pcs D size battery), with 20min timer | |
Burner | 20T sharpe type, 110mm width | |
Inlet/outlet water&gas diameter | 1/2''G | |
Display | LED/LCD Temperature Display Optional | |
Other Optional Size | 6L/7L/8L/10L/12L/16L/20L | |
Water over heat protection (Max 85℃), over pressure protection, Anti-dry burning protection | ||
Product loading quantity
Series | Hot Water Supply L/Min △t 25°C | Rated Heat Load | Product Size(mm) | Packing Size(mm) | Loading Quantity 20GP/40HQ(PCS) |
S | 6L | 12KW | 440*300*120 | 520*335*180 | 900/2150 |
S | 7L | 14KW | 500*300*155 | 610*355*190 | 680/1640 |
S | 8L | 16KW | 520*320*155 | 610*370*205 | 610/1460 |
S | 10L | 20KW | 590*340*180 | 670*405*230 | 465/1070 |
S | 12L | 24KW | 620*340*180 | 710*405*230 | 430/1010 |
S | 14L | 28KW | 650*395*188 | 720*460*240 | 350/840 |
S | 16L | 32KW | 650*395*188 | 720*460*240 | 350/840 |
S | 20L | 40KW | 700*440*188 | 800*490*240 | 290/710 |
Series | Hot Water Supply L/Min △t 25°C | Rated Heat Load | Product Size(mm) | Packing Size(mm) | Loading Quantity 20GP/40HQ(PCS) |
T | 6L | 12KW | 440*300*120 | 520*335*180 | 900/2150 |
T | 7L | 14KW | 500*300*145 | 610*355*190 | 680/1640 |
T | 8L | 16KW | 520*320*145 | 610*370*205 | 610/1460 |
T | 10L | 20KW | 590*340*145 | 675*385*200 | 565/1290 |
T | 12L | 24KW | 620*340*145 | 705*385*200 | 520/1250 |

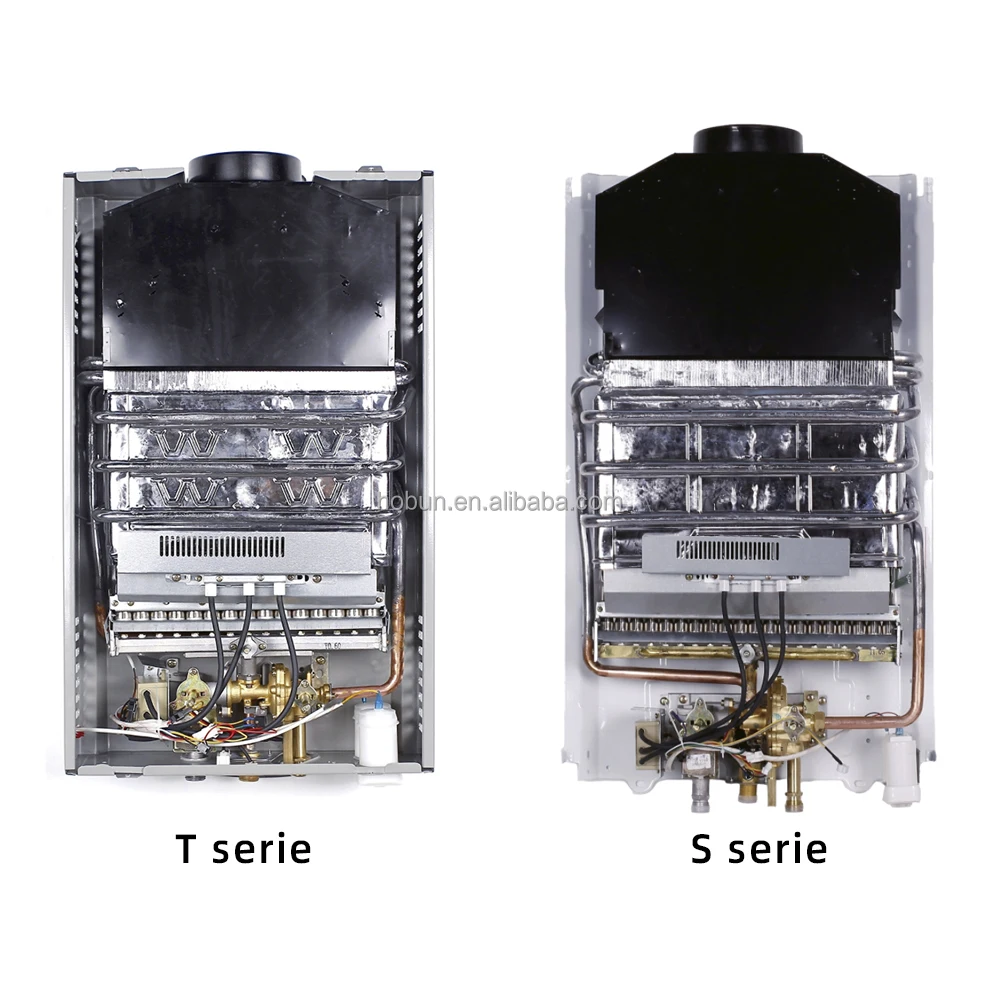

The bottom shell of gas water heater products is divided into two series(T series/S series)
T series :
Glass panel, stainless steel panel optional
S series :
White/black/silver/gold metal with coated panel, painted panel optional
A variety of styles can meet the customer's requirements for appearance.
Glass panel, stainless steel panel optional
S series :
White/black/silver/gold metal with coated panel, painted panel optional
A variety of styles can meet the customer's requirements for appearance.

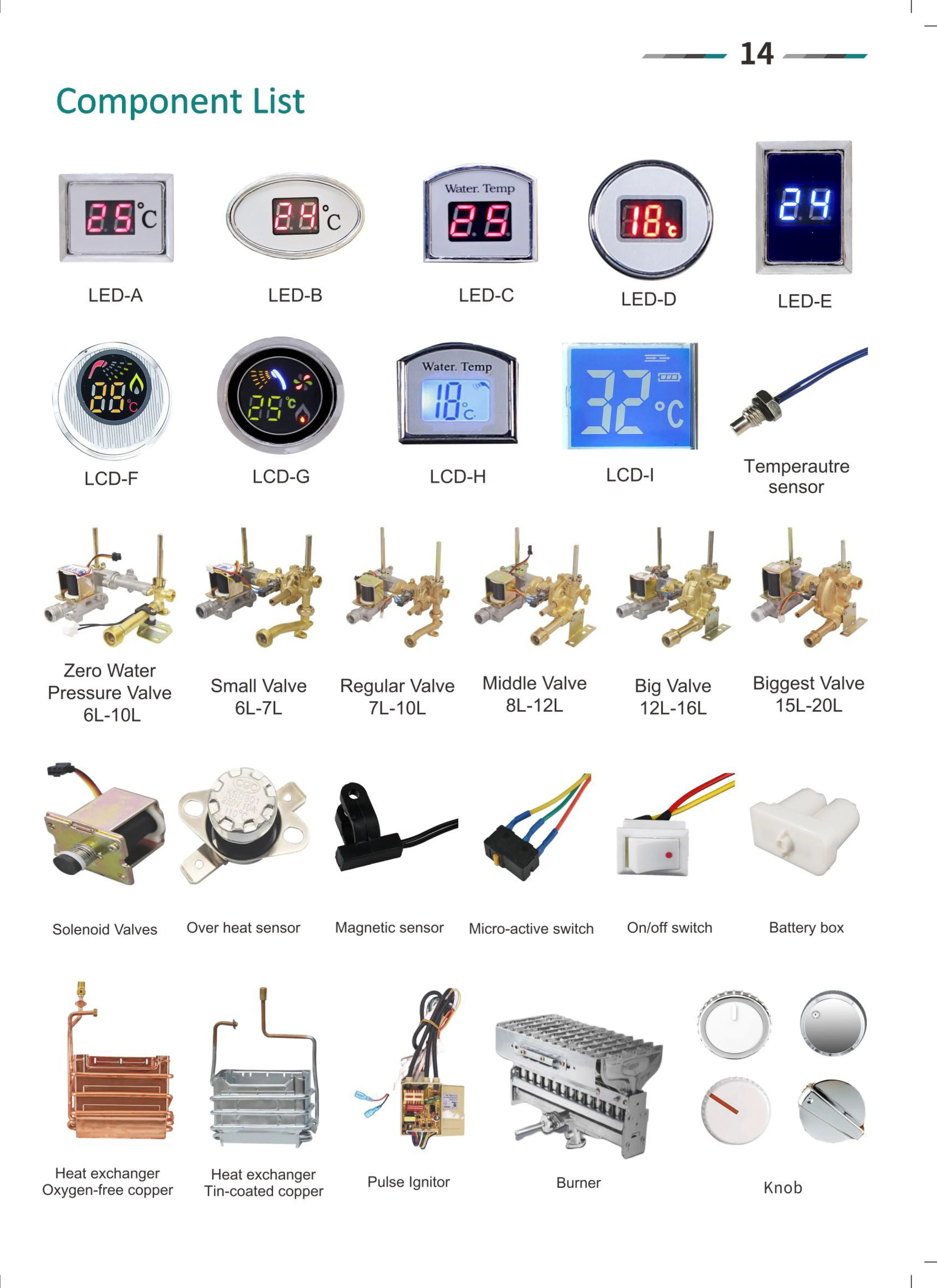

Component List
FAQ
Q1 : Are you manufacture or trading company?
We are a manufacturer specializing in gas water heater, gas stove , gas boiler, established in 1997
Q2 : What is your MOQ?
100pcs/per model
Q3 : How long you can offer a sample for my inspection?
Depends on models, Sample 5-20days
Q4 : Is OEM is acceptable?
Yes, OEM is welcome.
Q5 : What is the delivery time?
The delivery time is 30-35 days after order was confirmed and received deposit.
Q6 : What is your payment term?
T/T 30% deposit in advance 70% balance against the copy of B/L
We are a manufacturer specializing in gas water heater, gas stove , gas boiler, established in 1997
Q2 : What is your MOQ?
100pcs/per model
Q3 : How long you can offer a sample for my inspection?
Depends on models, Sample 5-20days
Q4 : Is OEM is acceptable?
Yes, OEM is welcome.
Q5 : What is the delivery time?
The delivery time is 30-35 days after order was confirmed and received deposit.
Q6 : What is your payment term?
T/T 30% deposit in advance 70% balance against the copy of B/L
