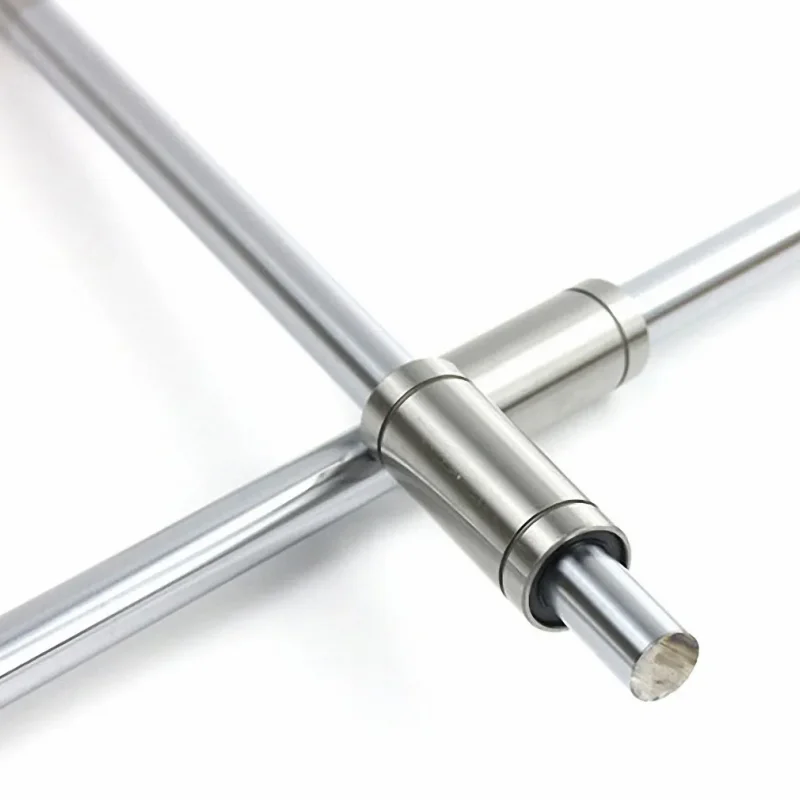

Linear Bushing LMGT10 High load capacity type linear motion rolling guide LMGT10 with grooved raceways LMGT10
- Category: >>>
- Supplier: Shanghai Songyi Bearing Co. Ltd.
Share on (1600974807306):
Product Overview
Description
PRODUCT DESCRIPTION

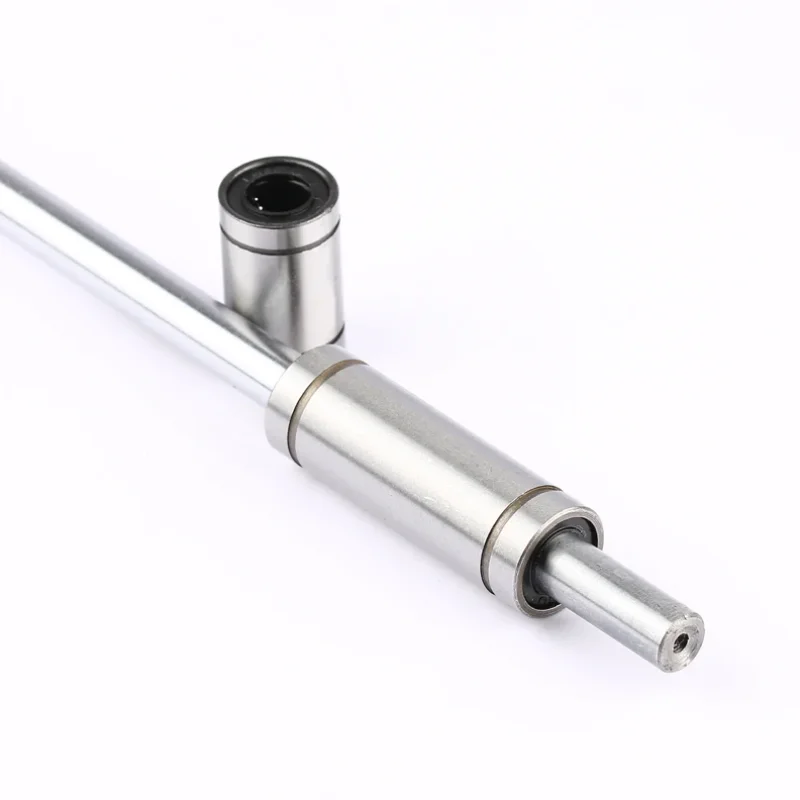

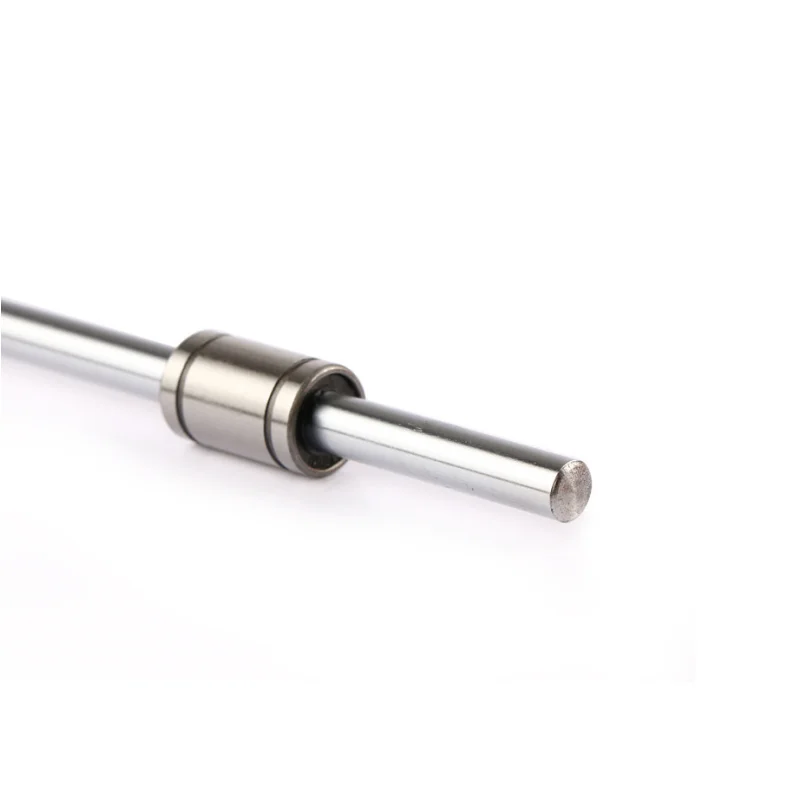

Linear Bushing G is a high load capacity type linear motion rolling guide which achieves endless linear motion of an external cylinder along a shaft with grooved raceways. It is a very simple and compact linear bushing with a large load capacity.
Interchangeable
The dimensional accuracy of the external cylinder and that of the shaft with grooved raceways are controlled individually to ensure interchangeability, so that they can be combined, added or exchanged freely.
Solid shaft and hollow shaft
The shaft with grooved raceways can be selected from two types: the solid shaft type LMG and the hollow shaft type LMGT. The hollow shaft type is suitable for applications in which piping, wiring or ventilation is needed.
High load capacity
Two rows of steel balls are incorporated in the external cylinder and make contact with grooved raceways of the shaft to obtain high rigidity and high load capacity
Dimensionally interchangeable with Linear Bushing LM
Linear Bushing G is dimensionally interchangeable with Linear Bushing LM and it is easy to change from one to another.
Type of guide | Loading method | Block mounting direction | Ball (roller) retainer | Ball Cage(Caged Roller) |
Ball | 4-way equal load | Top and bottom surface mount | Yes | None |
LaCS is available | Plate cover / steel tape is available | Dust cover type | Seal types for seal resistance value | Dedicated cap for the Linear Motion rail mounting hole |
None | None | None | SS | C4 |
Applicable to QZ Lubricator | Lubrication method | Nipple, plumbing fixture type | Preload grade |
None | Grease lubrication, oil lubrication, other | PB1021B | Normal (no symbol) |
Accuracy Grades | Type using standard material | Standard grease | Standard grease nipples | Standard seal |
Block: grade Ct(Ct)/Rail grade Ct7(Ct7),grade Ct5(Ct5) | Iron-based | AFB-LF | PB1021B | SS |
Whether it is possible to change to a high temperature type | Block surface treatment | Rail surface treatment | With Rack | Rail mounting method |
No | None | None | None | Bolt fixed |
Guide clamper | Minimum service temperature(Centigrade°C) | Minimum service temperature(Fahrenheit°F) | Maximum service temperature(Centigrade°C) | Maximum service temperature(Fahrenheit°F) |
Yes | -20 | -4 | 80 | 176 |
Long-term Maintenance-free Operation | Rail joint is available |
None | None |

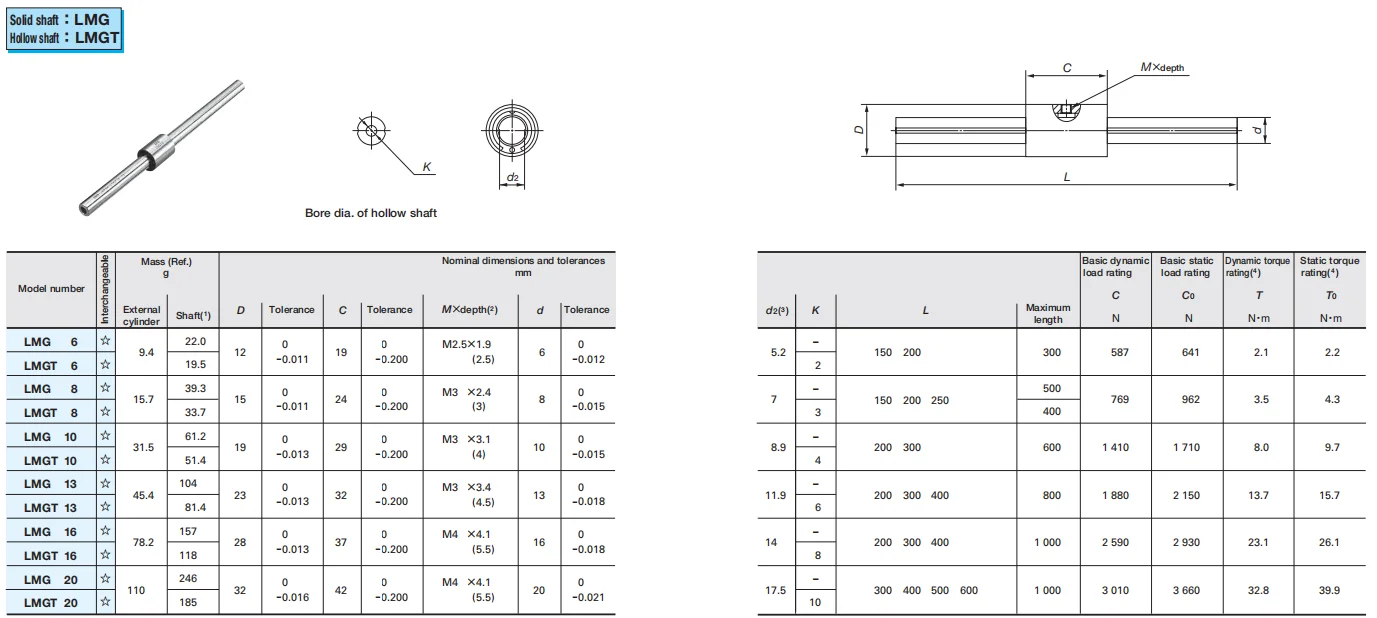

PART OF THE LINEAR GUIDE SLIDERS SPECIFICATION
This is only a small part modle number of linear guide we have, if you fail to find the one you need, please contact us directly. Thanks in advance.
MORE PRODUCT
COMPANY INFORMATION
Shanghai SY Bearing CO., LTD is a professional global supplier of bearings and Linear Motion System .We are Founded in 1999 and located in Shanghai city, We have our own factory,mainly provide and customize our own brand SYBR bearings and linear guide systems to meet the different needs of customers.Meanwhile We stock world famous brands of bearings and linear guide system from different countries. Famous brand Bearings come from CHINA, GERMANY,SLOVAKIA, SWEDEN, JAPAN, AUSTRIA, MALAYSIA, FRANCE, USA, ITALY and so on. Famous brand Linear Motion System come from GERMANY,JAPAN, CHINESE TAIWAN, ROMANIA, KOREA, CHINA and so on.
We have complete warehousing & logistics system and best after-sale service, therefore we got to know many clients in the world like America, Europe, Africa and the Middle East.By ceaselessly improve our product and service, we have confidence in cooperating with every potential customer.
Advantage
1.In-depth Industry Knowledge for Complex Solutions
2.Famous Brand Dealers
3.Complete After-sales Service
4.Complete warehouse system with short delivery time.
5.Wide product range
BEARING APPLICATION
Linear guides play the role of easily and smoothly guiding linear motion while bearing loads in order for machines to operate precisely and efficiently. They are an indispensable part of linear components in devices such as machine tools and semiconductor manufacturing equipment. Recently, they have also been used in railway vehicles, buses, automatic doors, seismic isolation systems, and other consumer fields.
