Sake Tokubetsu Honjozo Junmai Daiginjo Chinese Spirits Cartridge Filtration Stainless Steel Filter Housing
- Category: >>>
- Supplier: Shanghai Lvda Filtration System Co. Ltd.
Share on (1600974962909):
Product Overview
Description
We are a real manufacturer. Next I will show you my product information, as well as my production workshop, laboratory, filtration effect, delivery packaging and other information. Please browse.I can provide you with customized products, welcome to consult.
Sake Tokubetsu Honjozo Junmai Daiginjo Chinese Spirits Cartridge Filtration Stainless Steel Filter Housing
Dimensions | 12” Depth-stack cartridge | 16” Depth-stack cartridge | ||||||||||||
1PC | 2PC | 3PC | 4PC | 1PC | 2PC | 3PC | 4PC | |||||||
A：Total height（except pressure gage） | 650 | 1210 | 1490 | 1760 | 960 | 1230 | 1500 | 1770 | ||||||
B：Inlet center distance | 200 | 2500 | ||||||||||||
C：Diameter | Φ325 | Φ450 | ||||||||||||
D：Terrain clearance of inlet/outlet N1, N2 | 280 | 280 | ||||||||||||
Inlet/outlet N1, N2 | 2" | 2" | ||||||||||||
The deep membrane stack uses deep filter paperboard as the filter material to effectively remove impurities and microorganisms in the night body through mechanical interception, electrostatic adsorption and other methods. This product adopts a new double-layer support separation design, which increases the effective filtration area of the filter element, thereby extending the service life of the filter element.
Products Description
Product Features：
1. Can be backwashed;2. The filter plate will not deform after heat treatment;
3. The solid outer frame design prevents the filter element from being damaged during installation and removal;
4. The support separation plate fully supports the filter plate and enhances the stability of the filter element;
Application：
Vodka/champagne/wine/french champagne/Overheated wine/White wine/red wine/British/whiskey
/german beer/tequila beer/sake/grain wine/fruit wine/Barley makes fruit wine/Barley brews beer/Scotch
/Brandy/brewing wine/distilled liquor/Prepare wine/cider/orange Wine/Icewine/Noble rot wines/Fortified Wine/Sherry/Port wine/Sparkling wine/Champagne/Chinese rice wines/Sake/Junmai Daiginjo/
Daiginjo/Junmai Ginjo/Ginjo/Junmai/Tokubetsu Junmai/Tokubetsu Honjozo/Honjozo/Chinese spirits/mild-flavored/Chinese spirits/Jiang-flavored Chinese spirits/kashasha/Tequila/kumiss/milk wine/rice wine/glutinous rice/kvass/Liquor/plum wine/cherry wine/fruit brandy/Mead/gin/aurum/Pu Kui wine/Brandy/Whisky/Vodka/Tequila/Rum/Gin/Liquor Filtration
1. Particle removal 2. Clarification and filtration
3. Filtration before filling;
4. Pre-filtration before membrane filtration;
5. Polishing and filtering
6. Colloidal removal;
7. Demist filtration after cooling;
8. Filtration after product stabilization;
9. Final filtration (microbial removal);
Depth-stack Filter Housings：\t\t\t

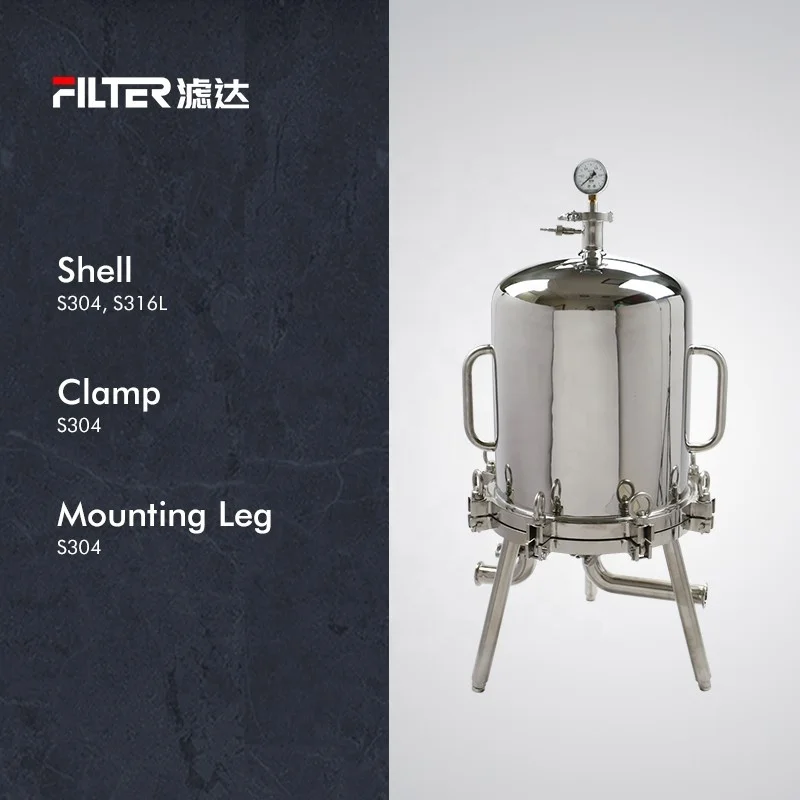

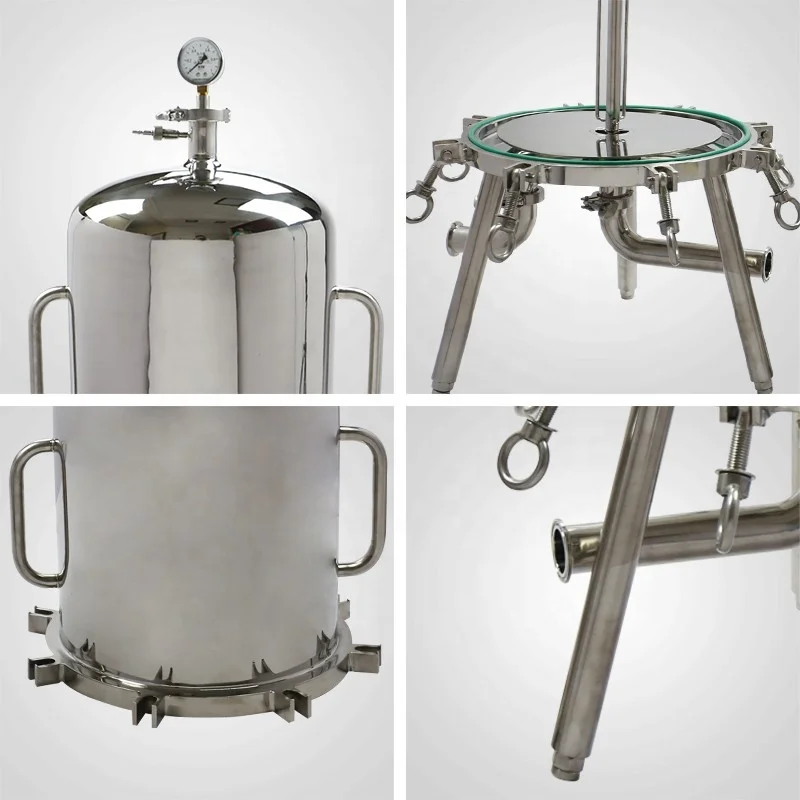

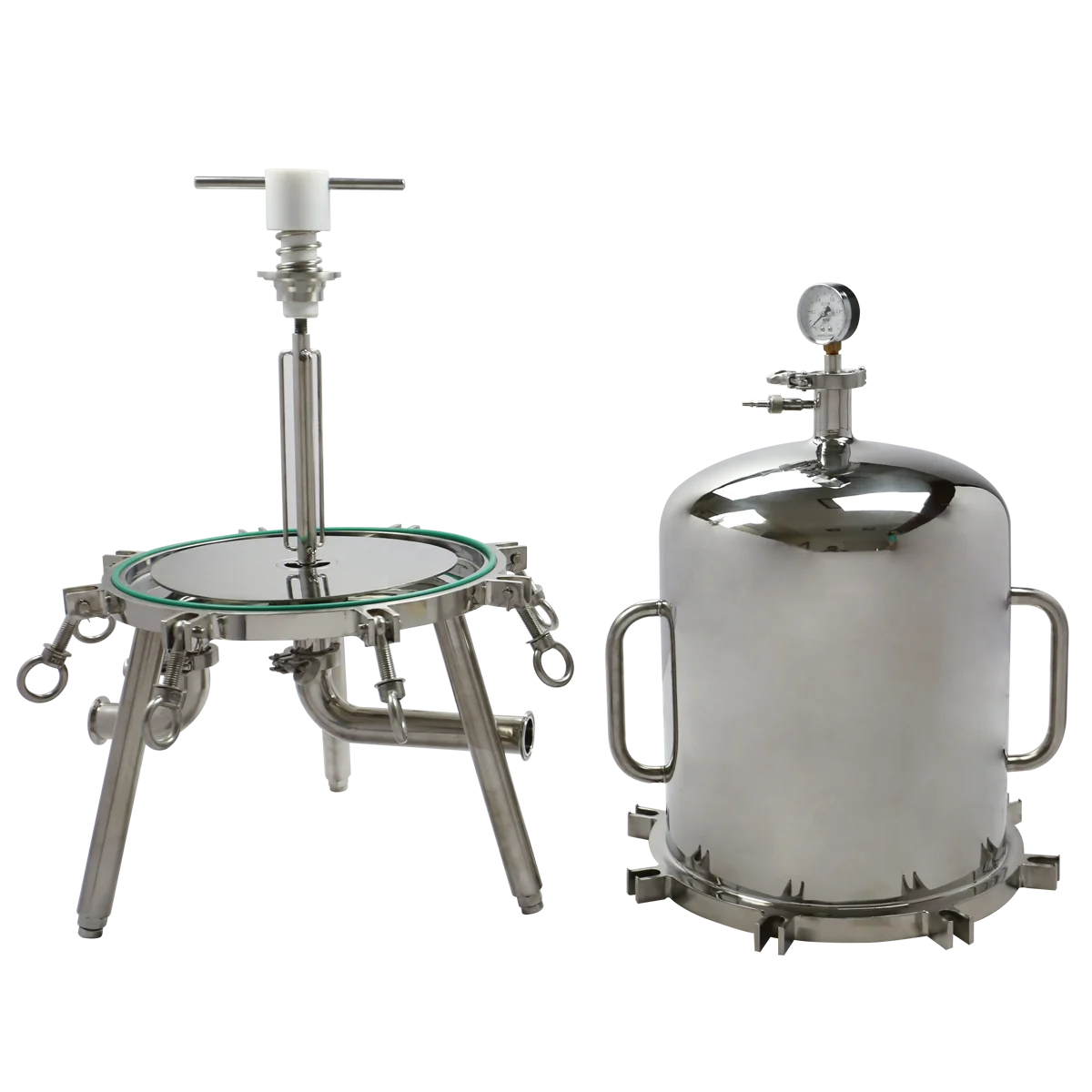

Filter Housings are depth housings for Depth-stack filter cartridges. They can replace DE filter to remove the particles in kinds of liquids for filtration,clarification and purification.The housings are constructed under sanitory grade standards with high precision polishing.There is no residual liquid after using and easy to clean. With the bottom inlet and outlet design, it can avoid the turbulence of liquid effectively and improve the filtration performance. The housing can hold 4 pcs depth-stack filter cartridges at most and meet the high flow requirement.\t\t
Filter Housings are depth housings for Depth-stack filter cartridges. They can replace DE filter to remove the particles in kinds of liquids for filtration,clarification and purification.The housings are constructed under sanitory grade standards with high precision polishing.There is no residual liquid after using and easy to clean. With the bottom inlet and outlet design, it can avoid the turbulence of liquid effectively and improve the filtration performance. The housing can hold 4 pcs depth-stack filter cartridges at most and meet the high flow requirement.\t\t
Filtering Effect And Detection
Company Profile
Shipping and Packing
FAQ
1. What is the minimum order quantity?
A: One
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or
bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after the balance is paid.
3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?
A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and fixed in a wooden box. It will not shake or
bump during transportation.
7. After sales?
A: Professional customer service is online 24 hours a day. You can find me at any time and tell me the problems you encounter. I will do my best to solve them for you.
