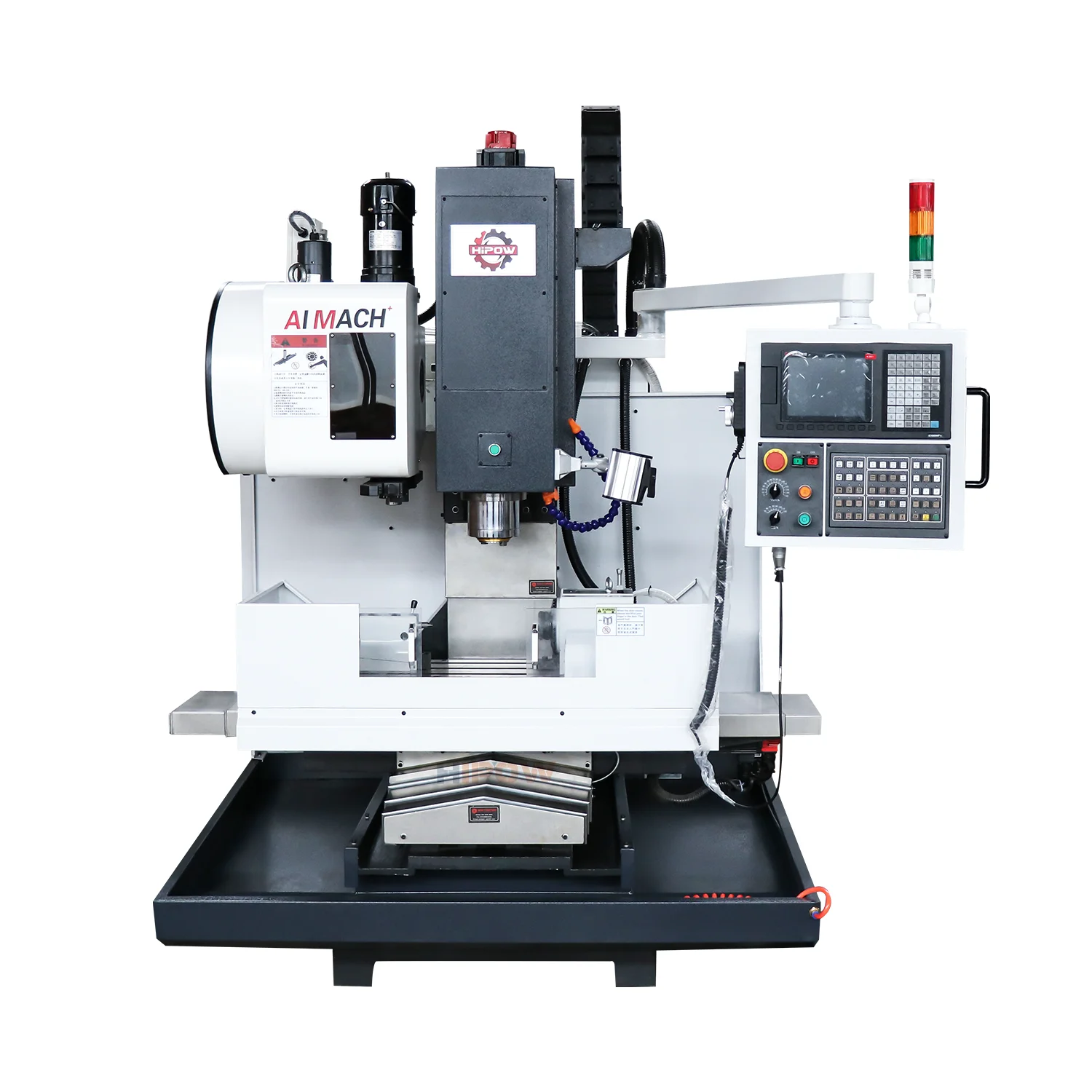

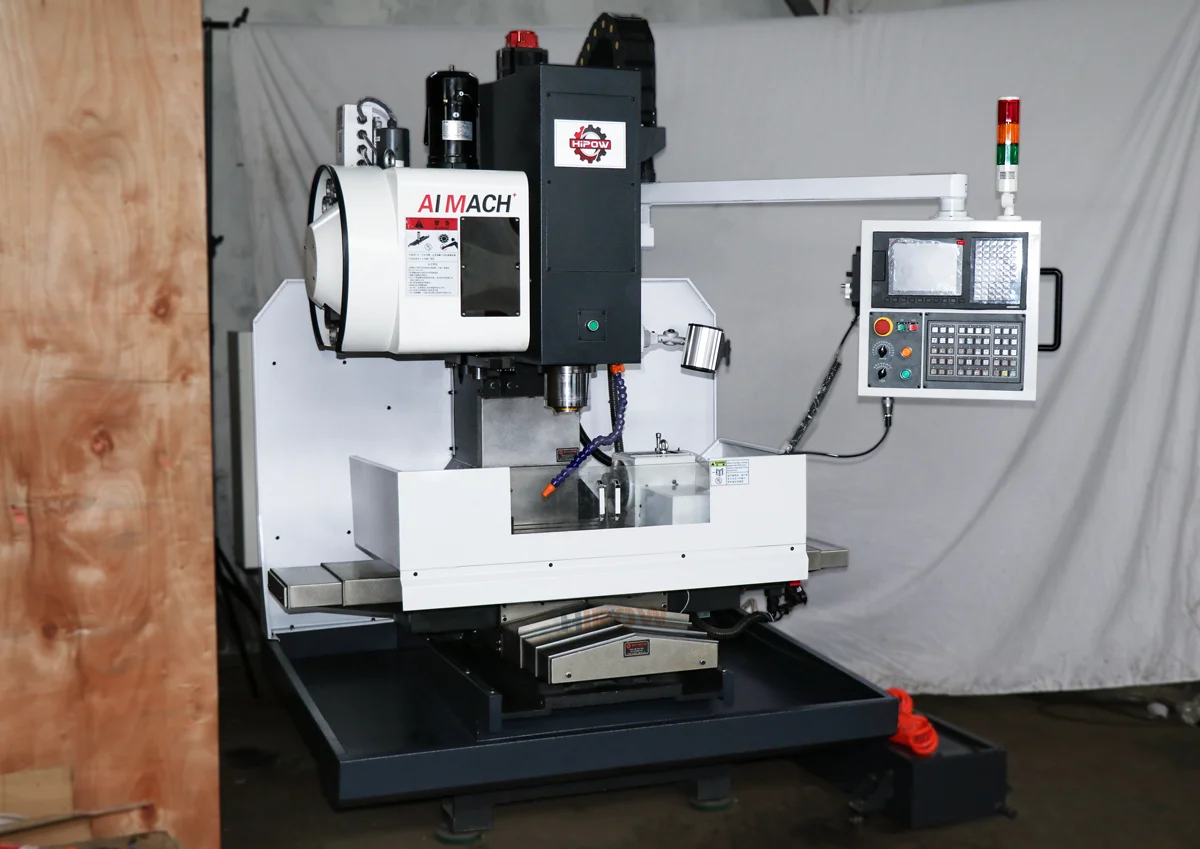

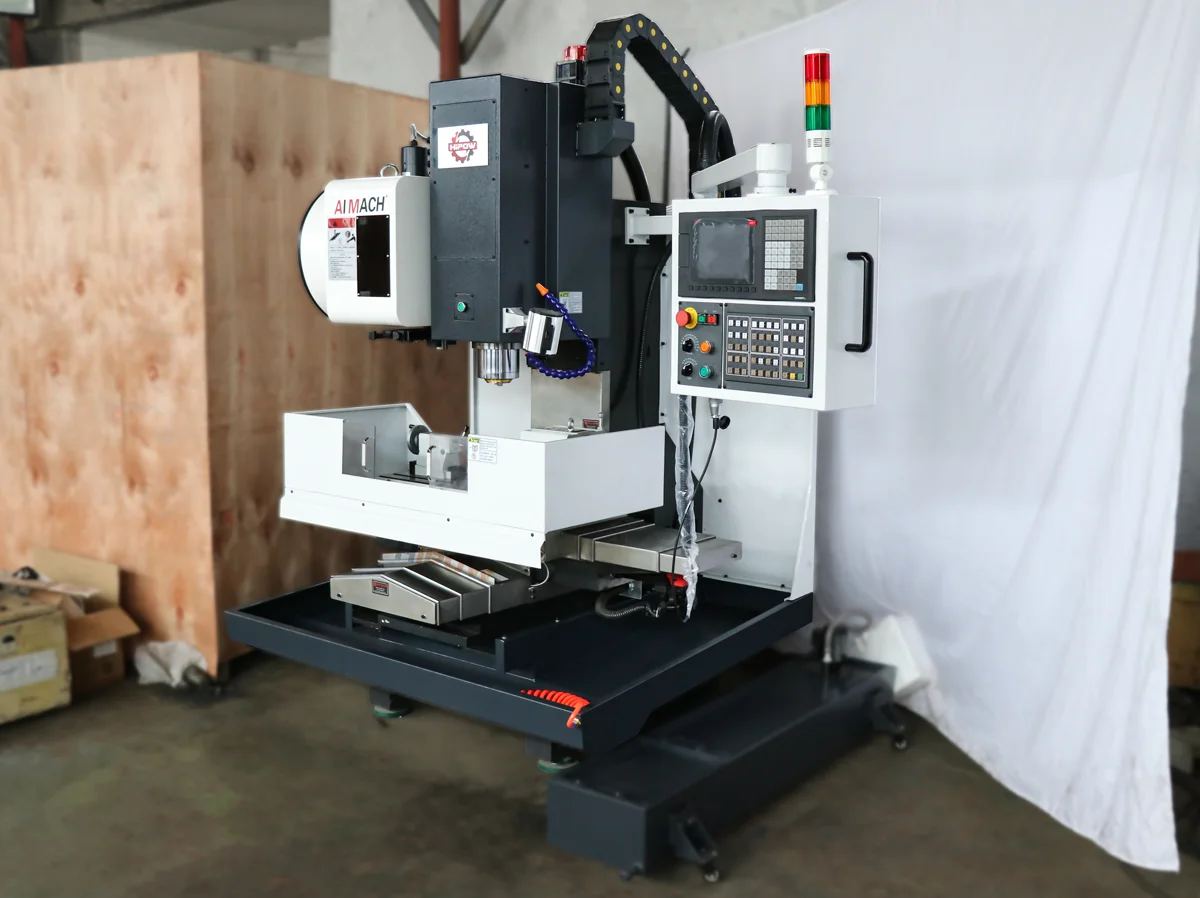

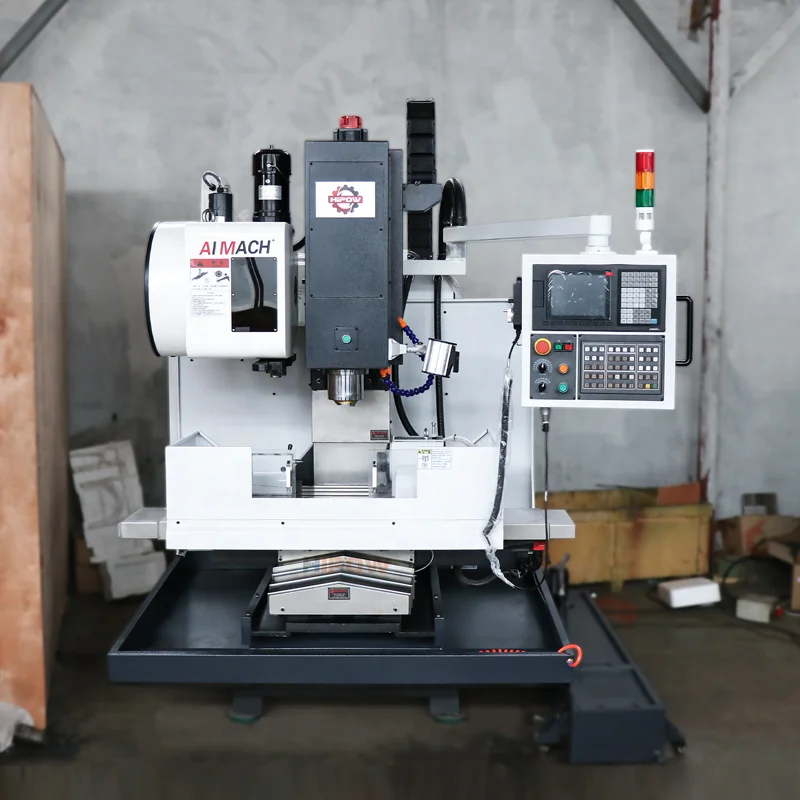

High quality vertical milling machining center xk7126 cheap 4axis mini metal vertical cnc milling machine
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (1600974990628):
Product Overview
Description
Products Description
★ Aseismatic capability, high strength and good quality cast iron
★Top reliable CNC controller: Fanuc ,Mitsubishi ,Siemens Syntec and GSK
★X,Y,Z Axis CNC servo motor ,servo driver
★High Precision,High Rigidity Hard Rails
★Taiwan brand,8K,10K,12k spindle unit
★Taiwan brand,8K,10K,12k spindle unit
★Taiwan OKADA umbrella/Arm type tool magazine
★Japanese NSK bearing ,Germany R+W coupling
★ Japan HERG full automatic lubrication system
★Taiwan pressure cylinder,and pneumatic system
★Japanese NSK bearing ,Germany R+W coupling
★ Japan HERG full automatic lubrication system
★Taiwan pressure cylinder,and pneumatic system
Model | XK7126 |
XYZ axis travel | 520x320x450mm |
Spindle nose to table (mm) | 110-510 |
Table size (mm) | 800*300 |
Max.Table load (Kg) | 200KG |
T-slot | 3-14 |
Spindle Taper | BT40 |
Spindle speed ( r.p.m) | 8000 |
Main motor ( Kw) | 3.7 |
X,Y Axis Torque(N.M) | 10 |
Z Axis Torque(N.M) | 10 |
Rapid feed (X/Y/Z) (m/min) | 8/8/8( hard rails) , 15/15/15( linear rails) |
Cutting speed mm/min | 1-2000 |
Positioning accuracy (mm) | 0.015 |
Repeatability accuracy (mm) | 0.01 |
Tool changer Type | Funnel Type Tool Charger |
Tool changer Number | 16T |
Power supply | 3 Phase 220V60Hz |
Machine weight ( KG) | 1700/1900 |
Machine Size (L/W/H ) | 2400*2200*2500mm |

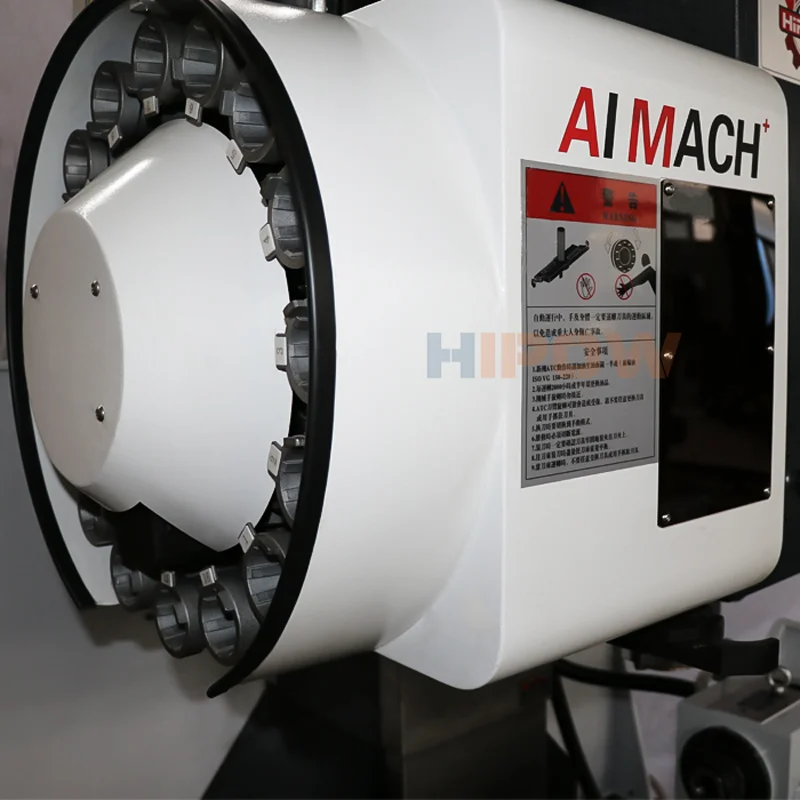

1) Taiwan Okada 16T Arm Type Tool Magazine

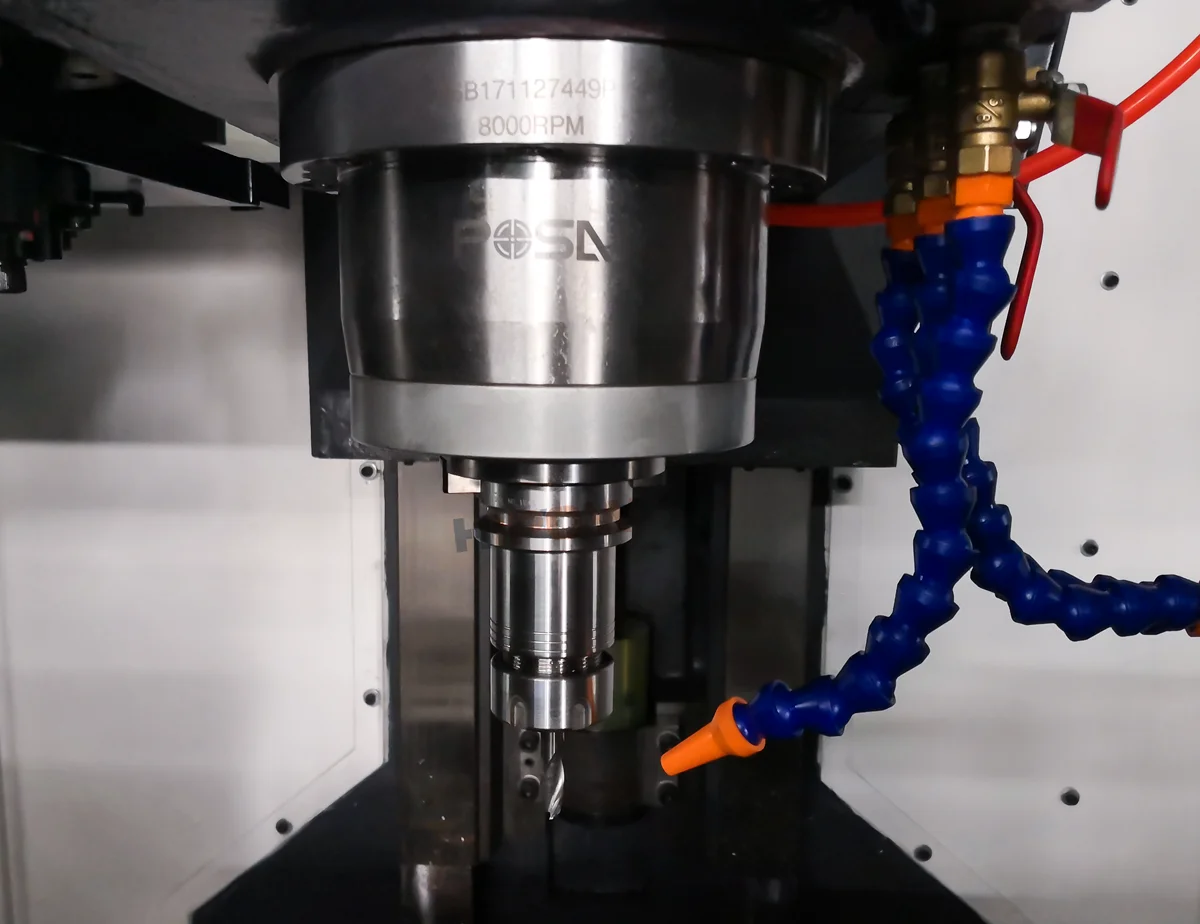

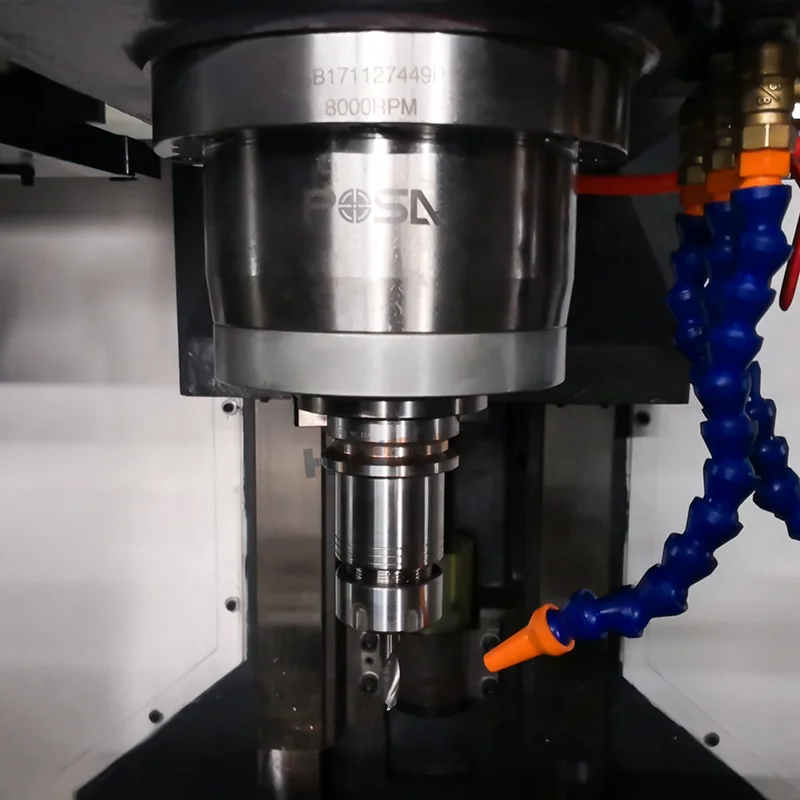

2) TAIWAN BT40 8000rpm Spindle

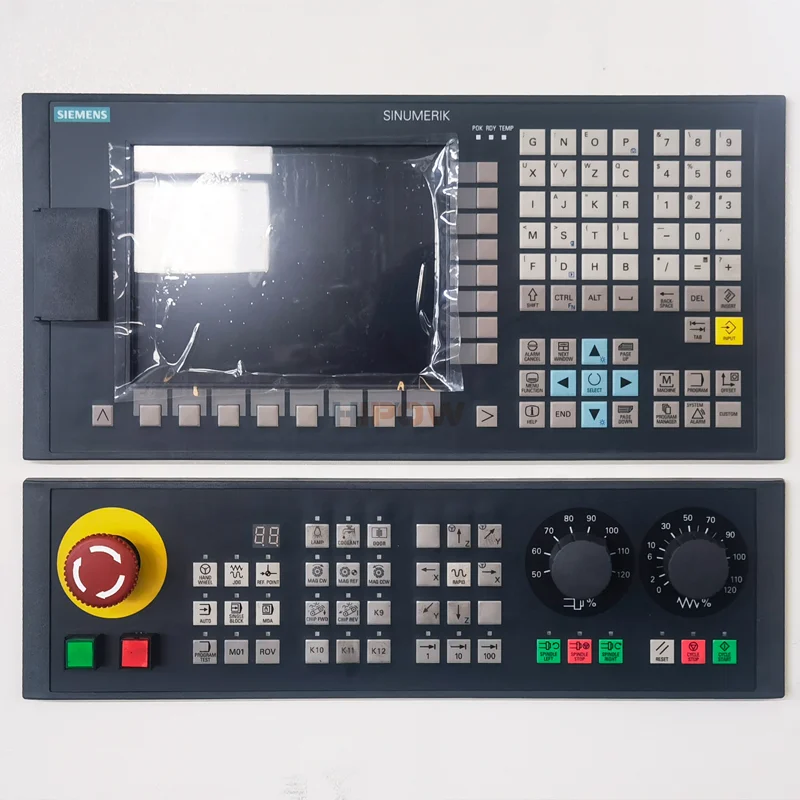

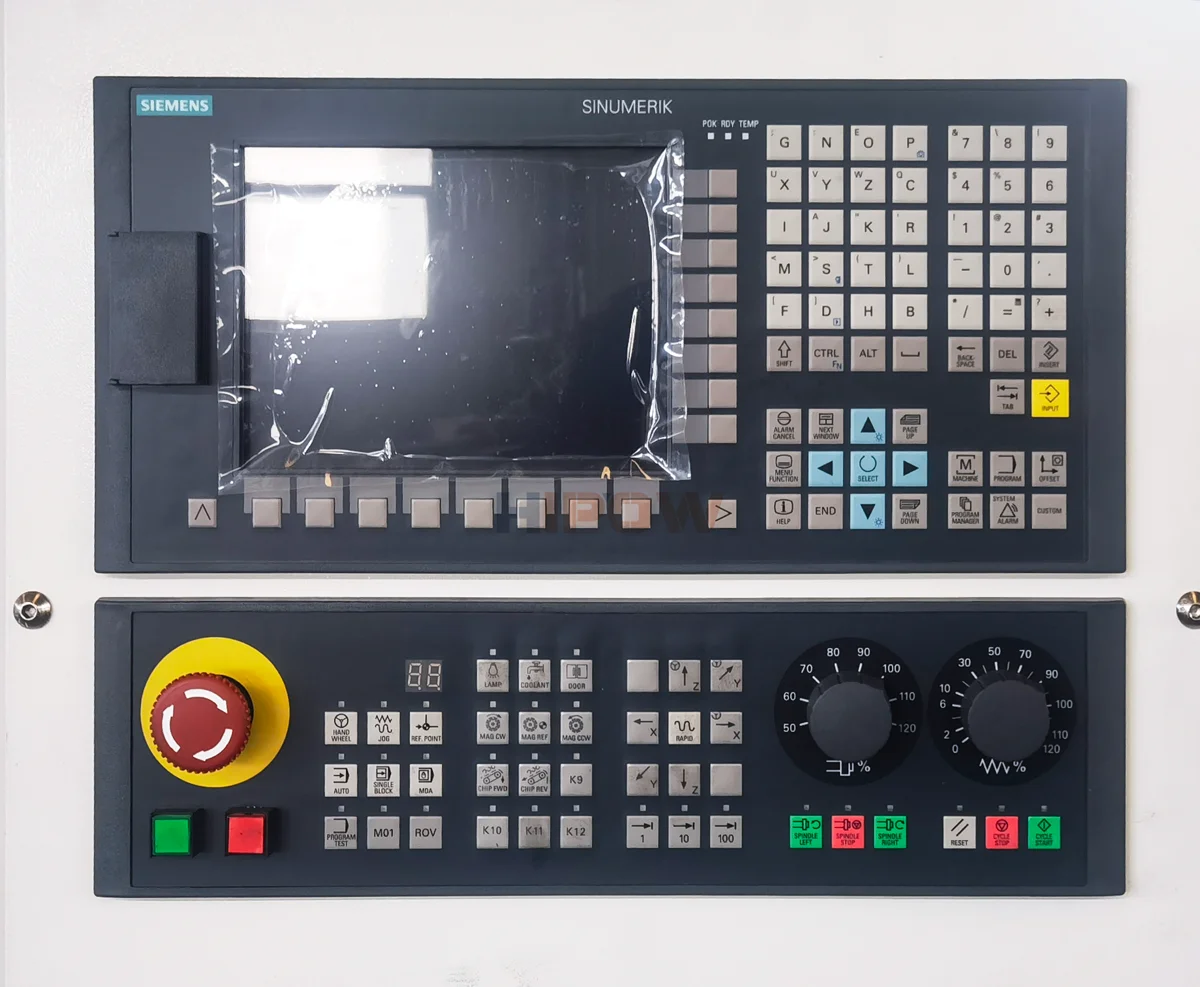

3) Top brand reliable CNC controller
1) Fanuc ,Mitsubishi ,Siemens ,Syntec and GSK are avaiable
2) Top cnc controller with original CNC servo motor ,servo driver ,original controller panel
2) Top cnc controller with original CNC servo motor ,servo driver ,original controller panel
4) High Rigidity ,hig precision ,rectangle hard rails with plastic-layer surface coating

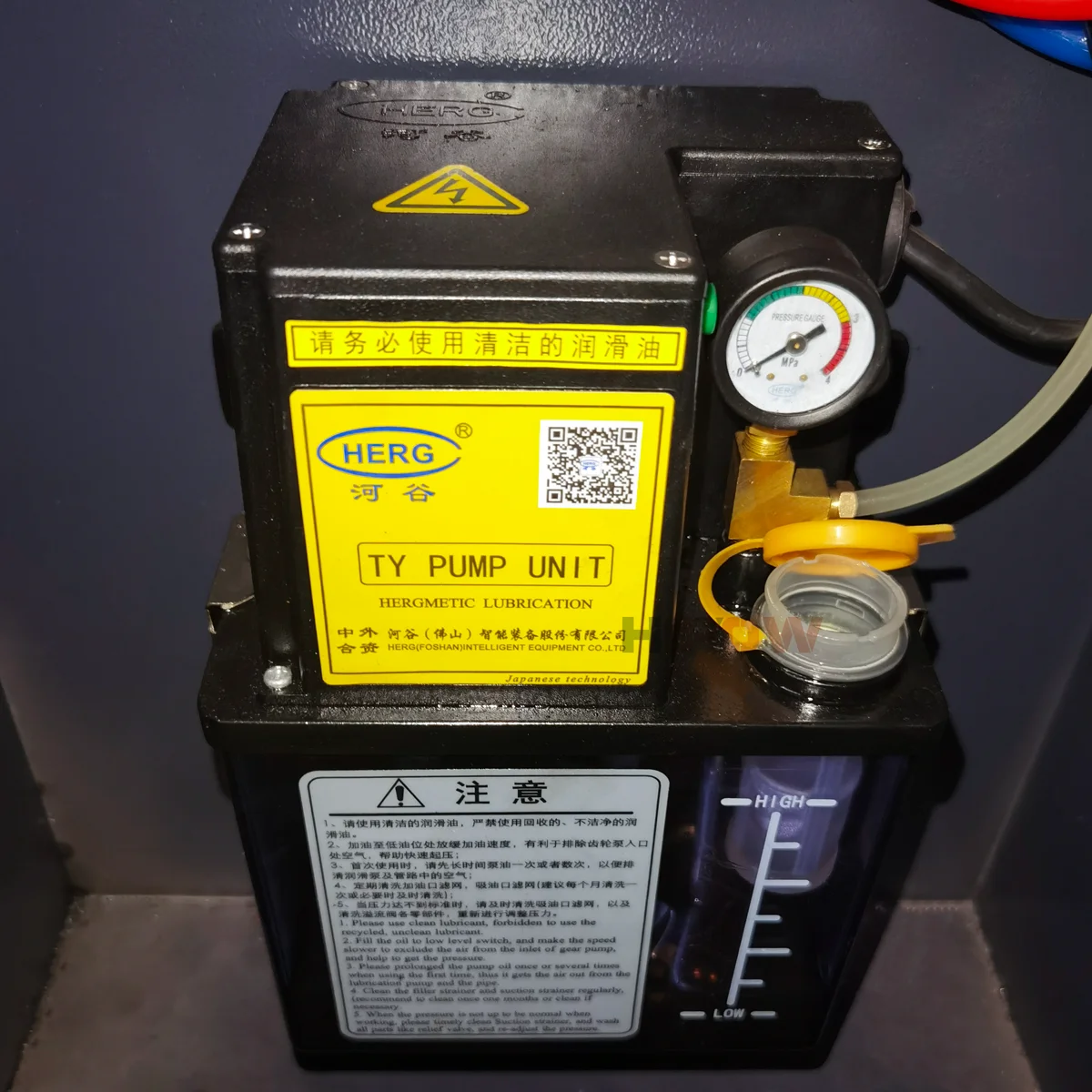

5) Japan HERG Central Lubrication
Optional parts：

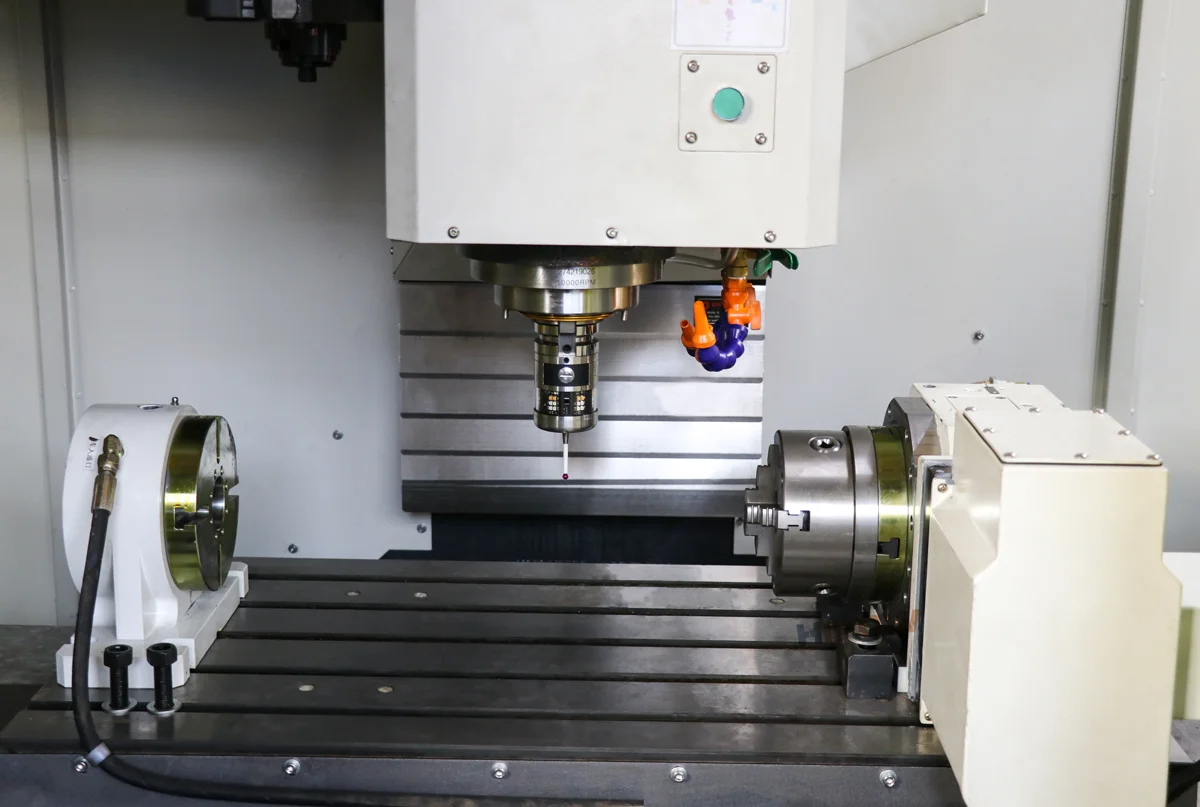

6) 4TH Axis( CNC Dividing Head)+FK15125 CNC Dividing Head
+ Manual Tailstock
+Manual Chuck
+GSK/Syntec/Fanuc Original Servo motor, Servo Driver
+GSK/Syntec/Fanuc Original Servo motor, Servo Driver
