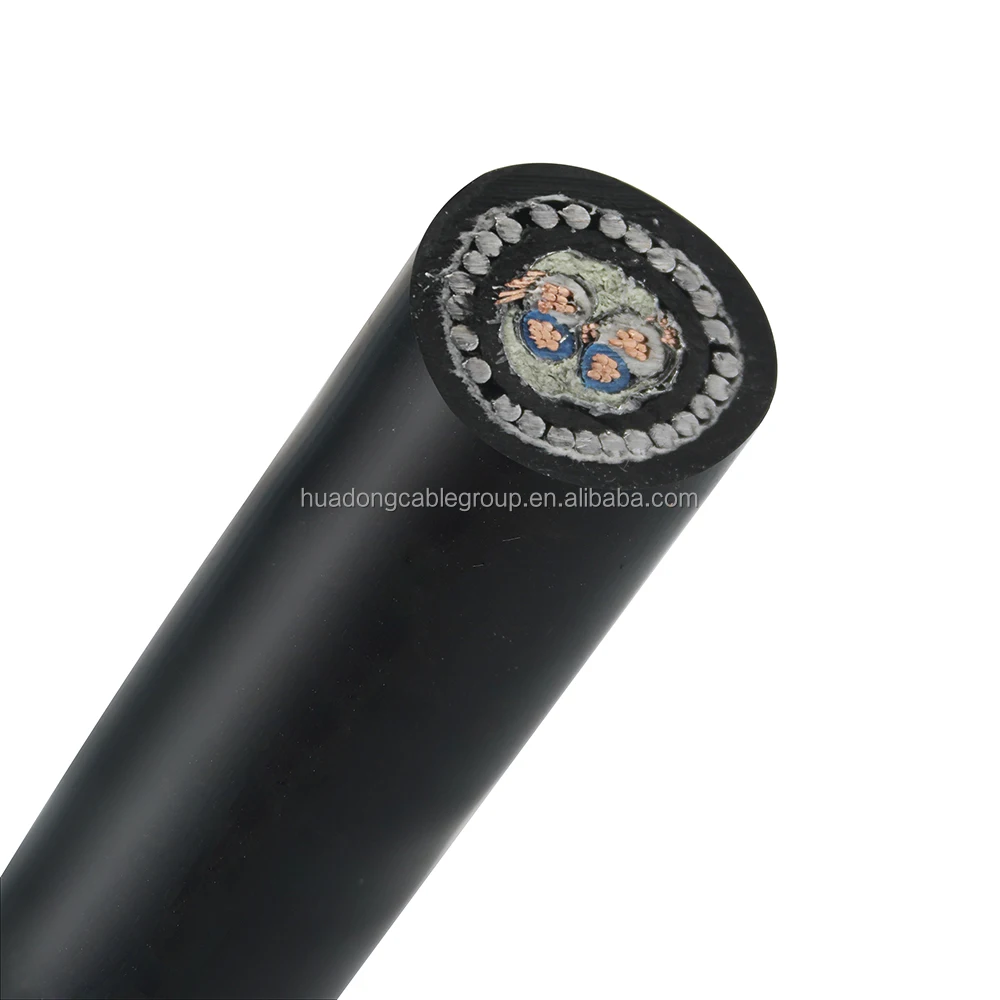

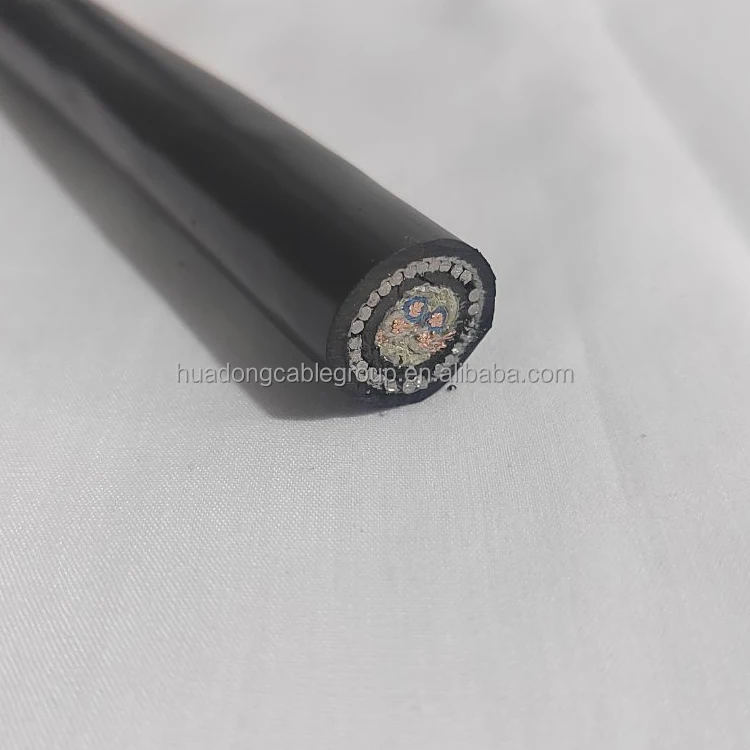

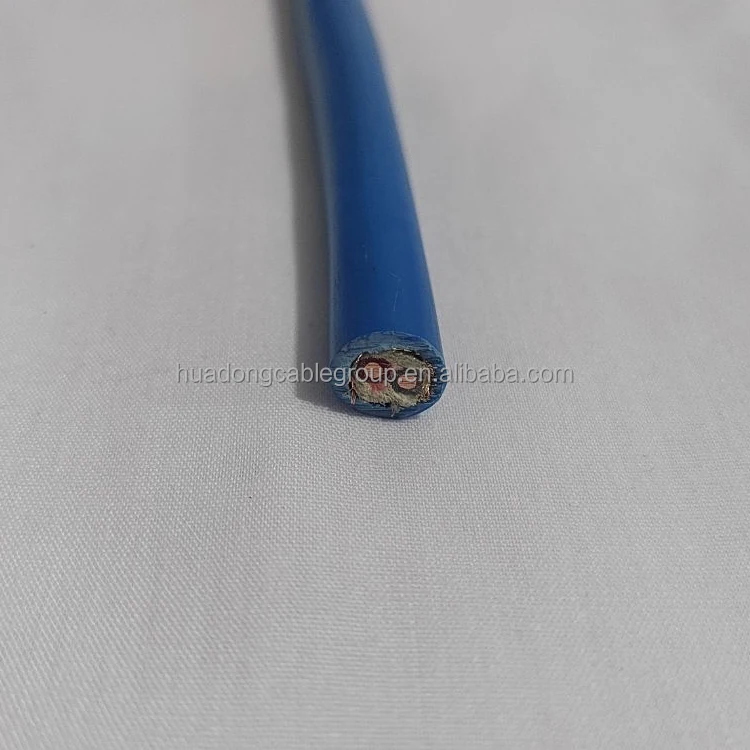

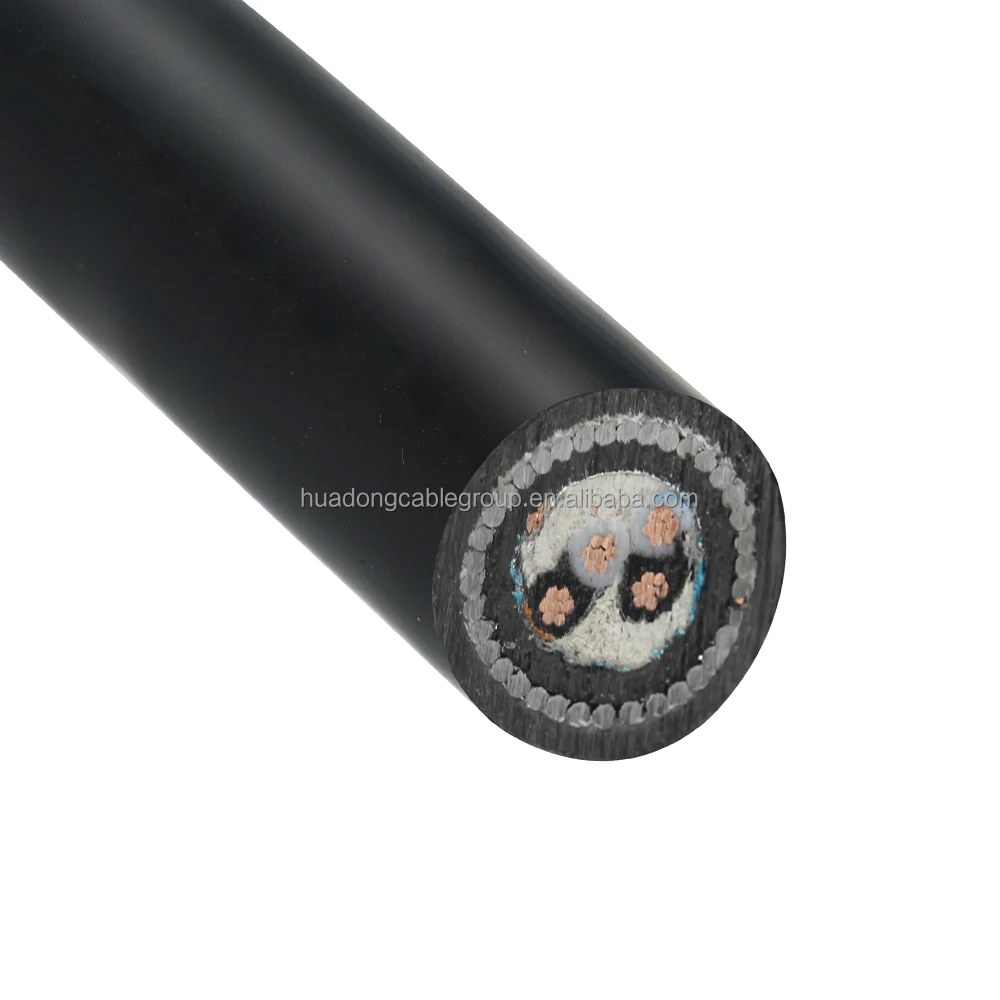

1 pair 1.5mm2 shield flame retardant instrument cable
Application:
Instrumentation cable is used to transmit electrical signals and power in industrial automation, process control, and other applications that require precise control and measurement.

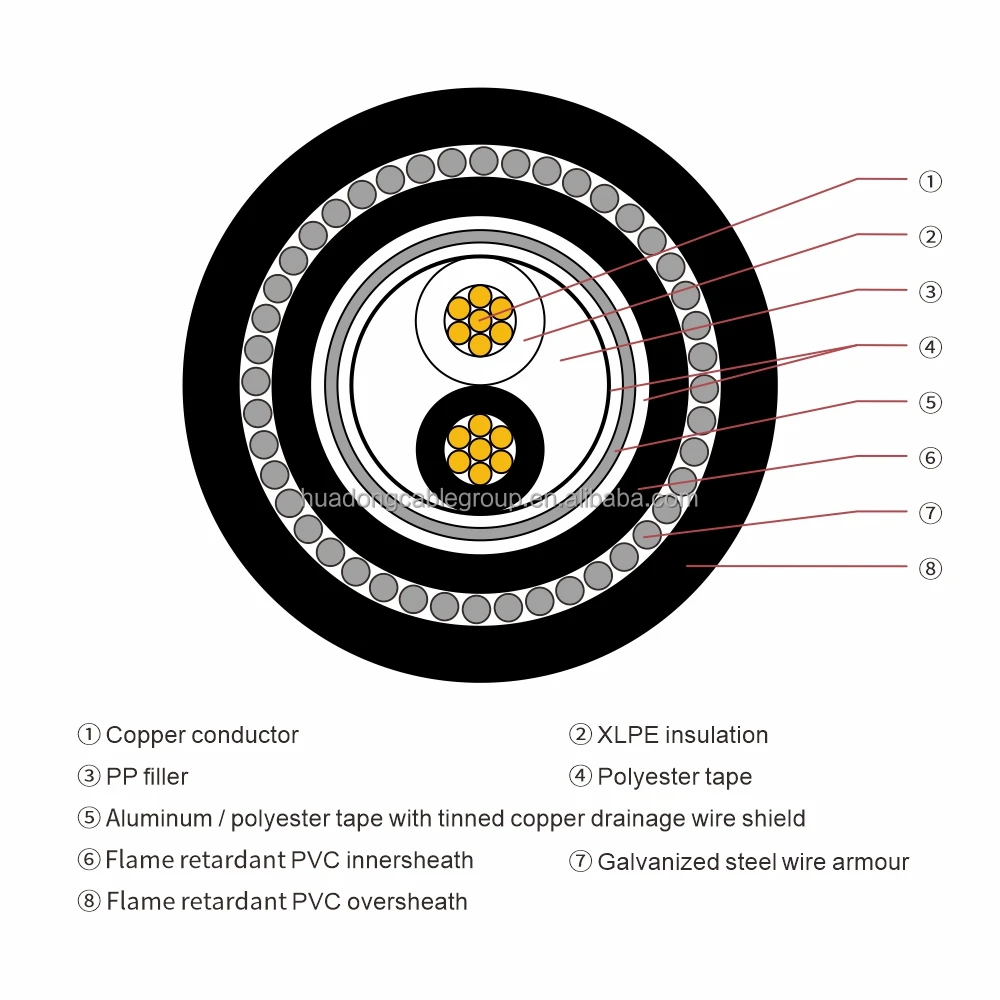

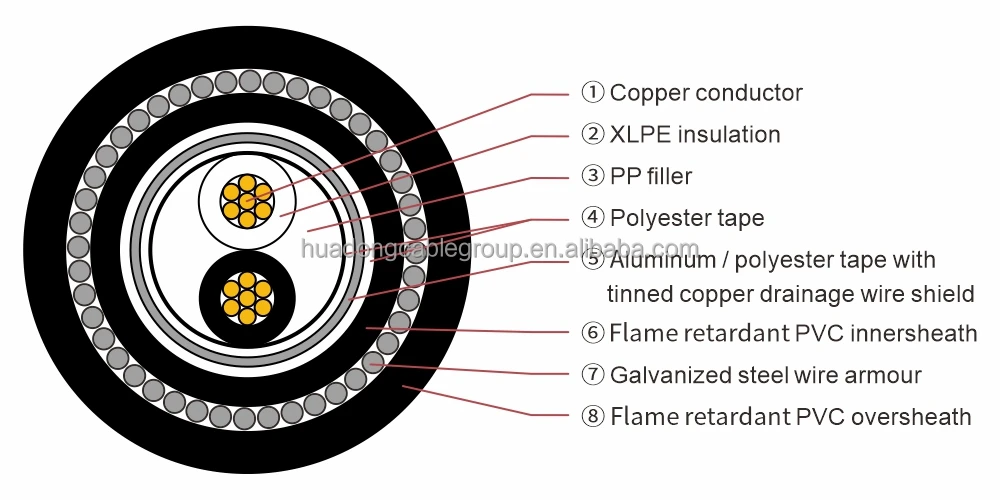

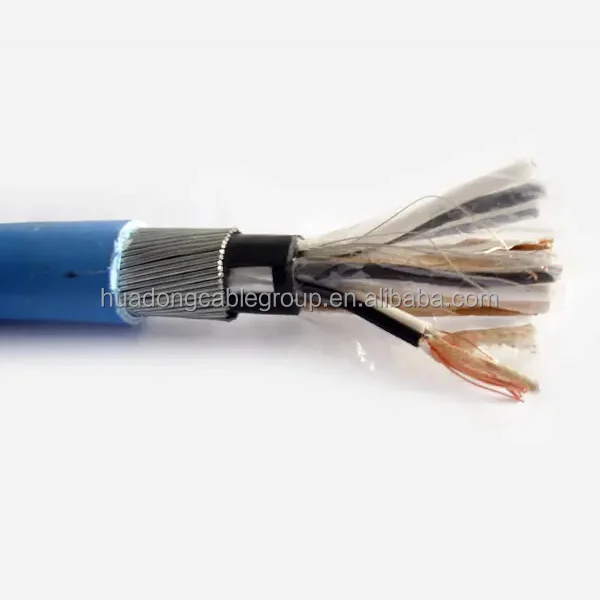

Construction
Conductors: solid (class 1), stranded (class 2) or flexible (class 5) bare or tinned conductors.
Insulation: Polyethylene (PE) or cross-linked Polyethylene (XLPE) or Polyvinylchloride (PVC). If circuit integrity is required,we can offer a ceramic-forming insulation compound or a combination of Mica tape and XLPE.
Stranding of the insulated cores: in pairs, triples or quads.
Screen: with individual or overall screen (aluminum laminated foil, copper braid or tape).
Armour: with steel tape, steel wire or steel wire braid.
As special construction with a lead sheath as protection against contaminated soil or against aggressive chemicals such as acids, bases, aliphatic or aromatic hydrocarbons.
Outer sheath: Polyvinylchloride (PVC) or halogen-free compound for special requirements in case of fire.




Specification


Number of pairs
Insulation thickness
Minimum
Outer sheath thickness
Nominal
Outer diameter
approx.
Weight
approx.
mm
mm
mm
kg/km
Cross section 0.5 mm²
1
0.26
0.8
5.6
39
2
0.26
0.9
8.3
73
4
0.26
0.9
9.4
99
8
0.26
1
12.5
168
12
0.26
1.1
14.7
236
16
0.26
1.1
16.2
302
24
0.26
1.2
20
428
Cross section 0.75 mm²
1
0.26
0.8
6
45
2
0.26
0.9
8.9
90
4
0.26
1
10.4
129
8
0.26
1.1
13.9
222
12
0.26
1.1
16.1
308
16
0.26
1.2
18
409
24
0.26
1.3
22
570
Cross section 1.0 mm²
1
0.26
0.8
6.4
53
2
0.26
0.9
9.6
104
4
0.26
1
11.2
158
8
0.26
1.1
15
275
12
0.26
1.2
17.6
393
16
0.26
1.2
19.5
510
24
0.26
1.3
24
720
Cross section 1.5 mm²
1
0.35
0.9
7.6
73
2
0.35
1
11.4
152
4
0.35
1.1
13.4
225
8
0.35
1.2
18
399
12
0.35
1.3
21
565
16
0.35
1.4
23.6
755
24
0.35
1.5
29.3
1077
Cross section 2.5 mm²
1
0.35
0.9
8.4
96
4
0.35
1.1
15
313
12
0.35
1.4
24
821
