Stainless Steel Reactor Solvent Separation Extraction Crystallization Stainless Steel Multifunctional Reactor
- Category: >>>
- Supplier: Shanghai Yuanhuai Intelligent Technology Co. Ltd
Share on (1600975117121):
Product Overview
Description
Technical Specification
Model | JSR-10S | JSR-20S | JSR-30S | JSR-50S | JSR-100S | JSR-200S | JSR-300S |
Net Volume(L) | 10 | 20 | 30 | 50 | 100 | 200 | 300 |
Condenser Heat Exchange Area(m²) | 0.3 | 0.3 | 0.5 | 1.0 | 2.0 | 3.0 | 3.0 |
Volume(L) | 10 | 10 | 20 | 30 | 50 | 100 | 100 |
Material | The part contact with the material is SUS316, and the rest is S304 | ||||||
Stirring Motor | Motor power 200W Inerter, 80 460 rpm | Motor power 370W Inerter, 80 460rpm | Motor power 750W Inerter, 80 350rpm | Motor power 1.5KW Inerter, 80 350rpm | |||
Sealing Form | Magnetic drive, static seal | ||||||
Pressure Gage | Install pressure gage M20*1.5 | ||||||
Condenser Material | S31603 | ||||||
Receiving Tank Material | S31603 | ||||||
With Sight Glass Or Not | With sight glass | ||||||
Reactor Working Pressure (MPa) | -0.1-0.1MPa | ||||||
Reactor Working Temperature (C) | -20-200°C | ||||||
Power Supply | 220V 1P | 380V 3P | |||||
PRODUCT DESCRIPTION
Multi-function stainless steel reactor is a multi-functional equipment developed based on general reactors, which has all the functions of the reactor and enhances the effects of distillation and sealing. lt is very suitable for removal of solvent,decarboxylation of natural extract, as well as reaction, mixing and crystallization asconventional reactors.
PRODUCT ADVANTAGES
♣1.Multi-functional
With multiple functions, it can workwith wiped film evaporator andother equipment, and can also beused as distillation equipment alone
♣2.SUS316L Fabrication
Tolerance to various solvents
♣3.High Vacuum Degree
Magnetic seal can achieve highervacuum degree, which can reach within 10Pa, and improve evaporation effect.
♣4.Good Condensation Effect
Large heat exchange area
♣5.Compact Structure
Simple operation, compact structure and convenient movement
APPLICATION FIELDS
♣1.Petroleum
♣2.Rubber
♣3.Chemical industryPesticide
♣4.Dye
♣5.Food
♣6.Medicine
CUSTOMIZATION SERVIC
Can be customized according to customer's requirement.
PRODUCT STRUCTURE

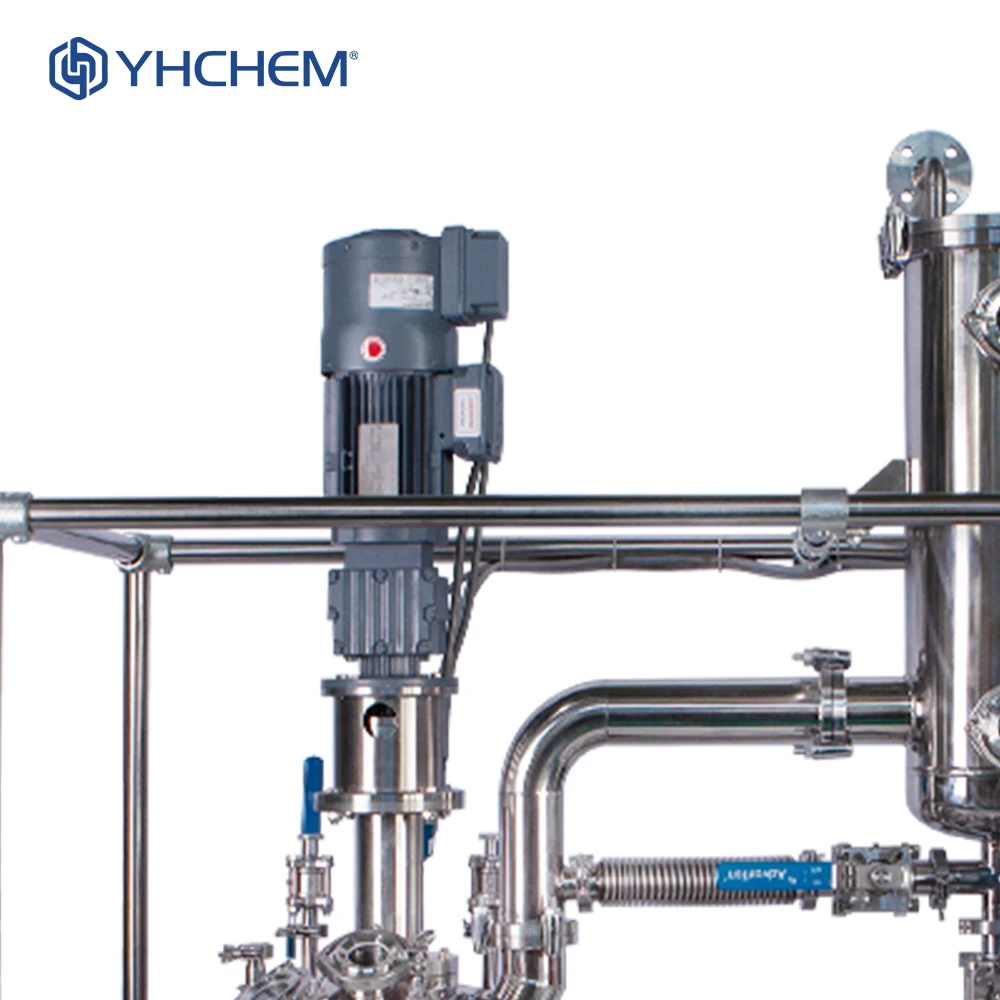

♣Explosion-proof motor
♣Solid feeding port
♣Vacuum port

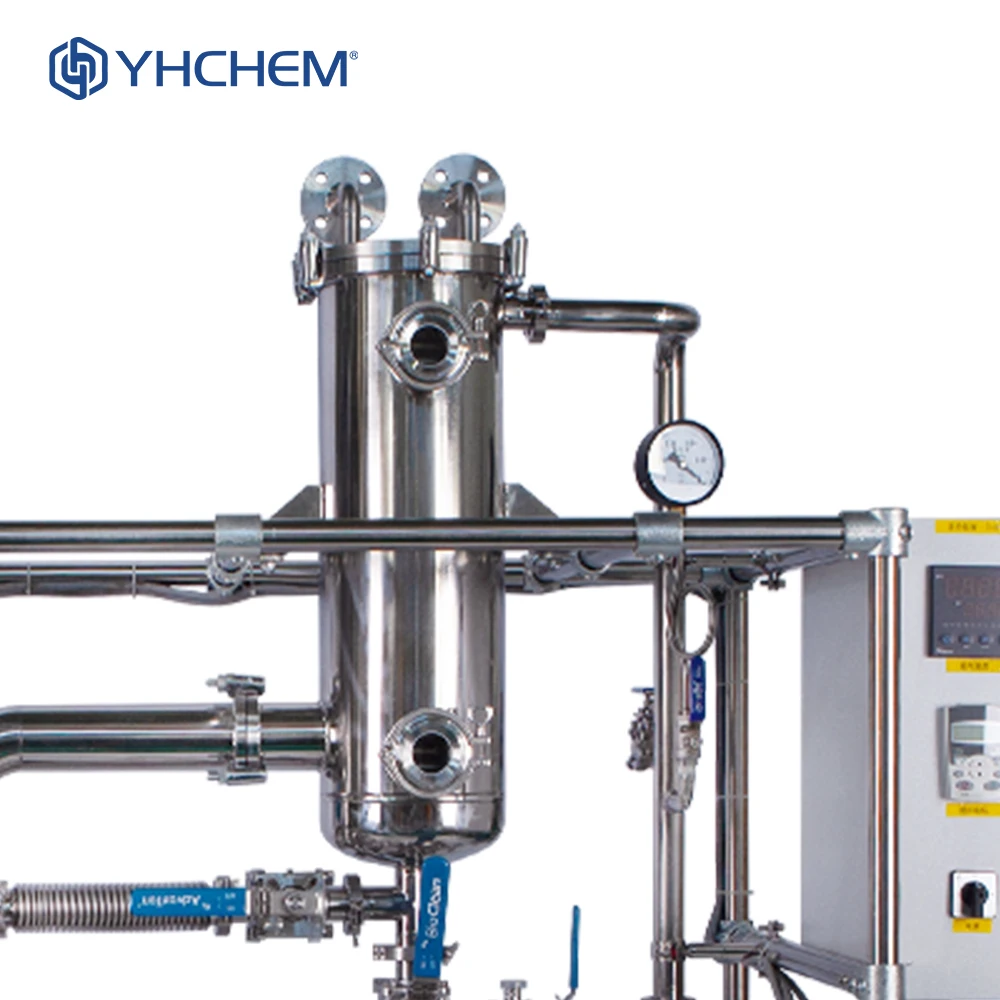

♣Condenser
♣Circulating water outlet

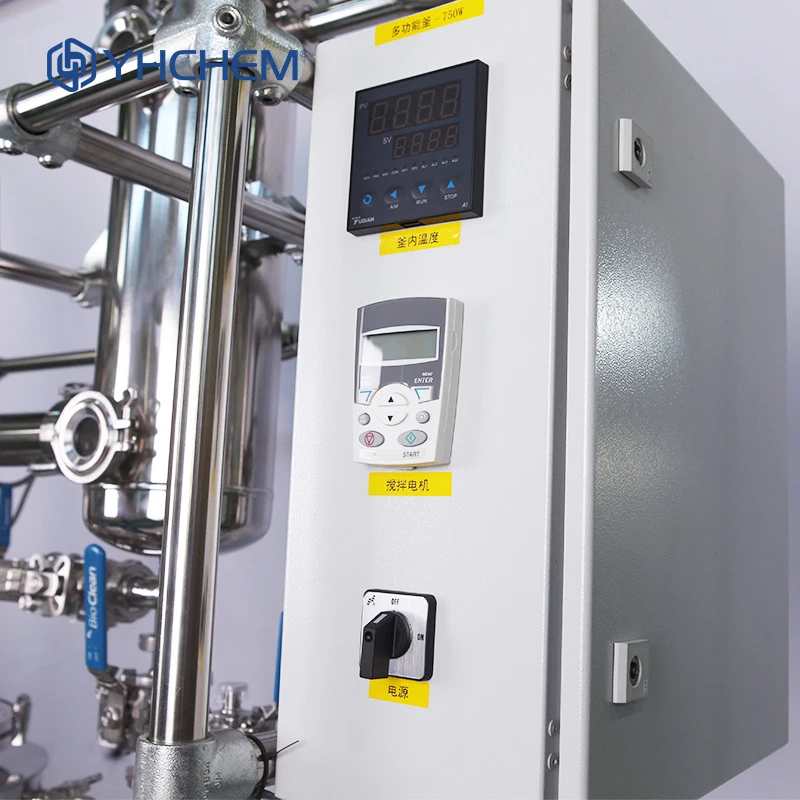

♣Explosion-proof controller
♣304 stainless steel frame

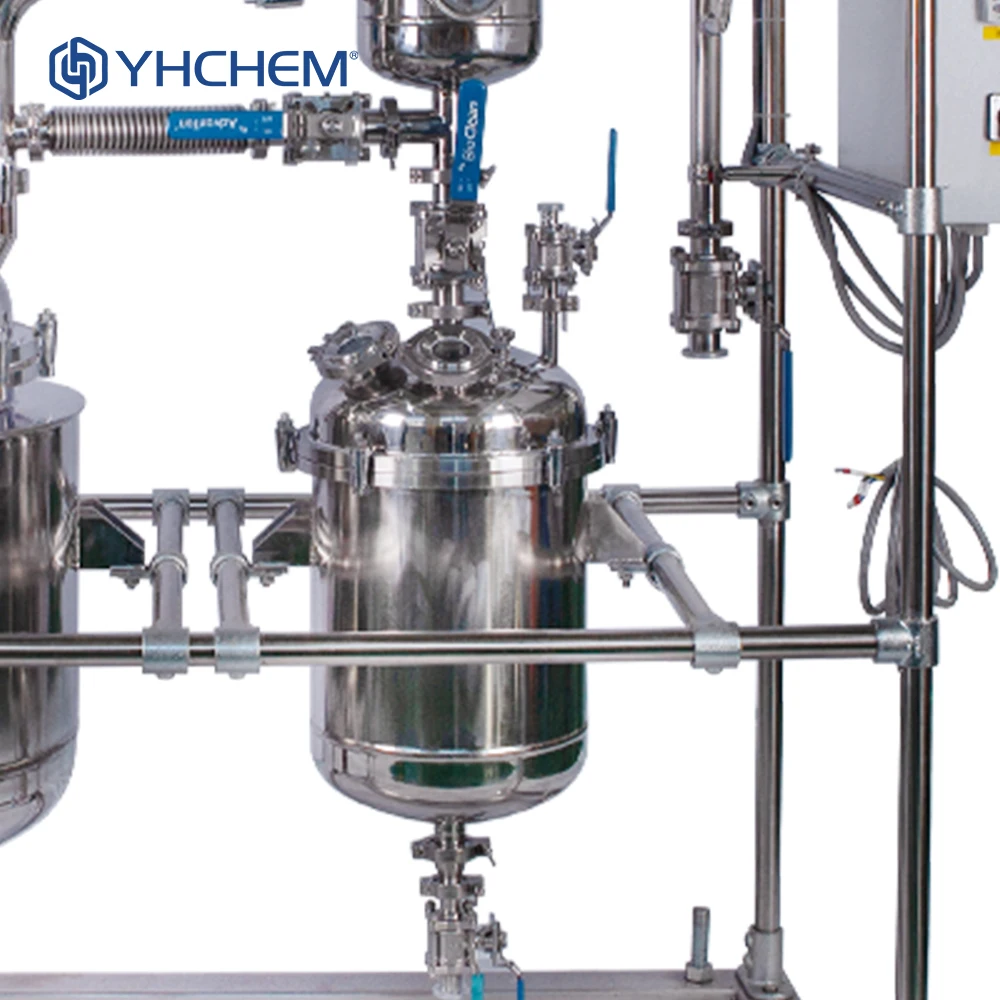

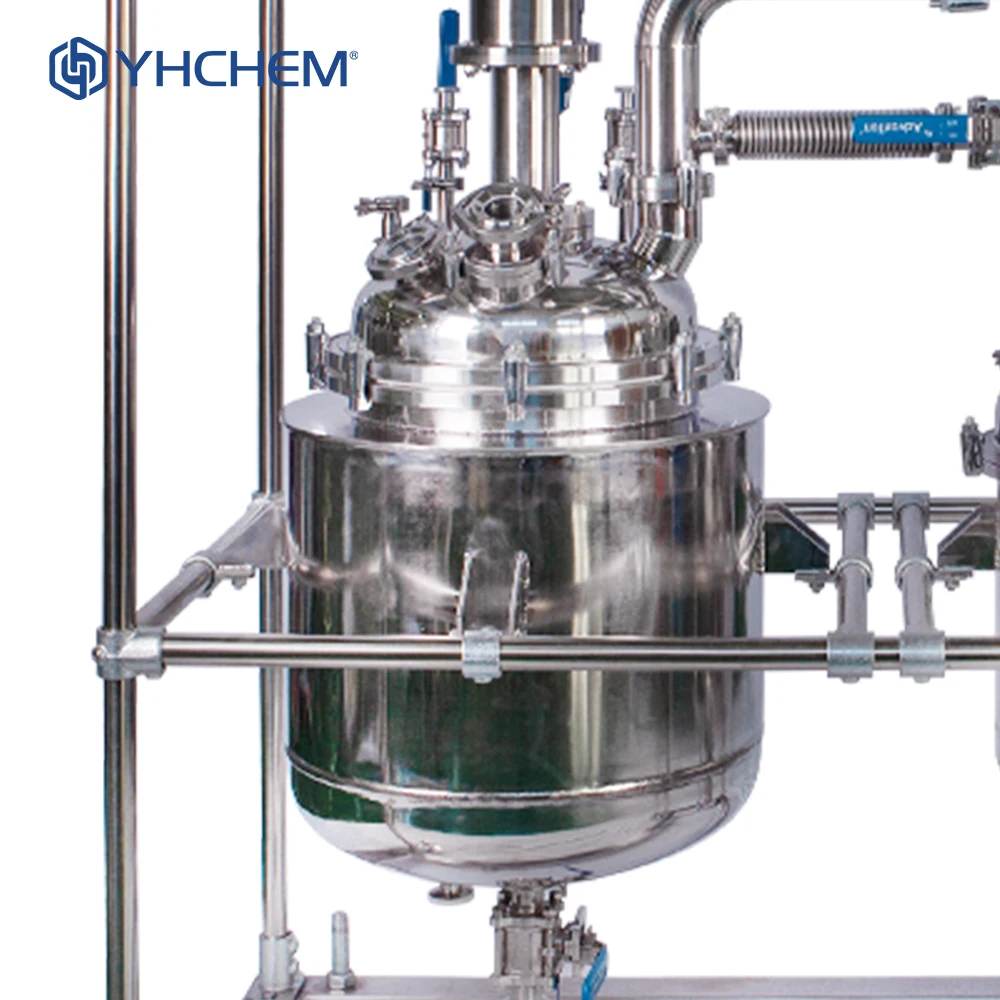

♣304 stainless steel vessel body
♣Bottom discharge valve
SUPPORTING EQUIPMENT
♣1.Heating cooling circulator
♣2.Cooling circulator
Company Information
YHCHEM, a high-tech enterprise, was established in 2009 and headquartered inShanghai with more than 50 employees both at home and abroad and an area of5,000 square meters. We have a globally competitive production base of modernbiopharmaceutical equipment, which attributes us to be a equipment and processprovider of automatic system of synthesis, extraction, separation, and purificationfor global biopharmaceutical companies With over 10-year hard work, passionand win-win spirit,YHCHEM provides more than 8,000 equipment for hundreds otwell-known companies in more than 100 countries and regions around the worldand has successfully entered Western Europe, North America and other high-levelregulatory market, and solutions are widely used in bioengineering, pharmaceuti-cal, chemical, food, environmental protection and other fields
