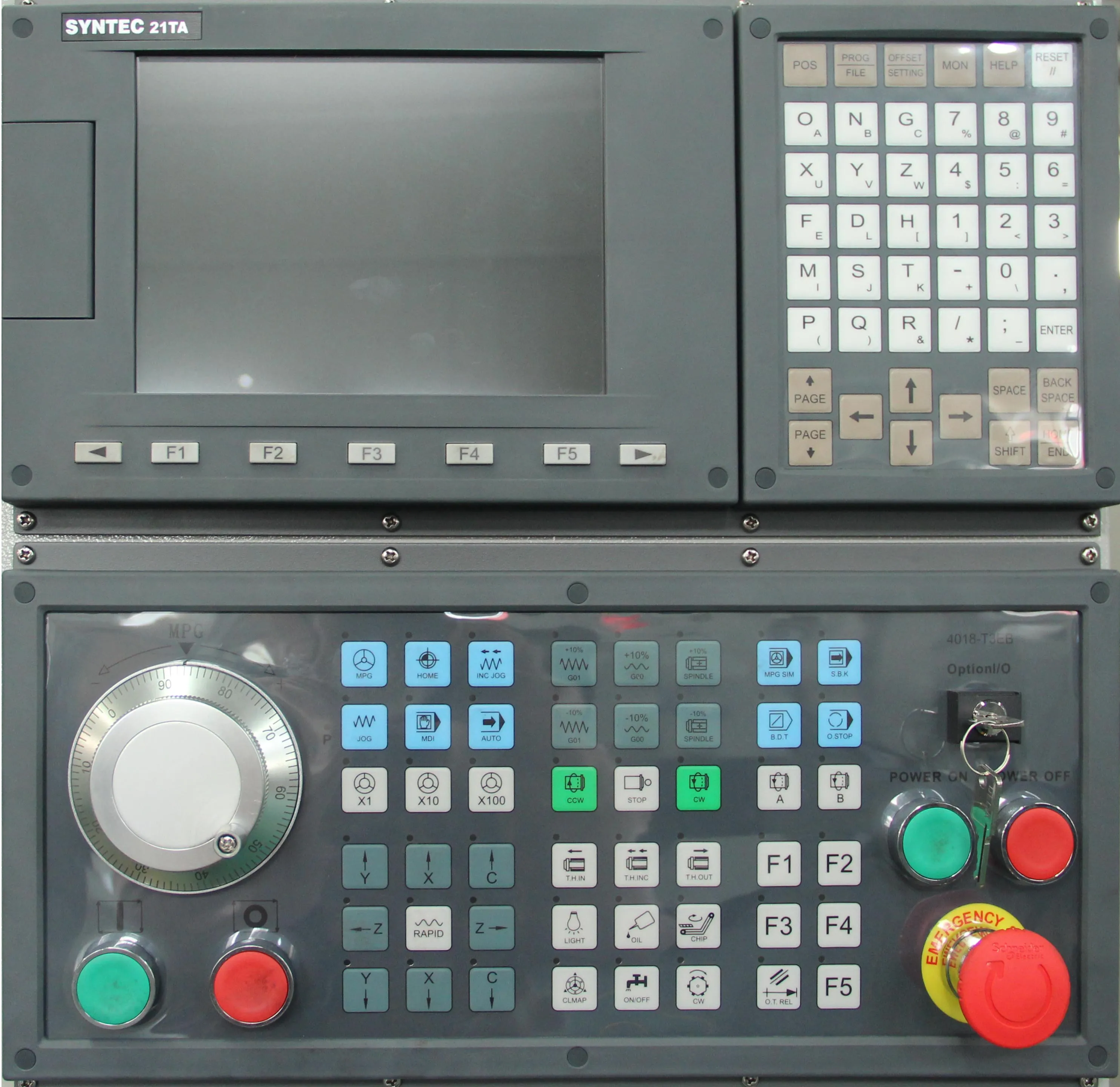

Factory Directly car brake disc processing spare parts CNC Turning CNC machine
- Category: >>>
- Supplier: Foshan Shunde Guoqiang Daosheng Industrial Co. Ltd.
Share on (1600975124170):
Product Overview
Description
Product Description
Name | DS-5-DI | DS-5-DII |
The style of installation tool | Gang type | Gang type |
Adjacent tool change time (s) | 0.2 | 0.2 |
Tool change style | Random | Random |
Square knife knife holder (mm) | 16x16 | 20×20 |
Round hole knife holder (mm) | φ20 | φ20 |
With chuck size | 5 Inch | 6 Inch |
Spindle speed (r/min) | 0-4500 | 0-4500 |
Spindle/Sub-spindle bore (mm) | φ46/φ32 | φ46/φ46 |
Tool holder Center height (mm) | 65 | 90 |
The maximum diameter of rotation (mm) | 200 | 400 |
Spindle/Sub-spindle motor power (KW) | 5.5/3.7 | 5.5/5.5 |
Minimum system Resolution | 0.001 | 0.001 |
X1/Z1 Axis travel (mm) | 670/220 | 800/200 |
X2/Z2 Axis travel (mm) | 600/270 | 800/200 |
X/Z axis fast moving speed (m/min) | 24(Factory setting) | 24(Factory setting) |
X/Z axis Repetitive positioning accuracy (mm) | 0.002/0.002 | 0.002/0.002 |
Taper (mm) | ≤0.003/100mm | ≤0.003/100mm |
Card position size (mm) | ≤0.003 | ≤0.003 |
X1/X2/Z1/Z2 servo-motor (KW) | 1.3/0.85 | 0.85/0.85 |
Hydraulic station (KW) | 0.75 | 0.75 |
Water tank motor power (KW) | 150W | 150W |
Cooling water tank capacity (L) | 60 | 60 |
Power (KW) | 17 | 19 |
Weight (KG) | 4500 | 4500 |
Size (L*W*H mm) | 2700*1700*2100 | 3000*1600*2000 |

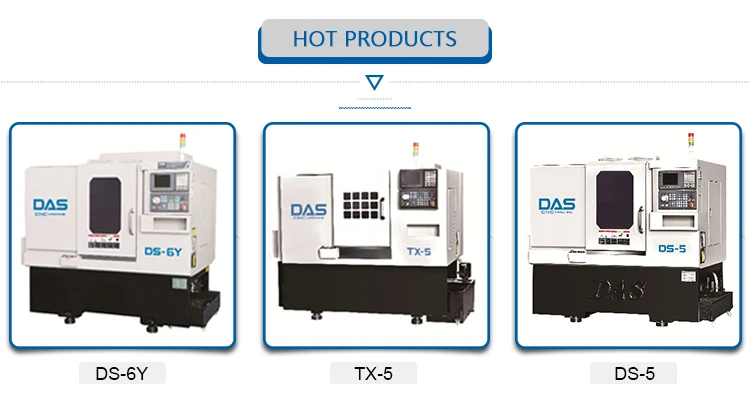

Recommend Products

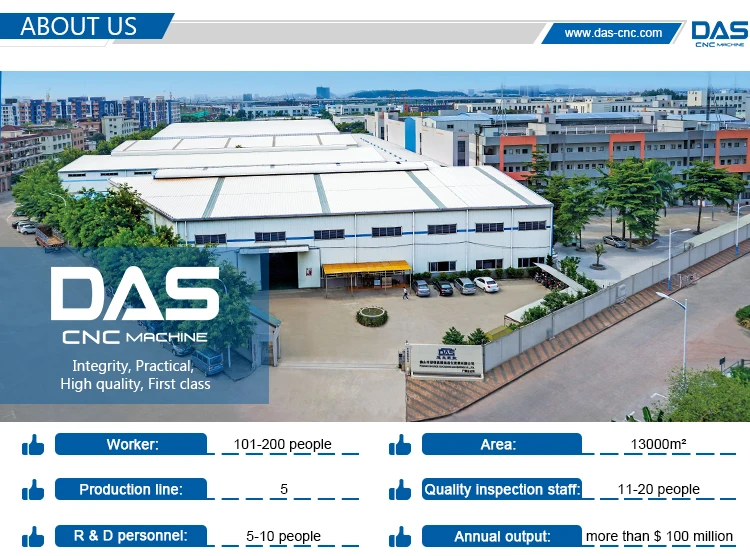

Company Profile
