JNKEVO raycus 1kw 2kw 3kw handheld laser metal rust removal cleaning machine
- Category: >>>
- Supplier: Jinan Kevo Machinery Co. Ltd.
Share on (1600975166379):
Product Overview
Description
Product Features
Handheld Laser Cleaning Machines Features
Non-contact cleaning, no damage to the part; Accurate cleaning, realize precise position, precise size selective cleaning; No chemical cleaning liquid, no consumables, safe and environmentally friendly;
Simple operation, power-on, can be handled or cooperated with robot; The cleaning efficiency is very high, saving time; Laser cleaning system is stable, almost no repair
Simple operation, power-on, can be handled or cooperated with robot; The cleaning efficiency is very high, saving time; Laser cleaning system is stable, almost no repair
High efficiency,good effect
Automation.Stable cleaning efficiency.No chemical cleaning fluid required.
Control system
Simple clear and concise interface. Easy to operate. Multiple parameters setting available. Easy to achieve the control for laser source and lens.
Eco and environmental protection
Precise cleaning, with accurate location. protect the surface of brittle materials. effectively clean up micron-level pollution particles.
Contrast | Laser Cleaning | Chemical Cleaning | Mechanical Polishing | Dry Ice Cleaning | Ultrasonic Cleaning |
Cleaning method | Laser, non-contact | Chemical cleaning agent, contact | Mechanical / sandpaper, contact | Dry ice, non-contact | Cleaning agent, contact |
Workpiece injury | No damage | Damage | Damage | No damage | No damage |
Cleaning efficiency | High | Low | Low | Middle | Middle |
Consumables | Only electricity needed | Chemical cleaning agent | Sandpaper, grinding wheel, oil, etc. | Dry ice | Dedicated cleaning liquid |
Cleaning Effect | Very excellent, clean clean | General, uneven | General, uneven | Excellent, uneven | Excellent, clean range is small |
Precise cleaning | Precise controllable, high precision | Uncontrollable, accuracy difference | Uncontrollable, accurate | Uncontrollable, accurate | Can't specify scope cleaning |
Safety / environmental protection | Non-Pollution | Chemical pollution environment | polluted environment | Non-Pollution | Non-Pollution |
Manual operation | Simple operation, handheld or automation | Process process is complex, high requirements for operators, need pollution protection measures | It is very hard to consume manpower, need to do pollution protection measures | Simple operation, handheld or automation | Simple operation, but you need to add consumables |
Cost | No consumables, low maintenance cost | The cost of consumables is extremely high | The cost of labor is low. | The cost of consumables is high. | The cost of consumables is medium |
Product Description

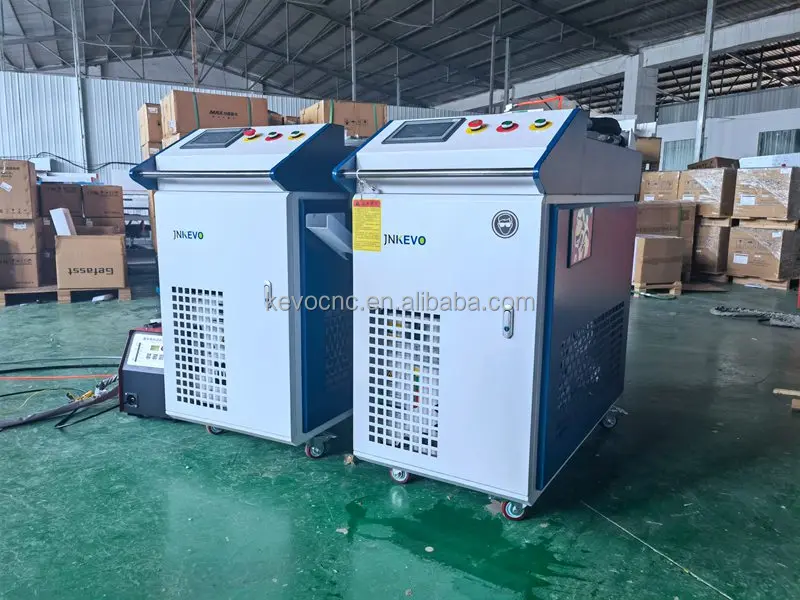

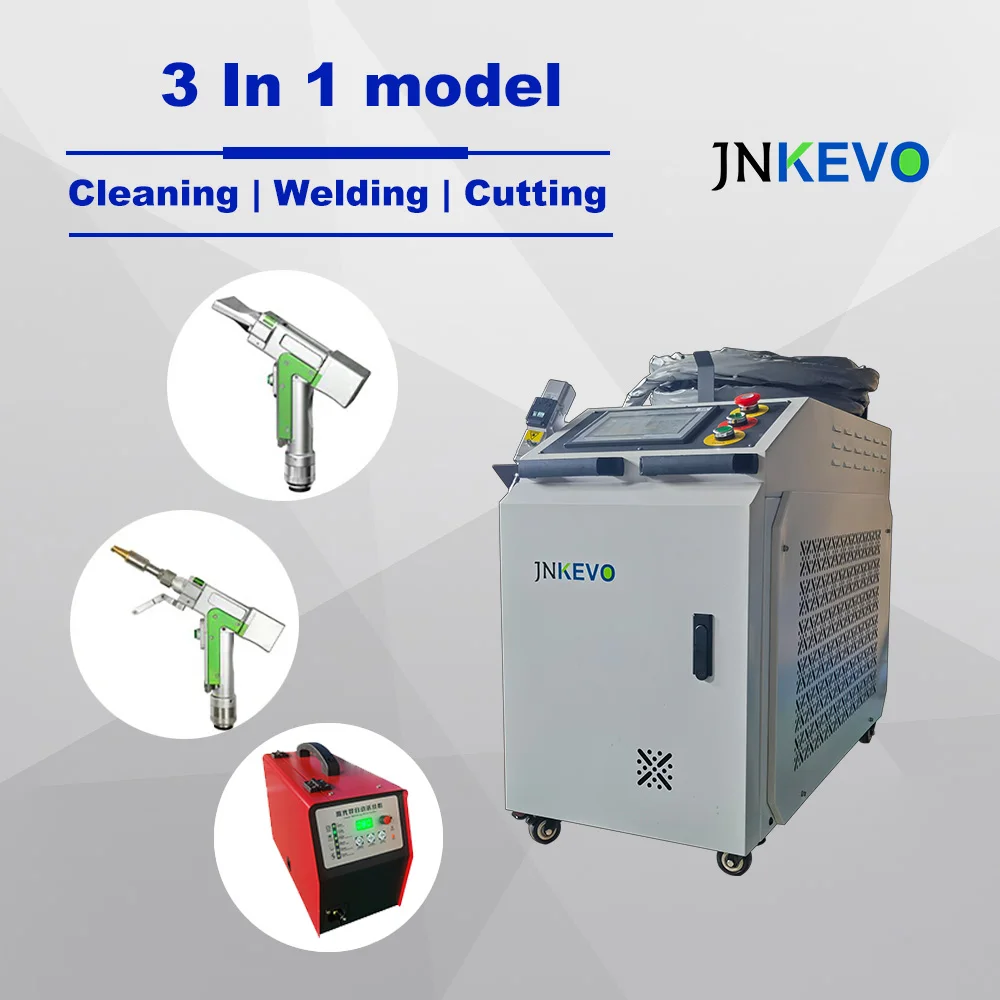

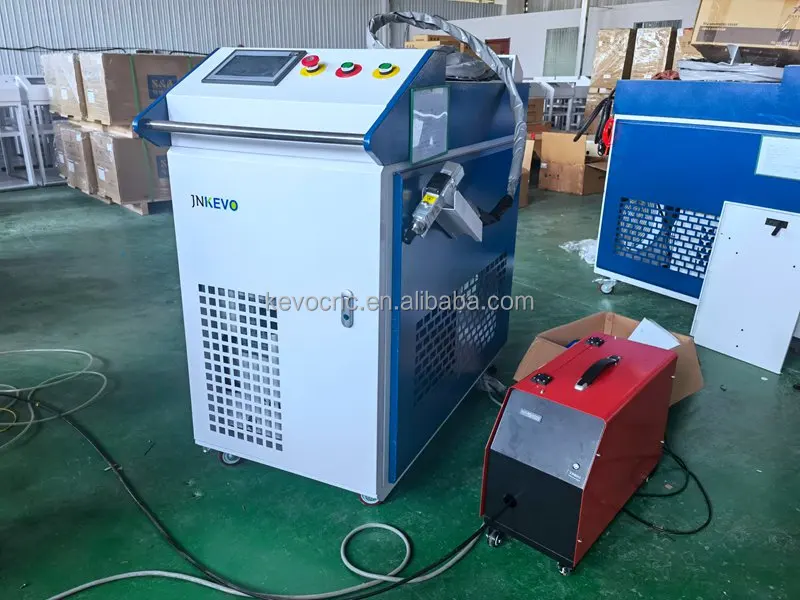

Handheld Laser
Welding | Cutting | Cleaning Machine
Small and beautiful
Easy to move
--------
Stable performance, Push-pull handle
Universal casters, Easy to operate
Intelligent Control Panel
Simple operation, lean easily
--------
Operation panel simplified settings
All information will show on the touch screen
when machine running, thus operate the
machine more easily by operator
Options

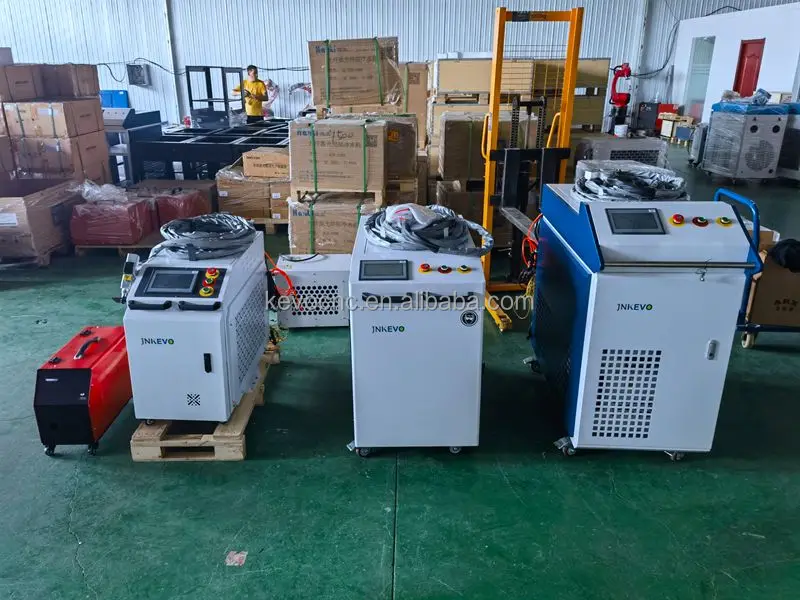

Multiple Appearance Design
The versatile design is suitable for a variety of market preferences and a variety of working environments
Multiple Systems
Au3tech, Chaoqiang, Qilin and other operating systems for customers to choose.
Each system is equipped with a different handle and is customized according to customer requirements.
Band Laser Generator
Raycus, MAX, IPG, JPT, Reci and other brands of 1 kW to 3 kW qualified laser generator.
Water Chiller
S&A , Hanli brand water chiller has better cooling effect and more comfortable operation experience.
There is also a built-in water-cooled integrated machine for selection.
The machine can be customized according to customer's requirements, please follow and contact us for details.
Application
Fiber laser rust remover is not only a laser rust removal tool, it also used for laser paint removal, laser degreasing, laser removal of oxide layer, laser cleaning screw, laser derusting, laser weld-cleaning.
Applied in shipbuilding industry, auto parts, rubber mold, high-end machine tools, tire mold, tracks, environmental protection industry and other industries.
Hand-held laser welding is new type of welding, mainly for thin-walled materials, precision parts, direct spot welding, sealing welding, stacking etc
Application Industry: large aluminum alloy, cabinet, chassis, aluminum alloy door and window frame, stainless steel wash basin etc.
In the process of welding or cleaning, for materials that need to be cut temporarily, you can quickly change the cutting mode and hand-held cutting, which is more convenient
Specification
Item | 3 In 1 Portable Laser Cleaner Welder Cutter Parameters | |
Applied Materials | All metal and some nonmetal | |
Laser Type | Fiber laser | |
Laser Power | 1000W, 1500W, 2000W, 3000W | |
Laser Generator | IPG, JPT, MAX, Raycus, Reci | |
Laser Head | Handheld Cleaning head, welding head, cutting head | |
Cleaning Width | 40mm - 450mm ( depends on models ) | |
Welding Width | 0 - 8mm | |
Welding Penetration | 1.5 - 4mm | |
Wire Feeder | Automatic wire feeder | |
Welding Wire | 0.8mm, 1.0mm, 1.2mm, 1.6mm | |
Stainless steel: 4mm - 6mm Carbon steel: 4mm - 6mm Aluminum: 2mm - 4mm | ||
Voltage | 220V / 380V 50Hz | |
Wavelength | 1075±5mm | |
Fiber Cable Length | 10 meters ( 15m optional , customizable ) | |
Cooling System | Hanli or S&A water chiller | |
Water Coolant | Pure water or distilled water | |
In addition to rust removal, can clean most of the material surface, no damage to the material, can do paint cleaning, mold cleaning, etc., more suitable for precision cleaning etc. | ||
The machine can be customized according to customer's requirements, please follow and contact us for details. | ||
Recommend Products
——
Remove the resin, oil, stain, dirt, rust, coating, plating and paint etc
——
Nonmetal sheet cutting and engraving, as plywood,leather,MDF,acrylic etc
——
All metal and some nonmetal marking, ring, jewelry, jeans,name plate,logo marking etc
Note
All the machines can be customized , please follow and contact us for more information !
FAQ
Warranty
3 years , and we offer a 24-hour online service.
Lead Time
Usually within 7 - 30 days after deposit, it depends on the product model.
Payment Term
1. Alibaba Trade Assurance ( recommended )
2. TT bank transfer, 30% deposit , 70% balance before shipment.
3. LC at sight, Please contact us to determine the details of the terms.
3. LC at sight, Please contact us to determine the details of the terms.
Mode of Payment
Visa, Mastercard, PAYPAL, APPLE_PAY, GOOGLE_PAY TT bank transfer etc
Supported Currencies
USD, EUR, AUD, GBP, CAD, HKD, JPY, SGD, CNY. Please contact us for other currencies.
Accurate Price
Our products can be customized according to customer's requirements ( working size, power needed
etc ), and the package is also different depends on the quantity.
So it would be best to contact with us for your detail requirements, quantity, shipping address etc,
so that we can quote accurately according to your requirements.
Whether The Product Meet Your Requirements
We can take a VIDEO according to your requirements , so you can see our product and test result.
MOQ
The MOQ for each product is ONE unit.
Customization
We can customize products based on customer's requirements.
Delivery To Door
The machine can be delivered to door in some countries. Please provide your detailed address,
we will confirm and give you reply ASAP.
Please feel free to SEND INQUIRY NOW !
3 In 1 2000W Raycus 1000W JPT Metal Rust Mopa Germany Portable Industrial Fibre Maquina 3000W Fiber Laser Cleaning
