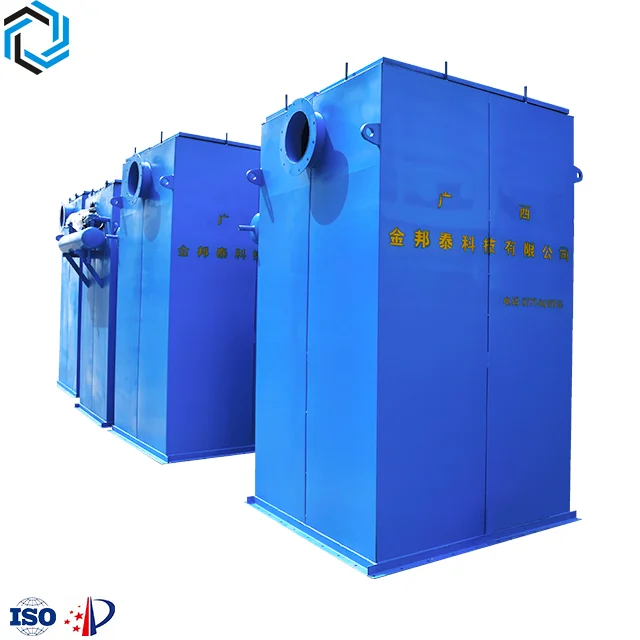

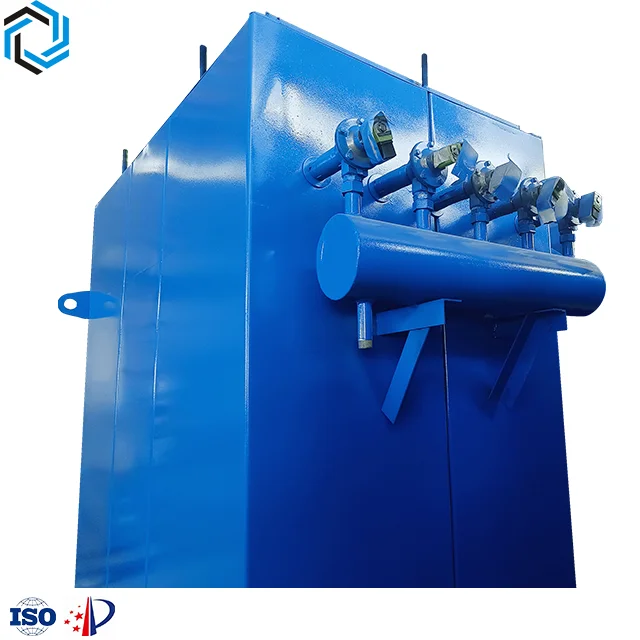

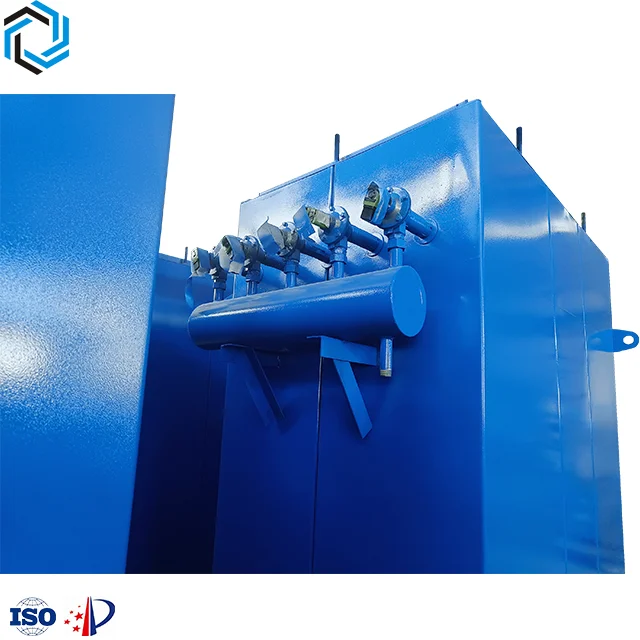

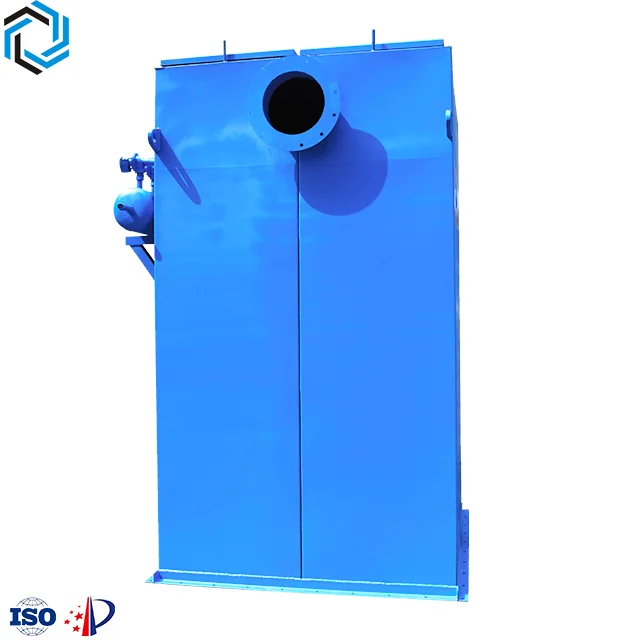

Large efficient dust collector Industrial pulse bag filter Industrial
- Category: >>>
- Supplier: Guangxi Jinbangtai Technology Co. Ltd.
Share on (1600975178985):
Product Overview
Description
Products Description

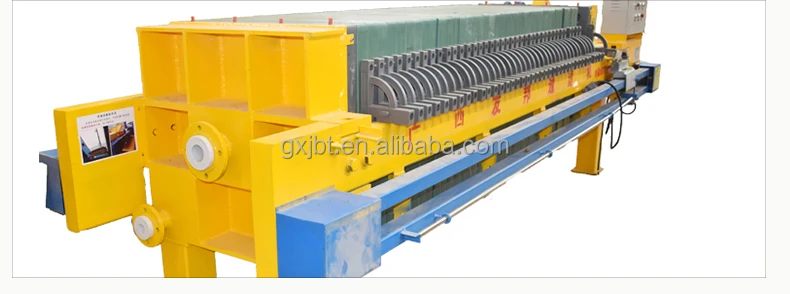

Chamber pressure filterItem Name | Embedded filter plate and Jack control filter press |
Filting Area | 60m2 |
Total Volume of Filtering Chamer | 900 L |
Type of Filter Plate | pp |
Thickness of Filter Plate | 60 mm |
Number of Filter Chambers | 60 pcs |
Thickness of Filter Cake | 30 mm |
Overall Dimensions | Length 5404 mm Width 1246 mm Height 1628 mm |
Unit Weight | 3590kg |
Application Area | Mining, Tailings Industry The Chemical Industry Sewage Sludge IDM Smelting Industry Building Material Stone and other Non-metal Industries Concrete Industry Paper Industry Rosin Forest Chemical Industry Food oil other industries Electroplating Wastewater Industry Bio-Pharmaceutical industry |

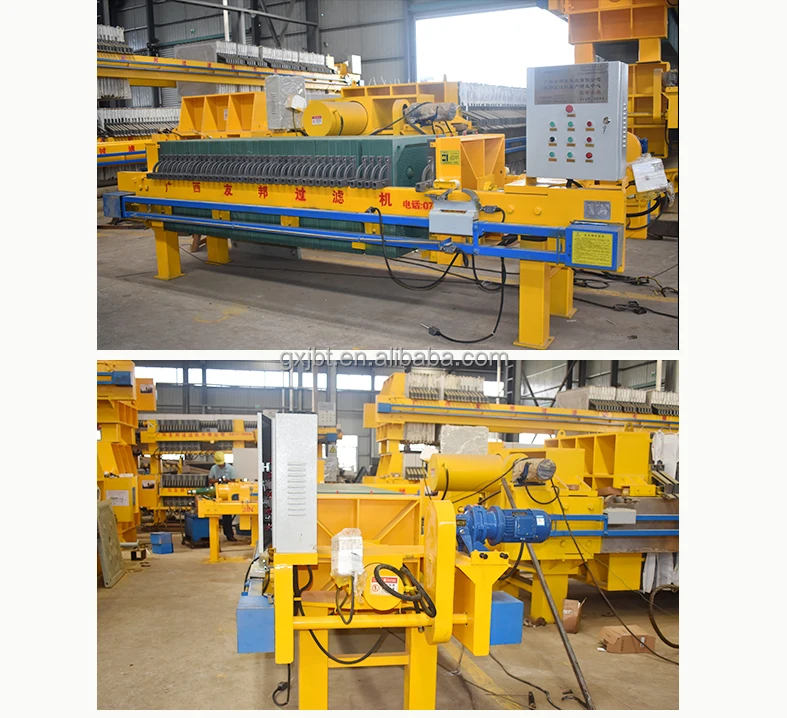

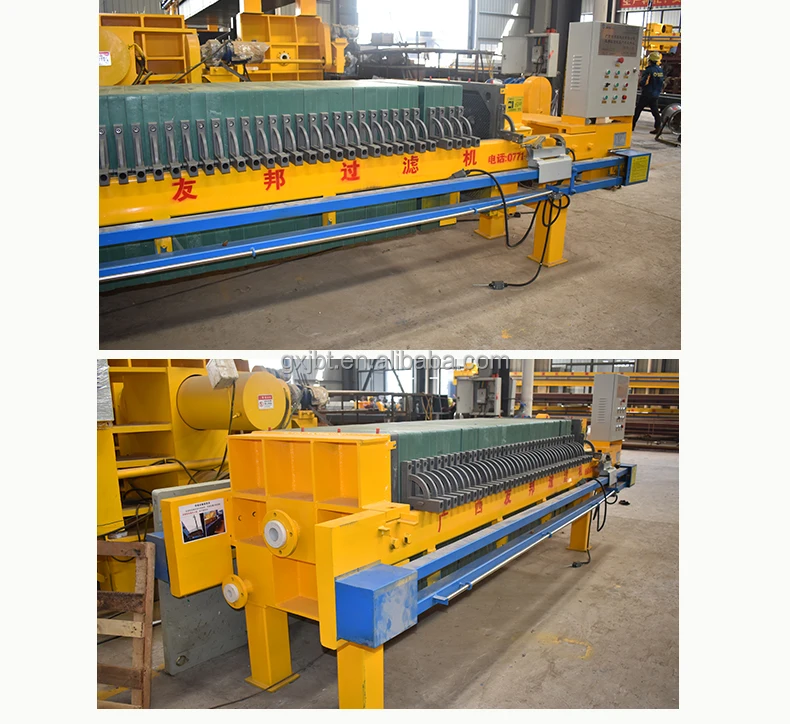

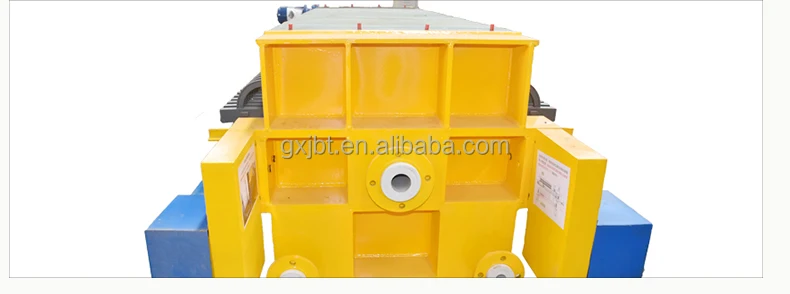

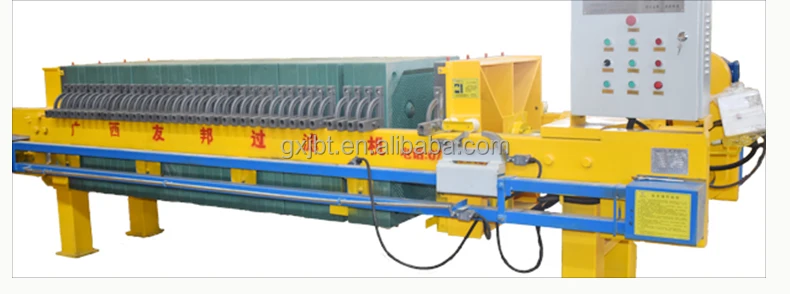

Product Display

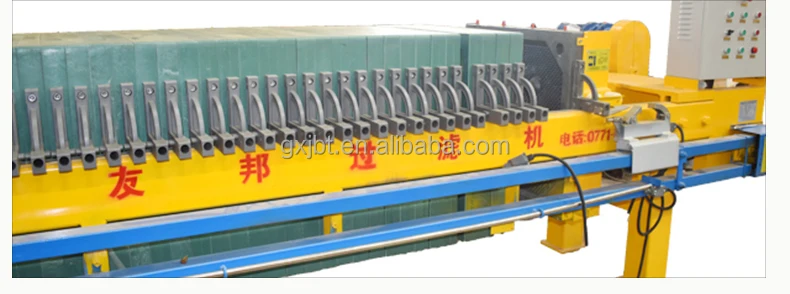

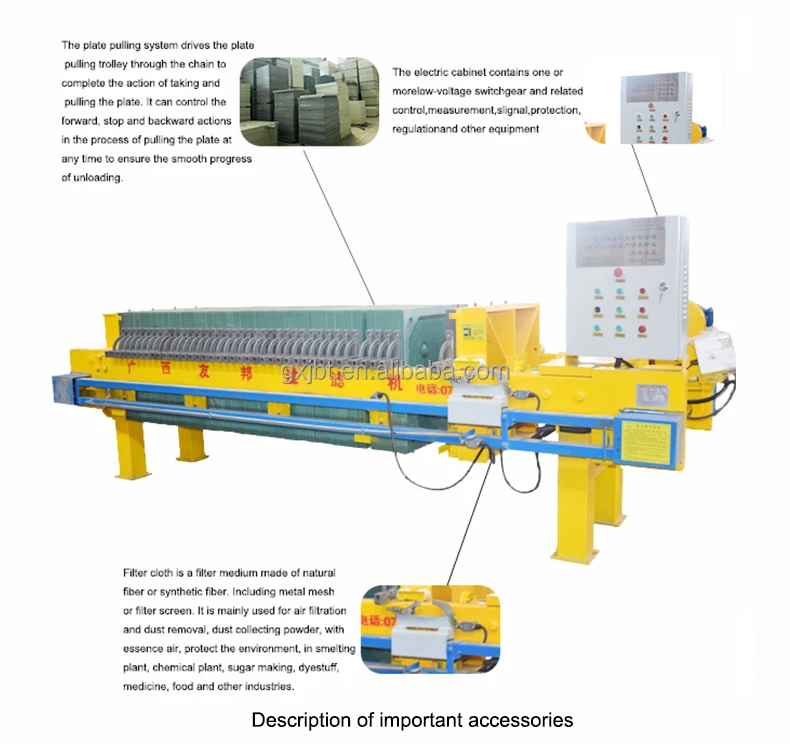

Product Structure
GENUINE MATERIAL
Strictly select raw material for products and refuse to cut corners
SIMPLE MAINTENANCE
The disassembly, installation and maintenance are simple, easy to operate and stable in structure
Easy to Use
The utility model has the advantages of convenient use, simple operation and wide application range
Support Customization
A large number of regular stock, support the processing and customization of drawing and samples
Details of Series
Type XZ800 automatic recessed plate filter press (Hydraulically controlled、automatically pressure holded、automatically pull plate) | ||||||||||||||||||
Model | Filtering Area （m²） | Total volume of filtering Chamber （L） | Thickness of Filter plate (mm) | Number of Filter chambers (pcs) | Thickness of filtering cake (mm) | Overall dimensions | Unitweight (kg) | |||||||||||
Length (mm) | Width (mm) | Height (mm) | ||||||||||||||||
XAMZ20/800-UBK | 20 | 300 | 60 | 20 | 30 | 2964 | 1246 | 1628 | 2240 | |||||||||
XAMZ30/800-UBK | 30 | 450 | 60 | 30 | 30 | 3574 | 1246 | 1628 | 2580 | |||||||||
XAMZ40/800-UBK | 40 | 600 | 60 | 40 | 30 | 4184 | 1246 | 1628 | 2922 | |||||||||
XAMZ50/800-UBK | 50 | 750 | 60 | 50 | 30 | 4794 | 1246 | 1628 | 3250 | |||||||||
XAMZ60/800-UBK | 60 | 900 | 60 | 60 | 30 | 5404 | 1246 | 1628 | 3590 | |||||||||
XAMZ70/800-UBK | 70 | 1050 | 60 | 70 | 30 | 6014 | 1246 | 1628 | 4080 | |||||||||
XAMZ80/800-UBK | 80 | 1200 | 60 | 80 | 30 | 6624 | 1246 | 1628 | 4450 | |||||||||
Technological Process
CASES
Scope of Application
