Growatt's latest 10kw hybrid inverter, SPH 10000TL-HU-US, for residential application.
UPS function, 10ms transition
1.5 DC/AC Ratio with 3 Mppts
Up to 200A charging/discharging current

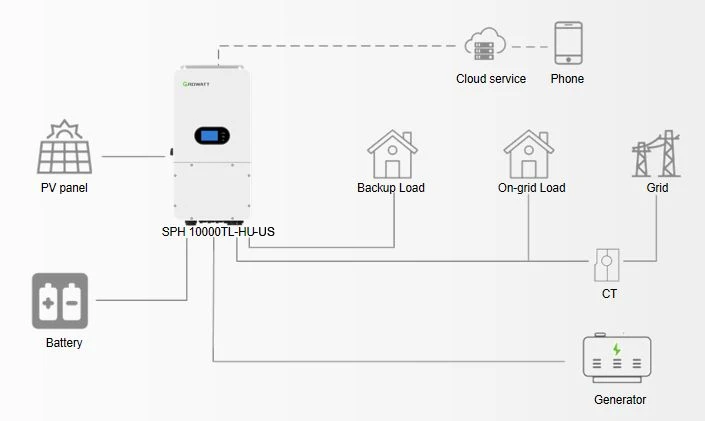

Support DC-coupled, AC-coupled, AC-retrofit applications
Type II Surge protection for DC and AC sides
Support charge from diesel generator
Support three in parallel to become three phase system
UPS function, 10ms transition
1.5 DC/AC Ratio with 3 Mppts
Up to 200A charging/discharging current
Support DC-coupled, AC-coupled, AC-retrofit applications
Type II Surge protection for DC and AC sides
Support charge from diesel generator
Support three in parallel to become three phase system
Support both single phase and split phase application
And with an IP65 rating, the SPH 10000TL-HU-US is dustproof and waterproof, making it perfect for use in any environment.

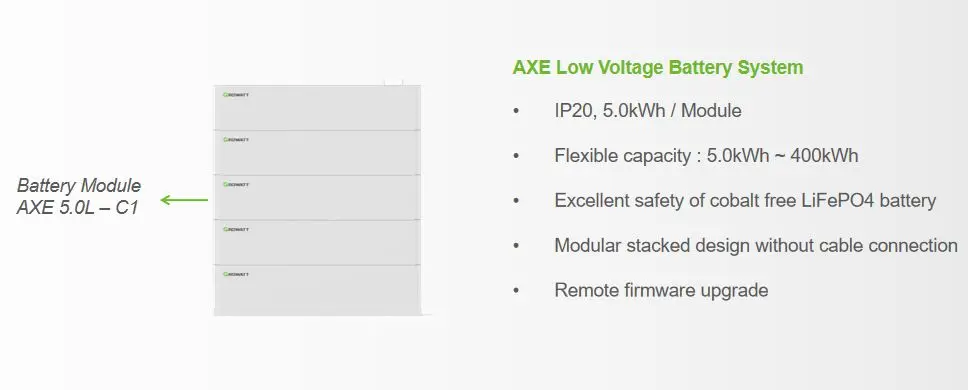

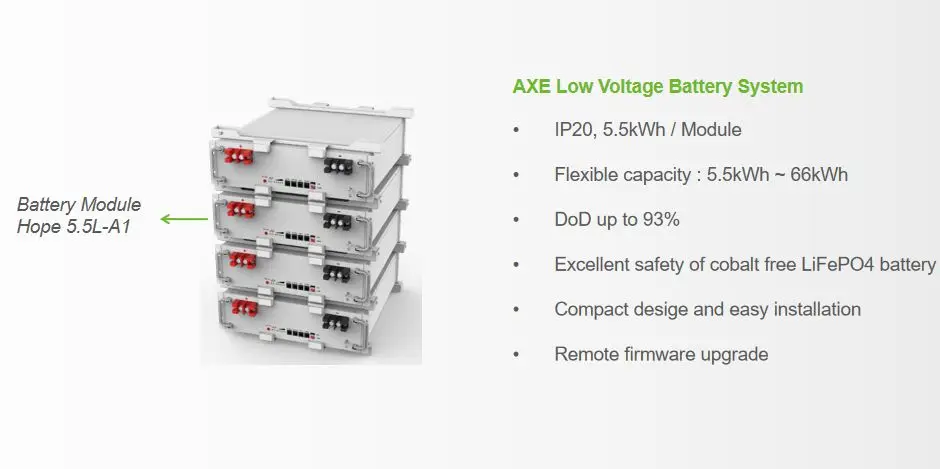

Match the batteries pictured below for a complete package to take home

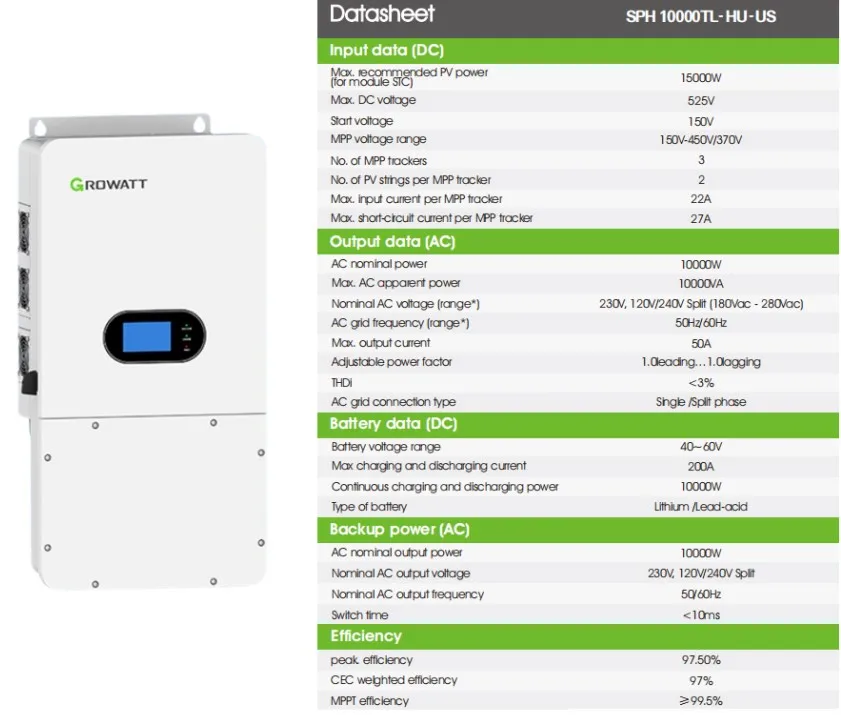

Specification
Datasheet | SPH 10000TL-HU | |
Input data (DC) | ||
Max. recommended PV power(for module STC) | 15000W | |
Max. DC voltage | 525V | |
Start voltage | 150V | |
MPP voltage range | 150V-450V/370V | |
No. of MPP trackers | 3 | |
No. of PV strings per MPP tracker | 2 | |
Max. input current per MPP tracker | 22A | |
Max. short-circuit current per MPP tracker | 28A | |
Output data (AC) | ||
AC nominal powe | 10000W | |
Max. AC apparent power | 10000VA | |
Nominal AC voltage (range*) | 220V/230V/240V | |
AC grid frequency (range*) | 50Hz/60Hz | |
Max. output current | 50A | |
Adjustable power factor | 0.8leading…0.8lagging | |
THDi | <3% | |
AC grid connection type | Single phase | |
Battery data (DC) | ||
Battery voltage range | 40~60V | |
Max charging and discharging current | 200A | |
Continuous charging and discharging power | 10000W | |
Type of battery | Lithium /Lead-acid | |
Backup power (AC) | ||
AC nominal output power | 10000W | |
Nominal AC output voltage | 220V/230V/240V | |
Nominal AC output frequency | 50/60Hz | |
Switch time | <10ms | |
Efficiency | ||
peak. efficiency | 97.50% | |
CEC welghted efficiency | 97% | |
MPPT efficiency | ≥99.5% | |
SPH 10000TL-HU-US Parallel Solution
General introduction The SPH 10000TL-HU-US inverter is designed to support the parallel operation of 2 to 6units, effectively extending the system's power capacity to 60 kW. Additionally, this model allows for the creation of a 120/208 V three-phase system, ensuring 100% three-phase unbalanced output while providing maximum convenience to our customers.

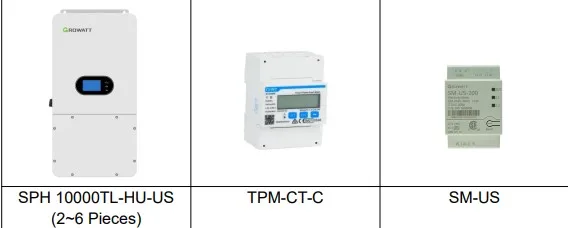

Required system
Note: 1 piece Growatt TPM-CT-C for 120V/208V three-phase parallel connection system. 1 piece Growatt SM-US for 120/240 split phase parallel connection system.

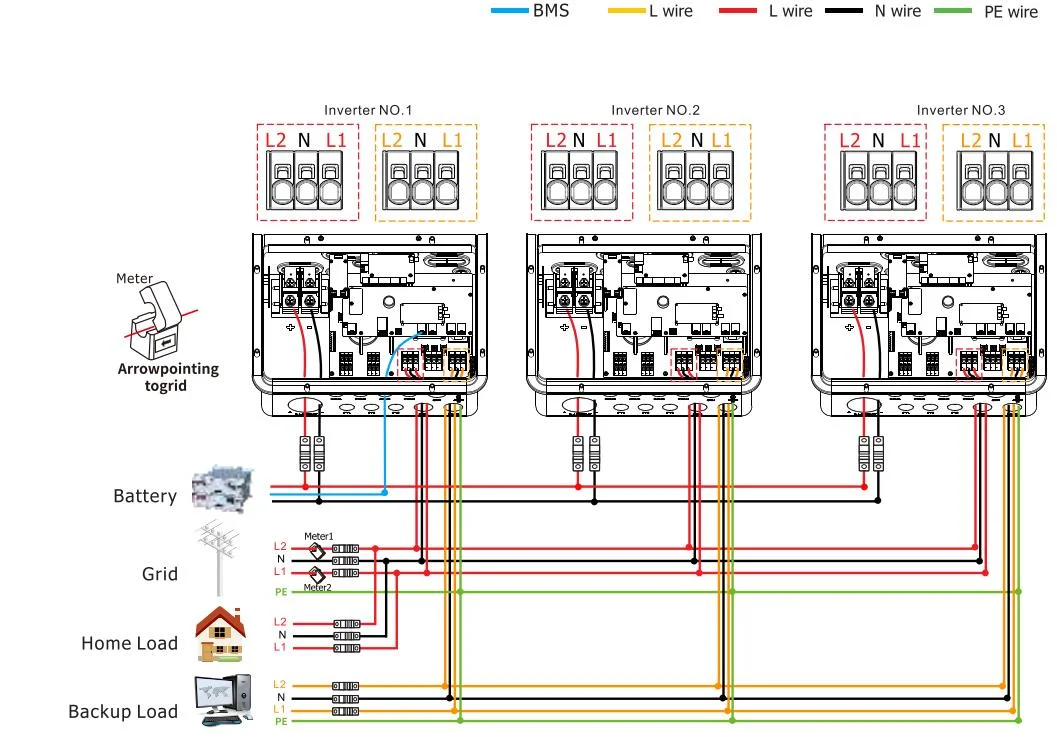

120 V / 240 V Split Phase Parallel Connection

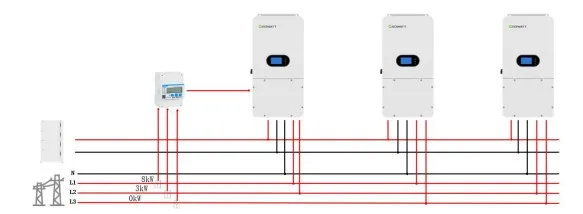

120 V / 208 V Three Phase Parallel Connection

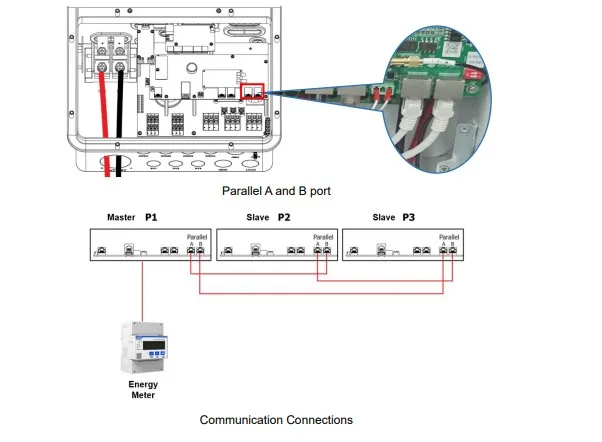

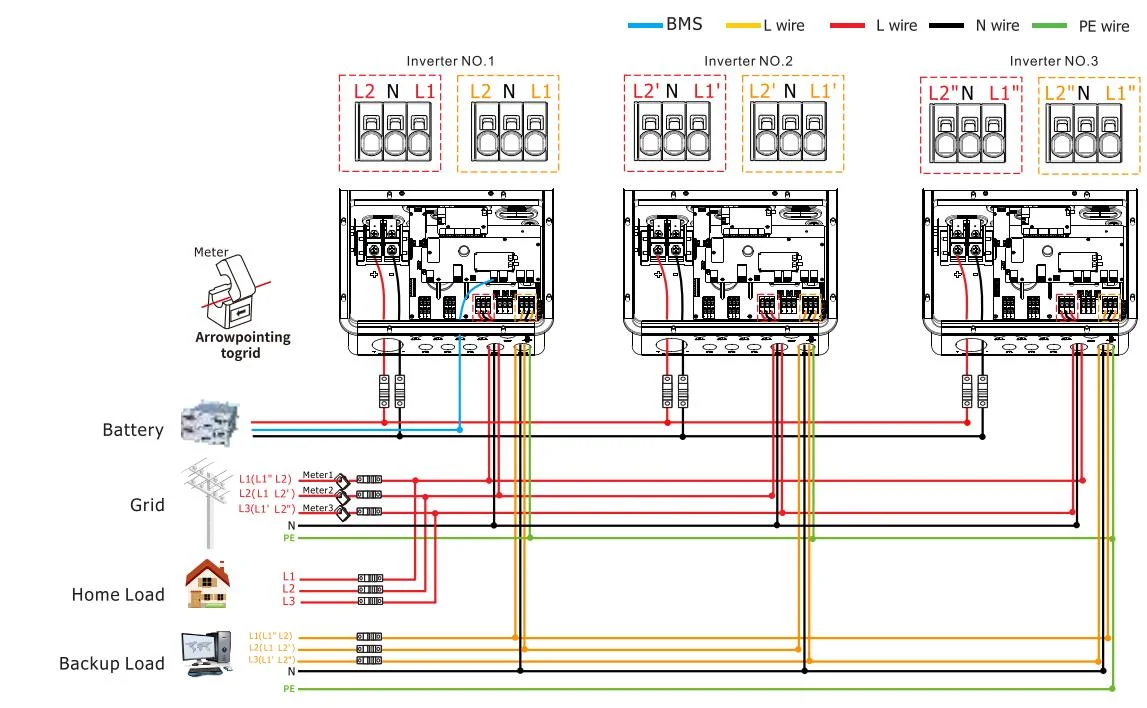

Communication wiring system
When paralleling two or more inverters, CAN communication cables are requiredfor inter-inverter communication. Only the master inverter needs to communicate with the battery and energy meter. The connections are illustrated below.
100% unbalanced output
In a split-phase system, the SPH 10000TL-HU-US can provide 100% unbalanced output for each phase. When used to establish a 120/208V three-phase system, the SPH10000TL-HU-US can also support 100% unbalance, with a maximum output of 5 kWper phase..

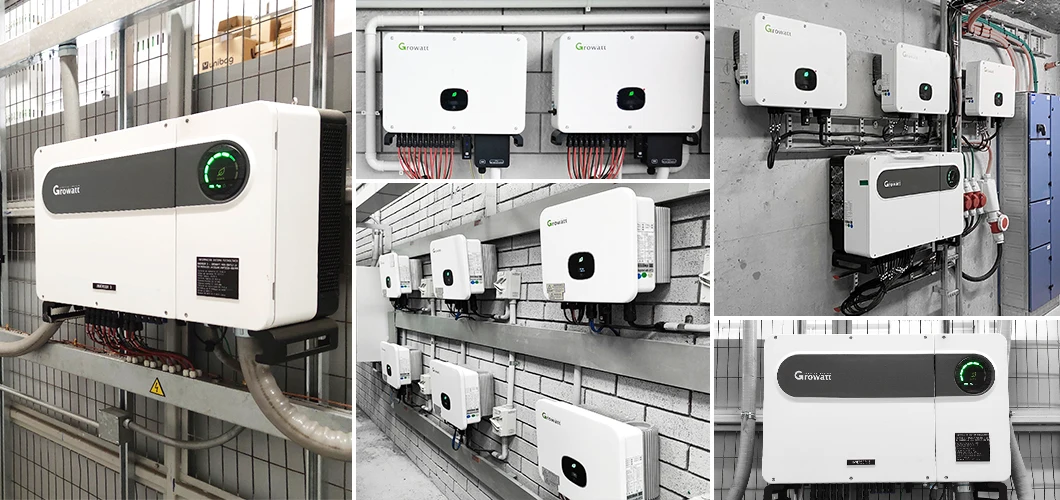

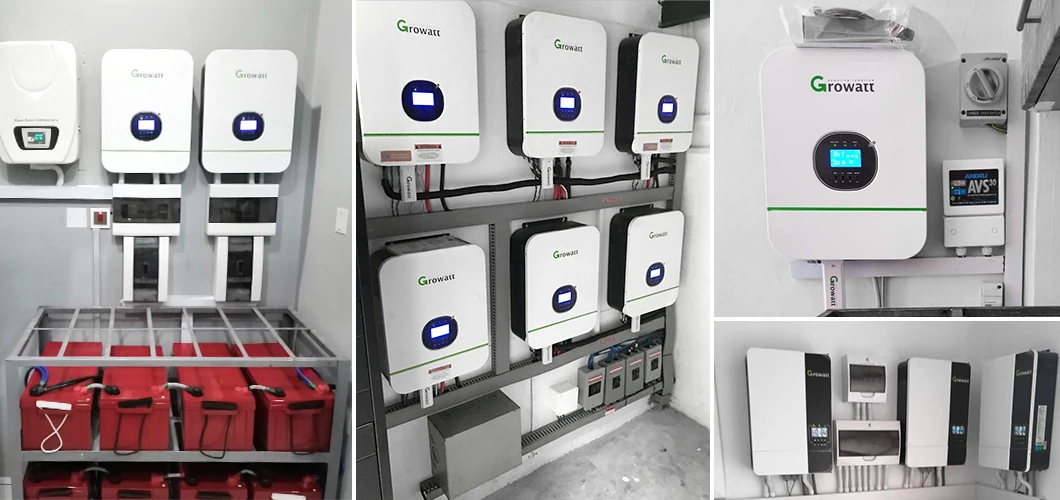

Project Cases

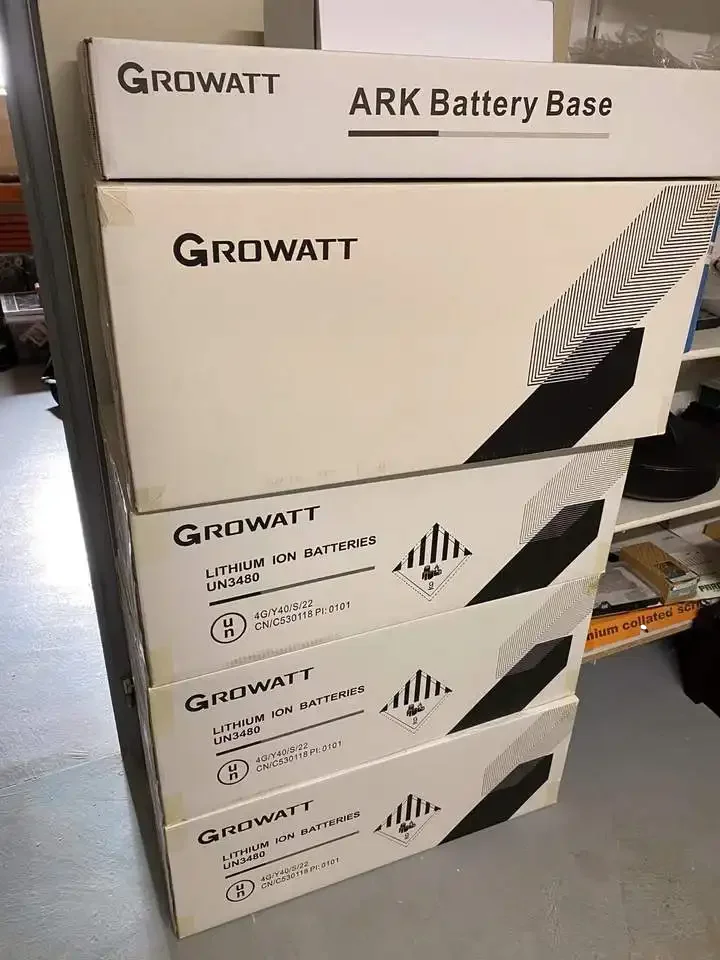

Package and Delivery
