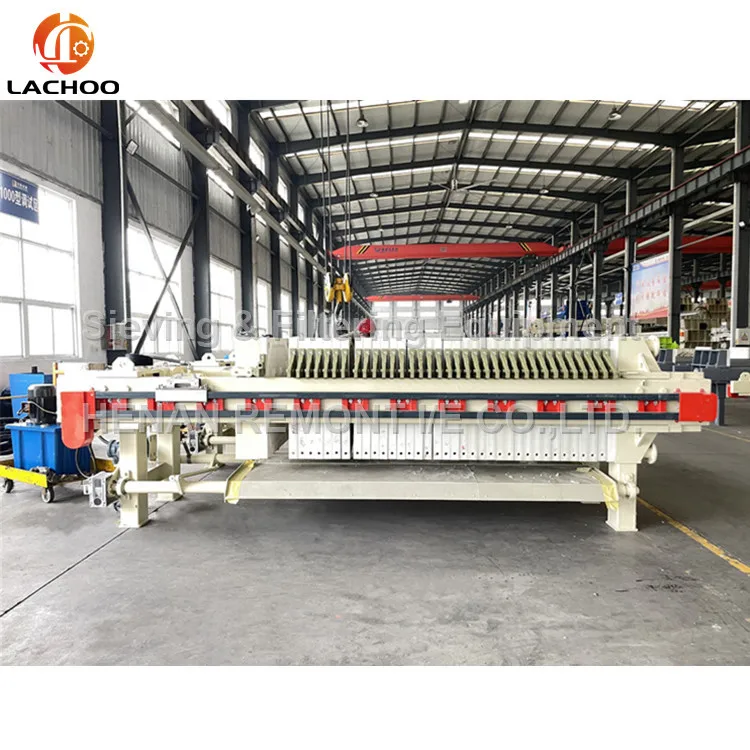

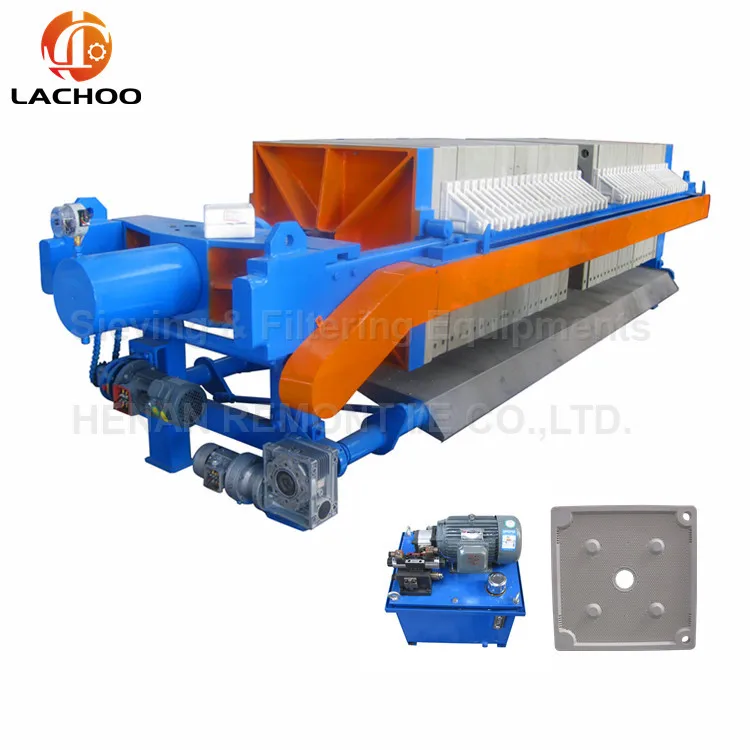

Industrial Filter Press Machine with Automatic Cloth Washing System
- Category: >>>
- Supplier: Henan Remont I/E Co. Ltd.
Share on (1600975240463):
Product Overview
Description
Product Description
General introduction of Recessed plate filter press for sludge dewatering
1. Labour saving: All the operation could be worked by the machine, one worker can supervise several machine’s working.
2. Efficiency: Fully automatic operation, with a short working cycle at each process, helping you increase the production capacity.
3. Long lifetime: The beam is made by best carbon steel and not easy to out of shape, filter plate is made by good PP material and can bear high pressure.
Company Information
Recessed plate filter press for sludge dewatering
Technical Parameters
Technical specifications of Recessed plate filter press for sludge dewatering
| Model | Filter area | Plate size | Cake thickness | Plate | Pressure | Power | Dimension(m) | Weight |
| XAZ30/870 | 30m² | 870*870mm | 30mm | 23PCS | 0.6MPa | 2.2KW | 3.18*1.4*1.23 | 2680Kg |
| XAZ60/870 | 60m² | 870*870mm | 30mm | 46PCS | 0.6MPa | 2.2KW | 4.55*1.4*1.23 | 4003Kg |
| XAZ80/1000 | 80m² | 1000*1000mm | 30mm | 46PCS | 0.6MPa | 4.0KW | 5.12*1.5*1.40 | 5651Kg |
| XAZ120/1000 | 120m² | 1000*1000mm | 30mm | 69PCS | 0.6MPa | 4.0KW | 6.50*1.5*1.40 | 7644Kg |
| XAZ160/1250 | 160m² | 1250*1250mm | 30mm | 58PCS | 0.6MPa | 4.0KW | 7.36*1.8*1.60 | 11492Kg |
| XAZ200/1250 | 200m² | 1250*1250mm | 30mm | 72PCS | 0.6MPa | 4.0KW | 7.23*2.2*1.30 | 13504Kg |
| XAZ250/1500 | 250m² | 1500*1500mm | 35mm | 61PCS | 0.6MPa | 7.5KW | 7.22*2.2*1.90 | 22978Kg |
| XAZ500/1500 | 500m² | 1500*1500mm | 35mm | 123PCS | 0.6MPa | 7.5KW | 11.56*2.2*1.9 | 38606Kg |
| XAZ1000/2000 | 1000m² | 2000*2000mm | 40mm | 141PCS | 0.6MPa | 15KW | 15.60*3.0*2.5 | 65000Kg |
Customers' visit
Customers' visit of Recessed plate filter press for sludge dewatering
Application
Application of Recessed plate filter press for sludge dewatering
The filter press is widely used in mining, food, pharmaceutical, oil, solid-liquid separation industries. Detailed as: ceramic, gelatin, edible oil, chemicals, food processing, pharmaceuticals, leather tanneries, sewage treatment plants, sugar, fertilizers,petro chemicals. Many oil plants, such as rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds and palm kernel, etc. Medium and small oil refinery, oil mill and private oil squeezing workshop.
Packaging & Shipping
