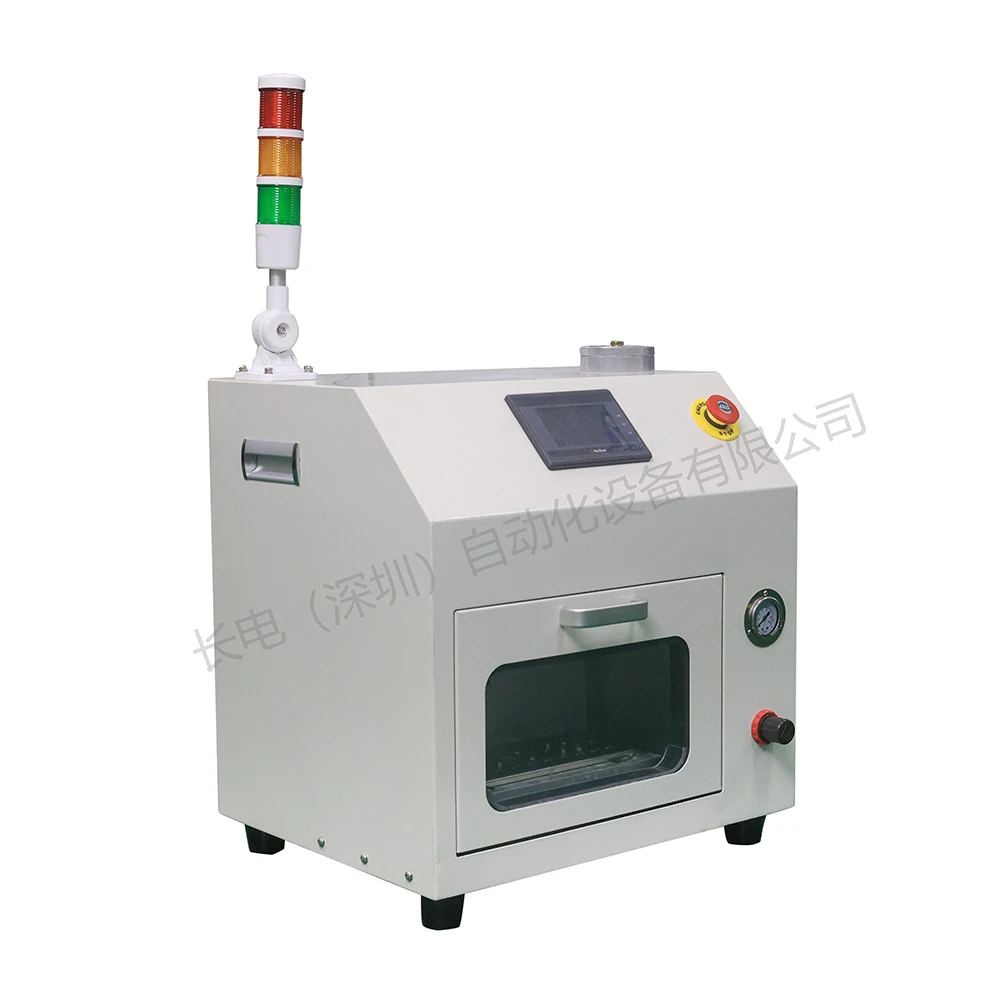

Professional Vacuum Cleaner Automatic SMT Suction Nozzle Cleaning Machine
- Category: >>>
- Supplier: Changdian (shenzhen) Automation Equipment Co. Ltd.Changdian Ltd.
Share on (1600975251202):
Product Overview
Description
Products Description
Machine Feature:
◆Cleaning 30 nozles at a time, with short dleaning time and high efficiency.
◆substitute for traditional manual cleaning.solve the problem of ultrasonic cleaning, Reduce the phenomenon of patchthrowing.
◆Atomized water flowsupersonic jet cdeaning, completely solve the dirt and impurities that cannot be cleaned by ultrasonic.
◆ Will not beunclean due to smallerand smaller noazle apertures.
◆The clean is more thorough,directly prolongs the life of the nozzle, and the clean rate is over 99%.
◆The operation is convenient,and the interface can be switched between Chinese and English.
◆Never use cleaning agents,only clean with environmentally triendly puriied water or delonized water.
◆ The touchscreen ontrol .interfaceisadopted,and the operaton is simple and easy toundertand.
◆substitute for traditional manual cleaning.solve the problem of ultrasonic cleaning, Reduce the phenomenon of patchthrowing.
◆Atomized water flowsupersonic jet cdeaning, completely solve the dirt and impurities that cannot be cleaned by ultrasonic.
◆ Will not beunclean due to smallerand smaller noazle apertures.
◆The clean is more thorough,directly prolongs the life of the nozzle, and the clean rate is over 99%.
◆The operation is convenient,and the interface can be switched between Chinese and English.
◆Never use cleaning agents,only clean with environmentally triendly puriied water or delonized water.
◆ The touchscreen ontrol .interfaceisadopted,and the operaton is simple and easy toundertand.
◆ It issuitable forall kinds of mounter nozzles, and the cleaning effect ismore obvious for the cross shaped, I-shaped and speclal-shaped nozzles.
Working principle:
◆High pressure jet technology: A. Fine water mist particles, continuously pressurized to break the water, the water mist of3-10μm particles is generated so that it can clean the dirt on the inner wall of the small nozzle aperture.
◆ Impulse power: B.It forms a powerful pulse power jet to the suction nozzle at the speed of sound (v=360m/s),the pulse frequency can reach 30 times per second, forming a continuous impact force above the nozzle to be cleaned, crushing the dirt on the surface and inside, and achieving the purpose of cleaning.
◆ Impulse power: B.It forms a powerful pulse power jet to the suction nozzle at the speed of sound (v=360m/s),the pulse frequency can reach 30 times per second, forming a continuous impact force above the nozzle to be cleaned, crushing the dirt on the surface and inside, and achieving the purpose of cleaning.
Product Name | Automatic Nozzle Cleaning Machine |
Equipment size | L440×W500×H530(mm) |
Equipment weight | 35KG |
Cleaning fluid | Industrial pure water |
Consumption≤400CC/H | |
Air source: compressed air | |
Operating pressure range 0.5-0.65Mpa (when cleaning) | |
Injection pressure< 0.4Mpa | |
Air consumption below 500NL/min | |
Power supply | Voltage AC220V 50HZ |
Maximum rated power consumption 100W | |
Nozzle tray | 30 bits |
