membrane psa nitrogen generator nitrogen generator on ship
- Category: >>>
- Supplier: CAN GAS SYSTEMS COMPANY LIMITED
Share on (1600975269173):
Product Overview
Description
Products Description

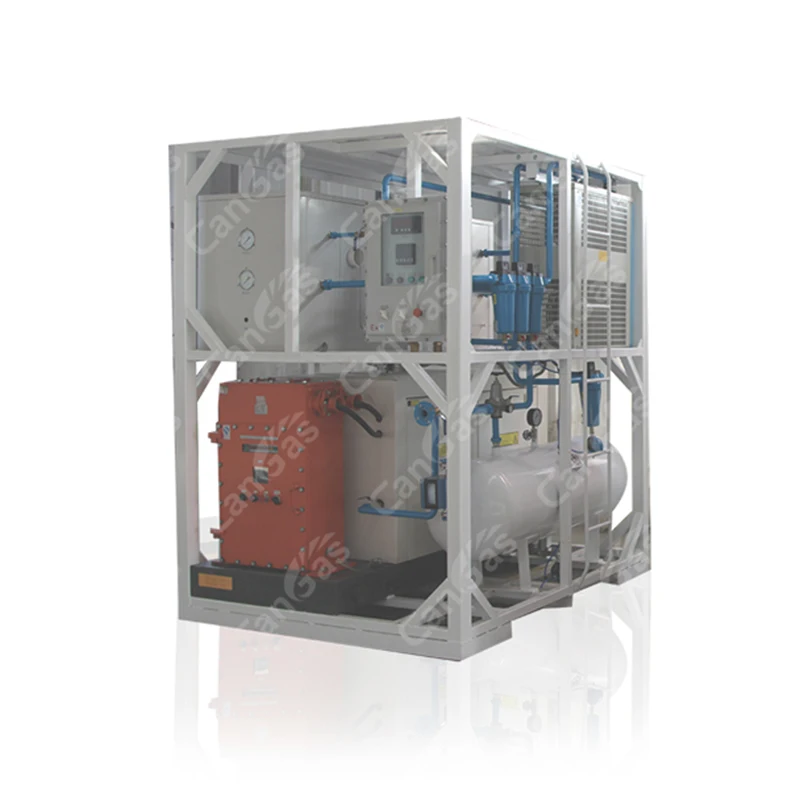

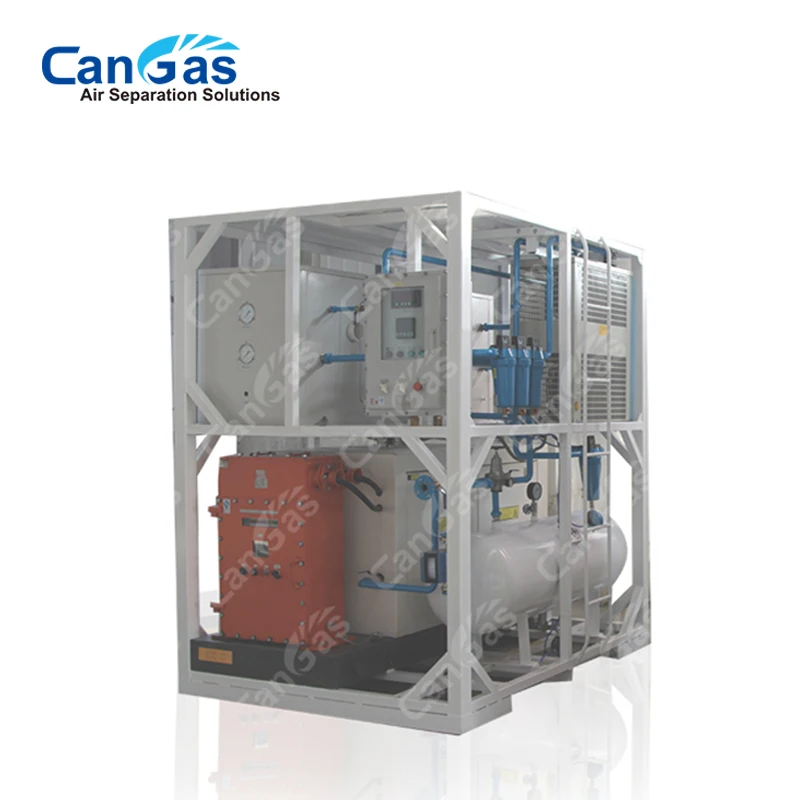

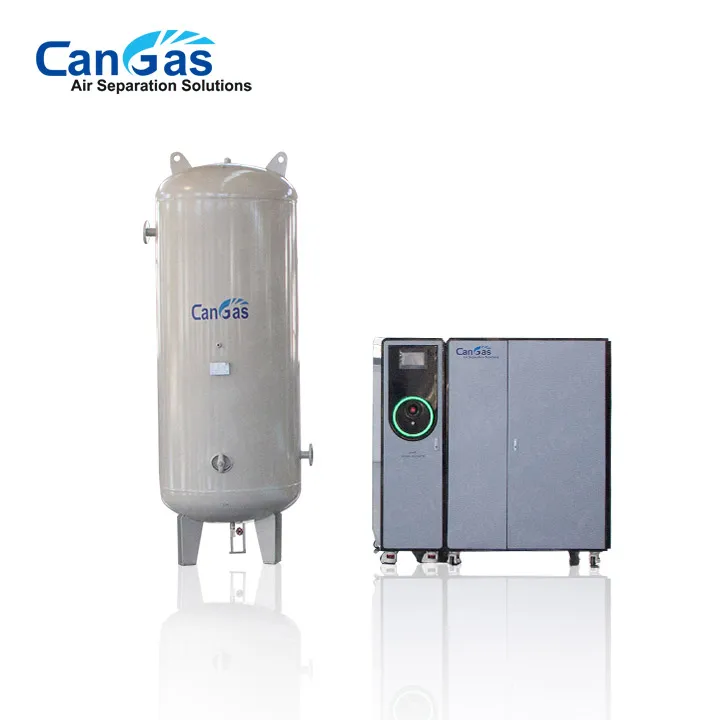

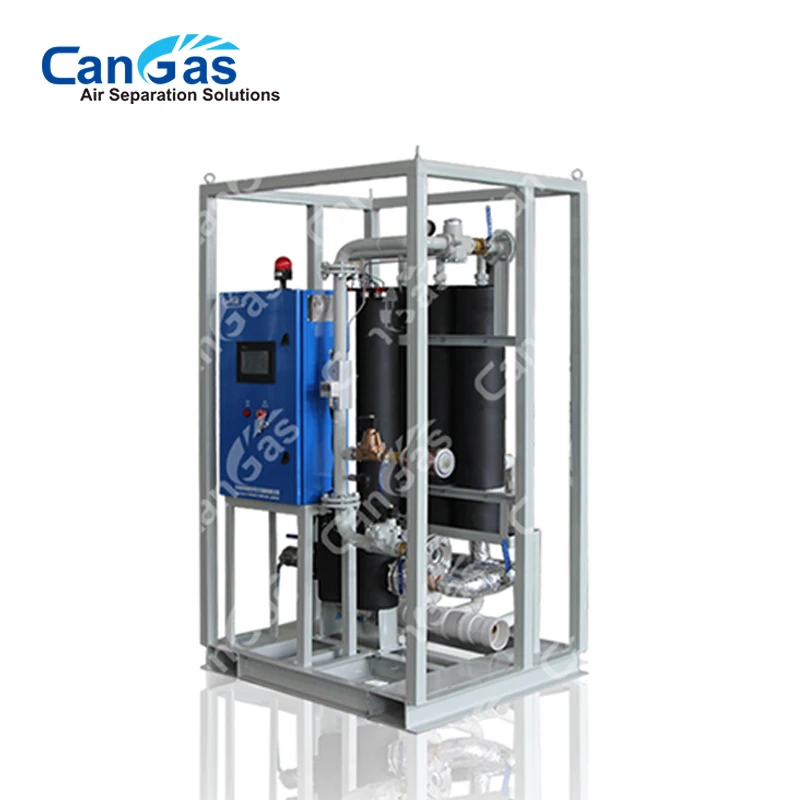

CanGas On-site membrane nitrogen generator
On-site nitrogen supply for ships and vessels
CanGas nitrogen generators are particularly appropriate for:
Chemical tankers
Drill ships
FPSO (Floating Production Storage & Offloading) units
LNG/LPG carriers
PSV (Platform Supply Vessels)
CanGas nitrogen generators are particularly appropriate for:
Chemical tankers
Drill ships
FPSO (Floating Production Storage & Offloading) units
LNG/LPG carriers
PSV (Platform Supply Vessels)
Nitrogen generators have become indispensable helpers in the marine industry today. We can supply you special membrane or PSA nitrogen generators designed for the demanding conditions of shipboard operations. The nitrogen generation systems from CanGas are not only made for durability, they are also engineered to be light weight, compact, automatically operated, easily maintained and trouble-free in order to meet all requirements in the marine environment. CanGas’s membrane or PSA nitrogen generators can even be made suitable for top deck installations if so required.
CanGas Use N2 calculator to learn how much nitrogen you can make. Estimate the number and type of membranes you need by inputting the nitrogen flow, temperature, nitrogen purity and pressure.
Efficient air separation and nitrogen generation with CanGas N2 is especially suitable when spaces are being blanketed to achieve an inert atmosphere. The reduction of atmospheric oxygen results in many different applications.
CanGas N2 modules have high selectivity and permeability. They combine low air consumption with high nitrogen capacity. The benefits for you: you need a small compressor, only a few modules, and operational costs are low.
CanGas N2 is especially suitable in a wide variety of blanketing or inerting. As opposed to other membrane modules that are available on the market, the CanGas module combines excellent capacity with low air consumption. Alternatively, our CanGas N2 Selective module can be used for low throughput volumes. The Selective version achieves high purity with extremely low air consumption. Energy consumption is especially low, while the capacity remains competitive.
Benefits of On-Site Nitrogen Generators
1. Time Savings
Generating nitrogen on-site saves industrial users from operational downtime because of nitrogen gas needs. Downtime due to logistics issues with trucking compressed nitrogen gas cylinders from vendor locations incurs huge time and financial losses for industrial users every year. In contrast, having an on-demand nitrogen generation system in place ensures that you have a 24-hour supply of high-purity gas for your processes.
2. Cost Savings
Generating nitrogen on-site is more cost-effective than purchasing the gas from vendors due to savings on the cost of transportation and storage. This is especially true for membrane nitrogen generators (as opposed to PSA systems). Transporting
nitrogen gas between locations will require the services of an internal logistics team or trucking companies that charge a fair price for freight.
Generating nitrogen on-site is more cost-effective than purchasing the gas from vendors due to savings on the cost of transportation and storage. This is especially true for membrane nitrogen generators (as opposed to PSA systems). Transporting
nitrogen gas between locations will require the services of an internal logistics team or trucking companies that charge a fair price for freight.
3. Safety and Reliability
On-site nitrogen gas generation systems can be safer than nitrogen gas from cylinders. Nitrogen gas leaks from damaged cylinders can be toxic to humans in large, concentrated quantities, particularly when it is present in confined spaces. Using a PSA or membrane filtration system reduces the need for the storage of such containers and can help reduce the associated risks.
Membrane | PSA | |
ACHIEVABLE PURITY | EFFICIENTLY UP TO 99.9% | EFFICIENTLY UP TO 99.9995% |
EFFICIENCY | HIGH | HIGHER |
PERFORMANCE VS. TEMP. | HIGHER AT HIGH TEMP.* | LOWER AT HIGH TEMP. |
SYSTEM COMPLEXITY | LOW | MEDIUM |
SERVICE INTENSITY | VERY LOW | LOW |
PRESSURE STABILITY | STABLE | FLUCTUATING IN/OUTLET |
FLOW STABILITY | STABLE | FLUCTUATING IN/OUTLET |
START-UP SPEED | SECONDS | MINUTES/HOURS** |
WATER (VAPOUR) SENSITIVITY | NO LIQUID WATER | PDP MAX 8°C (Generally) |
OIL SENSITIVITY | NOT ALLOWED (< 0,01mg/m³) | NOT ALLOWED (< 0,01mg/m³) |
NOISE LEVEL | VERY LOW | HIGH (blow-off peaks) |
WEIGHT | LOW | MEDIUM |
Technical Parameter | ||
Purity | 95~99.9% | |
Capacity | 1.0~30000 Nm3/h | |
Pressure | 0~350bar | |
Dew Point | ＜-70℃ | |

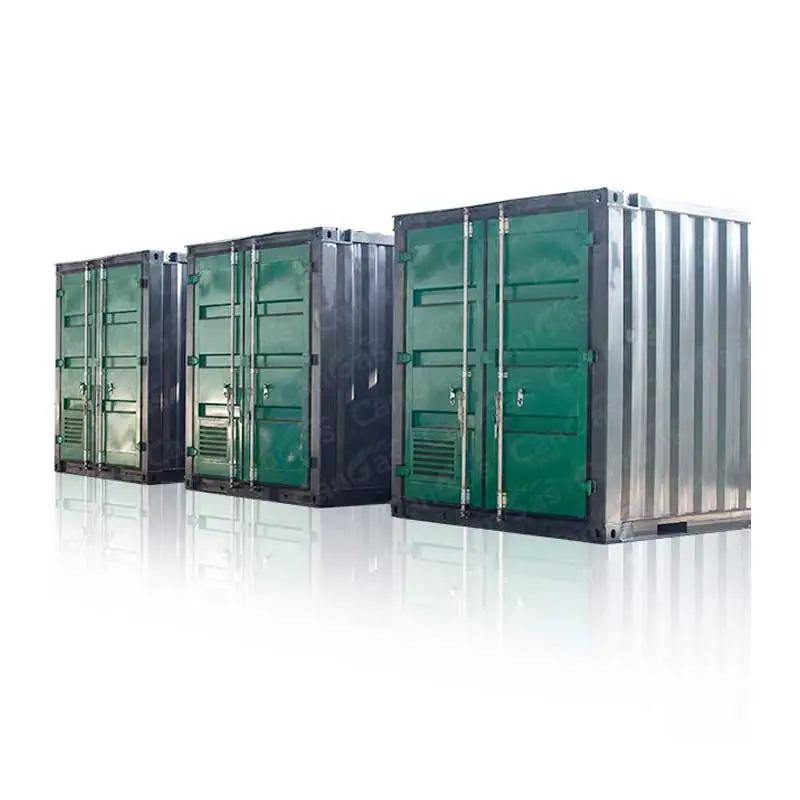

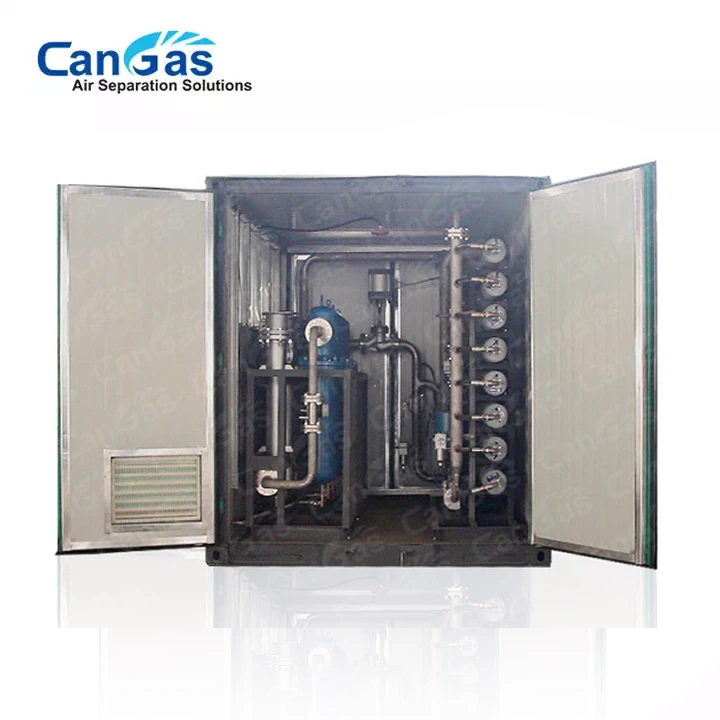

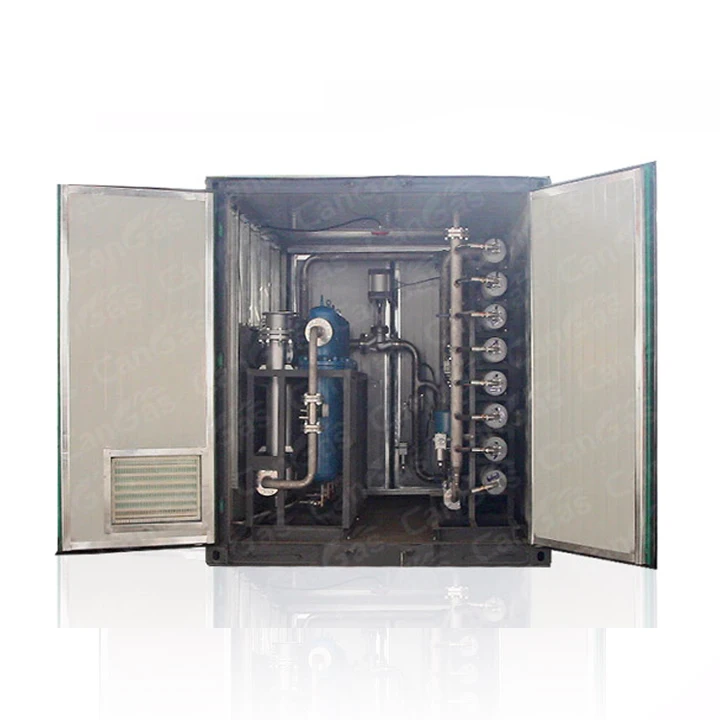

Type | skid-mounted, containerized | |
Working Principle
Membrane Nitrogen Generator Working Principle
It utilizes a high-selectivity membrane for nitrogen gas separation. The material is a semi-permeable layer made of thousands of flexible, cylindrical filaments with pore sizes ranging from 0.03 to 10 microns. To separate nitrogen gas, dry, compressed air is applied over the material which is housed in a cylindrical vessel (it is essential to use dehumidified air to prevent clogging of the membrane fibers). The membrane allows N2 to pass through but inhibits oxygen, water vapor, inert gases, and air-borne impurities.

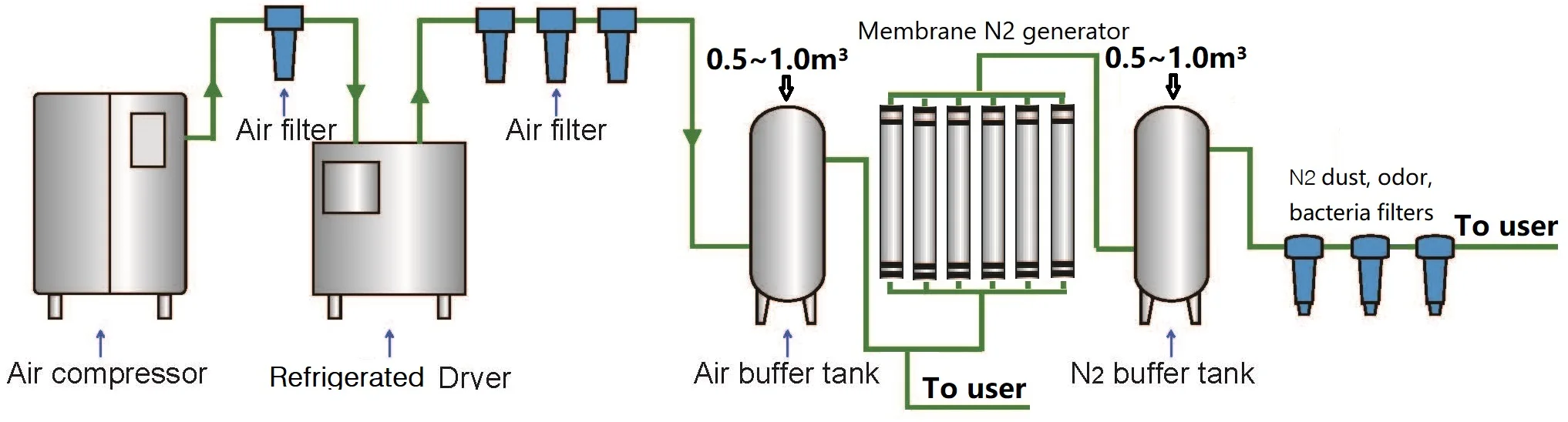

How Membrane Nitrogen Generators Work

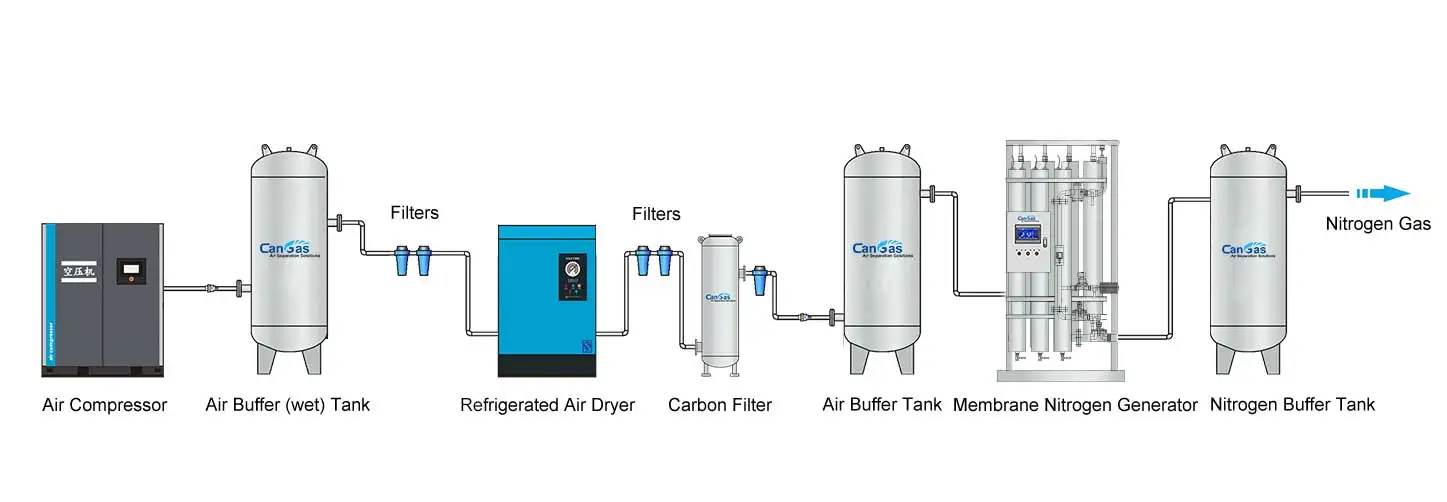

Atmospheric air contains essentially 78% nitrogen and 21% oxygen. Ordinary dry compressed air is filtered and passed through a technically advanced bundle of hollow membrane fibers where nitrogen is separated from the feed air by selective permeation. Water vapor and oxygen rapidly permeate safely to the atmosphere, while the nitrogen gas is discharged under pressure into the distribution system. Pressure, flow rate and membrane size/quantity are the main variables that affect nitrogen production.
Nitrogen purity (oxygen content) is controlled by throttling the outlet from the membrane bundle(s). At a given pressure and membrane size, increasing the nitrogen flow allows more oxygen to remain in the gas stream, lowering nitrogen purity. Conversely, decreasing nitrogen flow increases purity. For a particular purity, higher air pressure to the membrane gives a higher nitrogen flow rate. Purity ranges of less than 90% to 99.9% are possible. By combining multiple membrane bundles, an infinite number of flow/purity ranges are available to satisfy practically any application that requires nitrogen gas.
Nitrogen purity (oxygen content) is controlled by throttling the outlet from the membrane bundle(s). At a given pressure and membrane size, increasing the nitrogen flow allows more oxygen to remain in the gas stream, lowering nitrogen purity. Conversely, decreasing nitrogen flow increases purity. For a particular purity, higher air pressure to the membrane gives a higher nitrogen flow rate. Purity ranges of less than 90% to 99.9% are possible. By combining multiple membrane bundles, an infinite number of flow/purity ranges are available to satisfy practically any application that requires nitrogen gas.
Application
Food and beverage industries
Generators are used to flood the
products with N2 that displaces the oxygen and prolongs the product lifetime significantly because these organisms cannot develop. Furthermore, chemical degradation of food caused by oxidation can be eliminated or stopped.
products with N2 that displaces the oxygen and prolongs the product lifetime significantly because these organisms cannot develop. Furthermore, chemical degradation of food caused by oxidation can be eliminated or stopped.
Petrochemical industries
The primary and very important application of nitrogen in chemical and petrochemical industries is the provision of inert environment aimed at ensuring general industrial safety during cleaning and protection of process vessels.
Petroleum industry
In the petroleum industry, nitrogen is an indispensable component in a number of processes. Most commonly, nitrogen is used to create an inert environment for preventing explosions and for fire safety and to support transportation and transfer of
hydrocarbons.
hydrocarbons.
Metallurgy
The metal industry generally utilizes nitrogen as a means of protecting ferrous and non-ferrous metals during annealing.Electronics
In electronics, nitrogen serves to displace oxygen in the manufacture of semi-conductors and electric circuits, heat treatment of finished products, as well as in blowing and cleaning.
Fire protection
Nitrogen generators are used in hypoxic air fire prevention systems to produce air with a low oxygen content which will suppress a fire.
Green ammonia
Nitrogen is an important raw material for synthetic green ammonia. It is used to apply green hydrogen to the production of synthetic ammonia to avoid the occurrence of water and gas transformation.
Analytical chemistry
Nitrogen generators are required for various forms of analytical chemistry such as liquid chromatography–mass spectrometry and gas chromatography where a stable and continuous supply of nitrogen is necessary.
Paint-and-varnish industry
Paint and varnish production uses nitrogen for the creation of an inert environment in process vessels to ensure safety, as well as for oxygen displacement during packing in order to prevent polymerization of drying oils.
Aircraft & motor vehicle tires
Aircraft tires use nitrogen fill to delay tire rupture on rejected take off events, allowing evacuation time before brake system heat causes an internal tire fire.
Marine
The smallest footprint and lowest energy consumption are found in marine nitrogen generators. There are several applications for nitrogen in the marine environment.Glass industry
In glass production, nitrogen proves efficient as a cooling agent for electric arc furnace electrodes as well as to displace oxygen during process procedures.
Certifications
Global Exhibition
Company Information

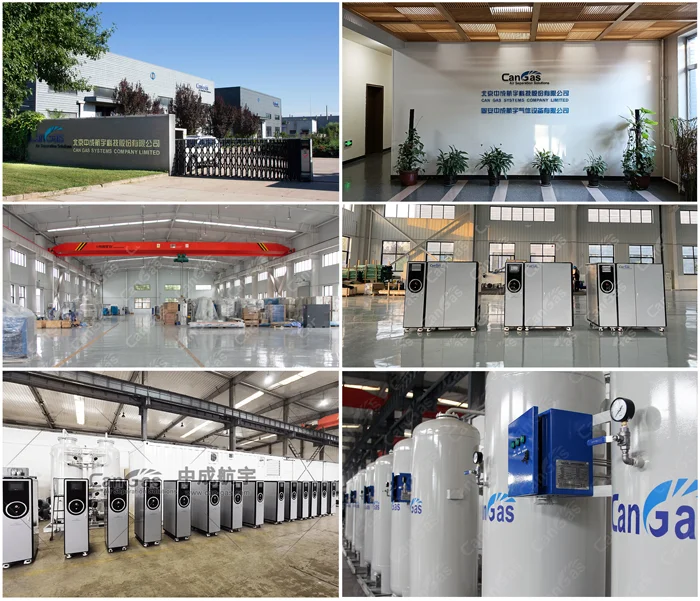

CAN GAS SYSTEMS COMPANY LIMITED
CAN GAS SYSTEMS COMPANY LIMITED, as 30-year experienced manufacturer & exporter, a national high-tech enterprise, an international enterprise integrating R&D, design, production, sales, engineering and service, a reputable manufacturer of on-site nitrogen and oxygen plants and various gases systems.
CAN GAS has a production and R&D center with an area of 28,000 square meters, and a number of national patent certificates and computer software copyright certificates, and obtained the medical device production & export license and medi-cal device business registration certificate. CAN GAS strictly controls the quality of each unit and has obtained all necessary national & international certifications such as CE, BV, IS09001, IS013485, IS045001, IS014001.
CAN GAS Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems, gas recovery and purification systems etc, and are widely used in the industries of petro-leum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, foods, medical treatment, grains, etc. With years of research in air separation technology and rich solution experiences in various industries, CAN GAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By far, CAN GAS has successfully provided over 10,000 sets of air separation systems to users of various industries in over 110 countries and regions globally. CAN GAS has an experienced professional team always ready to be at your service. CAN GAS is dedicated to supplying suitable solutions and professional services to our customers. CAN GAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CanGas® systems for clients including GE, Wilmar, WHO, Flex, UN, SAMSUNG, etc.
CAN GAS has a production and R&D center with an area of 28,000 square meters, and a number of national patent certificates and computer software copyright certificates, and obtained the medical device production & export license and medi-cal device business registration certificate. CAN GAS strictly controls the quality of each unit and has obtained all necessary national & international certifications such as CE, BV, IS09001, IS013485, IS045001, IS014001.
CAN GAS Systems have a range of PSA nitrogen & oxygen generators, membrane nitrogen & oxygen generators, nitrogen purification systems, gas recovery and purification systems etc, and are widely used in the industries of petro-leum, oil & gas, chemicals, electronics, metallurgy, coals, pharmaceuticals, aerospace, autos, glass, plastics, foods, medical treatment, grains, etc. With years of research in air separation technology and rich solution experiences in various industries, CAN GAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By far, CAN GAS has successfully provided over 10,000 sets of air separation systems to users of various industries in over 110 countries and regions globally. CAN GAS has an experienced professional team always ready to be at your service. CAN GAS is dedicated to supplying suitable solutions and professional services to our customers. CAN GAS sticks to providing our clients with more reliable, more economical, more convenient professional gas solutions.
By now we have supplied CanGas® systems for clients including GE, Wilmar, WHO, Flex, UN, SAMSUNG, etc.
FAQ
1. What's the order to have an oxygen or nitrogen generator plant?
1) Inquiry---provide us all clear requirements
2) Quotation---official quotation form with all clear specifications
3) Contract confirmation---provide correct contract details
4) Payment terms
5) Production
6) Shipping
7) Installation and commissioning
8) Conducting routine after sales support
2. How to get a prompt quotation of Oxygen or Nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2/N2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24 hours))
2) O2/N2 purity: _____%
3) O2/N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/___PH/___HZ
5) Application
6) Project Location
7) Job site altitude___, ambient temperature___
8) Machine room availability Y/N
1) Inquiry---provide us all clear requirements
2) Quotation---official quotation form with all clear specifications
3) Contract confirmation---provide correct contract details
4) Payment terms
5) Production
6) Shipping
7) Installation and commissioning
8) Conducting routine after sales support
2. How to get a prompt quotation of Oxygen or Nitrogen Generator?
When you send the inquiry to us, pls kindly send it with below technical information.
1) O2/N2 flow rate: _____Nm3/hr( or How many cylinders/ liquid do you consume per day(24 hours))
2) O2/N2 purity: _____%
3) O2/N2 discharge pressure: _____Bar
4) Voltages and Frequency : ______V/___PH/___HZ
5) Application
6) Project Location
7) Job site altitude___, ambient temperature___
8) Machine room availability Y/N
