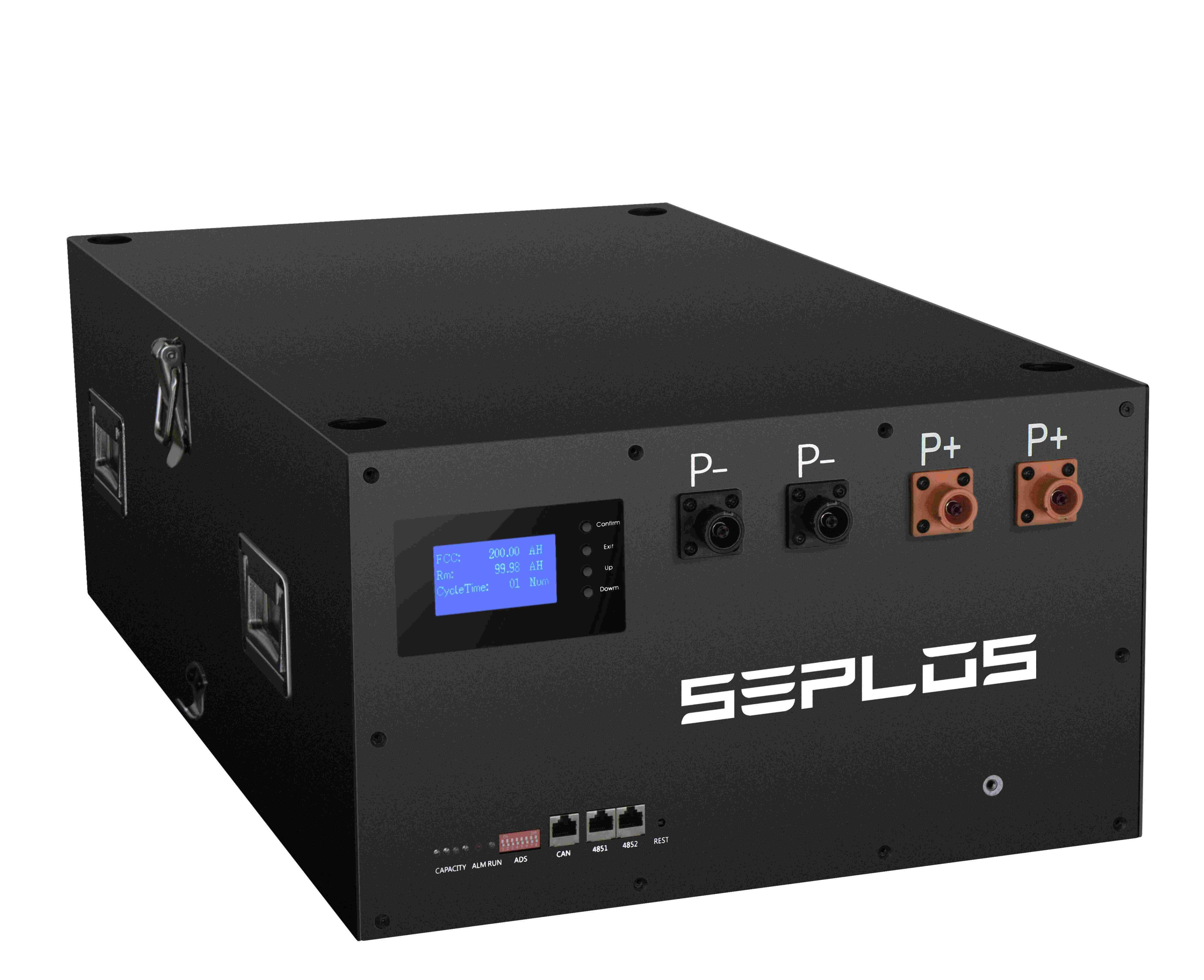

Lithium System 16S 1P Seplos Mason 200A BMS With Bluetooth 51.2V 280Ah 304Ah Empty Kit
- Category: >>>
- Supplier: Shenzhen Kayjx Technology Co. Limited
Share on (1600975280072):
Product Overview
Description
Hotselling
Ready EU Warehouse Stocks!
You can directly choose quantity and pay the order. 48h Shipping/ 72h tracking number provided/2-7 days delivered with tax free.
You can directly choose quantity and pay the order. 48h Shipping/ 72h tracking number provided/2-7 days delivered with tax free.
KESHEE have enough stock in China/EU Stock,
Sufficient supply/ Fast delivery/ Good service！Bluetooth +Screen
Check it with US at any time! :)
Sufficient supply/ Fast delivery/ Good service！Bluetooth +Screen
Check it with US at any time! :)
Specification
Product Model | Seplos Mason DIY Kit LFP Battery Box |
Nominal Voltage | 16S 48V/51.2V |
Suitable Battery | 230Ah 280Ah 302Ah Lifepo4 battery pack |
BMS | 16S 150A /16S 200A |
BMS Functions | Over charge protection, Over discharge protection, Over current protection, Cell balancing, Temperature protection CAN and RS485 communication |
Standard charge/discharge Current (A) | 150A @25±2℃ (Recommended) |
Max Standard charge/discharge Current (A) | 200A @25±2℃ |
Discharge cut-off voltage | 40.0 V Battery standard cut-off voltage |
Communication protocol | CAN/RS485/RS232 |
BMS Warranty | 2years |
Weight | 23kgs |
Dimension | 750*440*251mm |
Cycle Life | >6000times @ 80%DOD |
Packing List

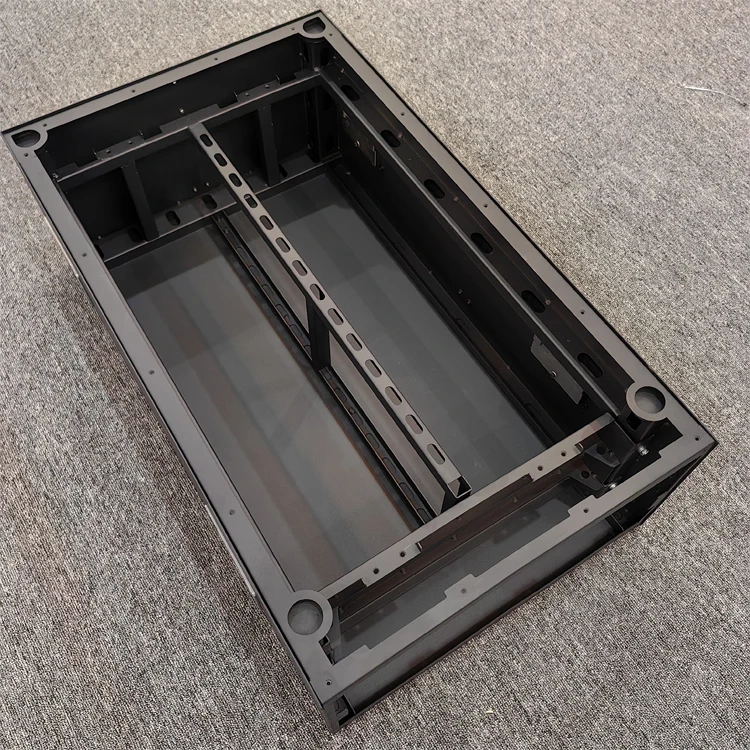

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle

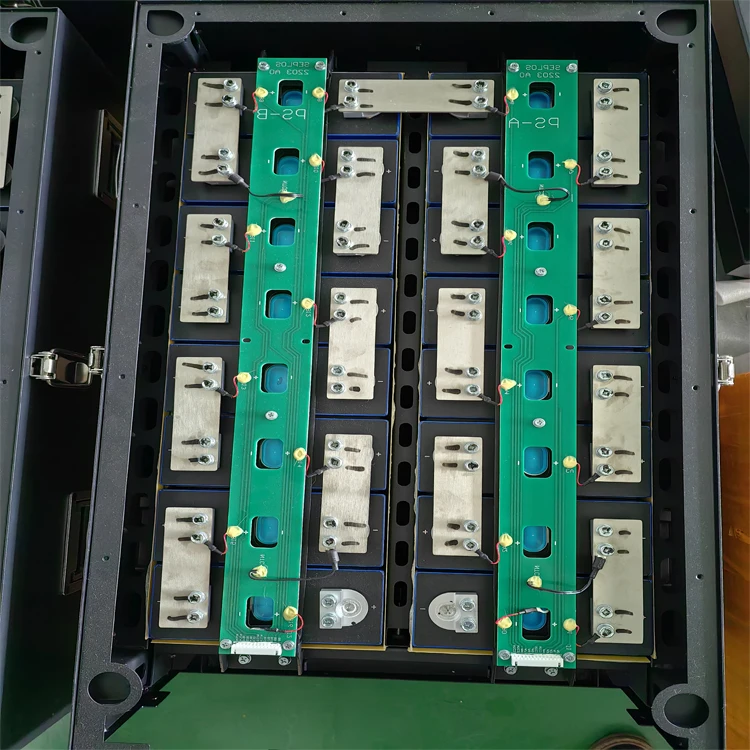

2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer

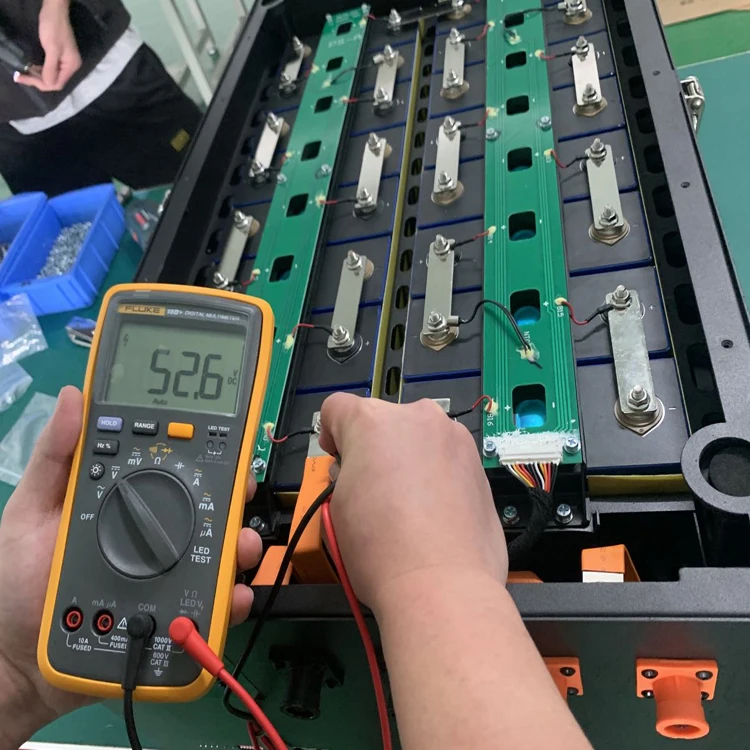

Before leaving the factory, we will have professionals to test the voltage and internal resistance twice to make sure you receive a top quality, brand new original QR code battery cells
SUITABLE APPLICATIONS:
Lithium Iron Phosphate can be used in any application that would normally use Lead Acid, GEL, or AGM type batteries.
LiFePO4 in 4S=12.8V and 8S=25.6V is closed to Lead Acid Equivalents of the Lithium rechargeable types ：
Suitable applications included caravan, marine, golf carts, solar storage,remote monitoring, switching applications
Ready to ship from CN EU Poland German!IN STOCK!! GradeA+!! Brand New!! QR Code!!
Welcome to check with US at any time!
Lithium Iron Phosphate can be used in any application that would normally use Lead Acid, GEL, or AGM type batteries.
LiFePO4 in 4S=12.8V and 8S=25.6V is closed to Lead Acid Equivalents of the Lithium rechargeable types ：
Suitable applications included caravan, marine, golf carts, solar storage,remote monitoring, switching applications
Ready to ship from CN EU Poland German!IN STOCK!! GradeA+!! Brand New!! QR Code!!
Welcome to check with US at any time!
Welcome to contact US if any problems.
Packing & Delivery
Welcome to contact US if any problems.
FAQ
Q: What about the delivery time and shipping?
A: For USA,Canada,Austraila and European country , we provide tax included services, door to door, once you place an order ,then
you will receive your new battery pack at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please
contact with our sales !
Q:Which shipping method you usually take?
A: UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent.
Q:How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
Q:Do you have MOQ ?
A:No limited. More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Wester union and so on.
Q：Does your BMS have current balance? A：yes,We have the current passive balance function, the passive balance function module is
integrated on the BMS board, do not need external balance device.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help
confirm that.
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
A:No limited. More quantity has better price, we will check the best price for you.
Q: What is your term of payment?
A: We adopt T/T,Paypal,Wester union and so on.
Q：Does your BMS have current balance? A：yes,We have the current passive balance function, the passive balance function module is
integrated on the BMS board, do not need external balance device.
Q：What brand of inverter can your BMS connect to?
A：This is the inverter brand we have actually tested,they are work well together,If the inverter brand not in the listed, please ask your inverter supplier for the protocol define. And sent it to us, we'll help
confirm that.
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q：How does your BMS look at battery data?
A：We can view the simple data of the battery string through the LCD screen connected with BMS, or view the detailed data of the
battery string from the inverter after communicating with the inverter, or connect the computer through RS485 to USB adapter, and
view the upper computer software we provide installed on the computer.
Q: What about the delivery time and shipping?
A: For USA,Canada,Austraila and European country , we provide tax included services, door to door, once you place an order ,then
you will receive your new battery pack at your home! We also have Oversea warehouse service, 3-7days arrive, no tax fees, please
contact with our sales !
Q:Which shipping method you usually take?
A: UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent.
Q:How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
