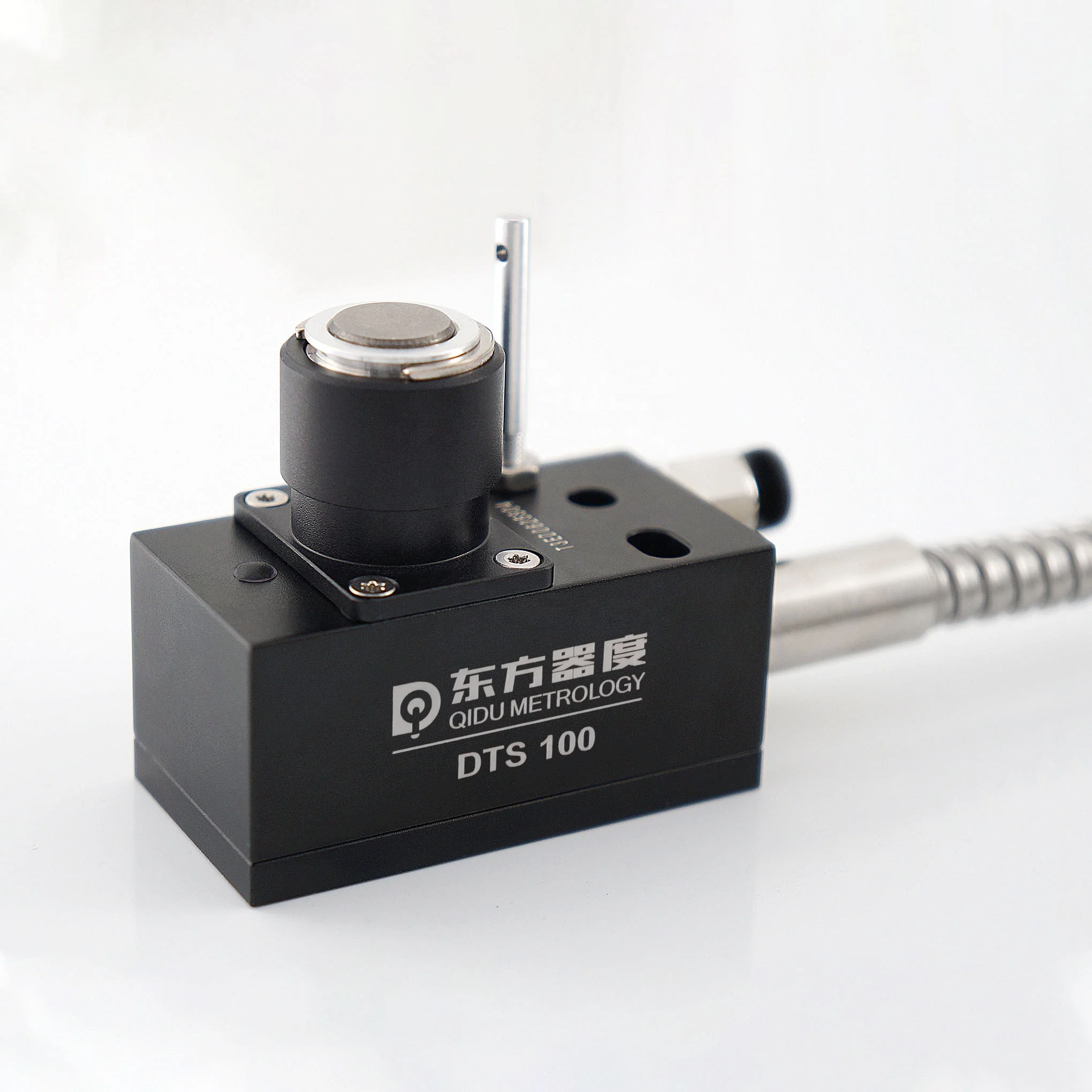

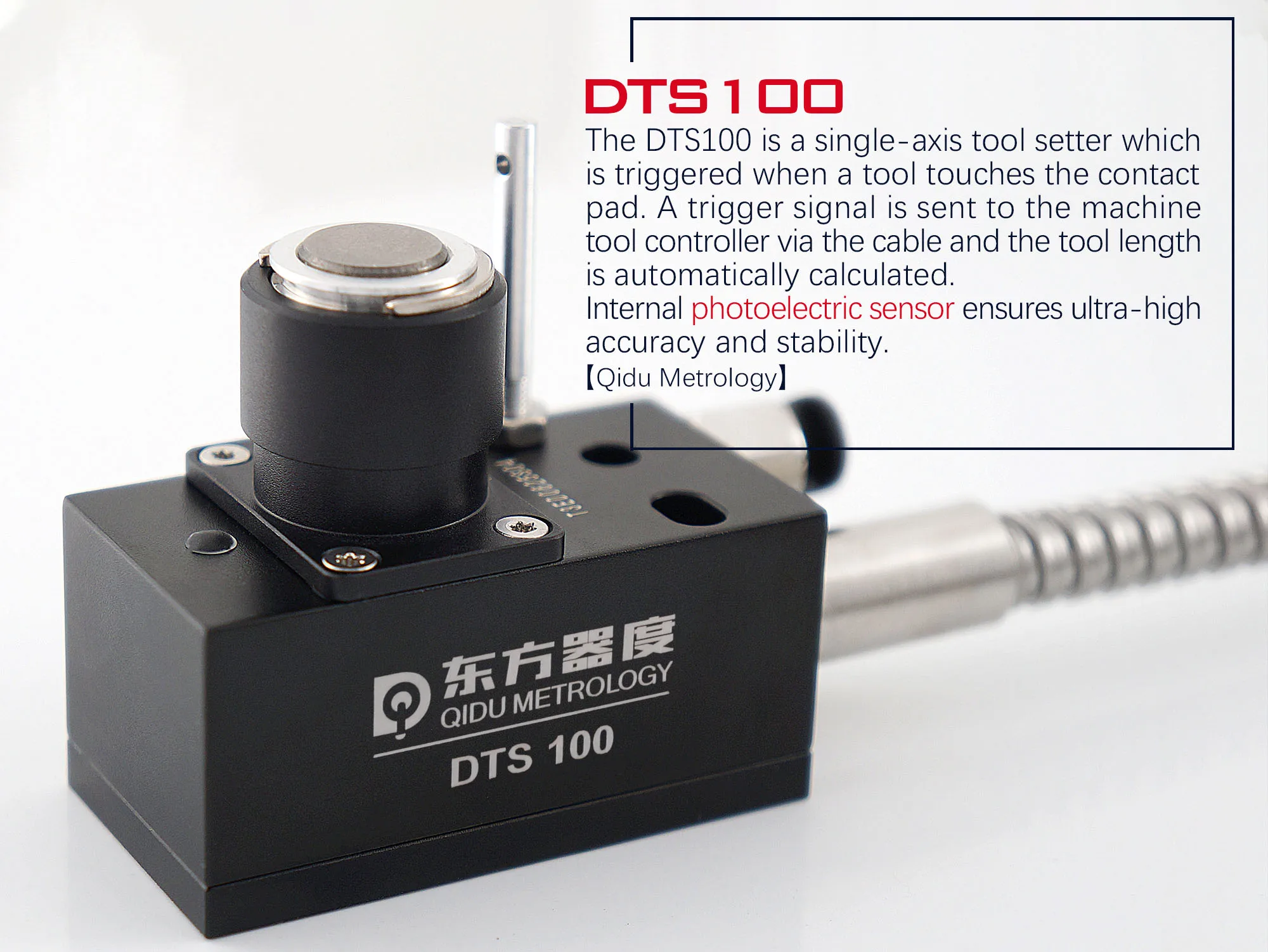

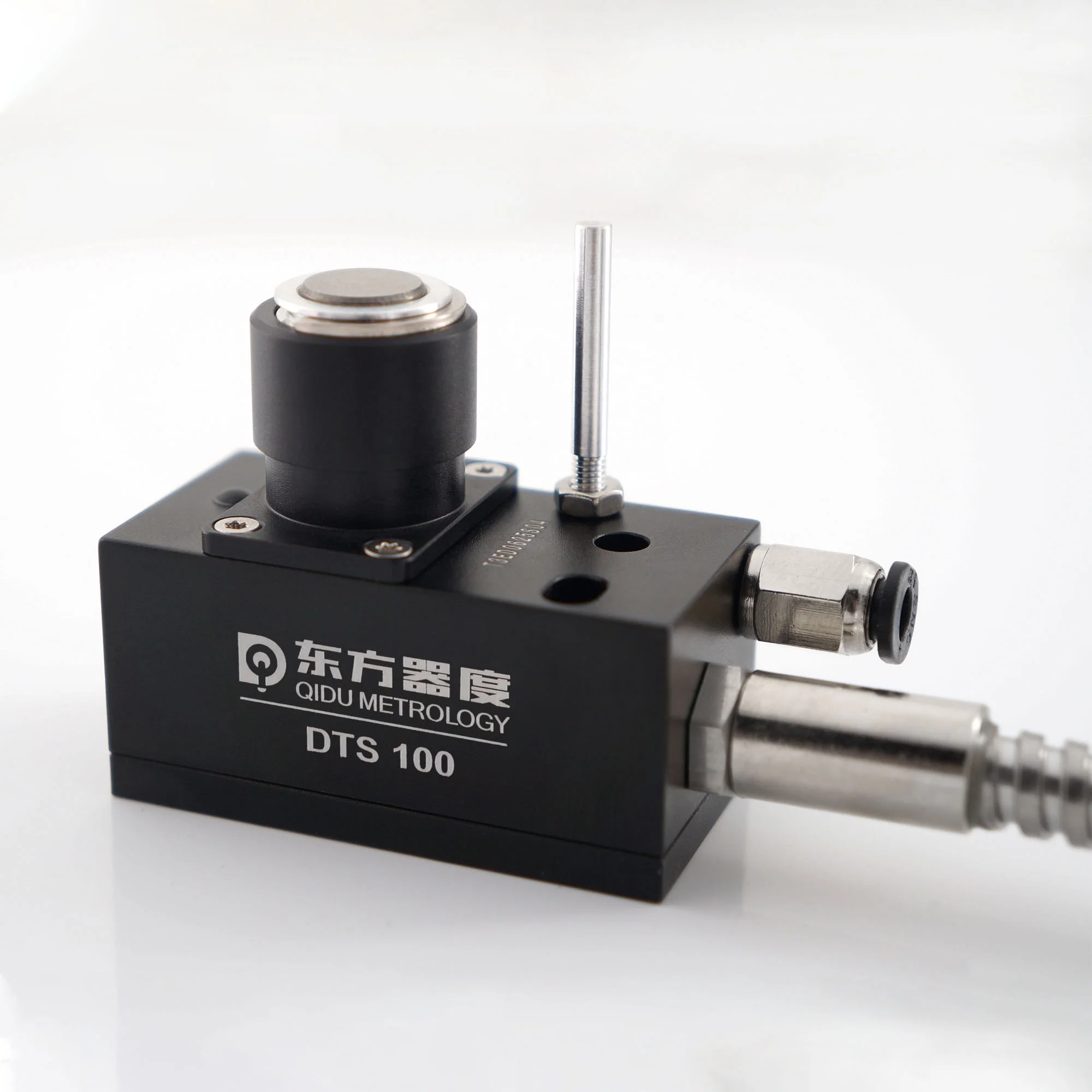

High Efficient Tool Height Setter for CNC Machine Automatically
- Category: >>>
- Supplier: Dongguan Dongfangqidu Measurement Technology Co. Ltd.
Share on (1600975531331):
Product Overview
Description
Product Description
Specification
Model No. | DTS100 |

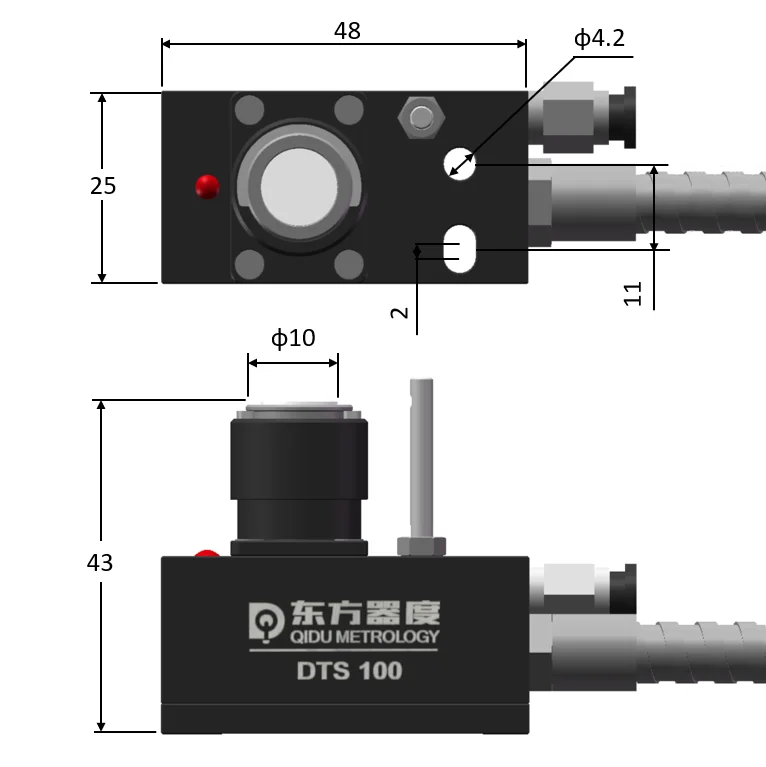

Diameter of touch pad | Φ10 |
Trigger direction | +Z |
Pre-stroke | None |
Output | NO or NC |
Stroke length | Up to 11mm |
Trigger protection distance | 5mm |
Repeatability precision(2σ) | <0.5um(speed: 50~200mm/min) |
Trigger life | >10 million times |
Signal transmission mode | cable |
Sealing | IP68 |
Trigger force | 1.3N |
Touch pad material | Tungsten steel |
Surface treatment | grinding |
Contact nominal value | DC24V, ≤10mA |
Protective tube | 3m, minimum radius 7mm |

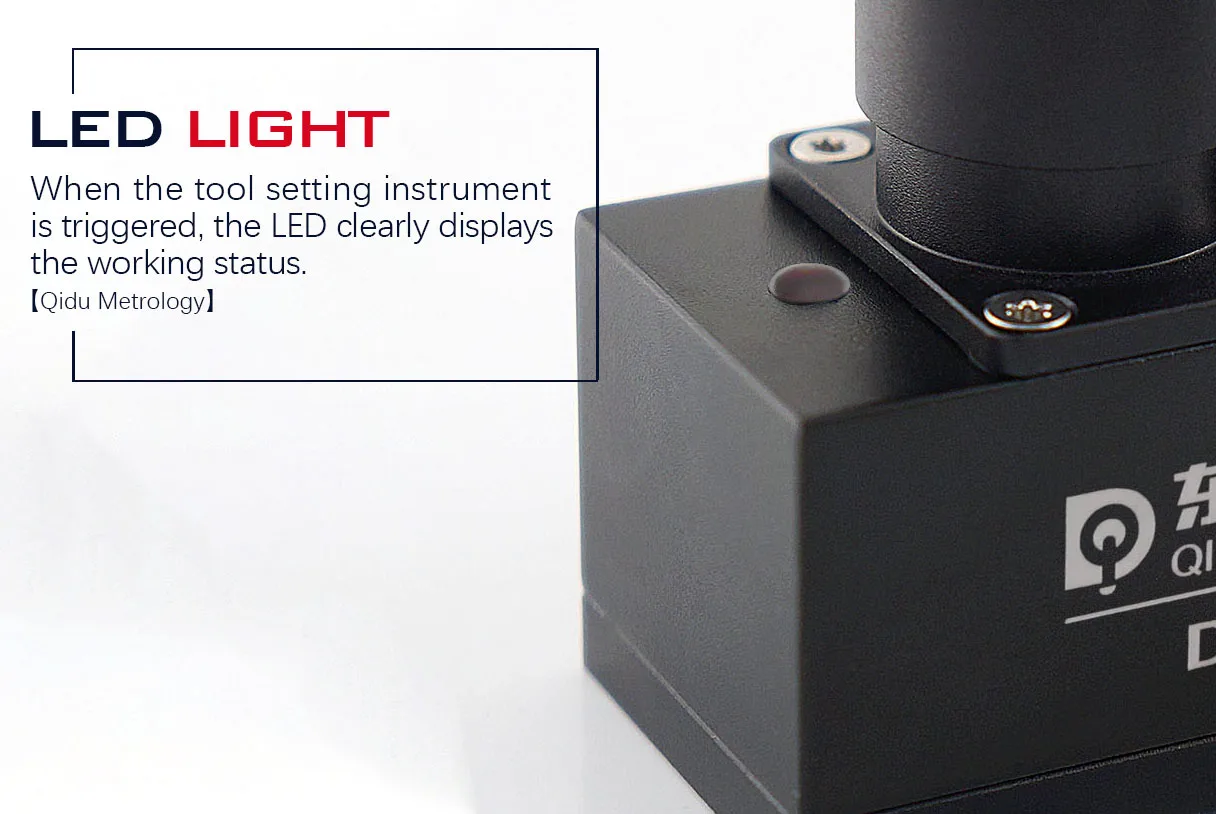

LED light | Normal: off; active: on |
Usage | CNC Machine Center |
Function | Measurement |
Payment | TT |
MOQ | 1 set |
Packing & Delivery

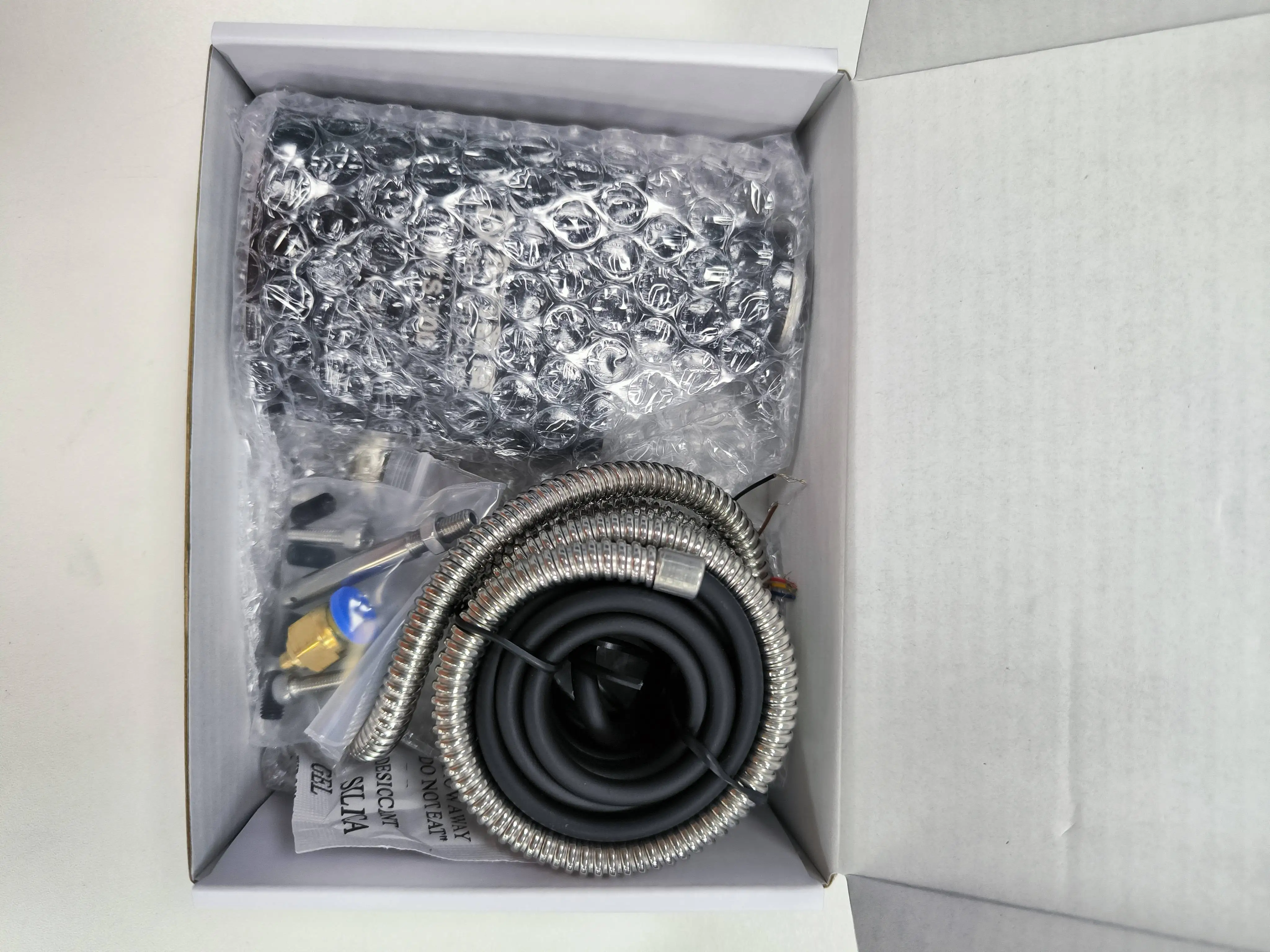

Packing by carton
Company Profile
DongFangQiDu Measurement Co., Ltd. is a high-tech company with the integrity of research, design, manufacture and sales. Our products include CNC probe, CNC tool setting instrument, stylus, on-line measuring software, and CNC peripheral products.
