Product Overview
Description

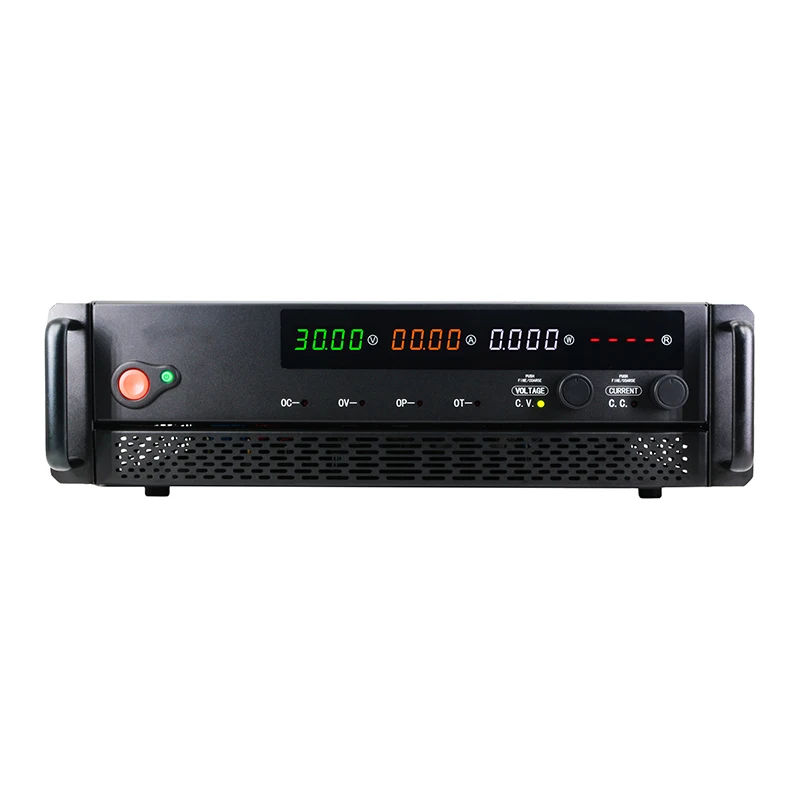

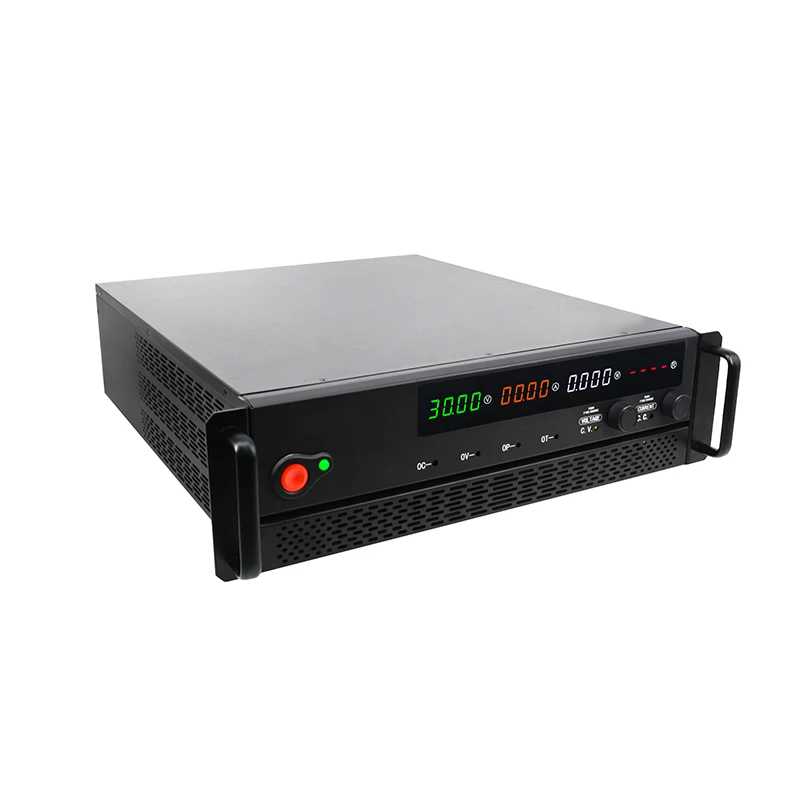

MYAMI MY-K20002U AC 220V DC 200V 2A Rack DC Power Supply 400W Programmable DC Rectifier with RS485 RS232 USB Modbus Protocol
0-200V/0-2A variable/400W
4 LED digital
4 LED digital
Application:
(1) Aerospace Testing
(1) Aerospace Testing
(2) Photovoltaic and energy storage system
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment
(3) New energy vehicle
(4) Data center
(5) Industrial motor
(6) Power semiconductor module
(7) Automated test system (ATE)
(8) Lithium fuel cell
(9) Aging of electronic equipment
(10) Precision electroplating, splashing and surface treatment
Feature:

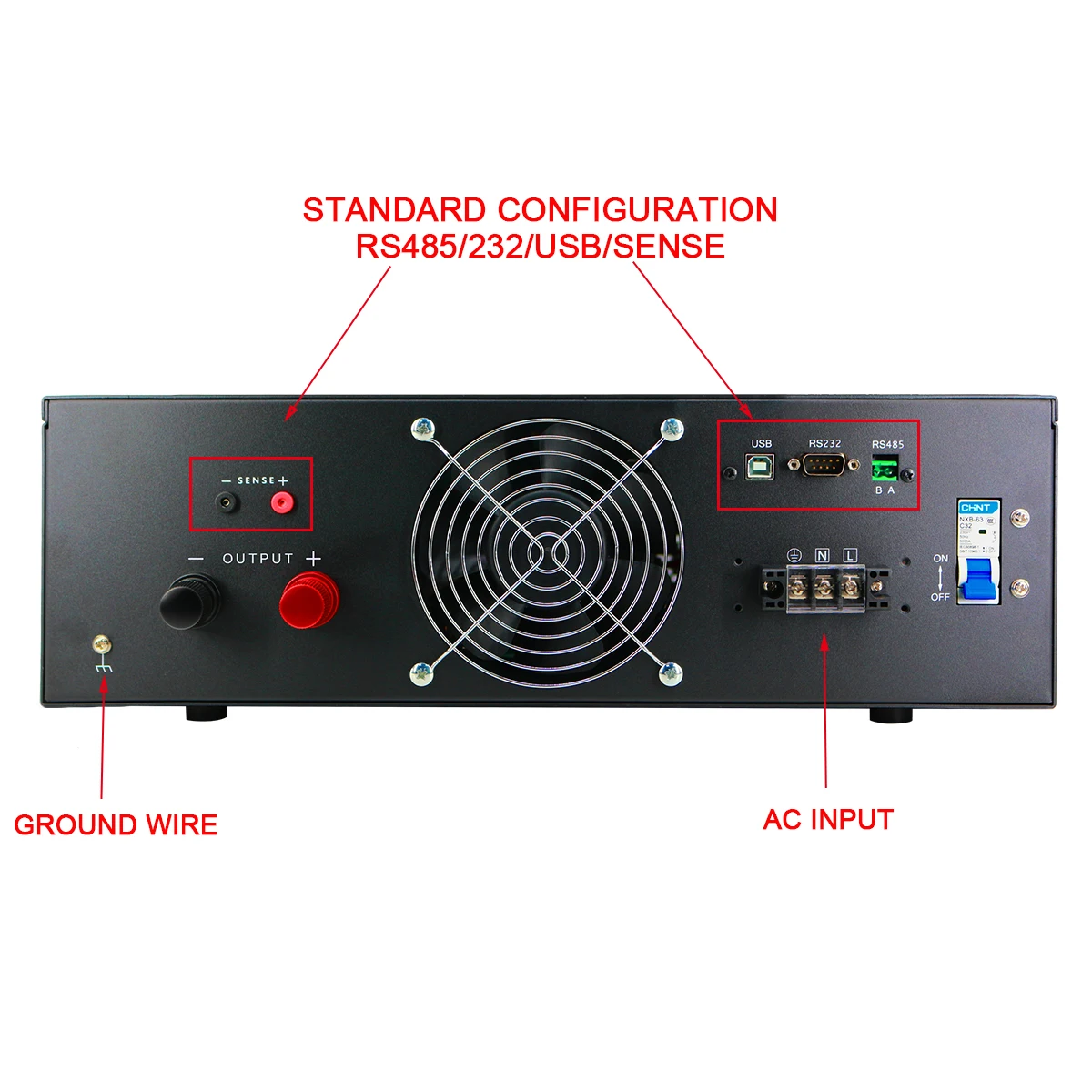

(1) RS485/RS232/USB serial port is standard;(3 select 1 to use, cannot be used at the same time)
(2) SENSE serial port is standard;
(3) MUDBUS communication protocol;
(2) SENSE serial port is standard;
(3) MUDBUS communication protocol;
Specification
Rated DC output (0℃~ 40℃) | ||
Voltage | 0-200V | |
Current | 0-2A | |
Voltage stability | ≤±(0.2%+5 digits) | |
Current stability | ≤±(0.5%+5 digits) | |
Load stability | ≤0.5% | |
Ripple & noise | ≤1% | |
Display resolution | ||
Voltage resolution | 10mV | |
Current resolution | 10mA | |
Power resolution | 1mW | |
Load resistance | 1mR | |
Operating environment | ||
Elevation | ≤2000m | |
Relative humidity | ＜80% | |
Environment temperature | 5℃~ 40℃ | |
Storage environment | ||
Environment temperature | -20~ 80℃ | |
Relative humidity | ≤80% | |
Power input | ||
Input | AC220V±10%,50Hz | |
Size | ||

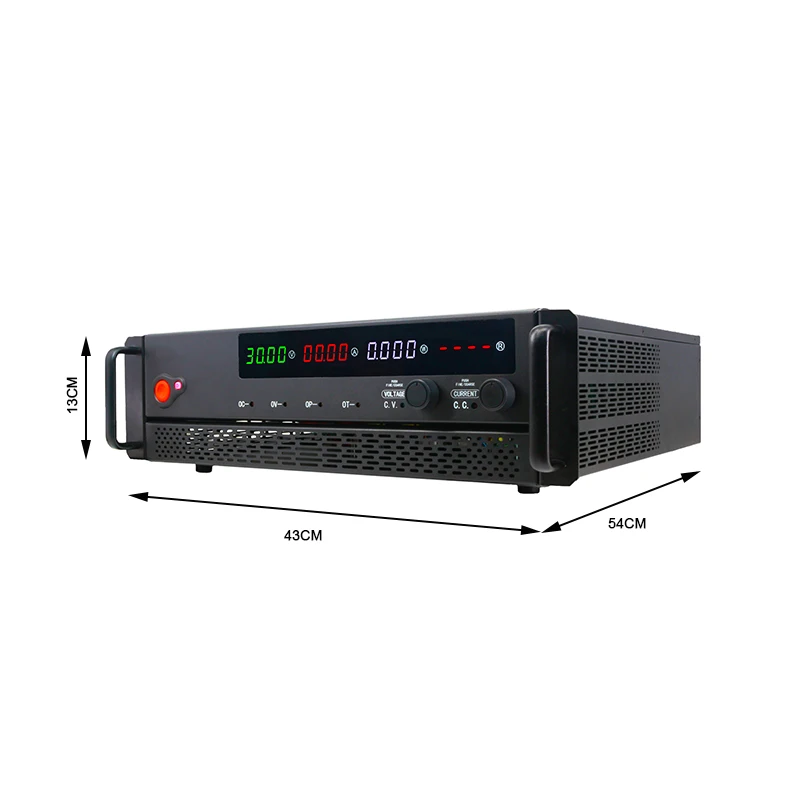

Fuselage size | 540(D)×430(W)×130(H)mm | |
Package size | 600(D)×540(W)×234(H)mm | |
Weight | 15Kg | |
Model | Voltage | Current | Display | Accuracy |
MY-K15100U | 0-15V | 0-100A | 4 LED | ≤±(0.2%+5 digits) |
MY-K2050U | 0-20V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K3050U | 0-30V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K3060U | 0-30V | 0-60A | 4 LED | ≤±(0.2%+5 digits) |
MY-K3080U | 0-30V | 0-80A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30100U | 0-30V | 0-100A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30150U | 0-30V | 0-150A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30200U | 0-30V | 0-200A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5020U | 0-50V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5030U | 0-50V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5050U | 0-50V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K5060U | 0-50V | 0-60A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6020U | 0-60V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6030U | 0-60V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6050U | 0-60V | 0-50A | 4 LED | ≤±(0.2%+5 digits) |
MY-K6060U | 0-60V | 0-60A | 4 LED | ≤±(0.2%+5 digits) |
MY-K8030U | 0-80V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10005U | 0-100V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10010U | 0-100V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10020U | 0-100V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K10030U | 0-100V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K12010U | 0-120V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K12020U | 0-120V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K12030U | 0-120V | 0-30A | 4 LED | ≤±(0.2%+5 digits) |
MY-K15005U | 0-150V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K15010U | 0-150V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K20002U | 0-200V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K20003U | 0-200V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K20005U | 0-200V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K22010U | 0-220V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K22020U | 0-220V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30002U | 0-300V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30003U | 0-300V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30005U | 0-300V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30010U | 0-300V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K30020U | 0-300V | 0-20A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40002U | 0-400V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40003U | 0-400V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40005U | 0-400V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K40010U | 0-400V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50002U | 0-500V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50003U | 0-500V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50005U | 0-500V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K50010U | 0-500V | 0-10A | 4 LED | ≤±(0.2%+5 digits) |
MY-K60002U | 0-600V | 0-2A | 4 LED | ≤±(0.2%+5 digits) |
MY-K60003U | 0-600V | 0-3A | 4 LED | ≤±(0.2%+5 digits) |
MY-K60005U | 0-600V | 0-5A | 4 LED | ≤±(0.2%+5 digits) |
MY-K80001U | 0-800V | 0-1A | 5 LED | ≤±(0.2%+5 digits) |
MY-K80002U | 0-800V | 0-2A | 6 LED | ≤±(0.2%+5 digits) |
MY-K80003U | 0-800V | 0-3A | 7 LED | ≤±(0.2%+5 digits) |
MY-K80005U | 0-800V | 0-5A | 8 LED | ≤±(0.2%+5 digits) |
MY-K80006U | 0-800V | 0-6A | 9 LED | ≤±(0.2%+5 digits) |
Product Details
Recommend Products
Product Classification
Company Profile
Our Certificate
Exhibition
Packaging&Transportation
FAQ
Q1: What's the MOQ?
Re: The MOQ of machinery is 1 set.
Q2: What's delivery time?
Re: The general delivery time is 3~5 days after order confirmed, it depends on the order quantity.
Q3: Can you send the video to show how the machine works?
Re: Certainly, we have video of every machine, please feel free to contact us, we will send you machine video.
Q4: What's your payment terms?
Re:100% before shipment.
Q5: What's the payment method?
Re: We accept T/T and L/C payment.
