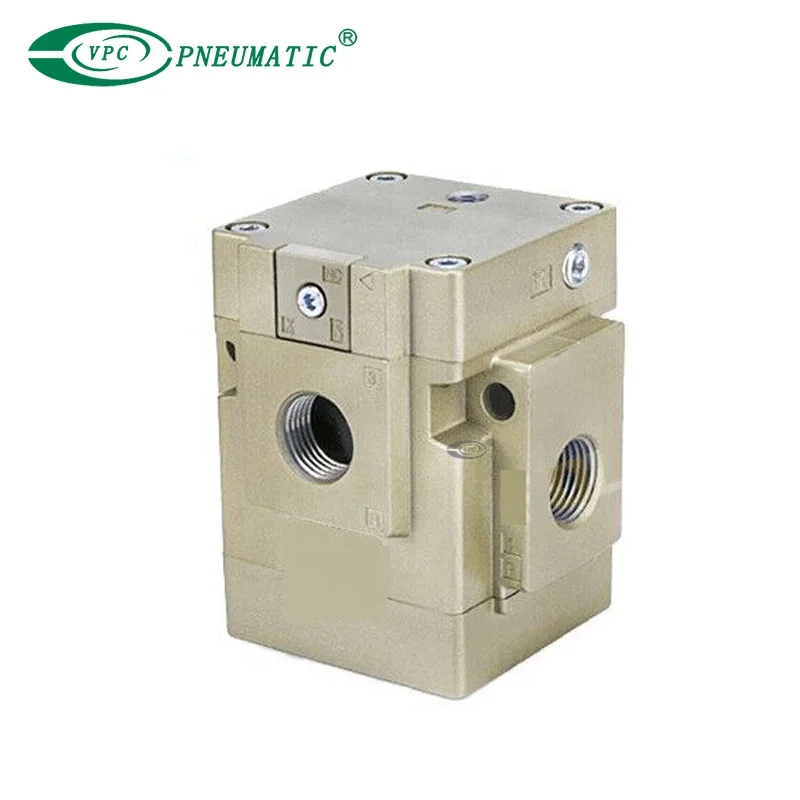

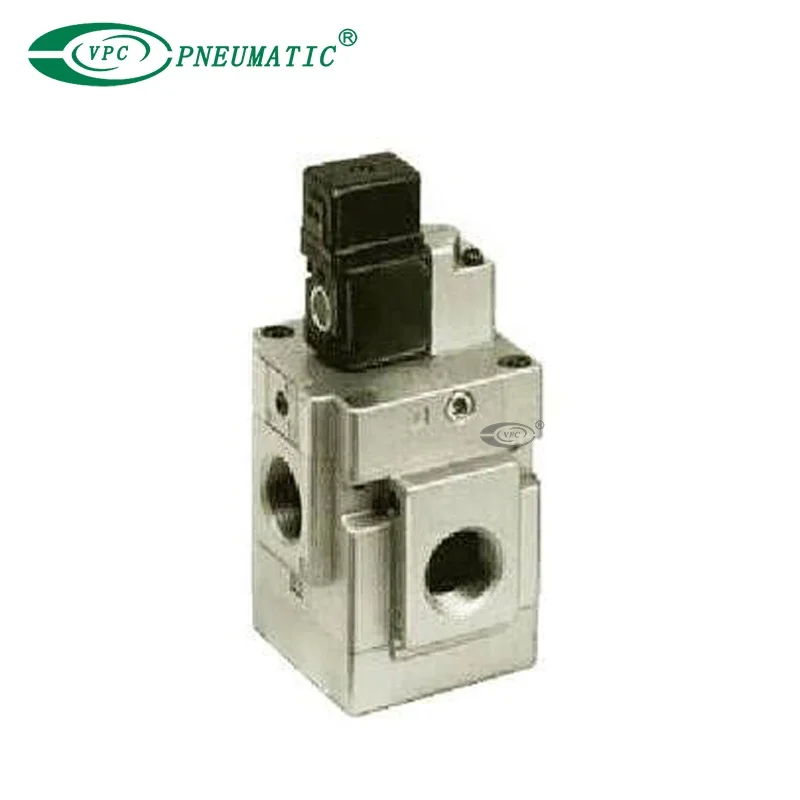

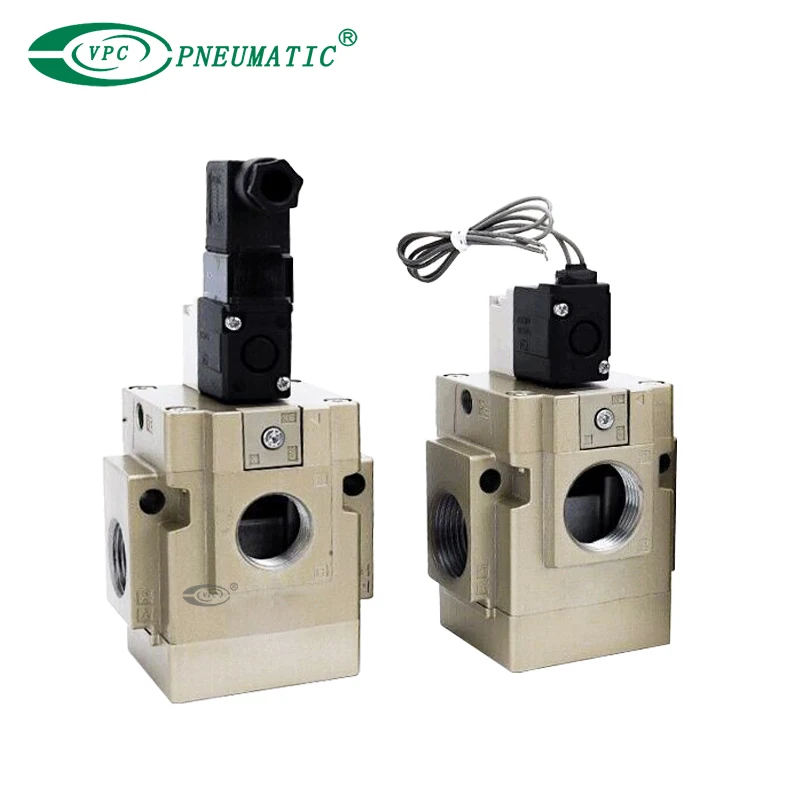

VG342 Series Pilot Operated Poppet Type with Rubber Seal 3 Port Air Solenoid Valve
- Category: >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (1600975615349):
Product Overview
Description
VG342 Series Pilot Operated Poppet Type 3 Port Solenoid Valve (Rubber Seal)
Product Feature
1. Low power consumption
DC4 W (Standard type), DC1.8 W (Energy-saving type)
No lubrication required. Possible to use in vacuum or under low pressures.
2. External pilot
Vacuum: Up to –101.2 kPa, Low pressure: 0 to 0.2 MPa

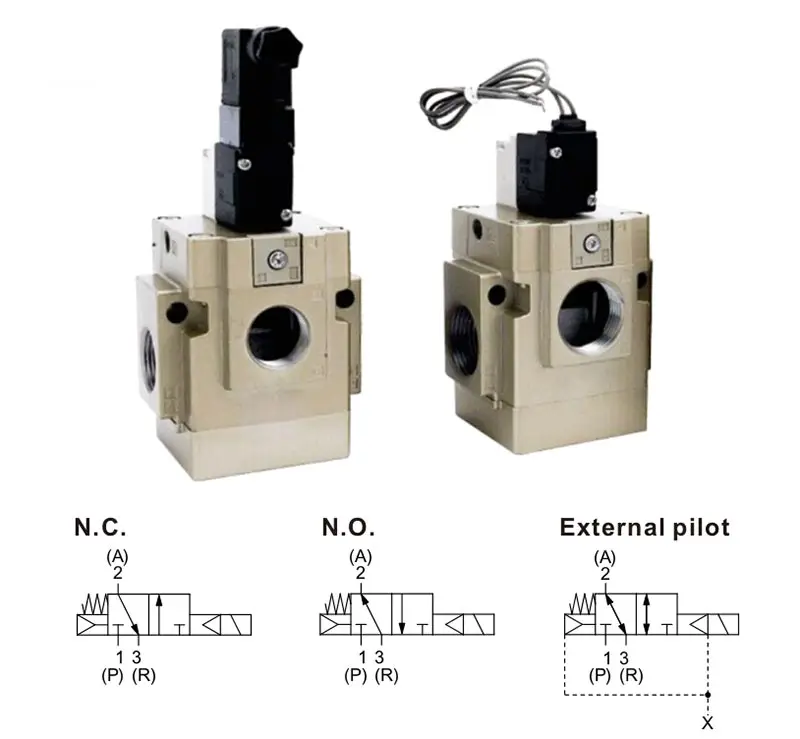

3. Changeable actuation: N.C., N.O., or external pilot
4. Can be used as a selector or divider valve (External pilot)
DC4 W (Standard type), DC1.8 W (Energy-saving type)
No lubrication required. Possible to use in vacuum or under low pressures.
2. External pilot
Vacuum: Up to –101.2 kPa, Low pressure: 0 to 0.2 MPa
3. Changeable actuation: N.C., N.O., or external pilot
4. Can be used as a selector or divider valve (External pilot)
Product Specification
Type of actuation | In common between N.C. and N.O. | ||
Working medium | Air | ||
Acting type | Internal pilot type | External pilot type | |
Working pressure | 0.2 to 0.9 MPa | -101.2 kPa to 0.9 MPa | |
External pilot operating pressure range | - | Same as the operating pressure (Min. 0.2 MPa) | |
Response time*1) | 30 ms or less (at the pressure of 0.5 MPa) | ||
Max. operating frequency | 5 c/s (Min. operating frequency: 1 c/30 days based on JIS B 8374-1981) | ||
Working temperature | -10 to 50°C (No freezing) | ||
Lubrication | Not required (Use turbine oil Class 1 ISO VG32, if lubricated.) | ||
Manual override | Push type (Non-locking) | ||
Mounting orientation | Unrestricted | ||
Impact/Vibration resistance*2) | 150/50 m/s2 | ||
*1) Based on dynamic performance test JIS B 8419: 2010. (Coil temperature 20°C, at rated voltage, without surge voltage
suppressor)
*2) Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial direction and at the right angles to the main valve and armature in both energized and de-energized states every once for each condition. (Values at the initial period)
Vibration resistance: No malfunction occurred in a one-sweep test between 45 and 1000 Hz. Test was performed at both energized and de-energized states in the axial direction and at the right angles to the main valve and armature. (Values at the initial period)
suppressor)
*2) Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial direction and at the right angles to the main valve and armature in both energized and de-energized states every once for each condition. (Values at the initial period)
Vibration resistance: No malfunction occurred in a one-sweep test between 45 and 1000 Hz. Test was performed at both energized and de-energized states in the axial direction and at the right angles to the main valve and armature. (Values at the initial period)
Flow Characteristics
Port size | 1/2 | 3/4 | 1/2 | 3/4 | |||||||
1→2 (P→A) | C [dm³/(s·bar)] | 26 | 38 | 2→1 (A→P) | C [dm³/(s·bar)] | 27 | 40 | ||||
b | 0.38 | 0.30 | b | 0.36 | 0.22 | ||||||
Cv | 7.0 | 9.8 | Cv | 7.3 | 9.8 | ||||||
Port size | 1/2 | 3/4 | 1/2 | 3/4 | |||||||
Flow Rate Characteristics | 2→3 (A→R) | C [dm³/(s·bar)] | 27 | 38 | 3→2 (R→A) | C [dm³/(s·bar)] | 25 | 40 | |||
b | 0.37 | 0.32 | b | 0.37 | 0.20 | ||||||
Cv | 7.4 | 9.8 | Cv | 6.8 | 9.6 | ||||||
Effective area (mm²) | |||
1→2 (P→A) | 2→3 (A→R) | ||
1 | 210 | 235 | |
Pilot Valve Assembly Specifications
Electrical entry | Grommet (G), DIN terminal (D) | ||||
Enclosure | Dusttight | ||||
AC(50/60 Hz) | 100V, 200V, 110V, 220V, 240V | ||||
DC | 24V,12V | ||||
Allowable voltage fluctuation | -15 to+10% of rated voltage | ||||
AC | Inrush | 12.7(50), 10.7(60) | |||
Holding | 7.6(50), 5.4(60) | ||||
Power consumption | DC | Without indicator light: 4 W With indicator light: 4.2 W | |||
Ordering Code VG342 Series Pilot Operated Poppet Type 3 Port Solenoid Valve
VG342□① - 1② G③ □④ - 04⑤ □⑥ A⑦ - □ ⑧ - □⑨
①→ Valve type | Nil: Internal pilot | R: External pilot* | ||||
1: AC100 V, 50/60 Hz | 2: 200 VAC, 50/60 Hz | 3: AC110 V, 50/60 Hz | 4: AC220 V, 50/60 Hz | |||
5: DC24 V | 6: DC12 V | 7: AC240 V, 50/60 Hz | ||||
③→ Electrical entry | G: Grommet | D: DIN terminal | ||||
suppressor | Nil | S | Z | |||
None | With surge voltage suppressor (Only grommet type is only available.) | With light/surge voltage suppressor (Except grommet type) | ||||
⑤→ Port size | 04: 1/2 | 06: 3/4 | 10: 1 | |||
⑥→ Thread type | Nil: Rc | F: G | N: NPT | T: NPTF | ||
⑦→ Passage symbol | Nil: External pilot | A: N.C. (Normally closed) | B: N.O. (Normally open) | |||
Nil: Standard type | Y: Energy-saving type (DC only) | E: Continuous duty type | ||||
Nil: None | Q: CE-compliant* * Applicable only for DIN terminal type. | |||||
Ordering Code Pilot Valve Assembly
VO307□① - 1② G③ □④ 1 - X84⑤ □⑥
①→ Pilot valve type | Nil | Y | E | |||
Standard type | Energy-saving type (DC only) | Continuous duty type | ||||
②→ Rated voltage | 1: AC100 V, 50/60 Hz | 2: AC200 V, 50/60 Hz | 3: AC110 V, 50/60 Hz | |||
4: AC220 V, 50/60 Hz | 5: DC24 V | 6: DC12 V | ||||
7: AC240 V, 50/60 Hz | ||||||
③→ Electrical entry | G: Grommet | D: DIN terminal | ||||
Nil | S | Z | ||||
None | With surge voltage suppressor (Only grommet type is only available.) | With light/surge voltage suppressor (Except grommet type) | ||||
⑤→ Pilot valve assembly for VG342 | ||||||
⑥→ CE-compliant | Nil: None | Q: CE-compliant*/* Applicable only for DIN terminal type. | ||||
* Use external pilot type in the following cases:
1)For vacuum or for low pressure 0.2 MPa or less.
2)When having P port downsized in diameter.
1)For vacuum or for low pressure 0.2 MPa or less.
2)When having P port downsized in diameter.
Main Dimensions

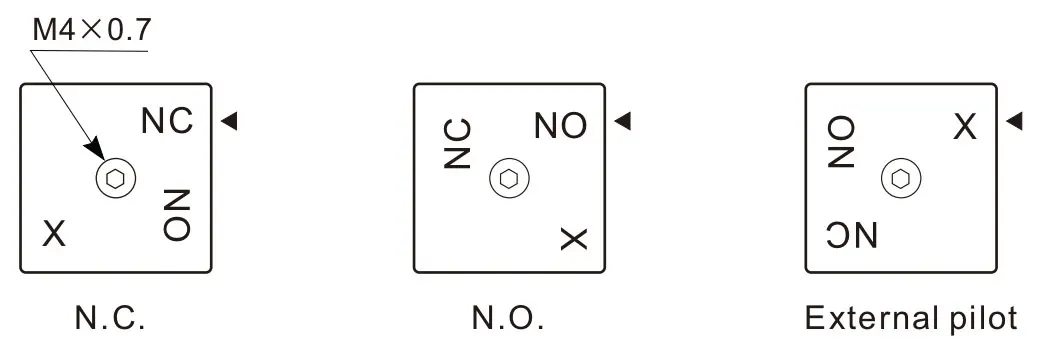

How to Change Passage State
When changing the passage state, confirm that pressure has been removed from the valve. Unscrew the M4 x 0.7 hexagon socket head cap screw in the changeover plate and match the◀mark on the adapter plate with the character on the changeover plate. Piping is as follows.
Mounting Screw Tightening Torques
M4: 1.4 N·m
Piping
M4: 1.4 N·m
Piping
Fluide passage/Port | P | A | R | ||
N.C. | Inlet side | Outlet side | Exhaust side (Plug, in case of 2 port valve) | ||
N.O. | Exhaust side (Plug, in case of 2 port valve) | Outlet side | Inlet side | ||
External | Universal porting (Piping of inlet pressure side is possible anywhere) | ||||
*1) In the case of internal pilot, confirm that a plug is inserted to X port. If not, insert a R 1/8 plug.
*2) In the case of external pilot, supply air pressure from X port.
Confirm the safety sufficiently and conduct carefully when changing the passage state or restarting after changes.
*2) In the case of external pilot, supply air pressure from X port.
Confirm the safety sufficiently and conduct carefully when changing the passage state or restarting after changes.
