item | value |
Condition | New |
Spindle Taper | BT40 |
No. of Spindles | Single |
Type | VERTICAL |
Dimension(L*W*H) | 2800x2350x2650 |
Weight (T) | 5.1T |
Table Size (mm) | 1000x500 |
CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens |
Number of Axes | 3, 4, 5 |
Table Travel (X) (mm) | 800 |
Table Travel (Y) (mm) | 500 |
Table Travel (Z) (mm) | 500 |
Positioning Accuracy (mm) | 0.008 |
Repeatability (X/Y/Z) (mm) | 0.005 |
Range of Spindle Speed(r.p.m) | 60r.p.m - 8000r.p.m |
Spindle Motor Power(kW) | 7.5 |
Max. Table Load(kg) | 400kg |
Feed Speed(mm/min) | 1mm/min - 8000mm/min |
Rapid Feed Speed(m/min) | 48/48/36 |
Min. Time of Tool Change(s) | 2 |
Tool Magazine Capacity | 24 |
Key Selling Points | Multifunctional |
Warranty | 2 years |
Place of Origin | China |
Shandong | |
Brand Name | NO.1 MACHINERY |
Applicable Industries | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Energy & Mining, Advertising Company |
Showroom Location | None |
Marketing Type | Ordinary Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | PLC |

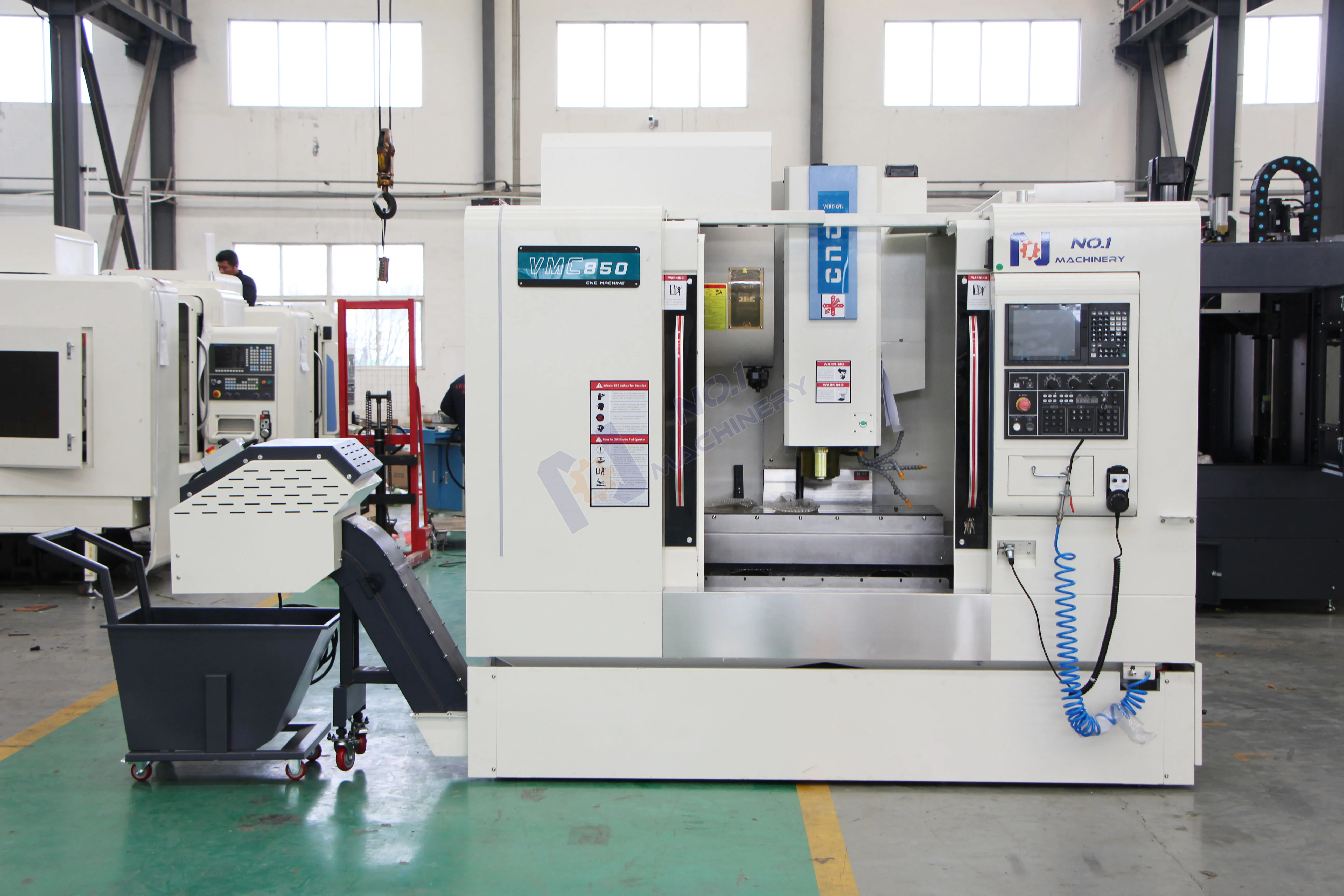

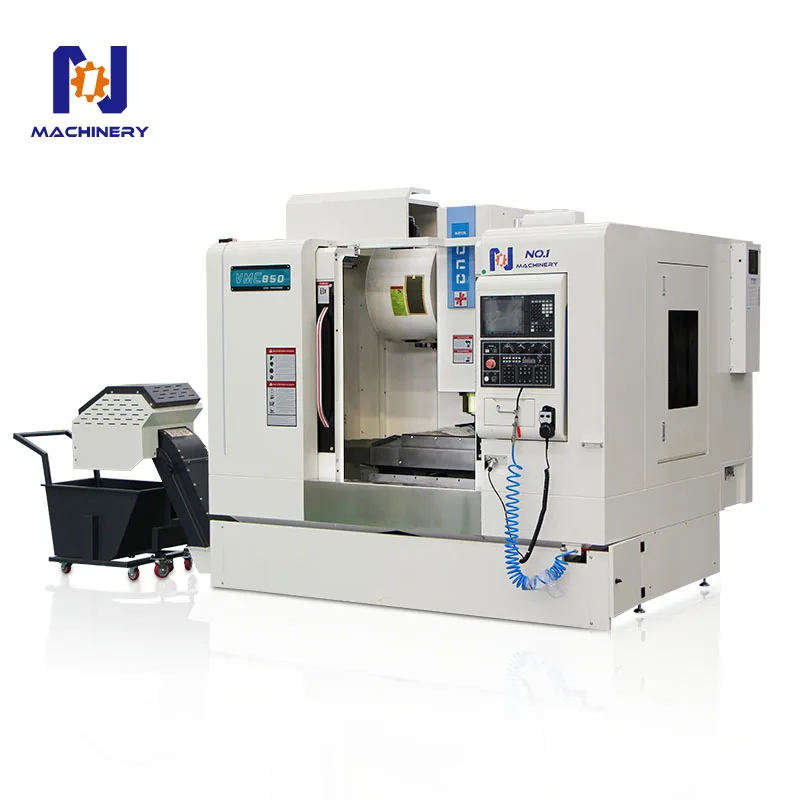

Product name | VMC850 |
Size of worktable | 1000x500mm |

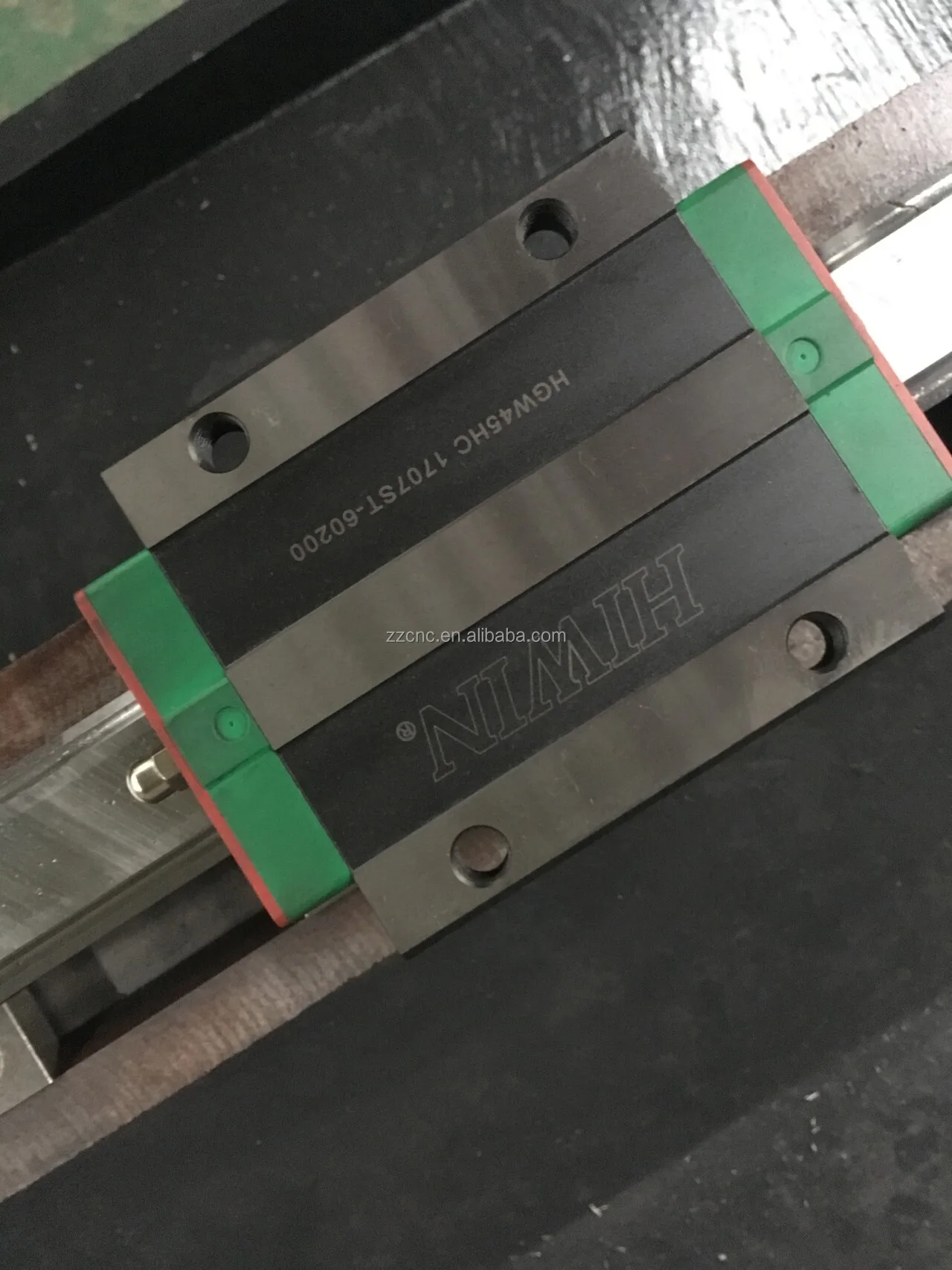

X/Y/Z rail width | 35x35x35mm |
X Axis stoke | 800mm |
Y Axis stoke | 500mm |
Z Axis stoke | 500mm |
Maximum load on table | 400kg |
Spindle motor power | 7.5kw |
Tool change time | 2.5sec |
Positioning accuracy | 0.008mm |
