Factory supply C D type tool holders DIN69880 VDI30 VDI40 tool holders
- Category: >>>
- Supplier: Pingyuan Haotian Machinery Co. Ltd.
Share on (1600975664762):
Product Overview
Description
Good quality VDI tool holders VDI30 VDI40 VDI50 tool holder B C D type
Product Description
It is essential machine tool accessories for working center of CNC machine. We produce according to German DIN69880 standard, it feature developed structure, convenient and alternative etc. It can satisfy the needs of turning,drilling, boring,and milling etc. With various tool holders and allocate different types tool and accessory.

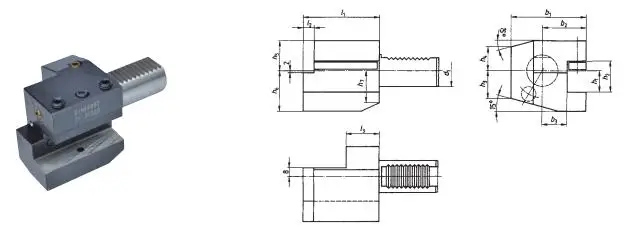

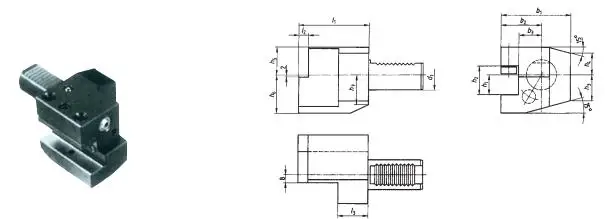

C1 TYPE TOOL HOLDER
with longitudinal square holding fixture,right
| Order No. | d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h7 | l1 | l2 | l3 |
| C1-20X16 | 20 | 65 | 40 | 26 | 16 | 22 | 19 | 19 | 25 | 30 | 23 | 50 | - | 30 |
| C1-30X20 | 30 | 70 | 35 | 17 | 20 | 29 | 26 | 22 | 28 | 38 | 30 | 70 | 10 | 30 |
| C1-40X25 | 40 | 85 | 42.5 | 21 | 25 | 34 | 35 | 30 | 32.5 | 48 | - | 85 | 12.5 | 30 |
| C1-50X32 | 50 | 100 | 50 | 26 | 32 | 41 | 42 | 35 | 35 | 60 | - | 100 | 16 | 40 |
| C1-60X32 | 60 | 125 | 62.5 | 33 | 32 | 41 | 46 | 42.5 | 42.5 | 62.5 | - | 125 | 16 | 40 |

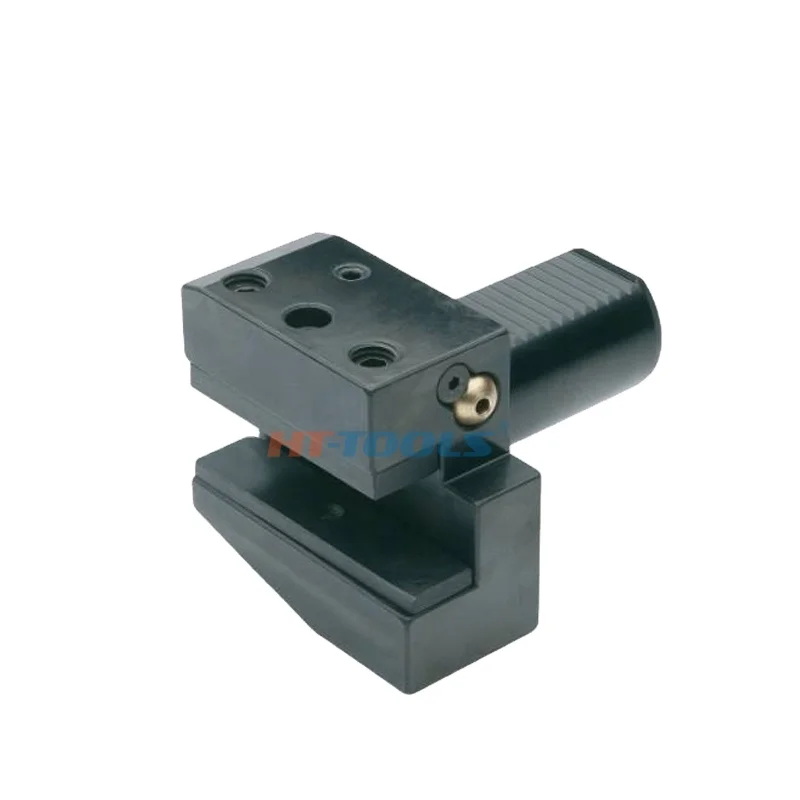

C2 TYPE TOOL HOLDER
with longitudinal square holding fixture,left
| Order No. | d1 | b1 | b2 | b3 | h1 | h2 | h3 | h4 | h5 | h6 | h7 | l1 | l2 | l3 |
| C2-20X16 | 20 | 65 | 40 | 26 | 16 | 22 | 19 | 19 | 25 | 30 | 23 | 50 | - | 30 |
| C2-30X20 | 30 | 76 | 41 | 23 | 20 | 29 | 26 | 22 | 28 | 38 | 30 | 70 | 10 | 30 |
| C2-40X25 | 40 | 90 | 47.5 | 25.5 | 25 | 34 | 35 | 30 | 32.5 | 48 | - | 85 | 12.5 | 30 |
| C2-50X32 | 50 | 105 | 55 | 30.5 | 32 | 41 | 42 | 35 | 35 | 60 | - | 100 | 16 | 40 |
| C2-60X32 | 60 | 125 | 62.5 | 33 | 32 | 41 | 46 | 42.5 | 42.5 | 62.5 | - | 125 | 16 | 40 |

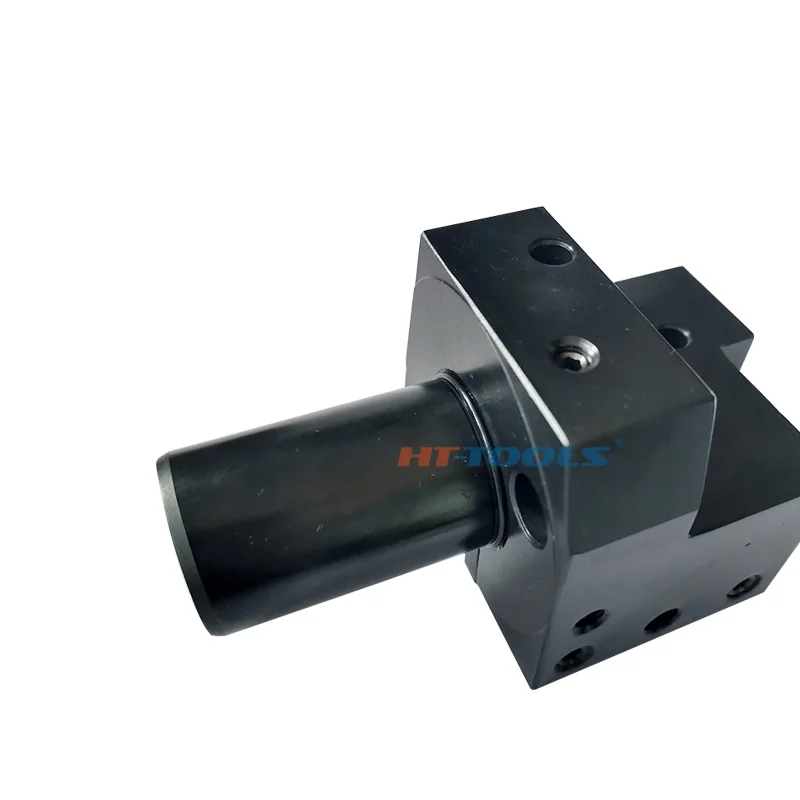

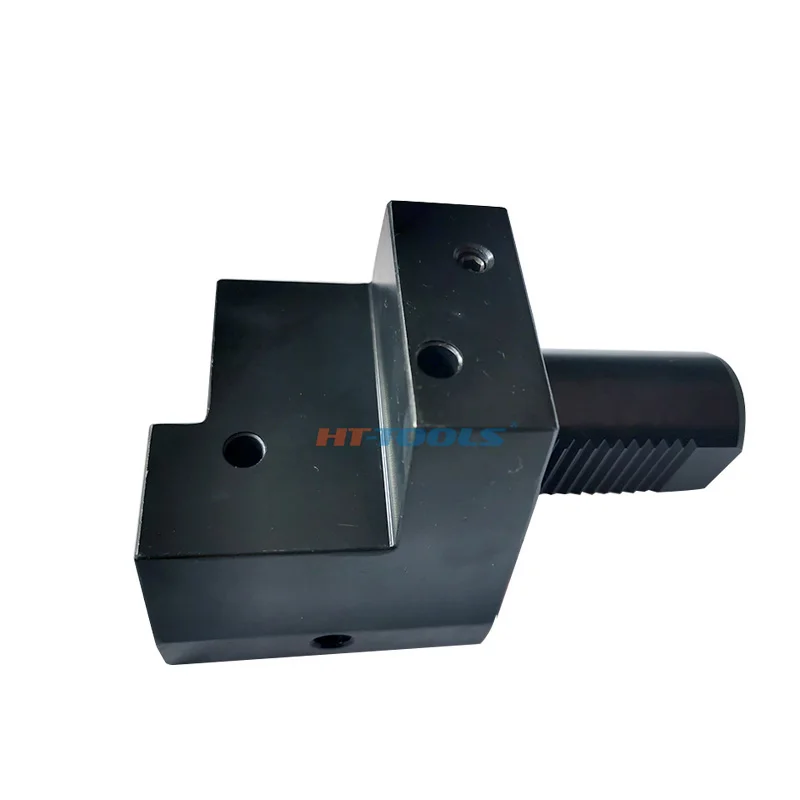

C3 TYPE TOOL HOLDER
with longitudinal square holding fixture overhead right
picture show
Main product
We maily produce machinery accessories.

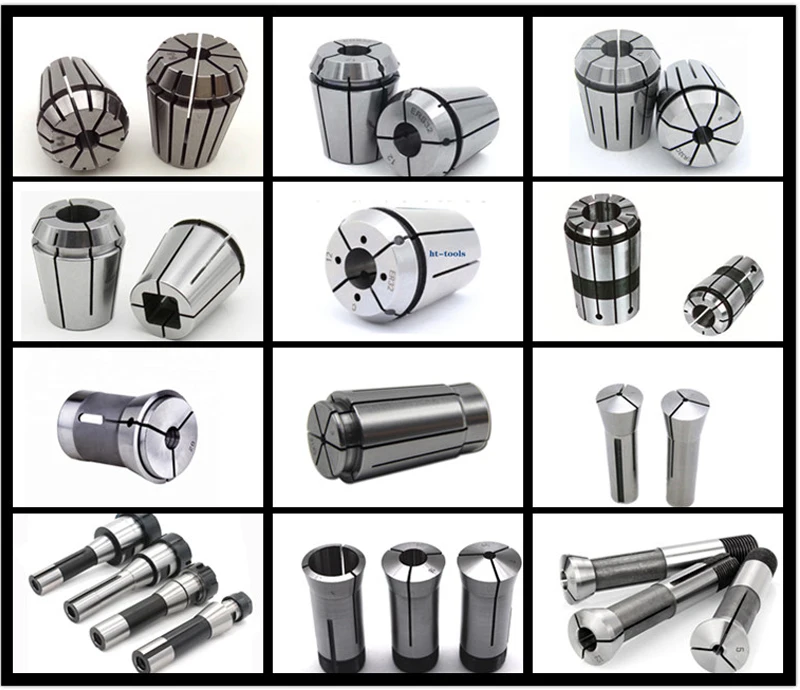

1.Collet:ER collet, ER sealed collet, ER external coolant collet, 5C collet, R8 collet, sharpener collet, DIN6343 clmping collet, TG collet, tap collet, SK collet etc.

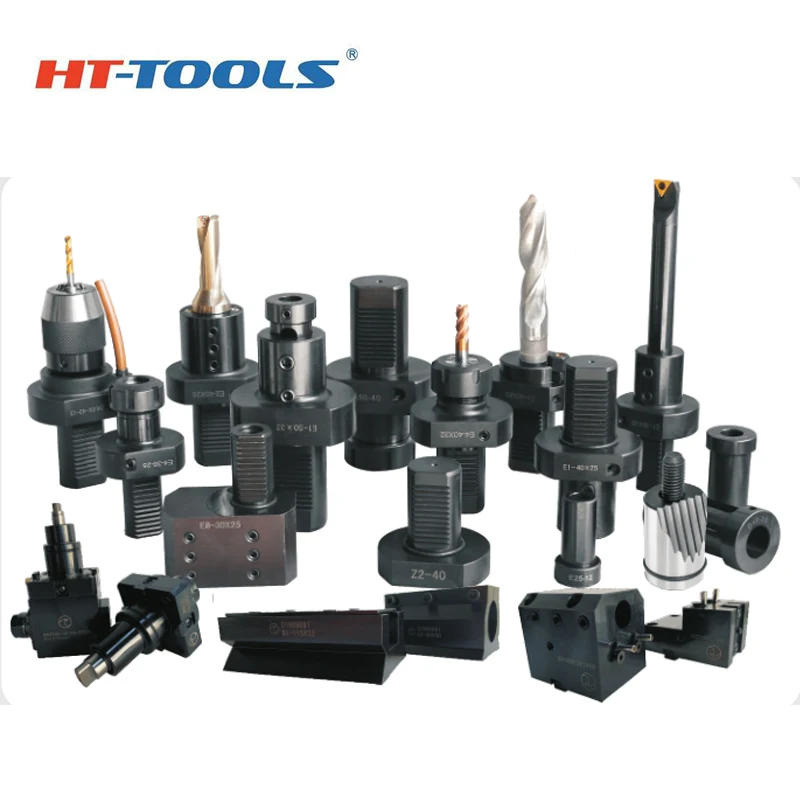

2.Tool Holder: BT tool holder, HSK63A tool holder, HSK63F tool holder,HSK50E tool holder, NT tool holder, DIN2080 tool holder,R8 stub milling machine arbors, morse taper collet chuck,ISO tool holder etc.
3.Vise:QGG precision tool vise, QKG vise, GT precision modular vise,hydraulic machine vise, QW universal tilting vise, etc.
4.Other machine tool accessories: live center, punch former, VDI tool holder, insert, parallel block,nut, pull stud ,Punch Former etc.
If you want to know more, please send us inquiry!!!
