High Heat Storage Performance Structured Packing MLM RTO Honeycomb Ceramic Plate Regenerator
- Category: >>>
- Supplier: Hunan Global New Material Technology Co. Ltd.
Share on (1600975664959):
Product Overview
Description
Products Description

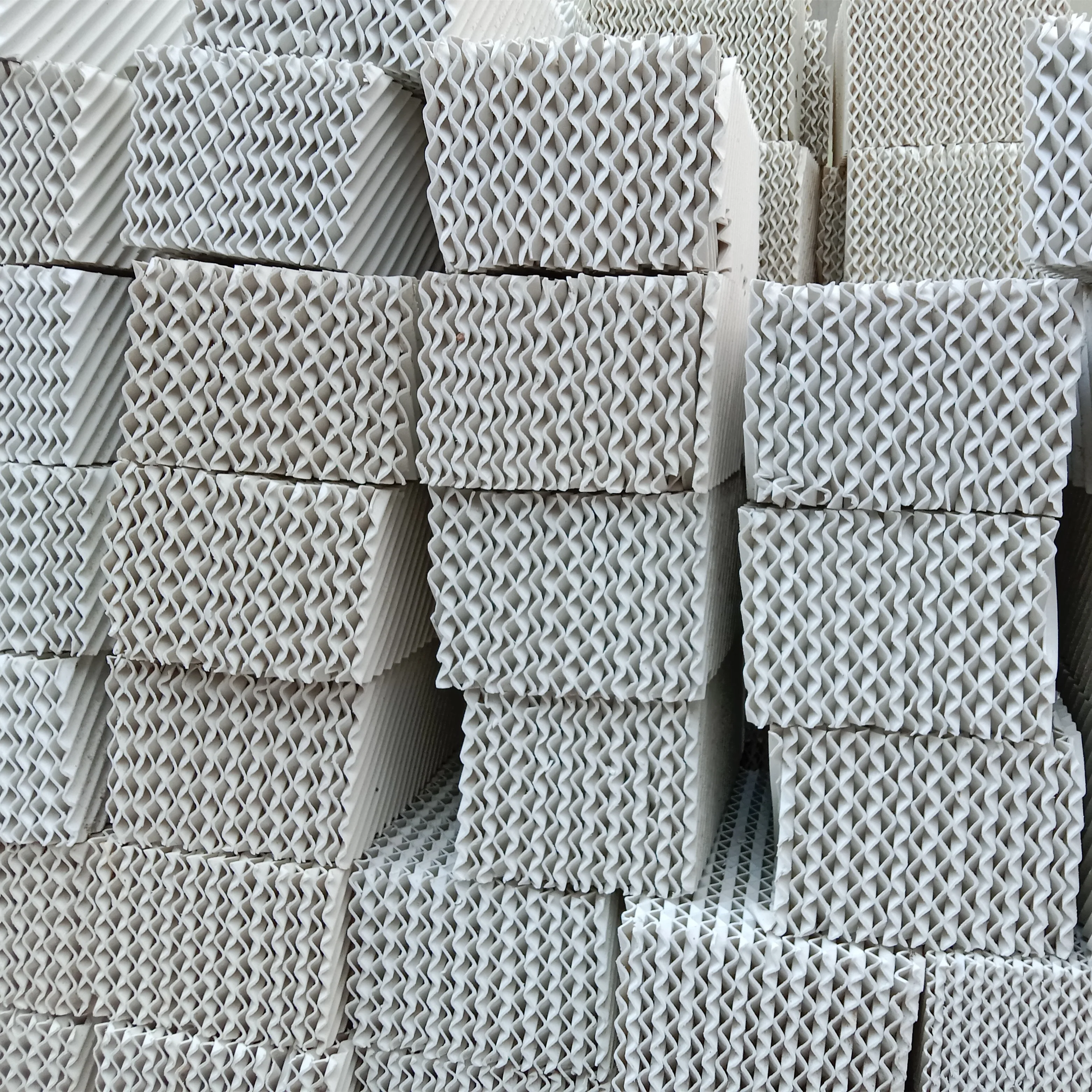

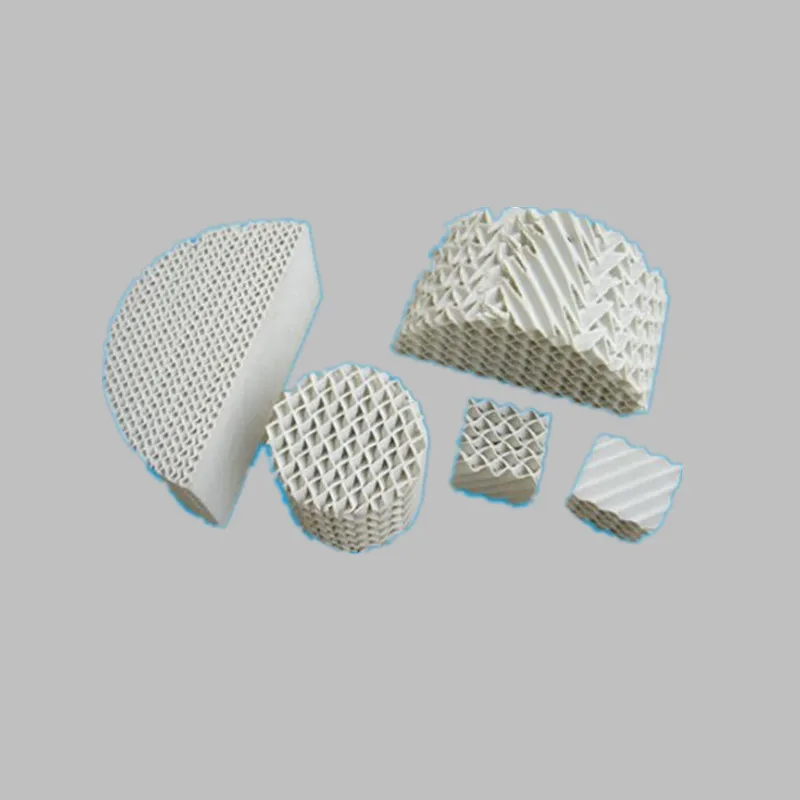

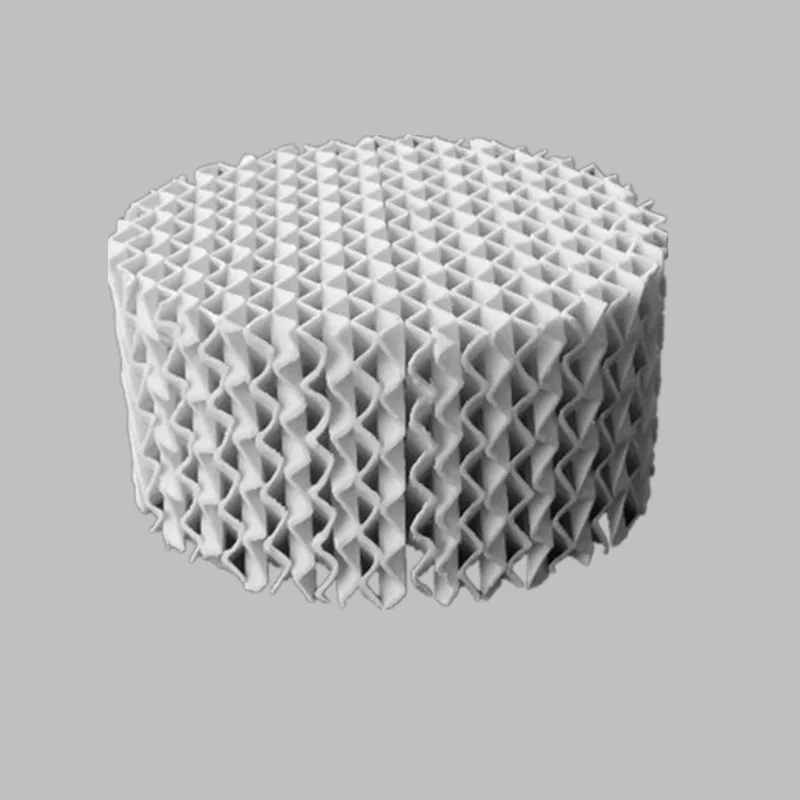

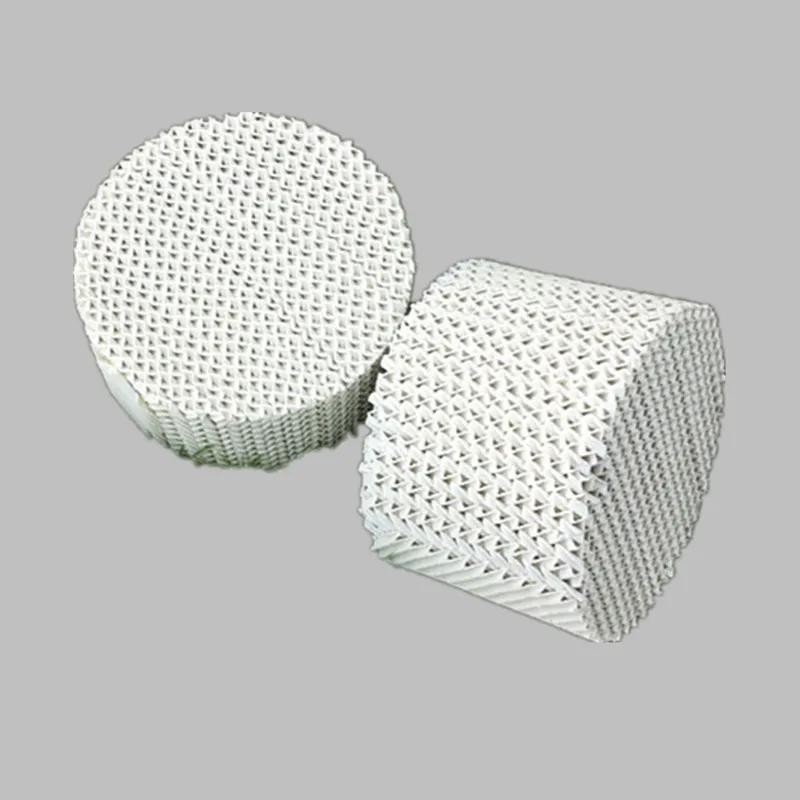

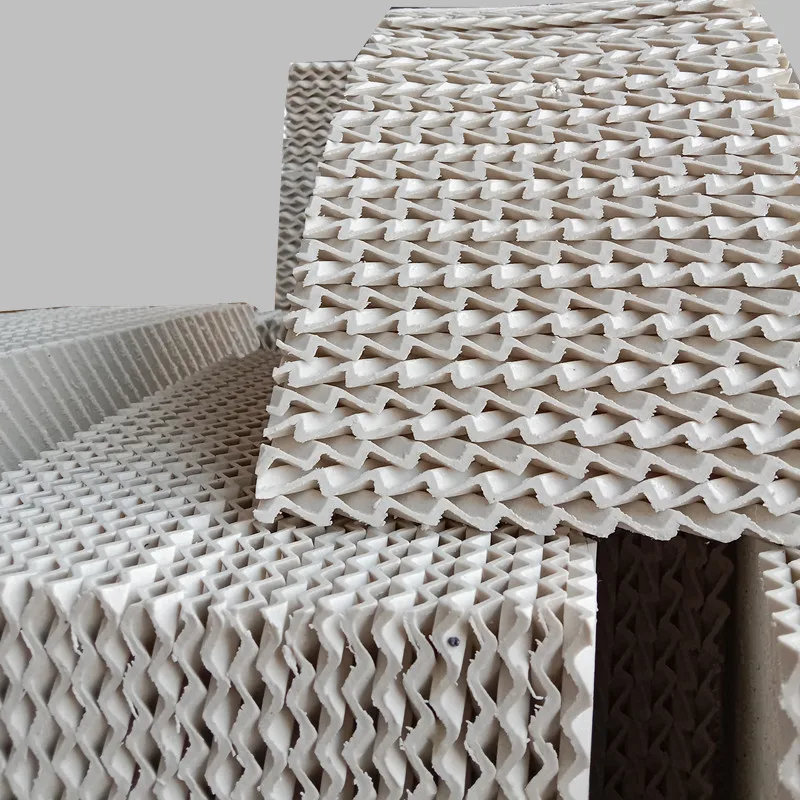

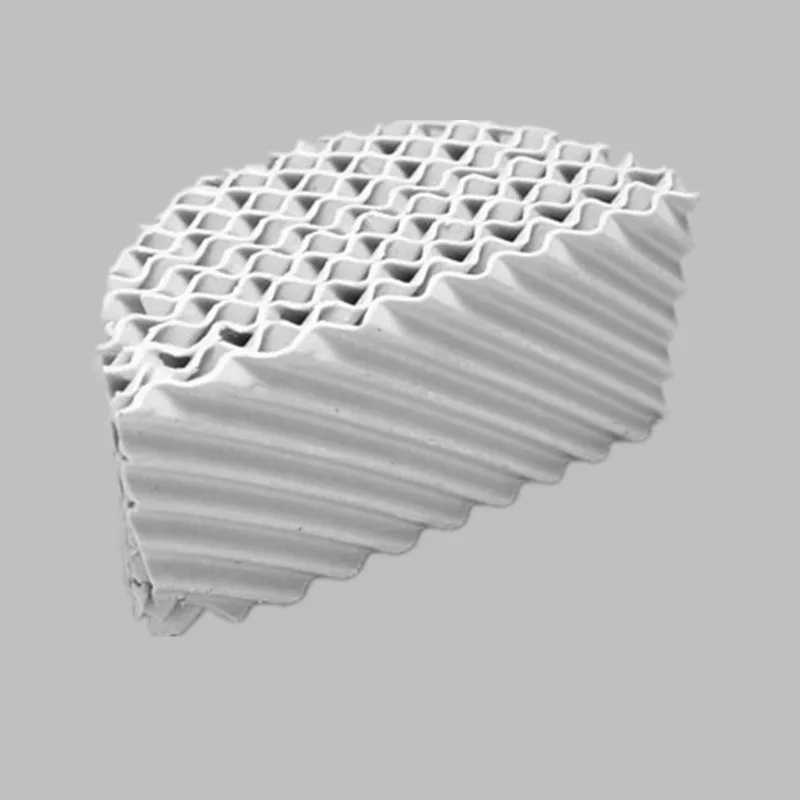

Ceramic Structured Corrugated Packing
Ceramic Structured Packing consists of many packing units of similar geometric design. Corrugated sheets placed in parallel form cylindrical units called corrugated tower packing. These are a form of highly efficient packing with separating efficiency several times higher than that of loose packing. They have the quality of low-pressure drop, increased operating elasticity, minimum amplifying effect, and maximum liquid treatment compared to loose tower packing.
Ceramic surface can generate extremely thin liquid film. Turbulent liquid flow and tortuous vapor flow passages promote mixing of liquid and vapor with low pressure drop. These are reasons that our ceramic structured packings have the same mass transfer efficiency as metal packings. Meanwhile, they are much more resistant to corrosion and high temperature than metal packings.
Features:
1.High liquid & vapor loading, Column diameter could be designed smaller for new equipment and capacity could be increased dramatically for existing column revamp.
2.High resistance to nearly all mineral and organic acids and derivatives, partly resistant to alkalis.
3.High mass-transfer efficiency. Much higher specific surface area than random packing.
4.Low pressure drop, considerable energy savings.
5.Wide turndown ratio. Easy to scale up.
6.Suitable for all sizes of column.
Application:
Ceramic structured packing was not only widely used in coal gas washing tower, fertilizer heat gas saturation tower, naphthalene washing tower, ammonia washing tower, but also as the support for heat exchange machine , catalyst, and suit for a big tower rebuilding/revamp.
Features:
1.High liquid & vapor loading, Column diameter could be designed smaller for new equipment and capacity could be increased dramatically for existing column revamp.
2.High resistance to nearly all mineral and organic acids and derivatives, partly resistant to alkalis.
3.High mass-transfer efficiency. Much higher specific surface area than random packing.
4.Low pressure drop, considerable energy savings.
5.Wide turndown ratio. Easy to scale up.
6.Suitable for all sizes of column.
Application:
Ceramic structured packing was not only widely used in coal gas washing tower, fertilizer heat gas saturation tower, naphthalene washing tower, ammonia washing tower, but also as the support for heat exchange machine , catalyst, and suit for a big tower rebuilding/revamp.
Specifications
Model No. | Surface Area M3/M3 | Void Fraction M3/M3 | Graduation Kg/M3 | Peak Height MM | Pitch of Waves MM | Blade Thickness MM | Number of Theoretical Plates M-1 | Pressure Drop Pa/M |
450Y | 450 | 75 | 520-550 | 6.0 ± 0.5 | 12.0 ± 0.5 | 1.0 - 1.3 | 3 - 4 | 200 - 250 |
400Y | 400 | 76 | 500-520 | 7.0 ± 0.5 | 14.0 ± 0.5 | 1.0 - 1.3 | 2.8 - 3.2 | 180 - 260 |
350Y | 350 | 78 | 480-520 | 8.0 ± 0.5 | 16.0 ± 0.5 | 1.2 - 1.5 | 2.5 - 2.8 | 200 - 260 |
250Y | 250 | 82 | 420-450 | 11.0 ± 0.5 | 22.0 ± 0.5 | 1.2 - 1.5 | 2.3 - 2.5 | 200 - 280 |
160Y | 160 | 87 | 350-380 | 17.0 ± 0.5 | 34.0 ± 0.5 | 1.5 - 2.0 | 1.8 - 2.0 | 250 - 300 |
125Y | 125 | 87 | 300-350 | 23.0 ± 0.5 | 42.0 ± 0.5 | 2.0 - 2.5 | 1.5 - 2.8 | 280 - 350 |
100Y | 100 | 90 | 220-250 | 30.0 ± 0.5 | 50.0 ± 0.5 | 2.0 - 2.5 | 1 | 250 - 300 |
Physical Performance & Physical Performance
Physical Performance
Index | |||
Proportion（g/cm3) | 2.5 | ||
Water Absorption(%) | ≤0.5 | ||
Ignition Loss Rate(%) | ≤5.0 | ||
Acid Resistance (%) | ≥99.5 | ||
Maximum Operating Temperature (℃） | 800 | ||
Crushing Strength (Mpa) | ≥130 | ||
Moh's Hardness(Scale) | ≥7 | ||
Chemical Composition
Component name | content（%） | |||||
1 | SiO2 | ≥72% | ||||
2 | Fe2O3 | ≤0.5% | ||||
3 | CaO | ≤1.0% | ||||
4 | Al2O3 | ≥23% | ||||
5 | MgO | ≤1.0% | ||||

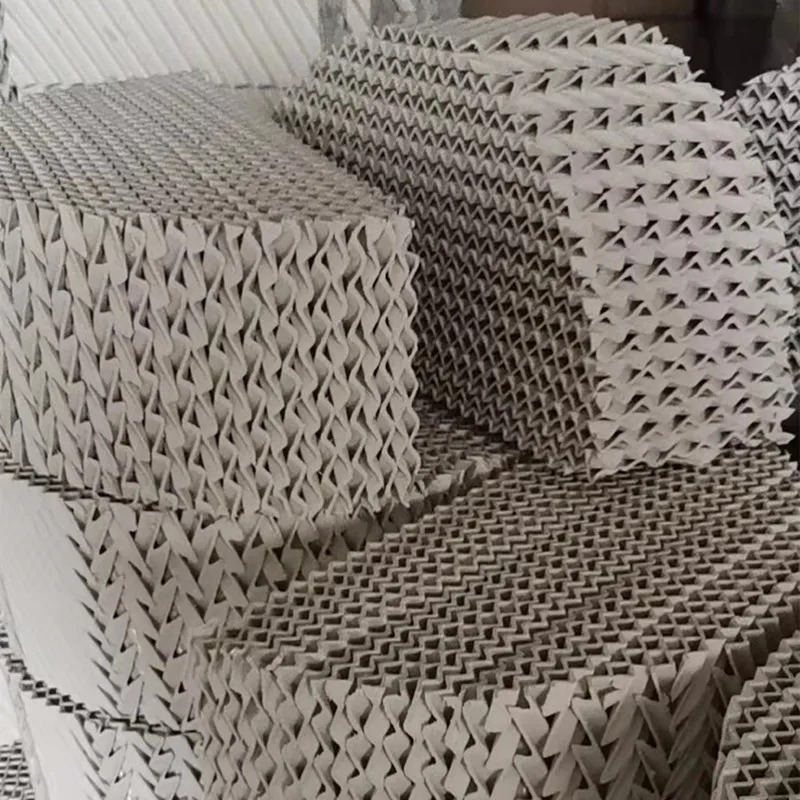

Products exhibition
Company Profile
Located in Hunan province, Global New Material Technology Co.,Ltd is specialized in the manufacturing of advanced ceramic components based on customer specification. We cover an area of 6000 square meters and are staffed with about 100 workers. The
main products include high purity alumina ceramic and zirconia ceramic, etc. such as ceramic tubes, ceramic discs, ceramic crucibles, ceramic balls, ceramic plungers, etc. We focus on providing cost effective solutions to wear and corrosion problems in a wide range of applications and industries such as textile, machinery, electric ppliances, communications, etc.
With strict quality control and our best service, the products have been sold well on the domestic market and exported to many countries in North America, Europe, Middle East, South East Asia, etc.
Our mission is “Quality, Value and Innovation”. We look forward to a long-term business relationship with you.
main products include high purity alumina ceramic and zirconia ceramic, etc. such as ceramic tubes, ceramic discs, ceramic crucibles, ceramic balls, ceramic plungers, etc. We focus on providing cost effective solutions to wear and corrosion problems in a wide range of applications and industries such as textile, machinery, electric ppliances, communications, etc.
With strict quality control and our best service, the products have been sold well on the domestic market and exported to many countries in North America, Europe, Middle East, South East Asia, etc.
Our mission is “Quality, Value and Innovation”. We look forward to a long-term business relationship with you.
Certifications
FAQ
Why us?
Professional manufacturer since 2010.
Strict quality control on production process and tolerance.
Free samples available
Customized production based on your drawing or specification
On-time delivery and reliable support and service
Inventory available for quick shipment
We keep confidentiality of all the drawings and business information between us.
Are you a trading company or a manufacturer?
We are a trading company and a manufaturer.
Can you provide the free samples?
Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.
Do you accept customized production based our specification?
Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea,
we will work out the drawing for you.
What's the delivery time?
7 working days for standard products 30 days for customized products.
What is the MOQ?
No limit to the quantity. We can offer the best proposal and solutions according to your condition.
What is the payment terms you accept?
T/T,LC,Western Union,moneygram are acceptable.
How to deal with the faulty?
Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
