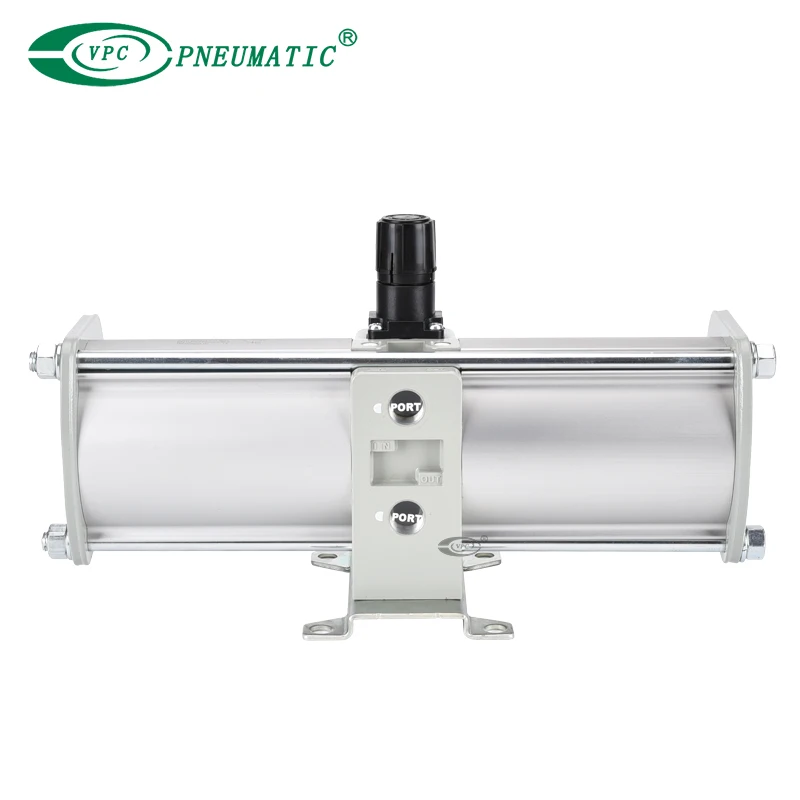

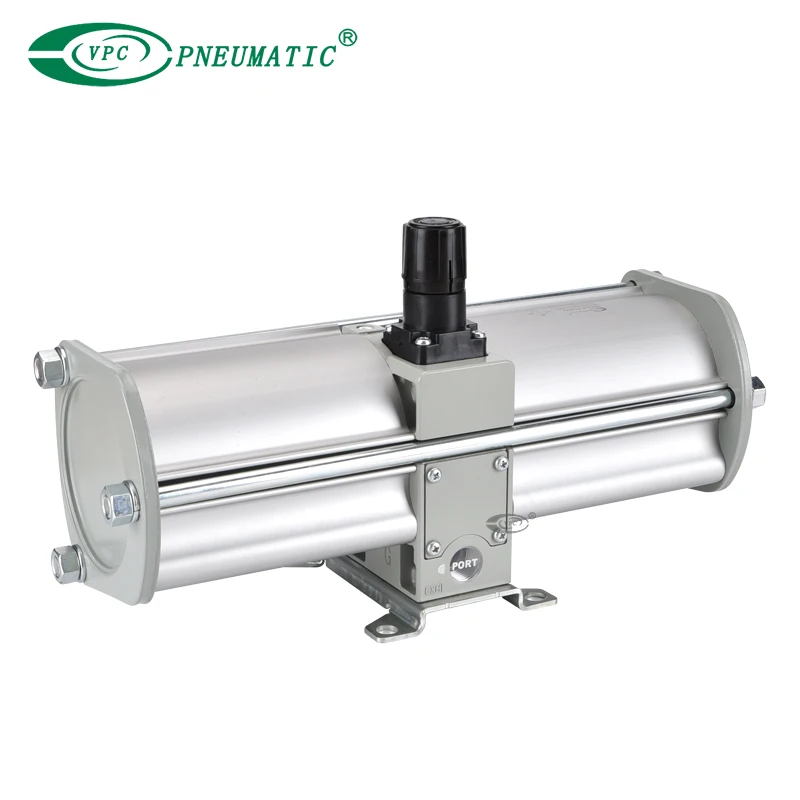

VBA40a 04 pneumatic pressure controller Air Pressure Booster Regulator with Silencer
- Category: >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (1600975718494):
Product Overview
Description

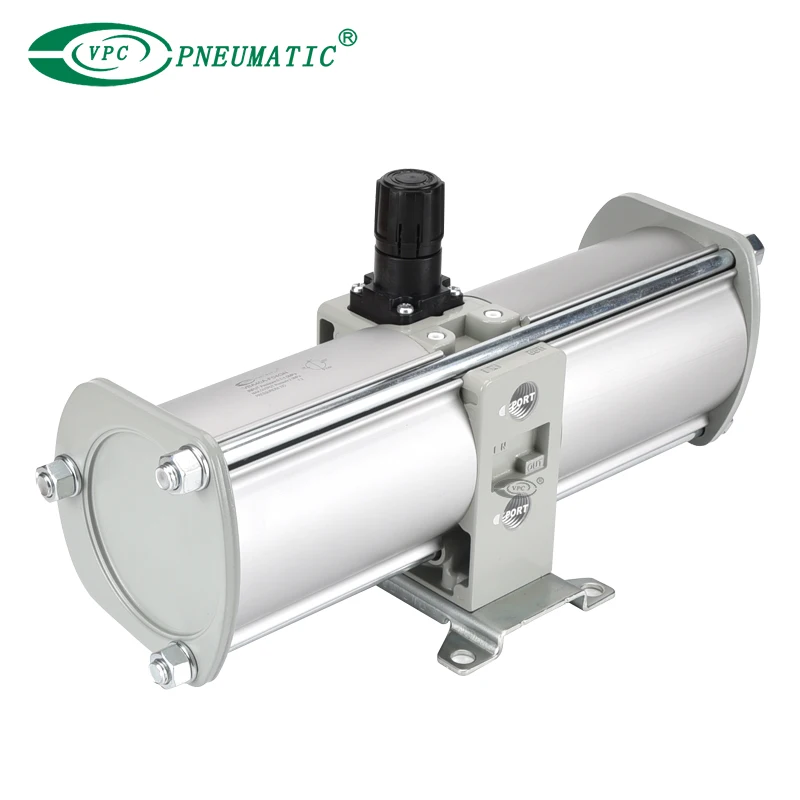

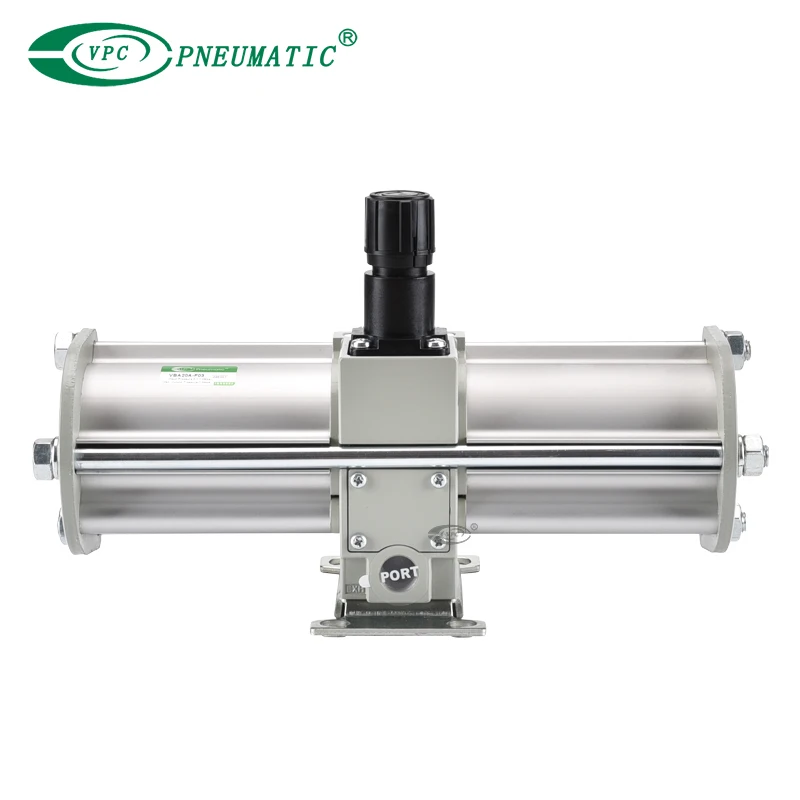

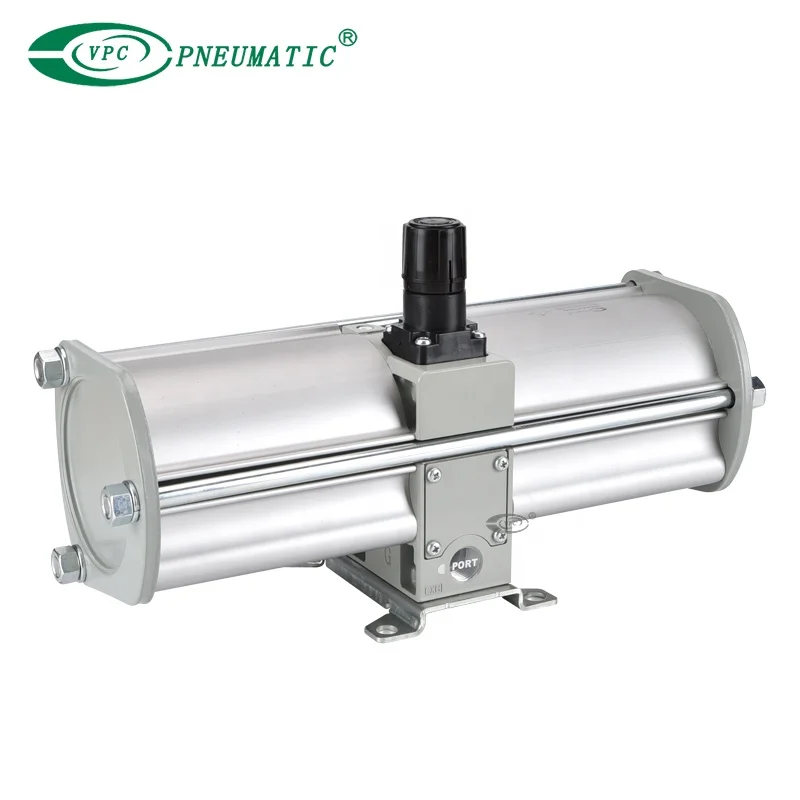

VBA40a-04 Pneumatic Pressure Controller Air Pressure Booster Regulator with Silencer
Product Feature
* Boosts local line pressure without requiring additional power;
* 2 to 4 times increase in pressure;
* Easy adjustment of output pressure;
* Improved performance over previous designs.
* 2 to 4 times increase in pressure;
* Easy adjustment of output pressure;
* Improved performance over previous designs.

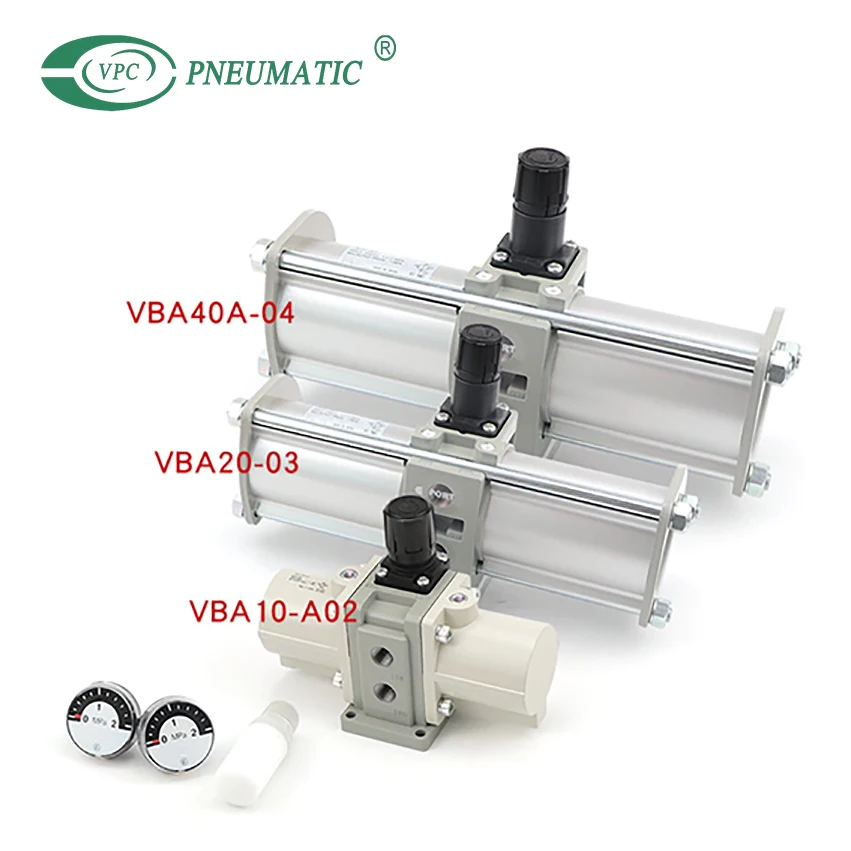

Model | VBA10A-02 | VBA20A-03 | VBA40A-04 | VBA22A-03 | VBA42A-04 | VBA43A-04 | VBA11A-02 | ||||||
Fluid | Compressed air | ||||||||||||
Pressure increase ratio | Twice | 2 to 4 times Note 4 | |||||||||||
Pressure adjustment mechanism | Knob-operated with relief mechanism Note 2 | Air-operated | Knob-operated with relief mechanism Note 2 | ||||||||||
Max.flow rateNote 3（L/min (ANR)) | 230 | 1000 | 1900 | 1000 | 1900 | 1600 | 70 | ||||||
Set pressure range (MPa） | 0.2 to 2.0 | 0.2 to 1.0 | 0.2 to 1.0 | 0.2 to 1.6 | 0.4 to 2.0 | ||||||||
Supply pressure range(MPa) | 0.1 to 1.0 | ||||||||||||
Proof pressure (MPa) | 3 | 1.5 | 2.4 | 3 | |||||||||
Port size(Rc)(IN/OUT/ EXH:3 Iocations) | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/4 | |||||||
Pressure gauge port size（Rc) (IN/OUT:2 Iocations) | 1/8 | ||||||||||||
Tank connection port(with plug)Note 5 | 1/4 | 3/8 | 1/2 | 3/8 | 1/2 | 1/4 | |||||||
Ambient and fluid temperature(℃) | 2 to 50(NO freezing) | ||||||||||||
Installation | Horizontal | ||||||||||||
Lubrication | Grease (Non-lube) | ||||||||||||
Weight(kg) | 0.84 | 3.9 | 8.6 | 3.9 | 8.6 | 8.6 | 0.89 | ||||||
HOW TO ORDER
Ording Code VBA40 Air Pressure Booster Regulator with Air Tank And Silencer
VBA 40A① - □② 04③ □④ - □⑤
10A | 1/4", Knob-operated type | Pressure increase ratio: Twice | |||||
20A | 3/8", Knob-operated type | ||||||
40A | 1/2", Knob-operated type | ||||||
22A | 3/8", Air-operated type | ||||||
42A | 1/2", Air-operated type | ||||||
43A | 1/2", Max. operating pressure 1.6 MPa | ||||||
11A | 1/4", Knob-operated type | Pressure increase ratio: 2 to 4 times | |||||
* Set the pressure increase ratio to 2 or more. | |||||||
②→ Thread type | Nil: Rc | F: G | N: NPT | T: NPTF | |||
* Thread types apply to the IN, OUT, and EXH ports of the VBA1 A and to the IN, OUT, EXH, and gauge ports of the VBA2 A and VBA4 A. The gauge ports of the VBA1 A are Rc thread type regardless of the thread type indication. | |||||||
③→ Port size | Symbol | 02 | 03 | 04 | |||
Port size | 1/4 | 3/8 | 1/2 | ||||
Applicable series | VBA1□A | VBA2□A | VBA4□A | ||||
④→ Option | Nil: None | G: Pressure gauge | |||||
N: | Silencer | ||||||
S: | High-noise reduction silencer* | ||||||
GN: | Pressure gauge, Silencer | ||||||
GS: | Pressure gauge, High-noise reduction silencer* | ||||||
LN: | Elbow silencer* | ||||||
LS: | Elbow high-noise reduction silencer* | ||||||
GLN: | Pressure gauge, Elbow silencer* | ||||||
GLS: | Pressure gauge, Elbow high-noise reduction silencer* | ||||||
* Refer to “Combination of Thread Type and Options.” | |||||||
Nil: Standard product | |||||||
Z*: Pressure unit on the product name label: psi Pressure unit on the pressure gauge: MPa and psi * Thread type: NPT, NPTF | |||||||
Combination of Thread Type and Options
Body size | 10A 11A | |||||||
Thread type | Nil | F | N | T | ||||
Option | Nil | ● | ● | ● | ● | |||
G | ● | ● | ● | ● | ||||
N | ● | ● | ● | ● | ||||
S | ● | ● | — | — | ||||
GN | ● | ● | ● | ● | ||||
GS | ● | ● | — | — | ||||
LN | ● | ● | ● | ● | ||||
LS | ● | ● | — | — | ||||
GLN | ● | ● | ● | ● | ||||
GLS | ● | ● | — | — | ||||
Semi-standard | Nil | ● | ● | ● | ● | |||
-Z | — | — | ● | ● | ||||
Body size | 20A 22A | |||||||
Thread type | Nil | F | N | T | ||||
Option | Nil | ● | ● | ● | ● | |||
G | ● | ● | ● | ● | ||||
N | ● | ● | ● | ● | ||||
S | ● | ● | — | — | ||||
GN | ● | ● | ● | ● | ||||
GS | ● | ● | — | — | ||||
Semi-standard | Nil | ● | ● | ● | ● | |||
-Z | — | — | ● | ● | ||||
Body size | 40A 42A 43A | |||||||
Thread type | Nil | F | N | T | ||||
Option | Nil | ● | ● | ● | ● | |||
G | ● | ● | ● | ● | ||||
N | ● | ● | ● | ● | ||||
S | ● | ● | — | — | ||||
GN | ● | ● | ● | ● | ||||
GS | ● | ● | — | — | ||||
Semi-standard | Nil | ● | ● | ● | ● | |||
-Z | — | — | ● | ● | ||||
Air Tank Compatibility Chart
Air tank/Booster regulator | VBA10A/11A | VBA20A/22A | VBA40A/22A | VBA43A |
VBAT05A(1) | ● | — | — | — |
VBAT05S(1) | ||||
VBAT10A(1) | ● | ● | — | — |
VBAT10S(1） | ||||
VBAT20A(1) | — | ● | ● | — |
VBAT20S(1) | ● | |||
VBAT38A(1) | — | ● | ● | — |
VBAT38S(1) | ● |

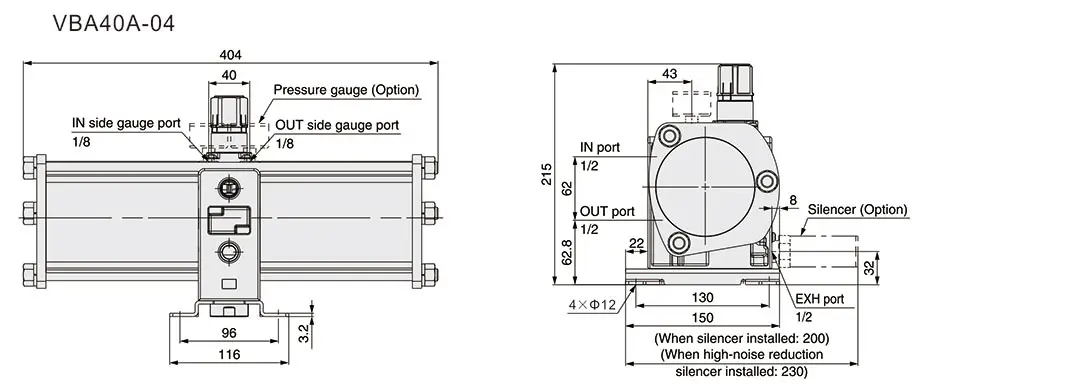

Main Dimensions
