HCN NEW 0201 series Angel Broom for sweep brushes skid steer loader
- Category: >>>
- Supplier: Xuzhou Hcn Machinery Technology Co. ltd.
Share on (1600975729194):
Product Overview
Description
Product Overview
Product Description

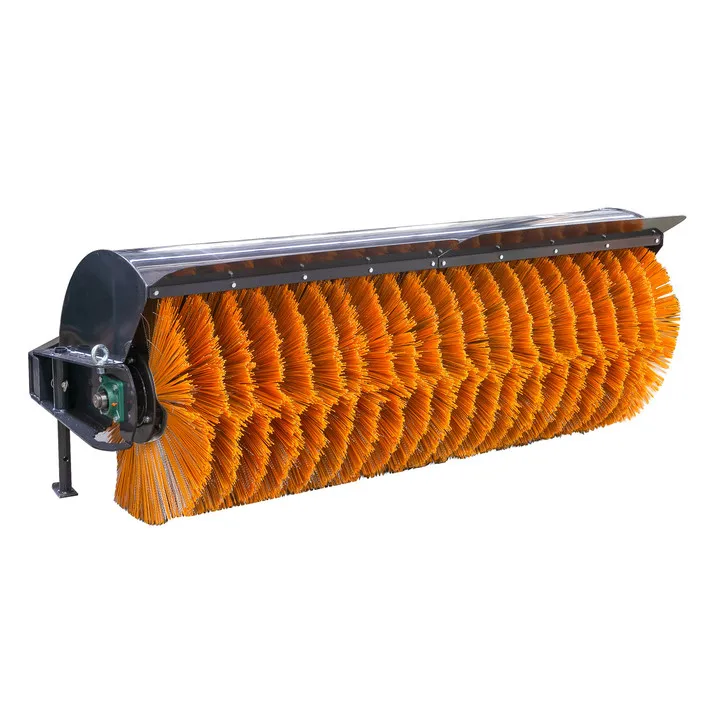

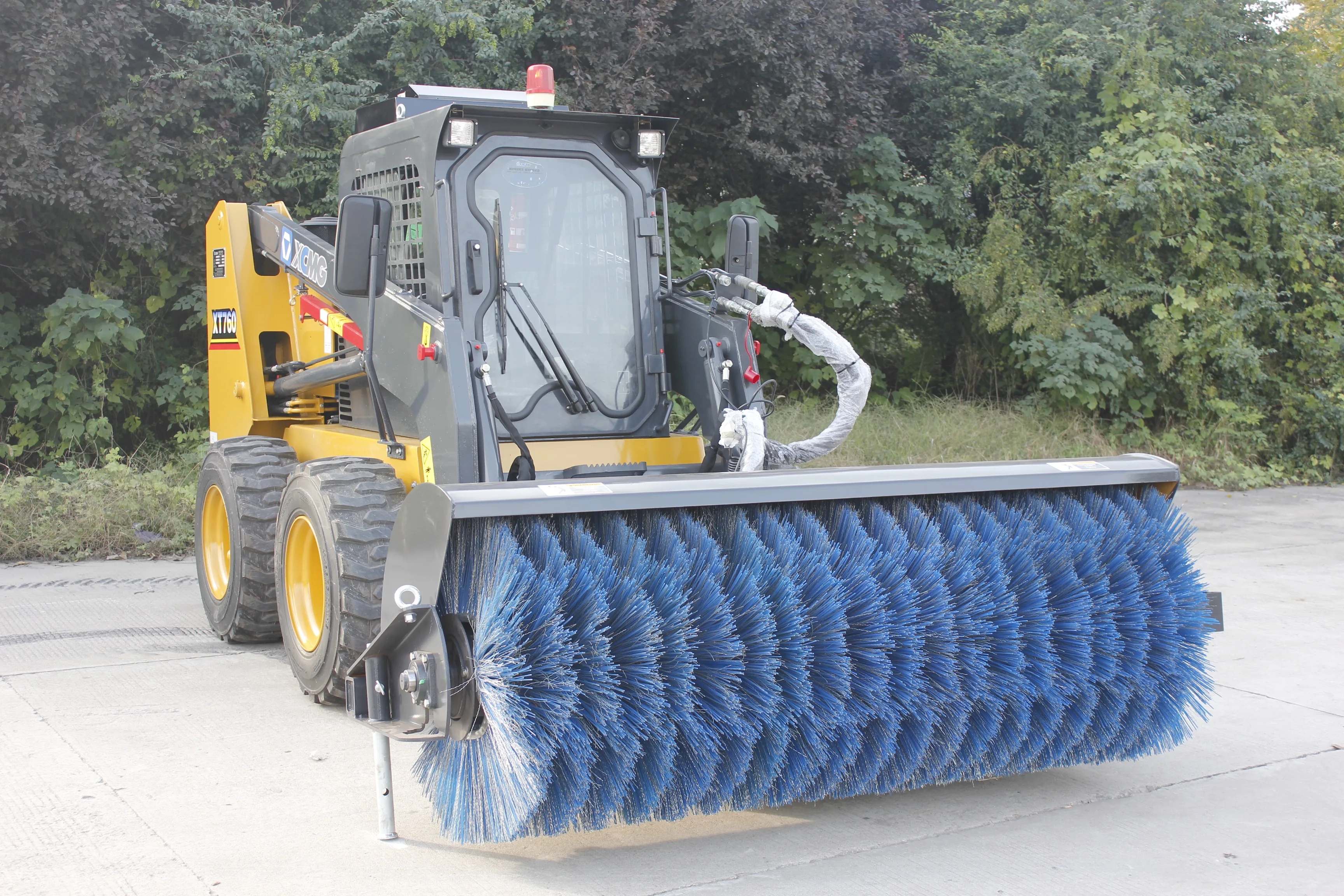

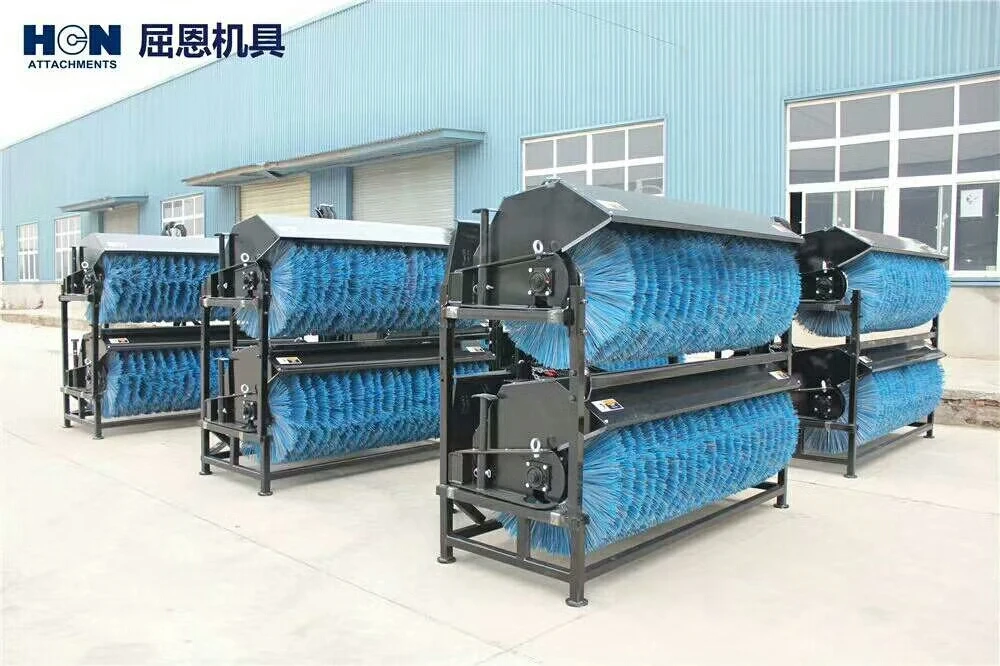

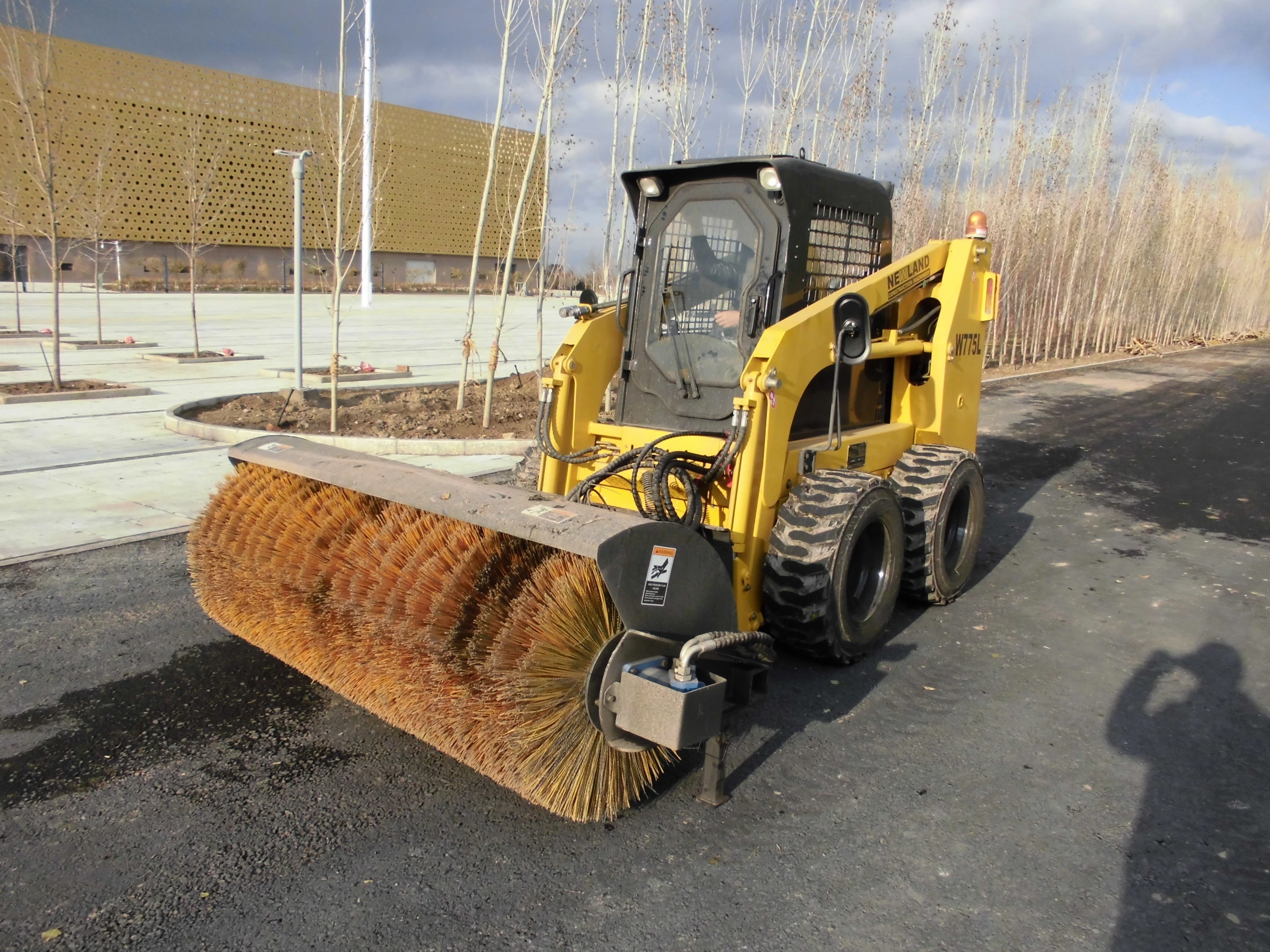

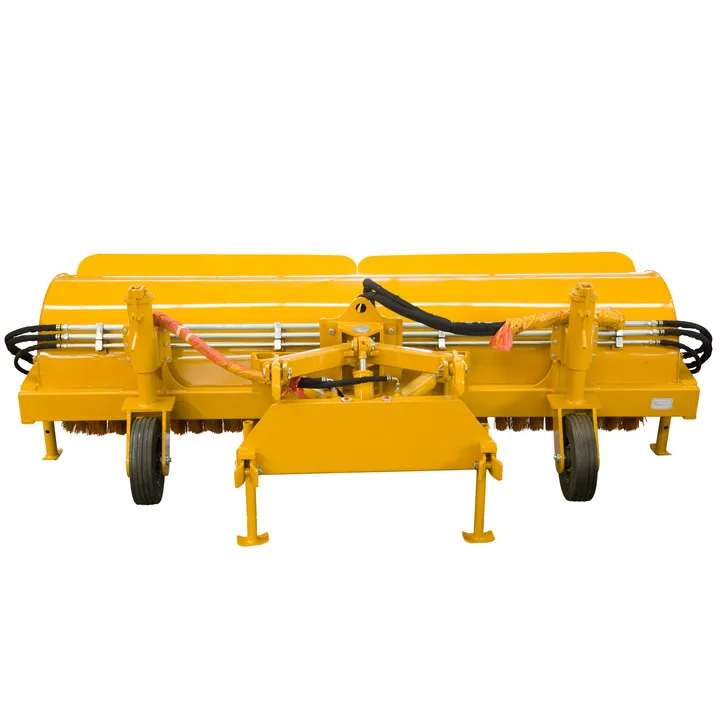

The HCN 72’’ skid steer rotary angle broom is hydraulically driven for cleaning debris, sands and snow on roads, parking lots and other flat areas. The broom can angle left and right, comes with poly/wire mix bristles, an adjustable stand to prevent bristles from damage when unused, and a durable direct-drive hydraulic Eaton motor. Spare wafers are available for purchase separately.
Efficiently sweep and clean with the hydraulically driven angle broom attachment
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
Reverse bristle rotation available on the 72-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles Reversible angle broom is available for all M-Series and R-Series compact track loaders and skid-steer loaders; as well as Toolcat™ utility work machines with the 7-pin attachment control kit This product is backed with a one-year manufacturer warranty.
The HCN 72’’ skid steer rotary angle broom is hydraulically driven for cleaning debris, sands and snow on roads, parking lots and other flat areas. The broom can angle left and right, comes with poly/wire mix bristles, an adjustable stand to prevent bristles from damage when unused, and a durable direct-drive hydraulic Eaton motor. Spare wafers are available for purchase separately.
Efficiently sweep and clean with the hydraulically driven angle broom attachment
Heavy-duty broom bristles create a cleaner path and sweep more snow or debris in one pass
Reverse bristle rotation available on the 72-inch and 84-inch angle brooms for enhanced cleaning along curbs, corners and around obstacles Reversible angle broom is available for all M-Series and R-Series compact track loaders and skid-steer loaders; as well as Toolcat™ utility work machines with the 7-pin attachment control kit This product is backed with a one-year manufacturer warranty.
Features:

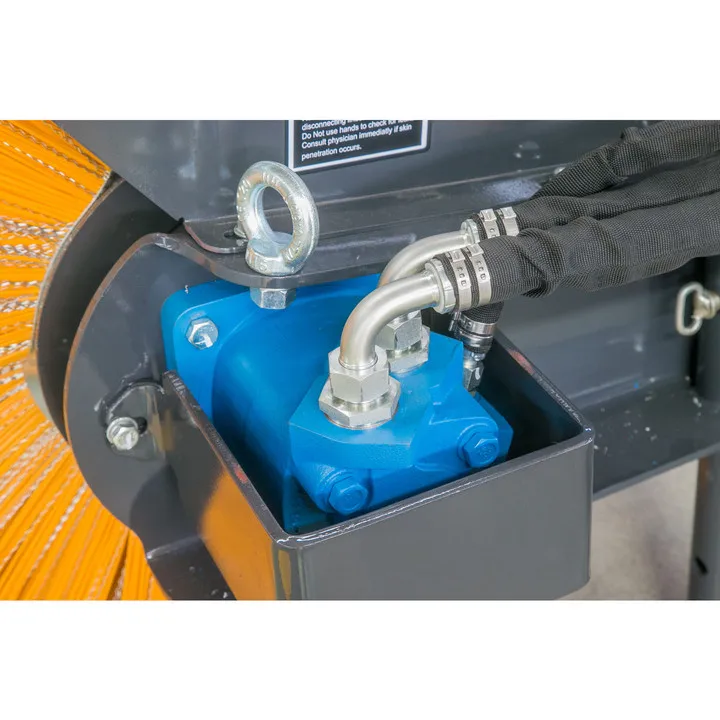

* Durable direct-drive hydraulic Eaton motor works more efficiently and reduces downtime
* Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing

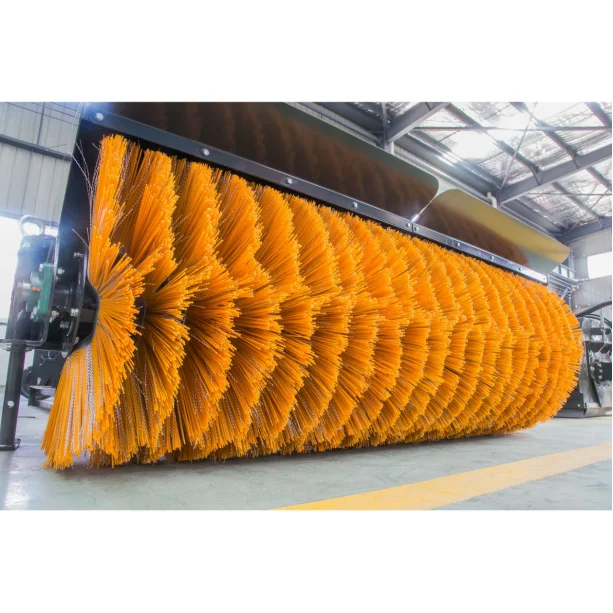

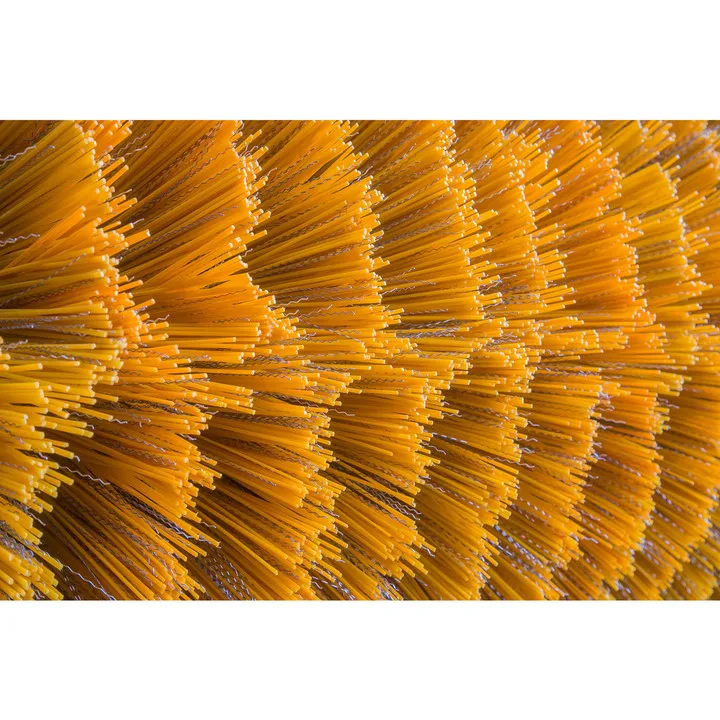

* Poly/wire mix bristles
* Adjustable protection metal stand
* Hydraulic hoses included
* The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor
lifetime.
* Bi-directional rotation bristles
* A motor protection guard frame installed
* Onecylinder hydraulic ,two cylinder hydraulic and manual angle rotating design optional
* Durable direct-drive hydraulic Eaton motor works more efficiently and reduces downtime
* Floating linkage design keeps the broom adapt to the road surface properly and consistently, reducing the bristles wearing
* Poly/wire mix bristles
* Adjustable protection metal stand
* Hydraulic hoses included
* The case drain line (the third hose) provides the option to release motor case pressure and alternatively extend motor
lifetime.
* Bi-directional rotation bristles
* A motor protection guard frame installed
* Onecylinder hydraulic ,two cylinder hydraulic and manual angle rotating design optional
Specifications:
* Working width: 60”,72”,84”
* Number of wafers: 41
* Brush diameter: 5"
* Core diameter: 04”
* Sweeping width at 30° angle: 63”
* Maximum angle (left and right): +/- 30°
* Hydraulic flow: Min. 10 GPM to Max 25 GPM
* Compatible to use high-flow
Packaging:
* Packed in a metal shipping crate
* Shipping dimension: 89’’ x 57’’ x 31’’
* Shipping weight: 1230 lb
* Working width: 60”,72”,84”
* Number of wafers: 41
* Brush diameter: 5"
* Core diameter: 04”
* Sweeping width at 30° angle: 63”
* Maximum angle (left and right): +/- 30°
* Hydraulic flow: Min. 10 GPM to Max 25 GPM
* Compatible to use high-flow
Packaging:
* Packed in a metal shipping crate
* Shipping dimension: 89’’ x 57’’ x 31’’
* Shipping weight: 1230 lb
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
0201 Angle Broom | ||||||
Model | 020160 I | 020172 I | 020184 I | |||
Overall Length (mm) | 1625 | 1625 | 1625 | |||
Overall Width (mm) | 1804 | 2163 | 2435 | |||
Overall Height (mm) | 870 | 870 | 870 | |||
Overall Weight (mm) | 500 | 545 | 575 | |||
Working Width （kg） | 1500 | 1800 | 2100 | |||
Turning Angle (°) | ±30° | ±30° | ±30° | |||
Working Width at 30°(mm) | 1250 | 1550 | 1850 | |||
Brush Diameter (Φmm) | Φ800 | Φ800 | Φ800 | |||
Working Pressure (Mpa) | 21 | 21 | 21 | |||
Working Flow （L/Min） | 70-85 | 80-100 | 80-100 | |||
Working Voltage （V） | DC12/24 | DC12/24 | DC12/24 | |||
Package Volume (m3) | 4.096 | 4.830 | 5.385 | |||
Brush Quantity (piece) | 30 | 37 | 41 | |||
SALES AND SERVICE NETWORK
We are always committed to providing our customers with high-quality products with reliable performance, reasonable prices and comprehensive services to ensure that each project can proceed smoothly as planned. Participate in foreign exhibitions every year,in order to allow customers to see our products and increase trust.
Welcome to HCN ATTACHMENTS: The Trusted ATTACHMENTS Source.Xuzhou HCN Attachments Manufacture co., LTD(Abbreviation: HCN ATTACHMENTS is located in Xuzhou economic development zone, it is a wholly owned subsidiary of engineering equipment installed with the Institute. The company registered capital is10 million , the plant covers an area of 30600 square meters. There are 108employees in our company, including 25 engineering technical members. Our company has passed ISO9001 quality system certification and Russian GOST certification. HCN ATTACHMENTS is a leading China of attachments and accessories Nationwide. We offer direct access to our products providing you with superior knowledge and pricing.Our company mission is to provide our clientele with the highest quality attachments and the expertise on how our products will satisfy their requirements. HCN ATTACHMENTS is an privately owned company that has led the attachment industry with innovative ideas and products that has helped revolutionize attachments for Skid Steer Loaders, Compact Track Skid Steers, Mini Skid Steers,Mini Excavators, Loader Backhoes and various other types of equipment. HCN means proven toughness and dependability.
HCN Attachments are committed to delivering the market's best quality most rugged and durable construction attachments in the industry. All of the products and designs have undergone rigorous product torture testing. This product testing serves two distinct functions. The first goal is that it aids the design development because it provides invaluable information as to where and how our equipment will fail under adverse conditions. This information is then taken back to the design team. It also serves as an inexpensive way to significantly minimize the risk product liability. Engineering our products so that they do not fail is one major key to success in this business. HCN ATTACHMENTS engaged in construction machinery industry nearly 13 years. It is using resource advantage established cooperation with many machine manufacturers, such as ASV, BOBCAT, CATERPILLAR, DOOSAN, GEHL,HYUNDAI, JCB, JOHN DEER, KOMATSU, KUBOTA, LIUGONG, XCMG , LG , MUSTANG, NEW HOLLAND ,TAKEUCHI, TEREX , THOMAS, VOLVO, WACKER
NUESON , YANMAR , MANY OTHER MANUFACTURERS More than a decade, with support of our customers, HCN company seize marketopportunities continuous develop itself. The company is committed to constantly develop high-tech products, fill the blank ｏf the industry, we will adhere to the"integrity first, arrive at supreme goodness"business philosophy, to create cost-effective products, actively with counterparts at domestic and abroad hand in hand, common development, for our country to make their own contribution to the development of construction machinery industry.
Welcome to HCN ATTACHMENTS: The Trusted ATTACHMENTS Source.Xuzhou HCN Attachments Manufacture co., LTD(Abbreviation: HCN ATTACHMENTS is located in Xuzhou economic development zone, it is a wholly owned subsidiary of engineering equipment installed with the Institute. The company registered capital is10 million , the plant covers an area of 30600 square meters. There are 108employees in our company, including 25 engineering technical members. Our company has passed ISO9001 quality system certification and Russian GOST certification. HCN ATTACHMENTS is a leading China of attachments and accessories Nationwide. We offer direct access to our products providing you with superior knowledge and pricing.Our company mission is to provide our clientele with the highest quality attachments and the expertise on how our products will satisfy their requirements. HCN ATTACHMENTS is an privately owned company that has led the attachment industry with innovative ideas and products that has helped revolutionize attachments for Skid Steer Loaders, Compact Track Skid Steers, Mini Skid Steers,Mini Excavators, Loader Backhoes and various other types of equipment. HCN means proven toughness and dependability.
HCN Attachments are committed to delivering the market's best quality most rugged and durable construction attachments in the industry. All of the products and designs have undergone rigorous product torture testing. This product testing serves two distinct functions. The first goal is that it aids the design development because it provides invaluable information as to where and how our equipment will fail under adverse conditions. This information is then taken back to the design team. It also serves as an inexpensive way to significantly minimize the risk product liability. Engineering our products so that they do not fail is one major key to success in this business. HCN ATTACHMENTS engaged in construction machinery industry nearly 13 years. It is using resource advantage established cooperation with many machine manufacturers, such as ASV, BOBCAT, CATERPILLAR, DOOSAN, GEHL,HYUNDAI, JCB, JOHN DEER, KOMATSU, KUBOTA, LIUGONG, XCMG , LG , MUSTANG, NEW HOLLAND ,TAKEUCHI, TEREX , THOMAS, VOLVO, WACKER
NUESON , YANMAR , MANY OTHER MANUFACTURERS More than a decade, with support of our customers, HCN company seize marketopportunities continuous develop itself. The company is committed to constantly develop high-tech products, fill the blank ｏf the industry, we will adhere to the"integrity first, arrive at supreme goodness"business philosophy, to create cost-effective products, actively with counterparts at domestic and abroad hand in hand, common development, for our country to make their own contribution to the development of construction machinery industry.
Our Services
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fit machine.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1. Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Trade Market:
Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern
Europe,South America,North America
Pre-sale Service
1.Supply item design,process design.
2.Help you to chose the fit machine.
Sale Service
1.Acceptance equipment together with you.
2.Help you to make the method statement and the details of the process.
After Service
1. Guarantee for a year.
2.Quality problem,we will send you the accessories.
3.Free repair whole using life(without the freight and accessories charge).
Trade Market:
Western Europe,Eastern Asia,Mid East,Oceania,Africa, Southeast Asia, Eastern
Europe,South America,North America
FAQ
Q: Are you a manufacturer?
A: Yes, our factory was established in 2007.
Q: Are you sure your product will fit my skid steer loader?
A: Yes, we are professional attachments manufacturer, We make attachments according to your skid steer loader bucket
dimensions.
Q: Can I customize a product?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1 set. Payment by T/T, L/C, Credit Card and Western Union is acceptable. Other payment method can be negotiated.
Q: How about delivery time?
A: Usually 25 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.
Q: How about the package?
A: Our attachments are packaged by standard export wooden pallets free from fumigation, other package ways will be tooken accoding
to the actual.
Q: How about the Shipment?
A: Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Shanghai etc. We will select an optimal shipping
method for you. For more information, please contact with us freely.
Q: Which country have you been exported?
A: Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa
etc.
Further details, please contact me directly. Thank you!
Q: Are you a manufacturer?
A: Yes, our factory was established in 2007.
Q: Are you sure your product will fit my skid steer loader?
A: Yes, we are professional attachments manufacturer, We make attachments according to your skid steer loader bucket
dimensions.
Q: Can I customize a product?
A: Sure, we can provide OEM and ODM service.
Q: What’s the MOQ and payment terms?
A: MOQ is 1 set. Payment by T/T, L/C, Credit Card and Western Union is acceptable. Other payment method can be negotiated.
Q: How about delivery time?
A: Usually 25 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.
Q: How about the package?
A: Our attachments are packaged by standard export wooden pallets free from fumigation, other package ways will be tooken accoding
to the actual.
Q: How about the Shipment?
A: Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Shanghai etc. We will select an optimal shipping
method for you. For more information, please contact with us freely.
Q: Which country have you been exported?
A: Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa
etc.
Further details, please contact me directly. Thank you!
