Form factor

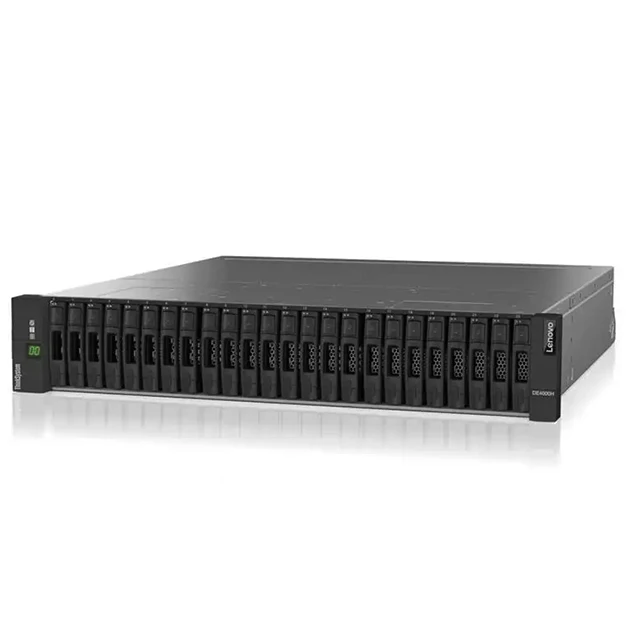

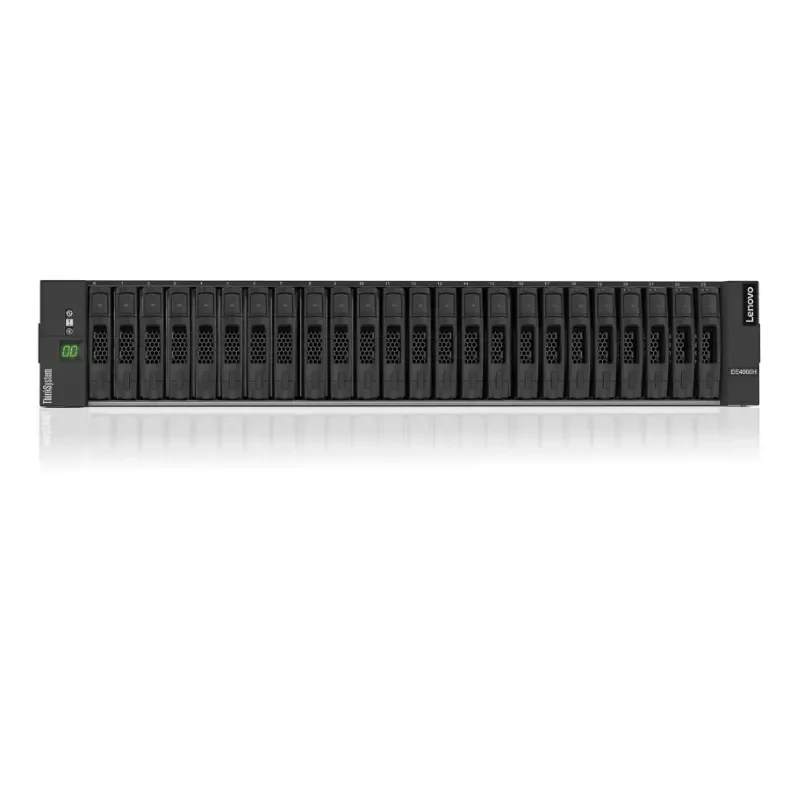

* DE2000H 2U24 SFF controller enclosure (Machine Type 7Y71): 2U rack mount.

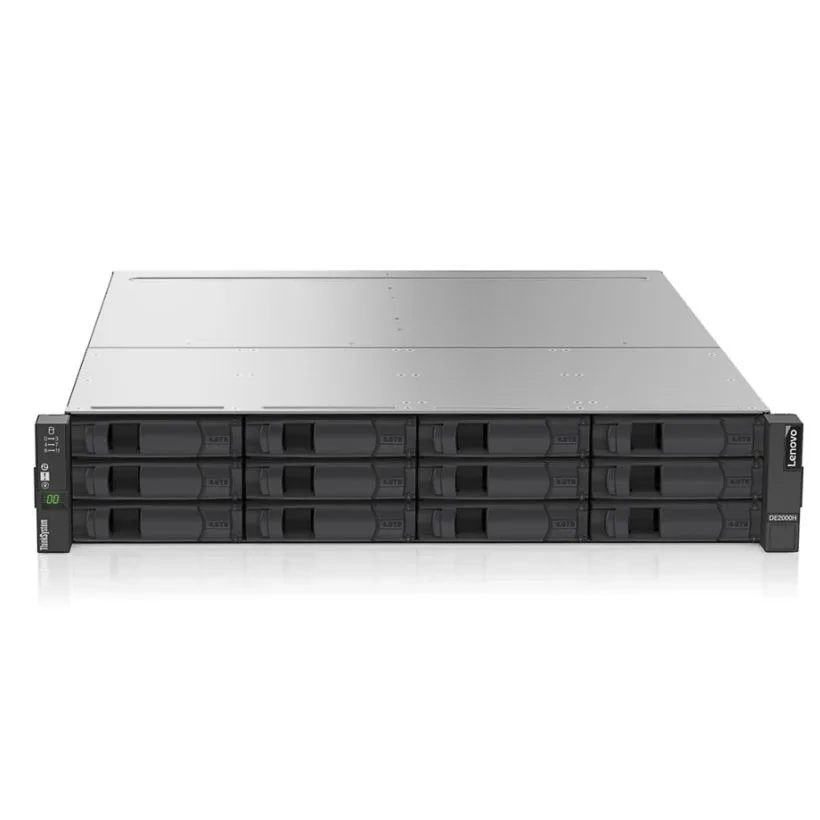

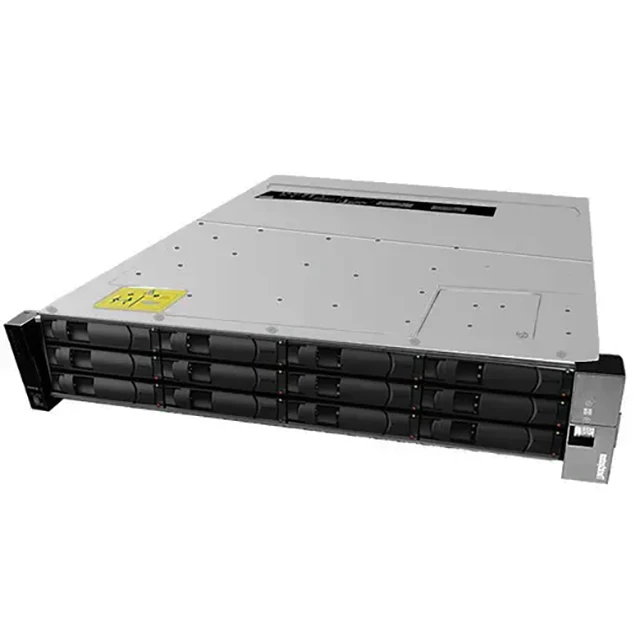

* DE2000H 2U12 LFF controller enclosure (Machine Type 7Y70): 2U rack mount.

Controller configuration

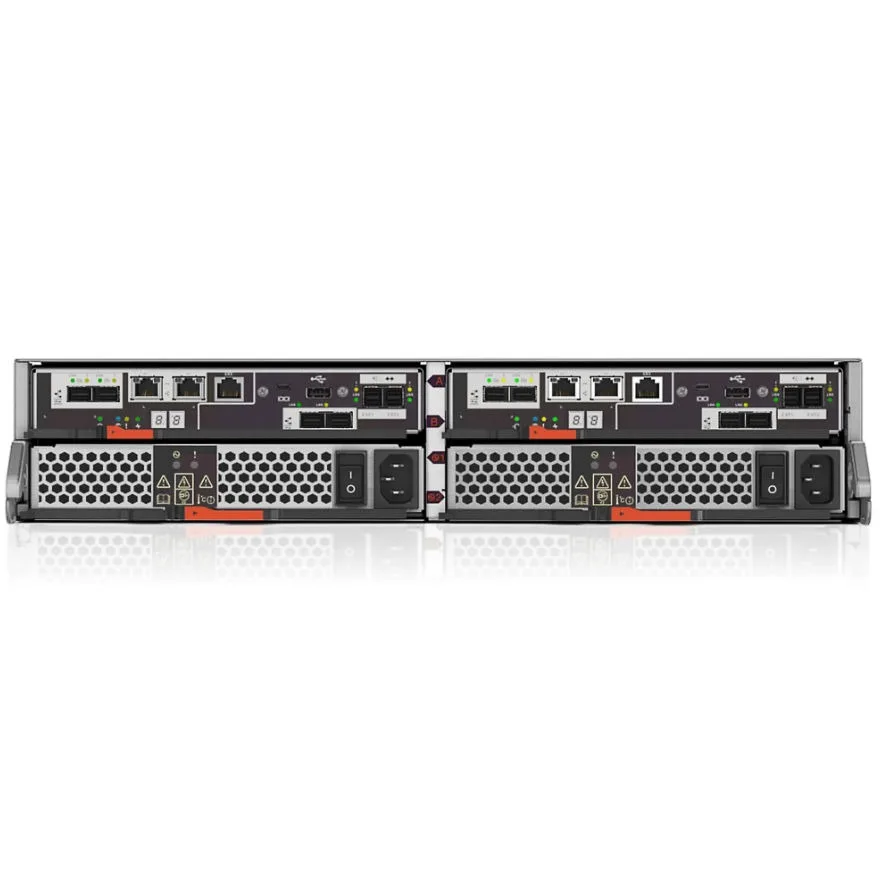

Dual active-active controller configuration with automatic load balancing.

RAID levels

RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools.
Note: RAID 3 can be configured only through the CLI.

Controller memory

16 GB per system (8 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery
for destaging to flash).

Expansion enclosure support

* DE2000H 2U24 SFF controller: 3x DE120S or 3x DE240S
* DE2000H 2U12 LFF controller: 3x DE120S or 3x DE240S
* Expansion enclosures may be mixed up to a maximum of 3 expansion enclosures

Drive bays

Up to 4 enclosures per system (Controller unit with up to 3 expansion units): * Up to 48 LFF hot-swap drive bays (Up to 4x 2U12
LFF enclosures)
* Up to 96 SFF hot-swap drive bays (Up to 4x 2U24
SFF enclosures)

Intermix of 2U24 SFF and 2U12 LFF enclosures is supported.

Drive technology

* 12 Gb SAS and NL SAS HDDs and FIPS HDDs, 12 Gb SAS SSDs and FIPS SSDs.
* Intermix of HDDs and SSDs is supported within a system.
* Intermix of HDDs and SSDs is not supported within a volume group or disk pool.
* Intermix of FIPS drives and non-FIPS drives is supported within a system.
* Intermix of FIPS drives and non-FIPS drives is not supported within a volume group or disk pool.

Drives

2U24 SFF drives:
* 10K rpm SAS HDDs
* 10K rpm SAS FIPS HDDs
* SAS SSDs (1 DWD)
* SAS SSDs (3 DWD)
* SAS FIPS SSDs (3 DWD)

2U12 LFF drives:
* 7.2K rpm NL SAS HDDs
* 7.2K rpm NL SAS FIPS HDDs
* SAS SSDs (3 DWD)
* SAS FIPS SSDs (3 DWD)

Storage capacity

All SFF drives: Up to 1.47 PB (96x 15.36 TB SFF SSDs)
All LFF drives: Up to 864 TB (48x 18TB LFF HDDs)

Power supply

Two redundant hot-swap 913 W (100 - 240 V) Platinum AC power supplies.
