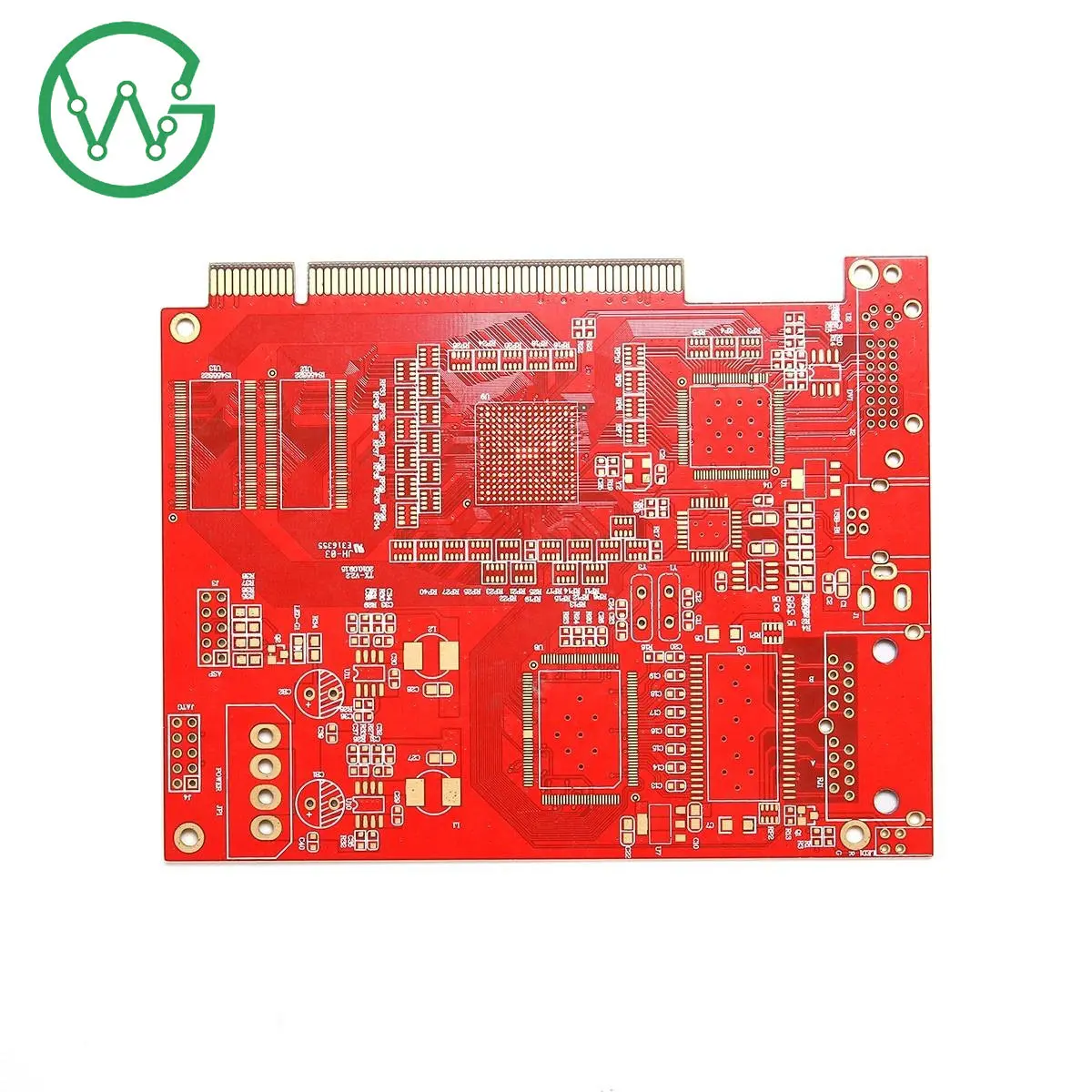

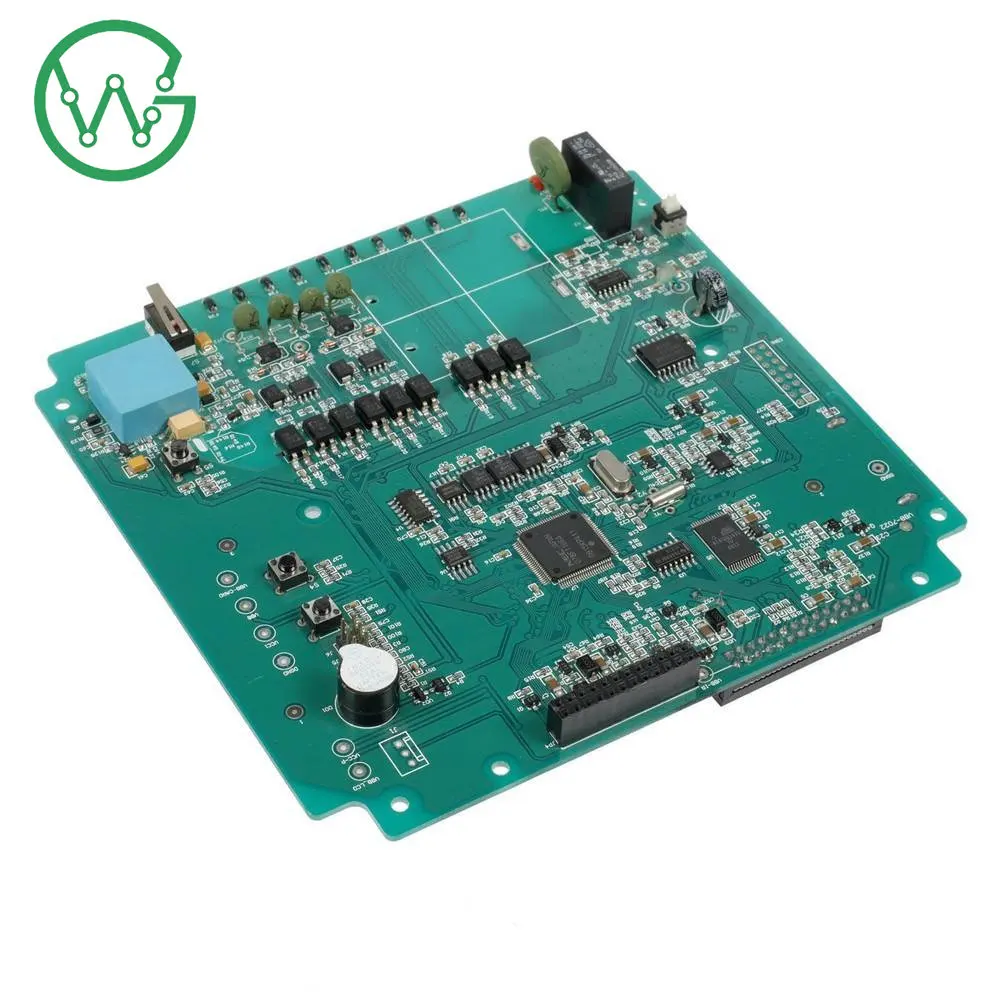

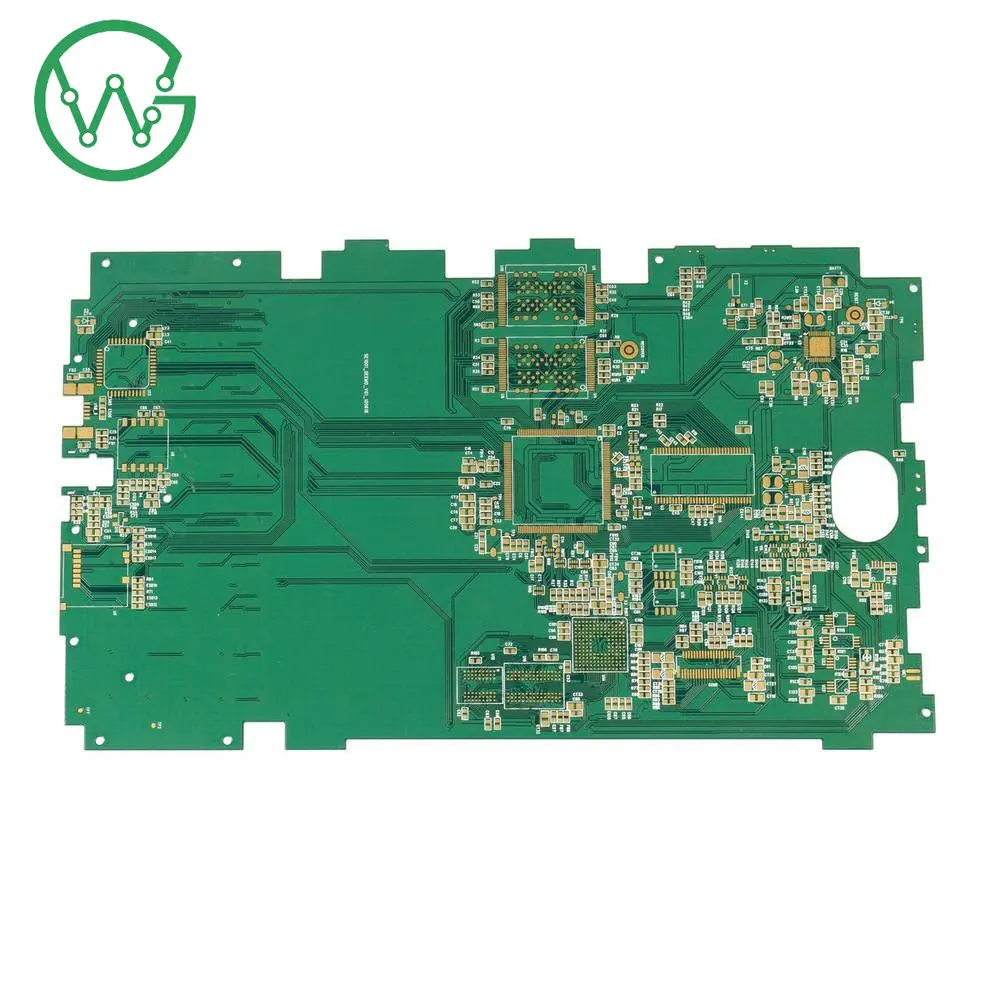

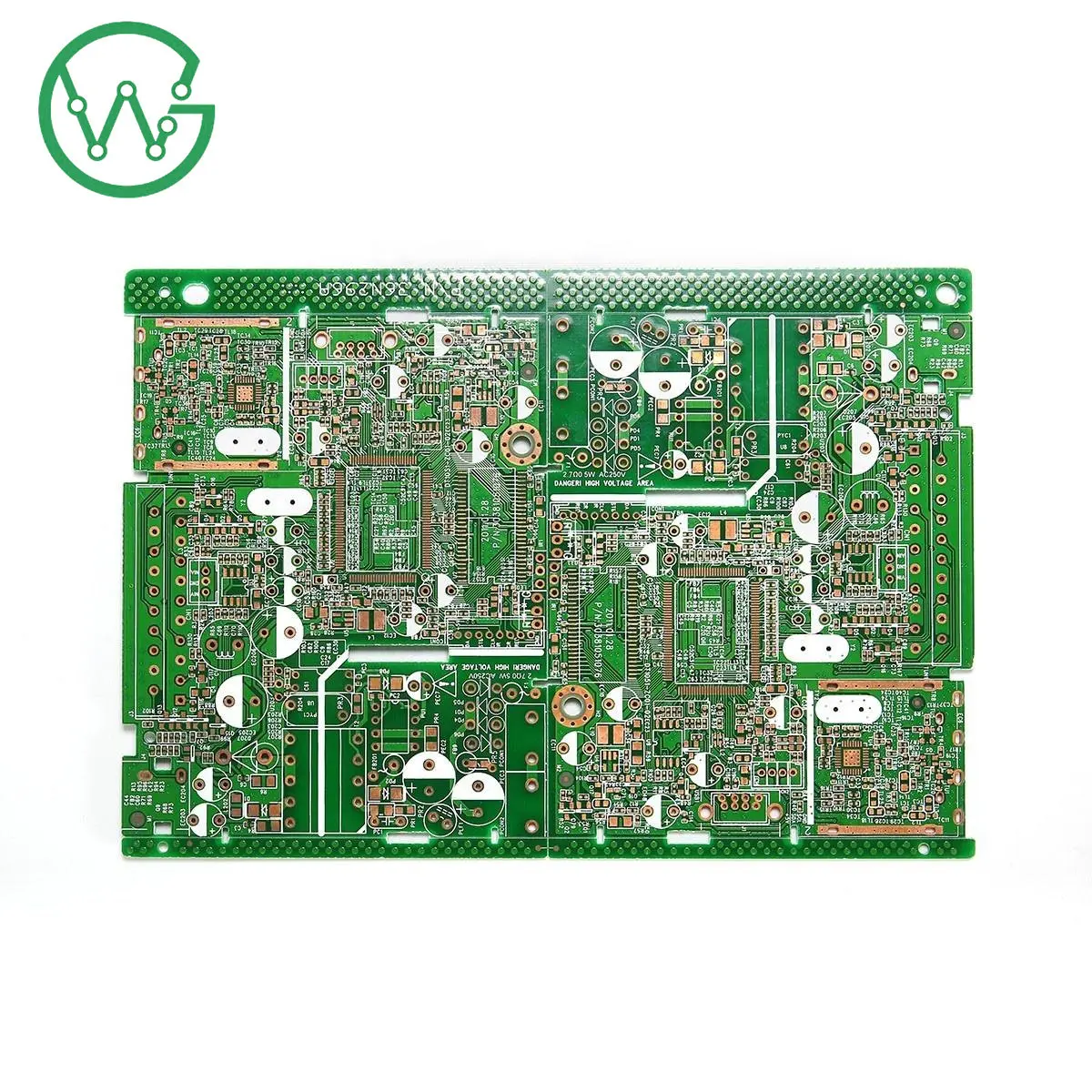

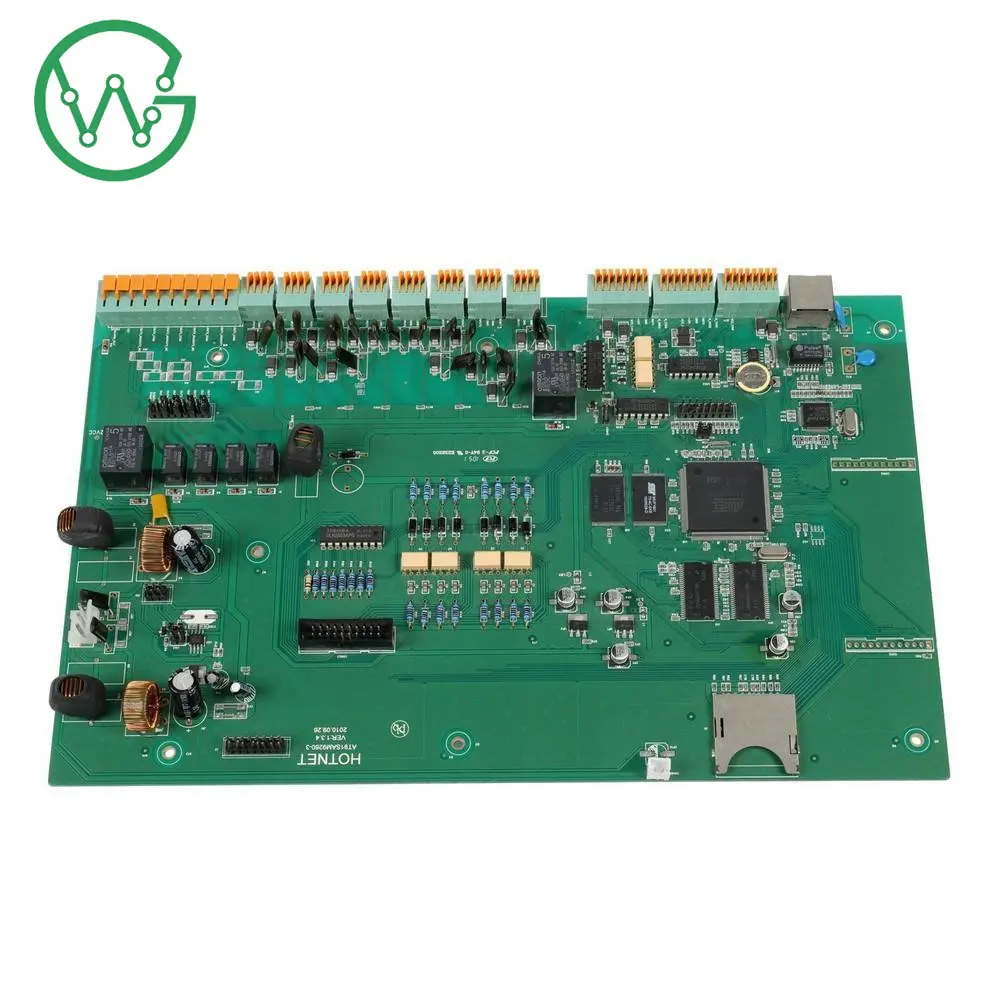

Pcba Assembly Manufacturer Universal Battery Pcb Circuit Board Lcd Led Tv Circuit Board Soundbar Laptop Soundbar Circuit Board
- Category: >>>
- Supplier: Guangdong Global Well Electronic Limited
Share on (1600975867604):
Product Overview
Description
Our Services
Pcb Assembly Capability | ||
Single and double sided SMT/PTH | Yes | |
Large parts on both sides, BGA on both sides | Yes | |
Min Chips size | 01005 | |
Min BGA and Micro BGA pitch and ball counts | 0.008 in. (0.2mm) pitch, ball count greater than 1000 | |
Min Leaded parts pitch | 0.008 in. (0.2 mm) | |
Max Parts size assembly by machine | 2.2 in. x 2.2 in. x 0.6 in. | |
Assembly surface mount connectors | Yes | |
Odd form parts:Resistor and capacitor networks/ Electrolytic capacitors/Variable resistors and capacitors (pots)/Sockets | Yes | |
Wave soldering | Yes | |
Max PCB size | 14.5 in. x 19.5 in. | |
Min PCB Thickness | 0.02 | |
Fiducial Marks | Preferred but not required | |
PCB Shape | Any | |
Panelized PCB | Tab routed/Breakaway tabs/V-Scored/Routed+ V scored | |
Inspection | X-ray analysis/Microscope to 20X /100% AOI testing | |
Rework | BGA removal and replacement station/SMT IR rework station/Thru-hole rework station | |
Min IC Pitch | 0.2mm | |
solder paster printer | 0.2mm | |
POP Manufacturing capability | POP *3F | |
Application Areas

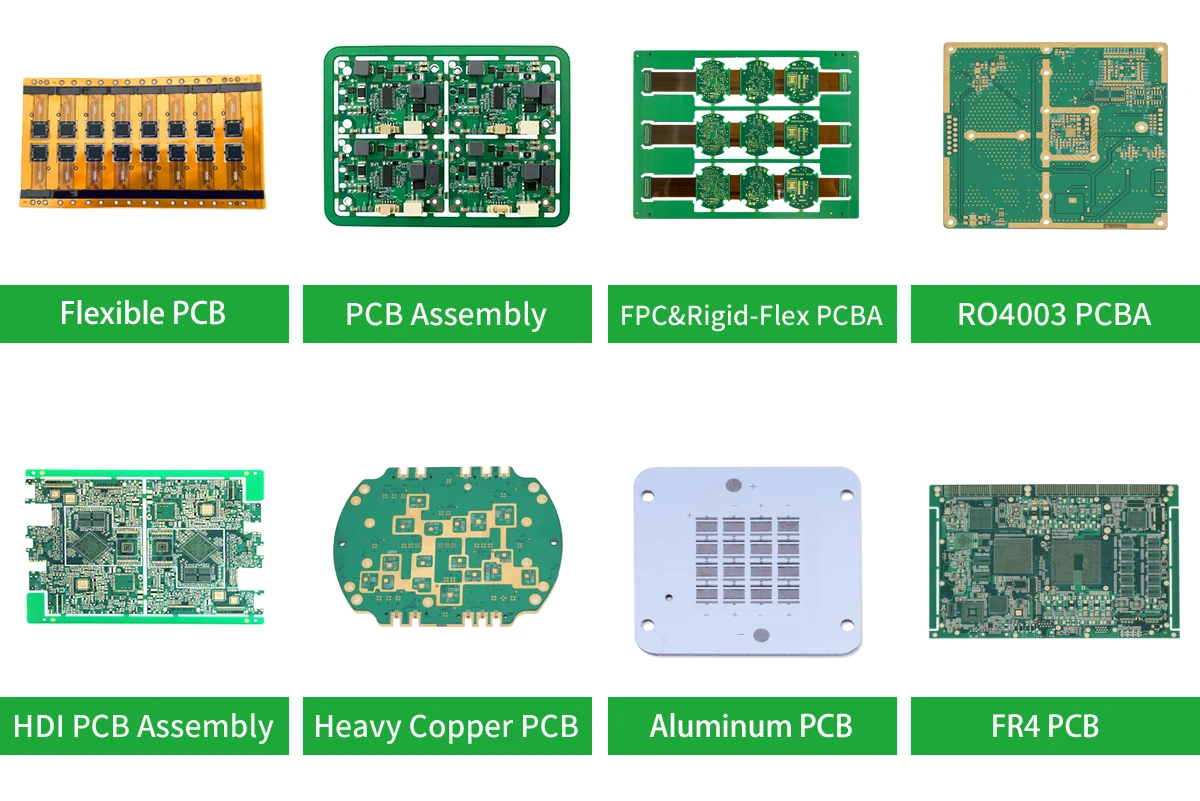

Main Products
Sample Show

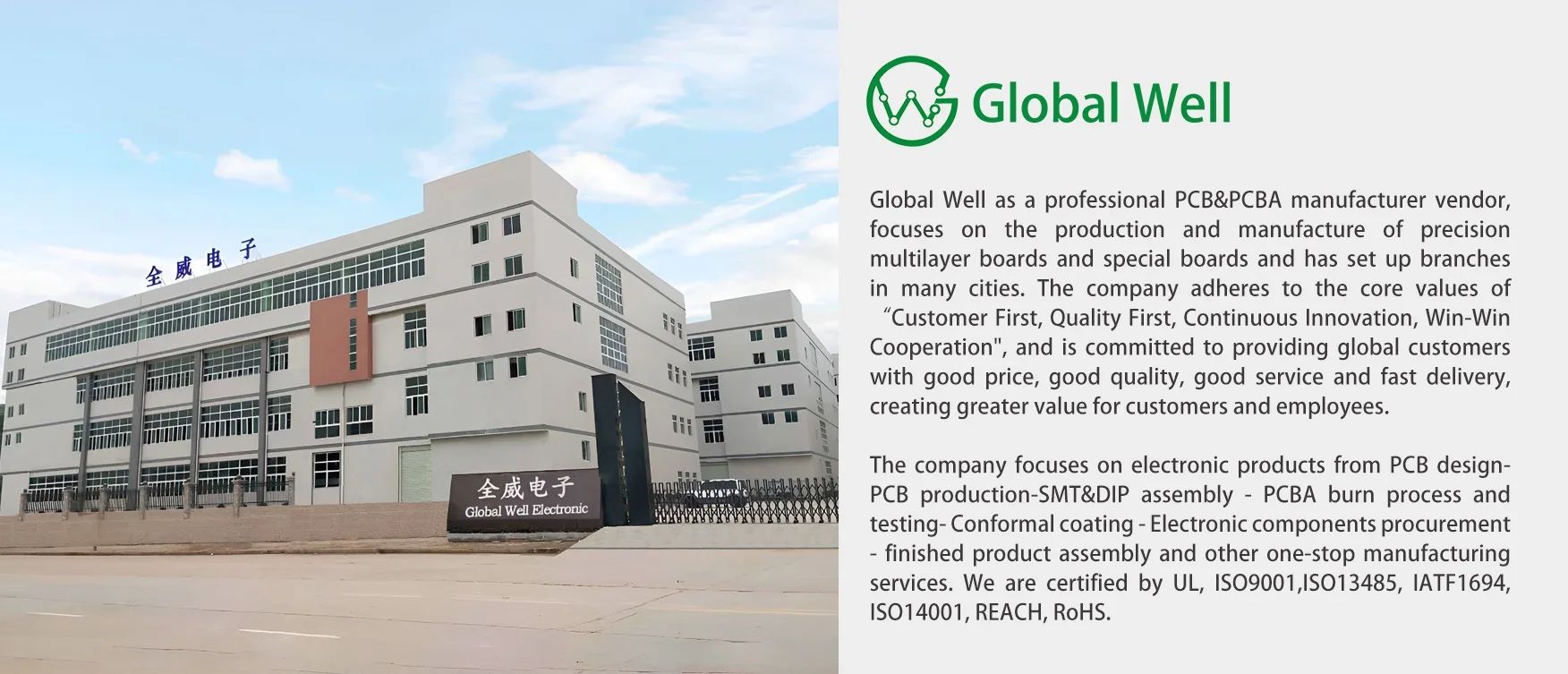

About Us
After Sales
Packing & Transport
Packing
The product is tightly packaged in all directions, no matter how bumpy the product is during transportation, it will not bump into the box, so that the product is well protected from any damage
FAQ
Q: What is needed for PCB/PCBA quotation?
A: For Bare PCB project, please provide Quantity, Gerber file and specification like material, surface finish treatment, copper thickness, board thickness, soldermask color and silkscreen color and other special specs. For PCBA project, please provide above information as well, and BOM list, pick and place file. If you need turnkey service
include programming and functional testing etc, kindly contact us for more details.
Q: Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole
process.. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What’s your minimum of quantity(MOQ) ?
A: There is no MOQ.We are able to handle small as well as large volume production with flexibility.
A: There is no MOQ.We are able to handle small as well as large volume production with flexibility.
Q: How to calculate the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q: What other service do you have?
A: We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
A: We mainly focus on PCB+Assembly+Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
