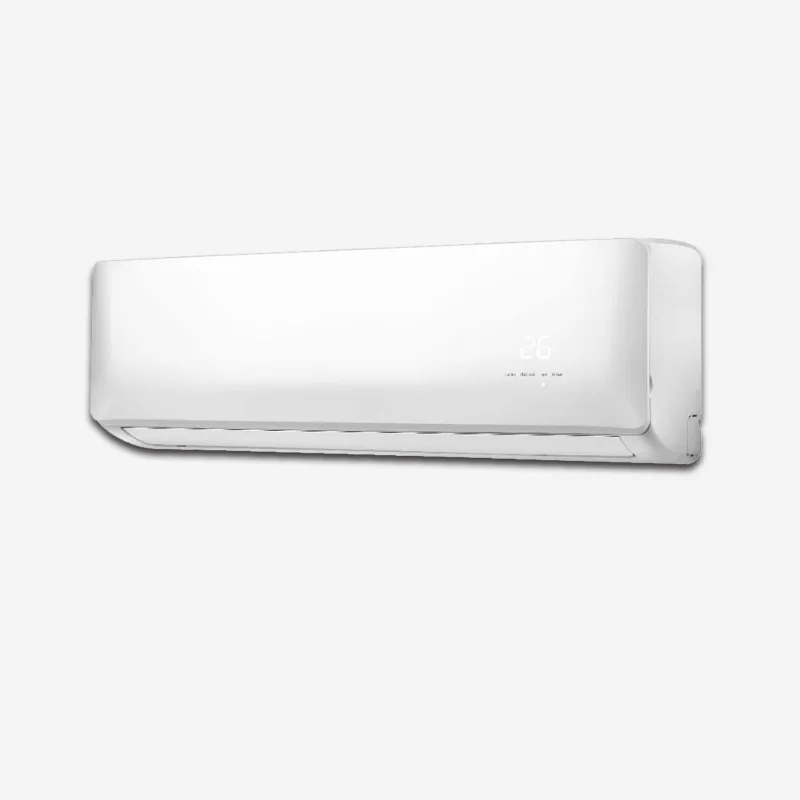

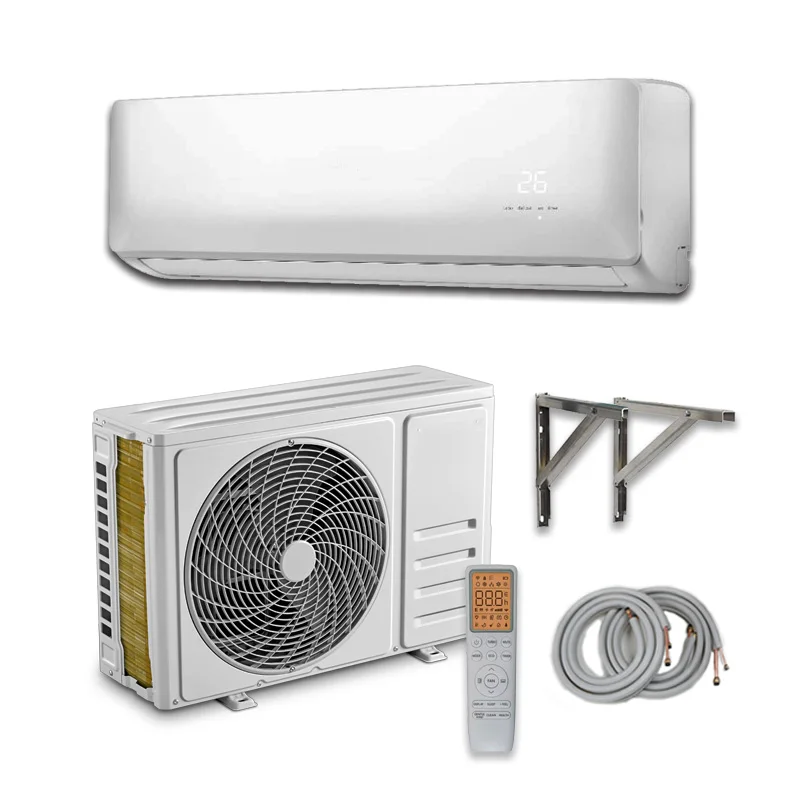

Wholesale 24000BTU AC DC Inverter Split Air Conditioners Cheap Price smart Wall Mounted Domestic Air Conditioner for home
- Category: >>>
- Supplier: Shenzhen Midas Electronics Co. Ltd.
Share on (1600975908279):
Product Overview
Description
Power supply | Ph-V-Hz | 220-240V- 50Hz, 1Ph | ||
Cooling | Capacity | Btu/h | 24000 | |
Input | W | 2200 | ||
Rated current | A | 9.9 | ||
EER | W/W | 3.20 | ||
Capacity | Btu/h | 27000 | ||
Input | W | 2320 | ||
Rated current | A | 10.5 | ||
COP | W/W | 3.41 | ||
Max. input consumption | W | 3100 | ||
Max. current | A | 12.8 | ||
Starting current | A | 54.5 | ||
Model | PA280G2CS-4MUL | |||
Type | ROTARY | |||
Brand | GMCC | |||
Capacity | Btu/h | 27705/27825 | ||
Input | W | 1910/1990 | ||
Rated current(RLA) | A | 8.80/8.65 | ||
Locked rotor Amp(LRA) | A | 54.5 | ||
Thermal protector | ----- | |||
Thermal protector position | INTERNAL | |||
Capacitor | uF | 60 | ||
Refrigerant oil/oil charge | ml | ESTER OIL VG74/850 | ||
Model | RPG45C | |||
Input | W | 77 | ||
Capacitor | uF | 3.0 | ||
Speed(Hi/Mi/Lo) | r/min | 1180 / 1100 / 900 | ||
a.Number of rows | 2 | |||
b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
c.Fin spacing | mm | 1.3 | ||
d.Fin type (code) | Hydrophilic aluminium | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||
f.Coil length x height x width | mm | 780x315x26.74 | ||
g.Number of circuits | 5 | |||
Indoor air flow (Hi/Mi/Lo) | m3/h | 1050/970/800 | ||
Indoor noise level (Hi/Mi/Lo) | dB(A) | 48/46/40 | ||

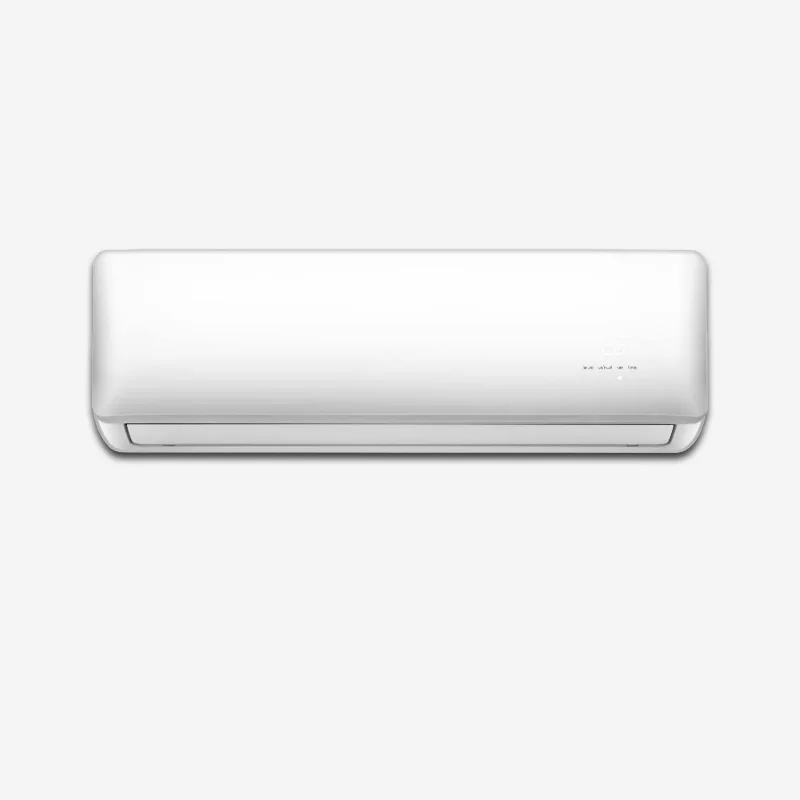

Indoor unit | Dimension(W*D*H) | mm | 1045x235x315 | |
Packing (W*D*H) | mm | 1135x395x315 | ||
Net/Gross weight | Kg | 12 / 14.5 | ||
Model | YDK53-6H | |||
Input | W | 138 | ||
Capacitor | uF | 3.0 | ||
Speed | r/min | 800 / -- / -- | ||
a.Number of rows | 2.5 | |||
b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
c.Fin spacing | mm | 1.4 | ||
d.Fin type (code) | Hydrophilic aluminium | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||
f.Coil length x height x width | mm | 773x798x26.74+392x798x13.37 | ||
g.Number of circuits | 6 | |||
Outdoor noise level | dB(A) | 62 | ||

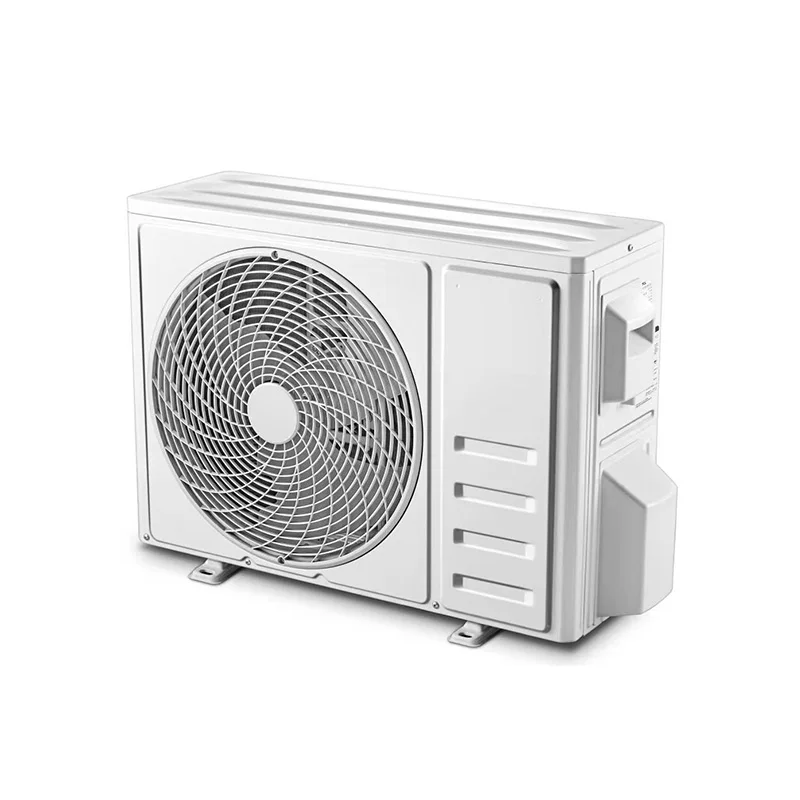

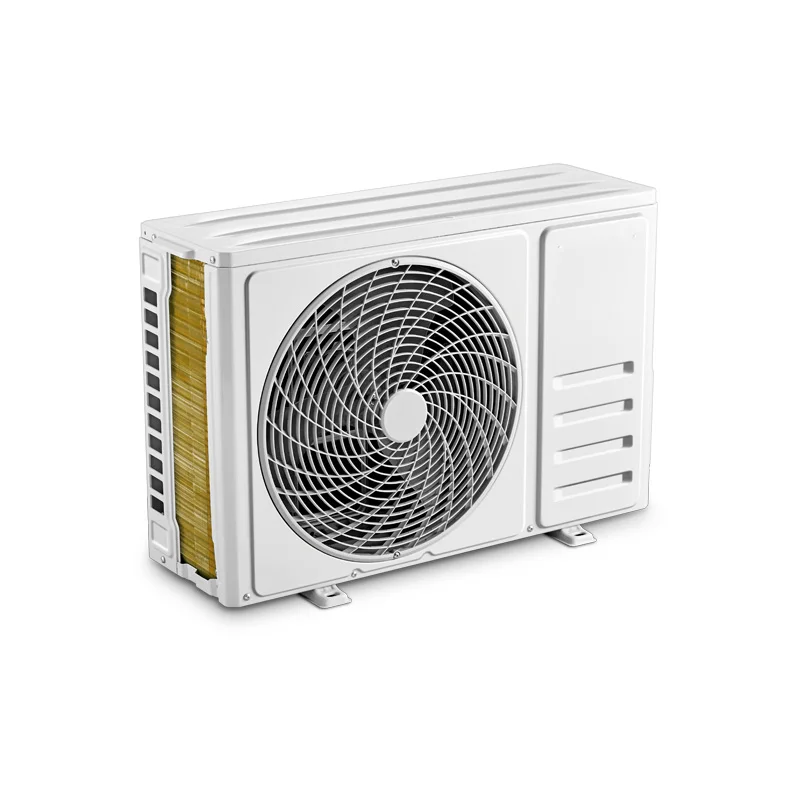

Outdoor unit | Dimension(W*D*H) | mm | 900x315x860 | |
Packing (W*D*H) | mm | 1043x395x915 | ||
Net/Gross weight | Kg | 60.5 / 65 | ||
Refrigerant type | g | R410A/2050g | ||
Design pressure | MPa | 4.2/1.5 | ||

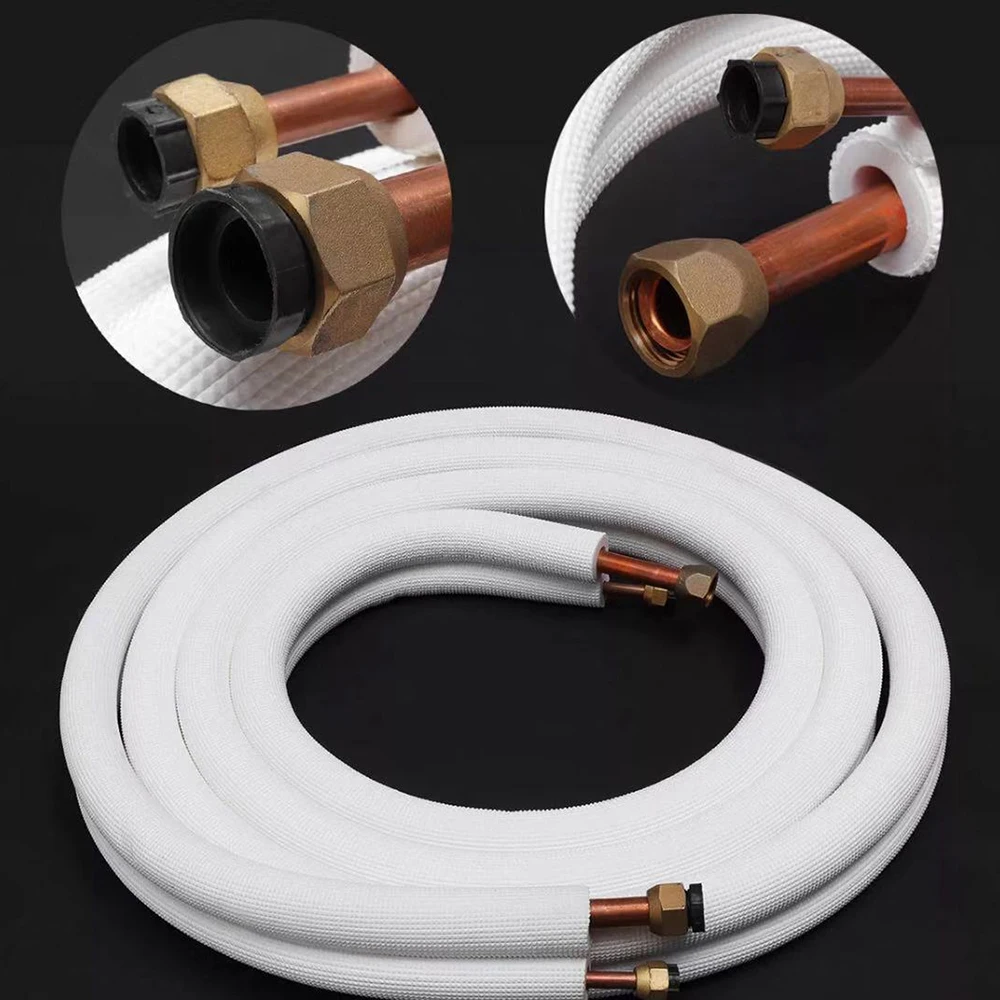

Liquid side/ Gas side | mm(inch) | Φ9.52/Φ15.9(3/8"/5/8") | ||
Max. refrigerant pipe length | m | 25 | ||
Max. difference in level | m | 10 | ||
Connection wiring | 1.0(Optional) | |||
Plug type | -- | |||
Thermostat type | Remote Control | |||
Operation temperature | ℃ | 17-30 | ||
Indoor(cooling/ heating) | ℃ | 17-32/0-30 | ||
Outdoor(cooling/heating) | ℃ | 18-43/-7-24 | ||
Application area (Cooling Standard) | m2 | 32-47 | ||
Qty’per 20’ /40’ /40'HQ | 48/103/118 | |||
