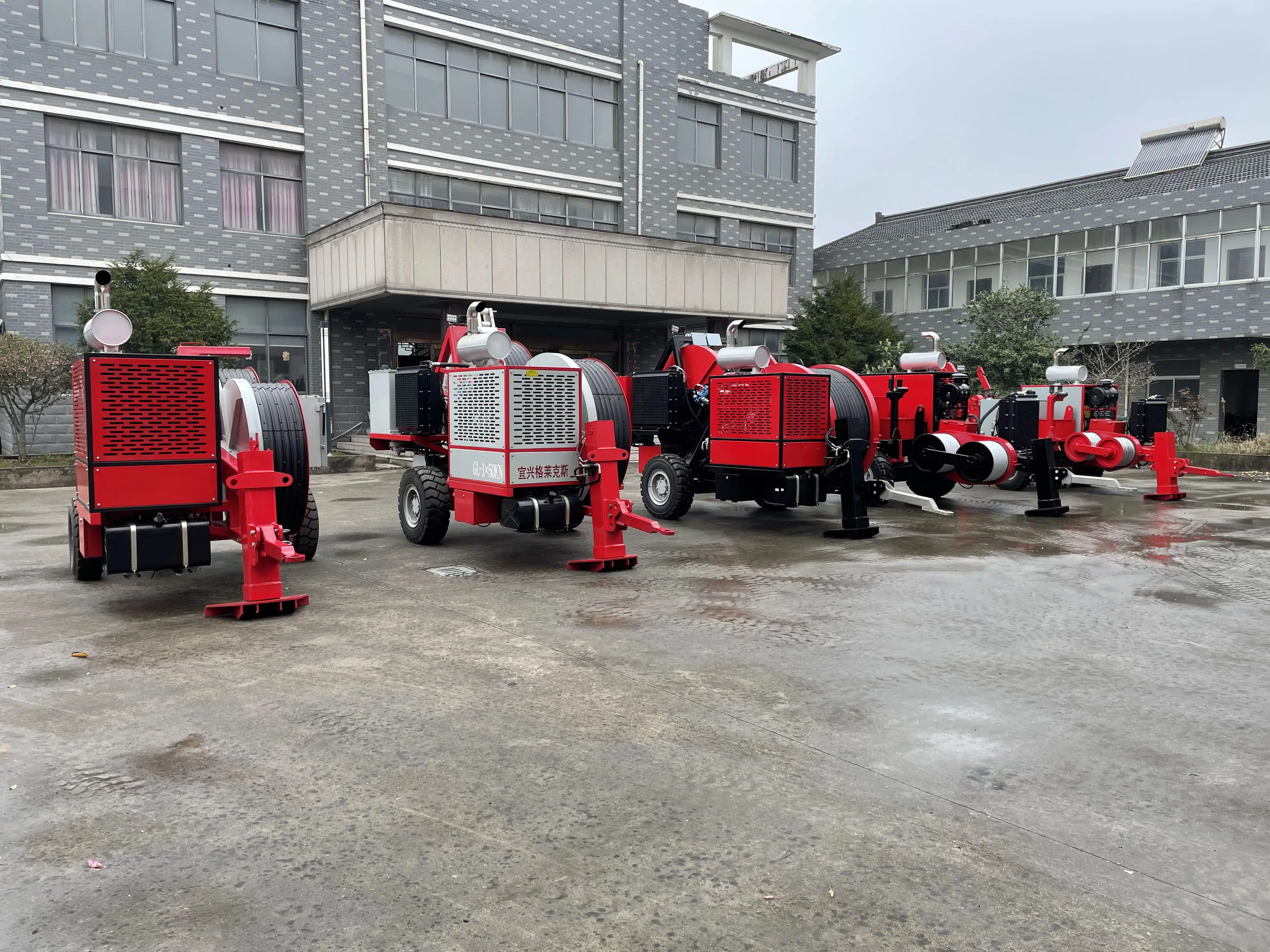

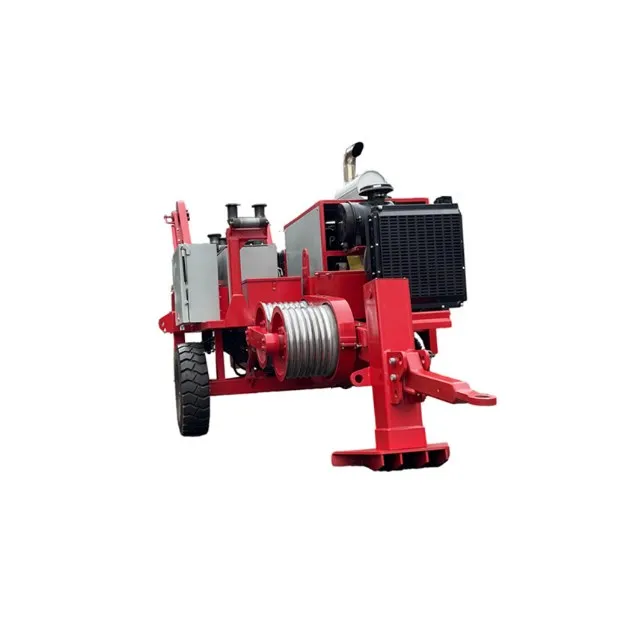

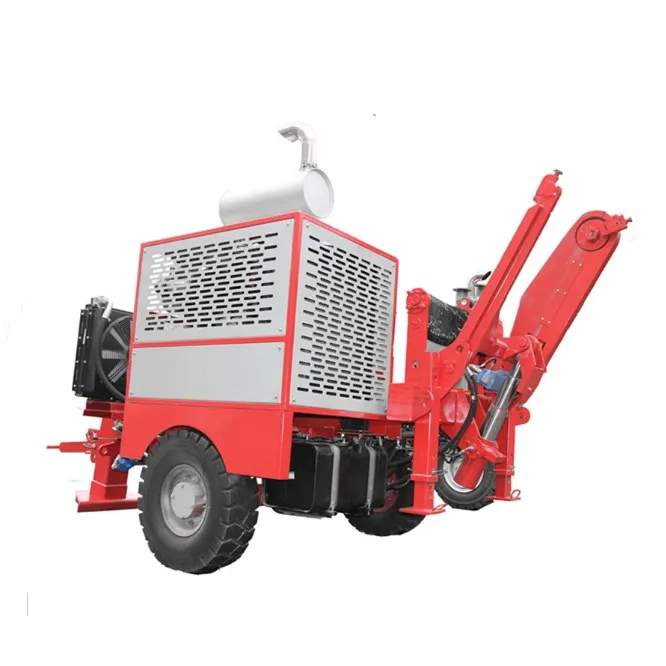

Hydraulic Cable Puller 19t Stringing Equipment Cable Pulling Machine
- Category: >>>
- Supplier: Jiangsu Milky Way Steel Poles Co. Ltd.
Share on (1600976126982):
Product Overview
Description
Product Description
This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.
Performance parameter
Max pull: 100kN
Max continuous pull: 90kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 40kN
Structure parameter
Bull-wheel diameter: 540mm
Groove number: 8
Max rope diameter : 21mm
Max diameter of rope reel: 1400mm
Total weight: 4350kg
Overall dimension (length*width*height): 4500×2100×2450mm
Engine
Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged
Cooling system liquid, Electrical system 24V
Main configurations
Engine: Cummins
hydraulic pump: German Rexroth
Main motor: German Rexroth
speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA
Operating handle: German Rexroth
Max pull: 100kN
Max continuous pull: 90kN
Speed at max pull: 2.5km/h
Max speed: 5km/h
Pull at max speed: 40kN
Structure parameter
Bull-wheel diameter: 540mm
Groove number: 8
Max rope diameter : 21mm
Max diameter of rope reel: 1400mm
Total weight: 4350kg
Overall dimension (length*width*height): 4500×2100×2450mm
Engine
Diesel 118kw(158hp) Euro II, 4-stroke cycle, turbo-charged
Cooling system liquid, Electrical system 24V
Main configurations
Engine: Cummins
hydraulic pump: German Rexroth
Main motor: German Rexroth
speed reducer: German Rexroth
Tail bracket hoisting motor: American Eton
Hydraulic meter: German WIKA
Operating handle: German Rexroth
Performance parameter | max inMax intermittent pulling force | 100kn |
Max continous pulling force | 90kn | |
Corresponding speed | 2.5km/h | |
Max continous pulling speed | 5km/h | |
Corresponding pulling force | 40KN | |
Structure parameter | Puller wheel diameter | 540mm |
Groove number | 8 | |
Max diameter of applicable wire coil: | 1400mm | |
Main comfigurations | Engine | Cummins |
Main pump | German Rexroth |
Hydraulic Transmission
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads which may occur.
Configuration
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic front stabilizer
Grounding connection point
Additional Devices
Lighting system for the trailer
Hydraulic rope clamp for reel change
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter (extra charge)
The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.
Cable and radio remote control fully replacing all controls at machine panel.
Remote diagnosis via GSM network with GPS modem, Synchronization system
Hydraulic system for drum stand control with flat face quick action couplings
Auxiliary Hydraulic system (700/1000 bar) for power pressing tool
Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation
Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit
Manufacturer's workshop maintenance manual, in English
Manufacturer's recommended tools.
Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull
pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the
operation speed according to the friction and unexpected loads which may occur.
Configuration
Hydraulic dynamometer with set-point and automatic control of maximum pull
Hydraulic oil cooling system
Control instruments for hydraulic system and diesel engine
On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400
Hydraulic front stabilizer
Grounding connection point
Additional Devices
Lighting system for the trailer
Hydraulic rope clamp for reel change
Swivel guide rope roller
Trailer for towing at max speed of 30 km/h
Extra shaft
Digital speed and meter counter (extra charge)
The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.
Cable and radio remote control fully replacing all controls at machine panel.
Remote diagnosis via GSM network with GPS modem, Synchronization system
Hydraulic system for drum stand control with flat face quick action couplings
Auxiliary Hydraulic system (700/1000 bar) for power pressing tool
Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation
Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit
Manufacturer's workshop maintenance manual, in English
Manufacturer's recommended tools.
Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).
