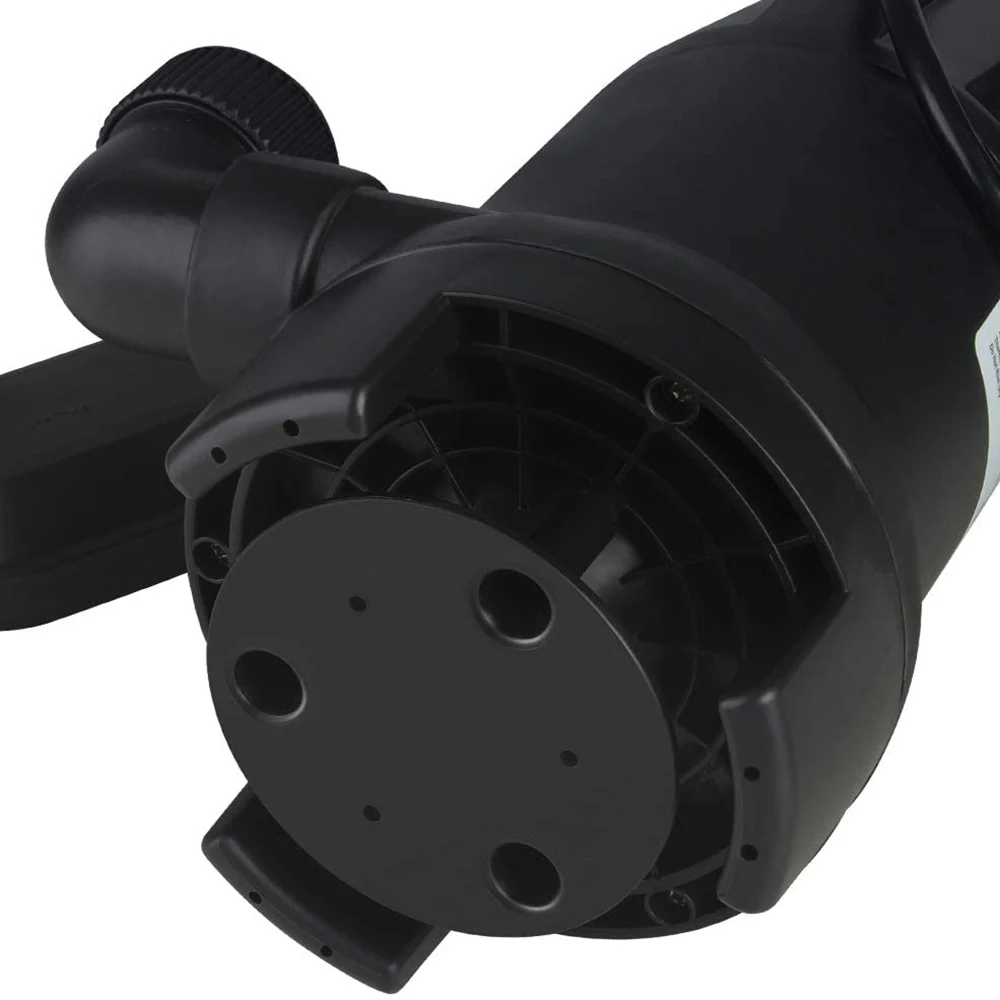

Large Horsepower Agriculture and Garden Irrigation Water Pump
- Category: >>>
- Supplier: Junhe Pumps Holding Co. Ltd.
Share on (1600976558309):
Product Overview
Description
Model: QXXXB3

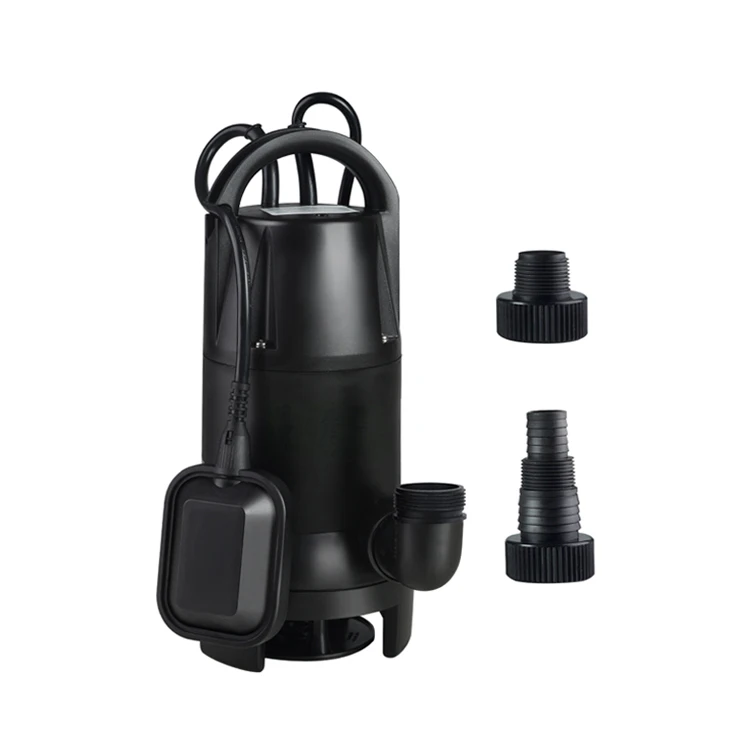

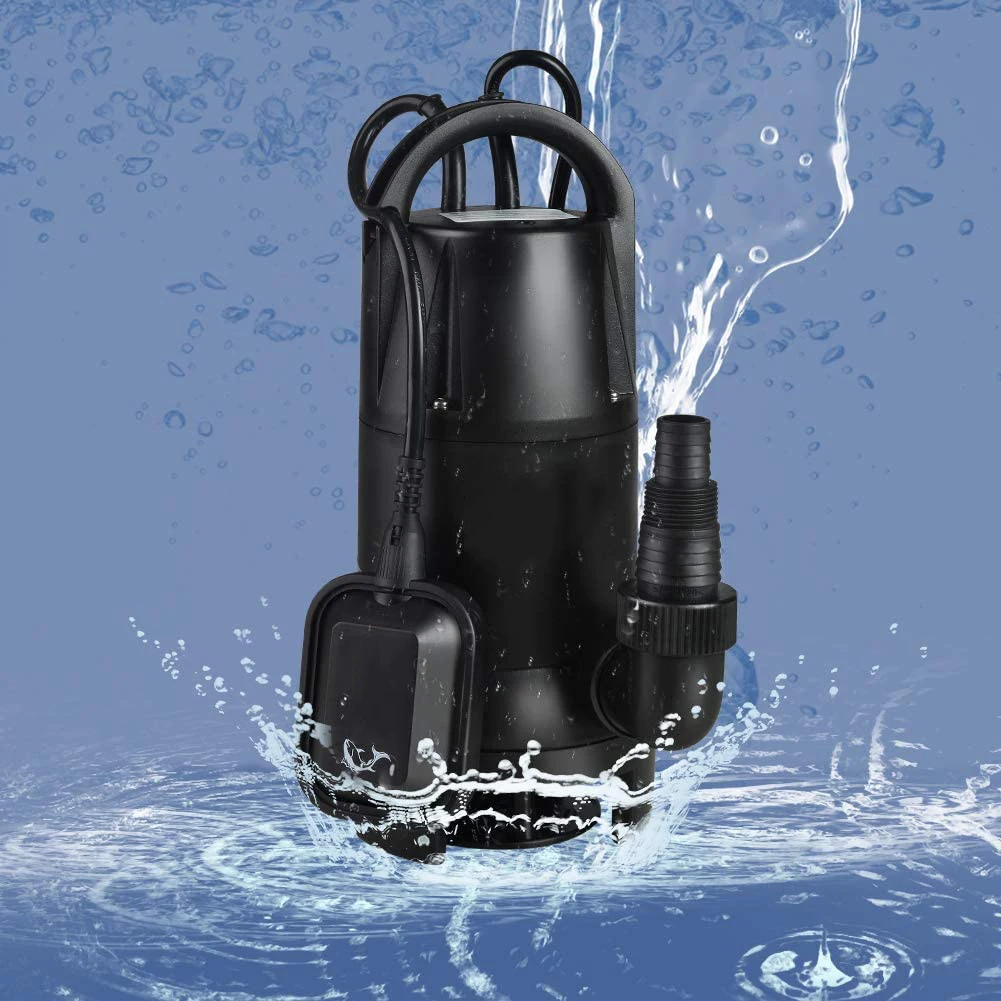

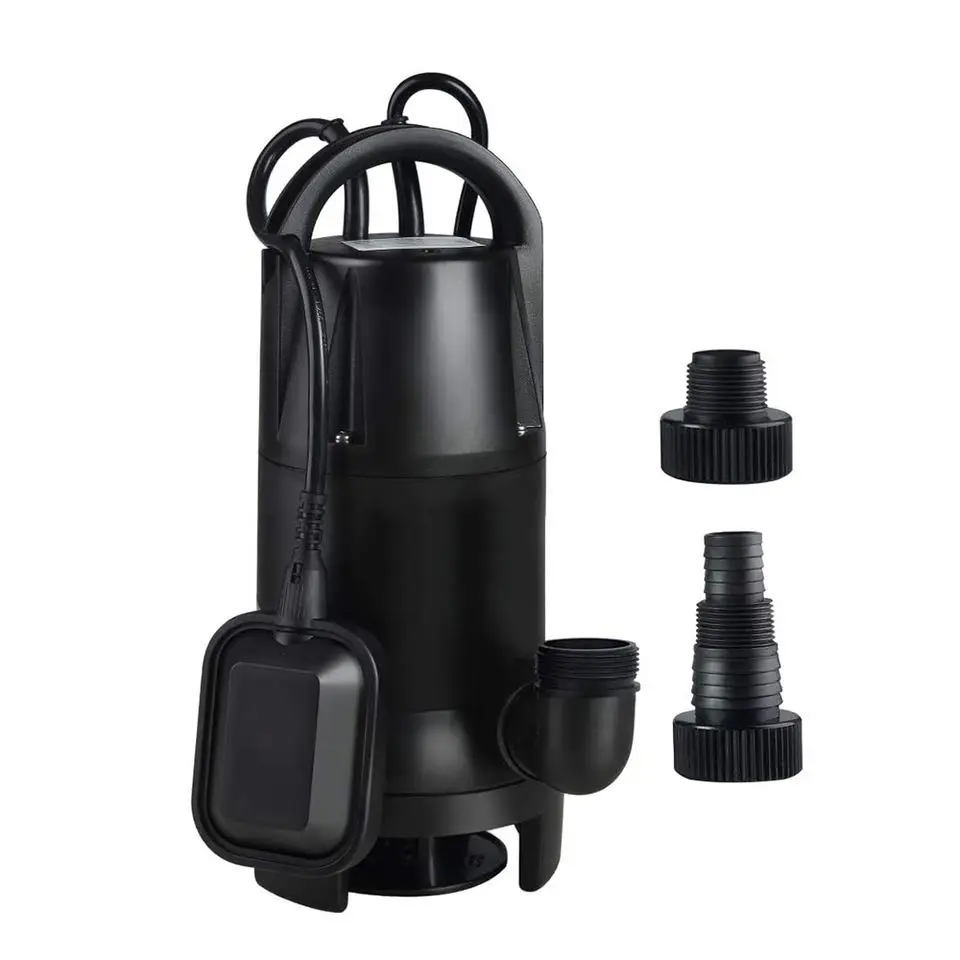

Submersible pump with plastic pump housing and floater switch for clean water application only. It is one of the best selling plastic pumps in Junhe.
PARAMETER
Model No | Q400B3 | Q550B3 | Q750B3 | Q900B3 | |||
Rated Power | 400W | 550W | 750W | 900W | |||
Max.pump height | 5.0m | 7.0m | 8.0m | 8.5m | |||
Max.pump rate | 8000l/h | 10000l/h | 13000l/h | 14000l/h | |||
Max.submersible depth | 7m | ||||||
Max.grain size | 30mm | 35mm | |||||
Max.pressure | 0. 5bar | 0. 7bar | 0. 8bar | 0. 85bar | |||

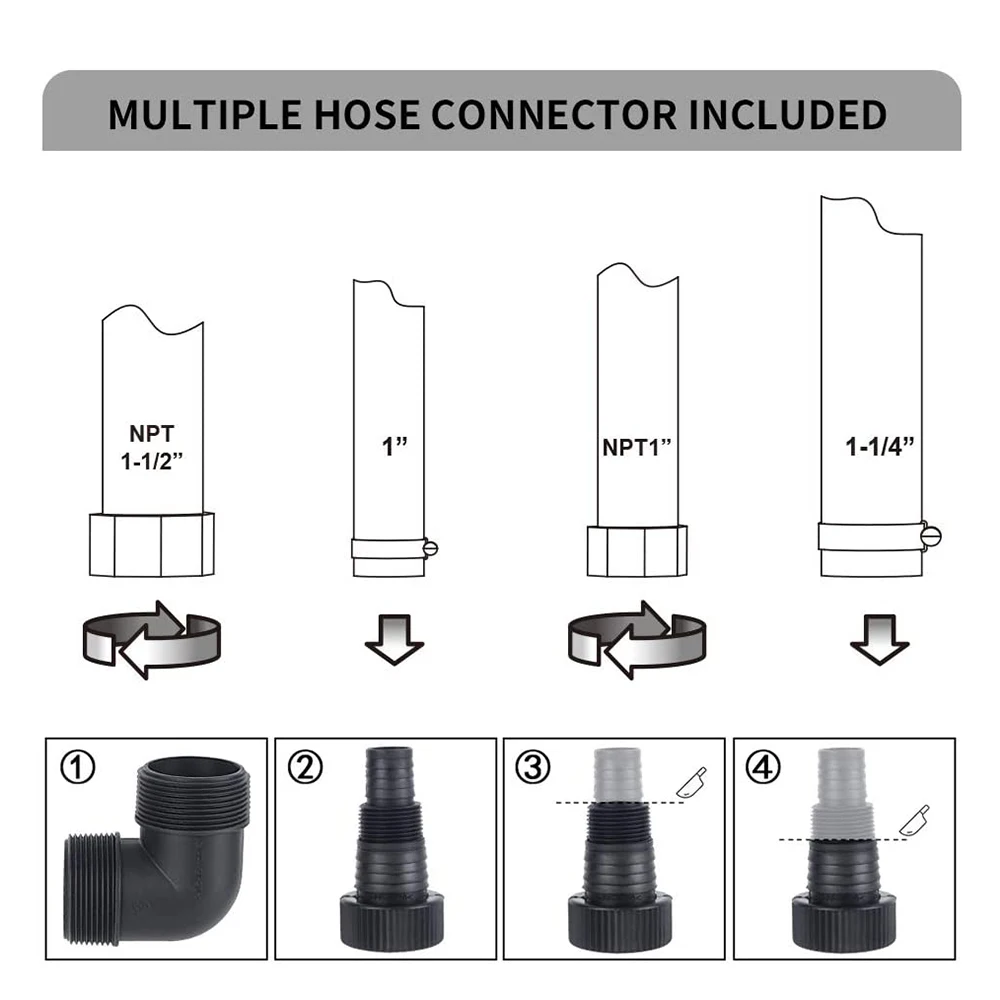

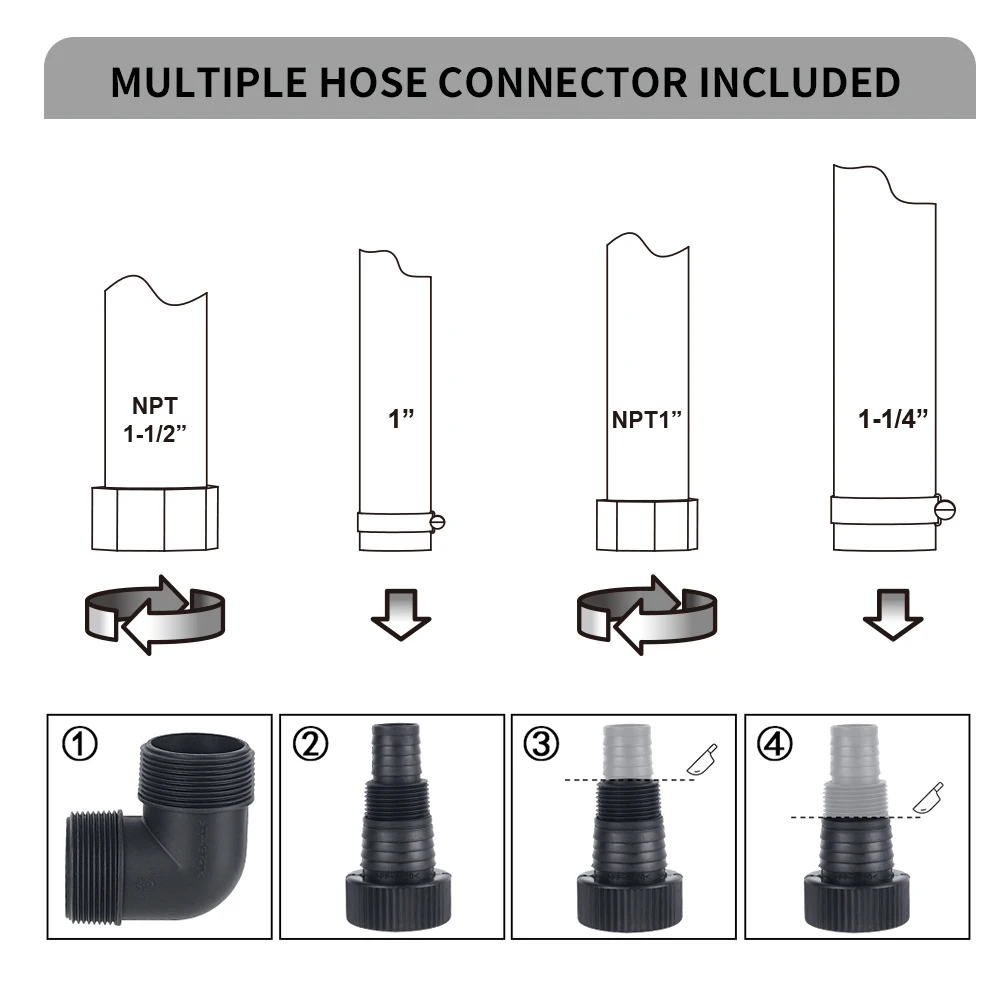

Dia of connecting pipe. | 1"G1"1-1/4"G1-1/2" | ||||||
Cable specification | HO5RN-F3G0.75mm² | HO5RN-F3G1.0mm² | |||||
Length of cable | 10m | ||||||
Lowerst pump starting level | 135mm | 145mm | 145mm | 155mm | |||
Lowerst pump sucking level | 37mm | ||||||
Max.medium temperature | 35℃ | ||||||
Qty in carton box | 4pcs | ||||||
Master carton box size | 46x34x37cm | 46x34x39cm | |||||
Master carton box gross weight | 18.4kg | 21.7kg | 22.3kg | 24kg | |||
Qty/20’GP | 1888pcs | 1672pcs | |||||
Pump
●Protection class:IPX8
●Max.medium temperature:95℉
●Plastic pump body
●Dia of connectiong pipe:G1"
Motor
● Insulation class:E
● AISI 410 shaft

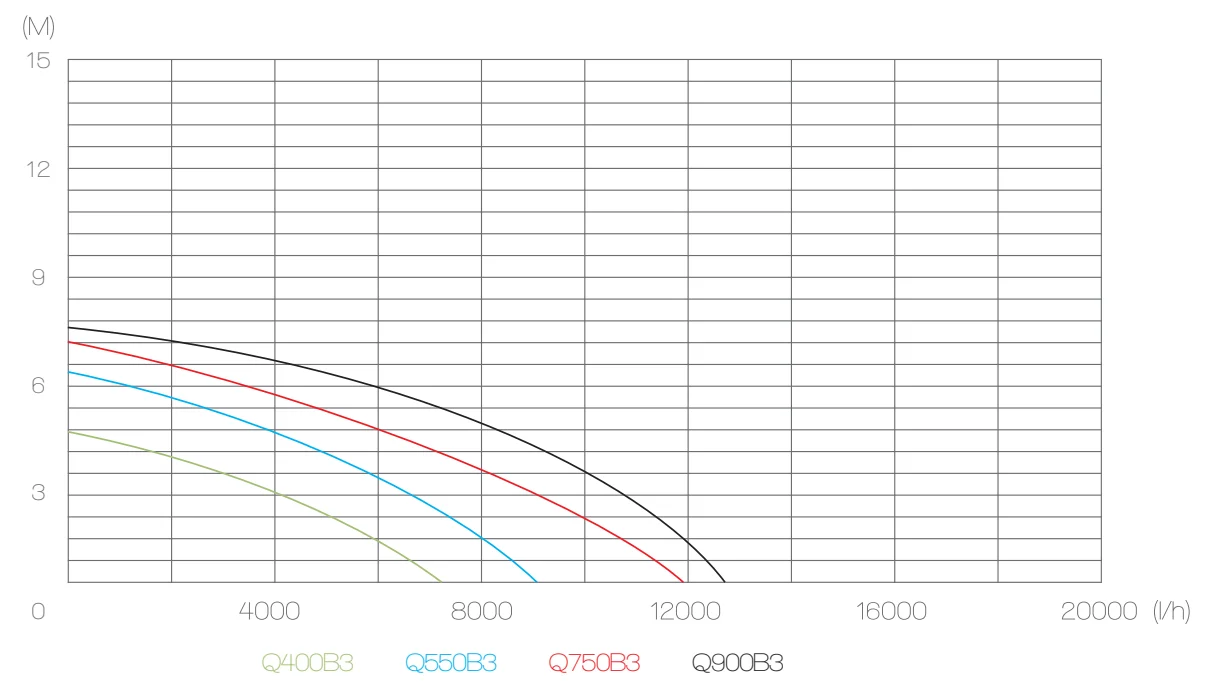

Hydraulic Performance Curves

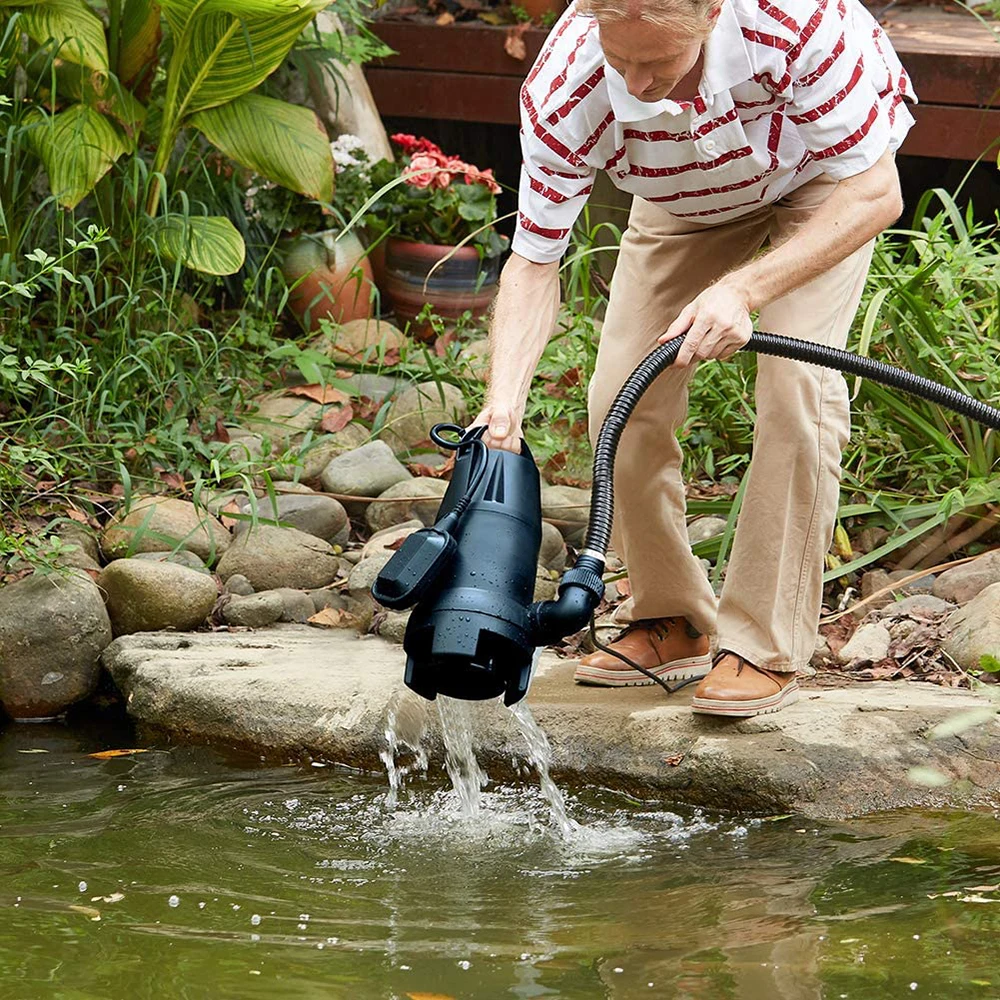

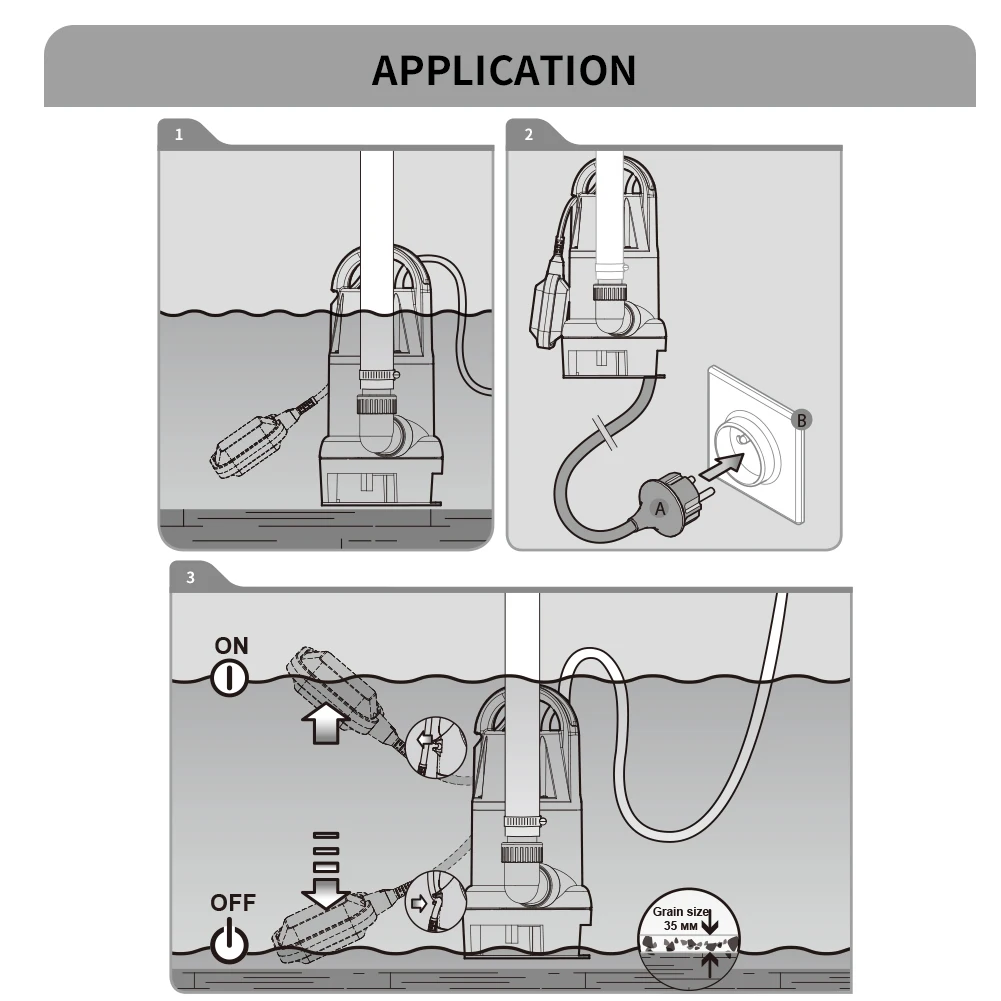

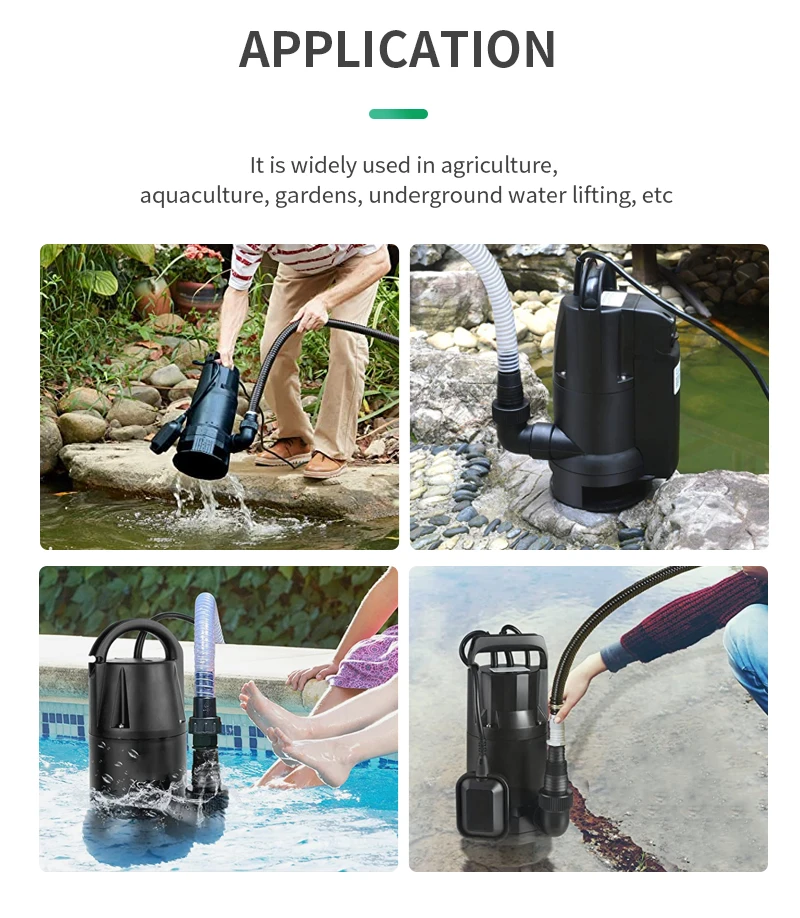

Application
Production Process
