Ash Control Filter Cartridge Sawdust Removal System Wood Dust Collector for Filter Bag Wood engraving machine vacuum cleaner
- Category: >>>
- Supplier: Wuxi York Intelligent Technology Co. Ltd.Wuxi Ltd.
Share on (1600976716427):
Product Overview
Description
Product Description
Introduction
YK Simple bag dust collector is used on bench saw, engraving machine, edge banding machine and other machines, with affordable price and good dust absorption effect; Due to the continuous updating of technology, when the appearance and machine bottom plate adopt 1.5mm thick iron plate, other parts are 1mm; Surface spray treatment, scratch resistance, corrosion resistance, longer service life; With the same power, our products have larger air volume, mobility, good randomness, good dust collection effect, more dust points, more color.
Powerful, portable, and makes your shop a cleaner, healthier, more productive environment.
Powerful, portable, and makes your shop a cleaner, healthier, more productive environment.

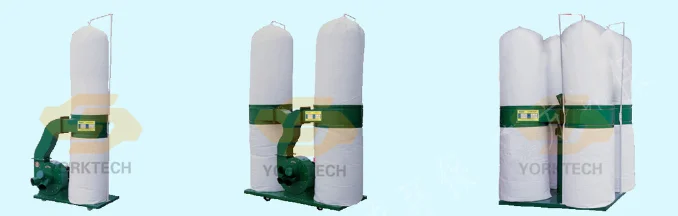

Product Specifications
Classification | Model | Power（kw） | Air volume（m³/h） | Filter bag (mm) | Vacuum cleaner（mm） | Efficiency (%) | Reference Dimensions (mm) | Weight (kg) |
Single bag | YK1022 | 2.2 | 2000 | Φ470*2 | Φ150/Φ100*3 | ≥85% | 950*550*1800 | 40 |
Double bags | YK2030 | 3.0 | 2500 | Φ470*4 | Φ150/Φ100*3 | ≥85% | 1200*550*1800 | 55 |
YK2040 | 4.0 | 3200 | Φ630*4 | Φ200/Φ100*4 | ≥85% | 1400*750*2000 | 76 | |
YK2055 | 5.5 | 4000 | Φ630*4 | Φ250/Φ100*6 | ≥85% | 1400*750*2000 | 86 | |
YK2075 | 7.5 | 5600 | Φ630*4 | Φ250/Φ100*6 | ≥85% | 1400*750*2000 | 90 | |
Four bags | YK4055 | 5.5 | 4200 | Φ630*8 | Φ300/Φ100*6 | ≥85% | 1400*1400*2000 | 160 |
YK4075 | 7.5 | 6000 | Φ630*8 | Φ300/Φ100*6 | ≥85% | 1400*1400*2000 | 165 |
Working principle & Features
When the dusty gas enters from the inlet of the mobile bag filter, it enters each
unit chamber through the guide pipe. Under the action of the guide device, the large particle dust is separated and directly falls into the ash hopper, and the rest of the dust enters the filter bag in the filter area of each bin chamber evenly with the air flow. When the dusty gas passes through the filter bag, the dust is adsorbed on the filter bag, The purified gas is discharged from the filter bag.
unit chamber through the guide pipe. Under the action of the guide device, the large particle dust is separated and directly falls into the ash hopper, and the rest of the dust enters the filter bag in the filter area of each bin chamber evenly with the air flow. When the dusty gas passes through the filter bag, the dust is adsorbed on the filter bag, The purified gas is discharged from the filter bag.
Features
1).Adopting high quality cold plate mould stamping moulding, simple structure, easy operation and maintenance management.
2).Increase a number of dust suction port, at the same time more machine vacuum, the bottom plate set casters can be moved flexibly.

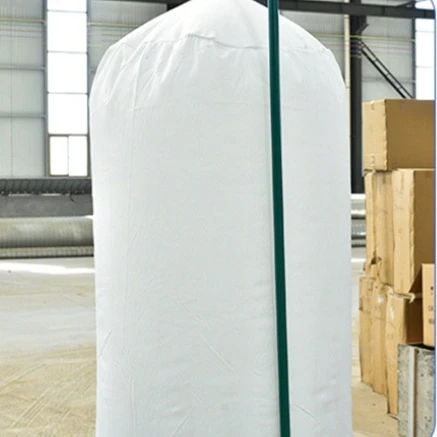

3).The bag is made of synthetic fibre filter cloth sewing, many times can be reused to dismantle and wash, economical and affordable.
4).The fan is balanced and corrected, smooth running, low noise; the motor is made of copper wire for durability.
2).Increase a number of dust suction port, at the same time more machine vacuum, the bottom plate set casters can be moved flexibly.
3).The bag is made of synthetic fibre filter cloth sewing, many times can be reused to dismantle and wash, economical and affordable.
4).The fan is balanced and corrected, smooth running, low noise; the motor is made of copper wire for durability.

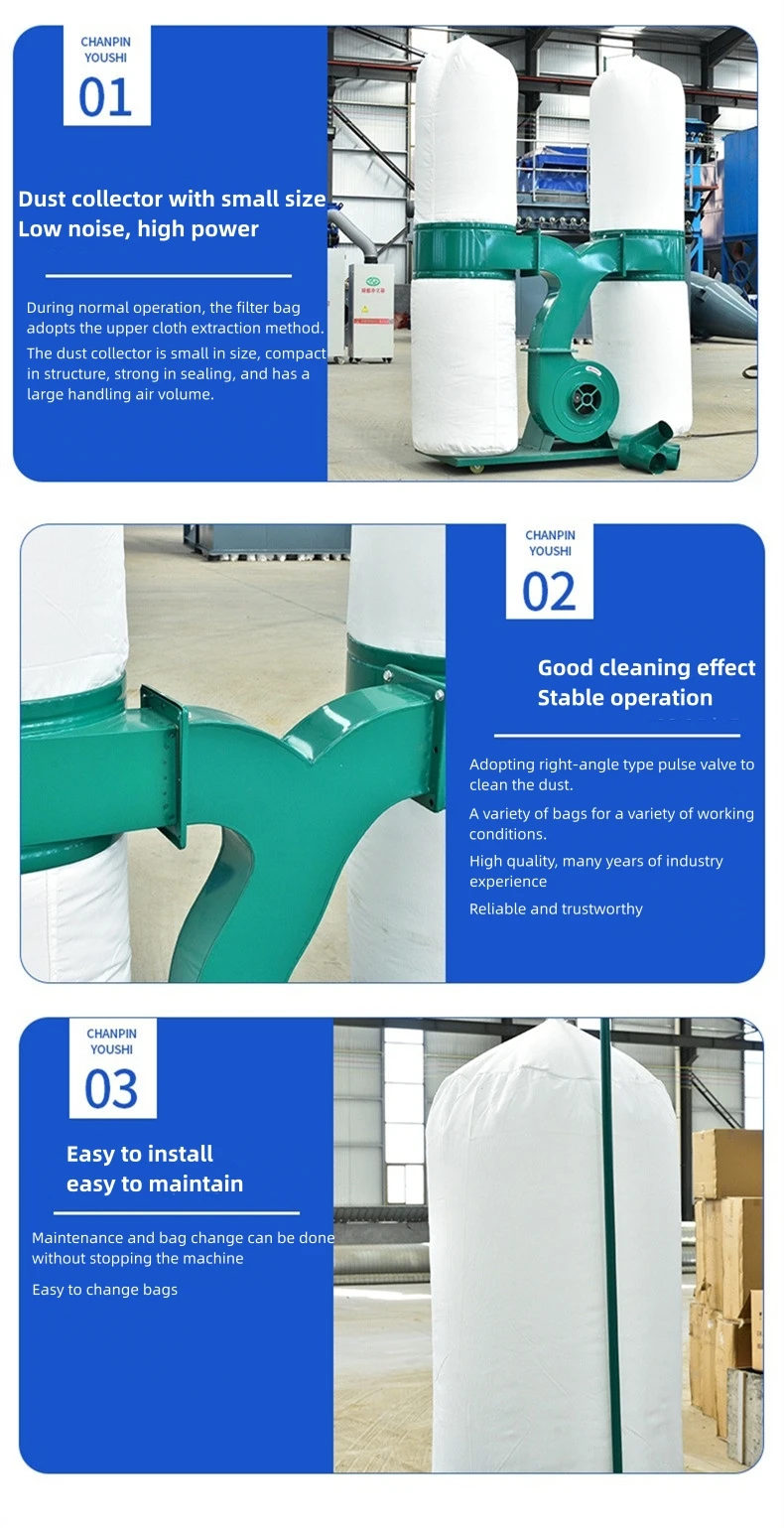

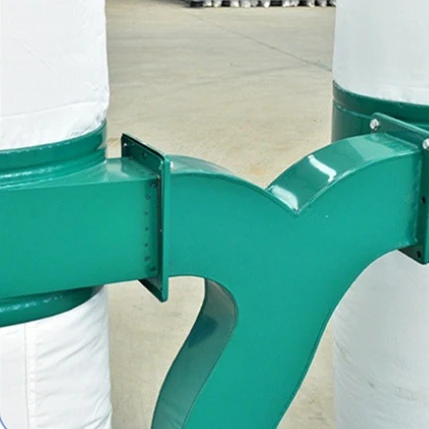

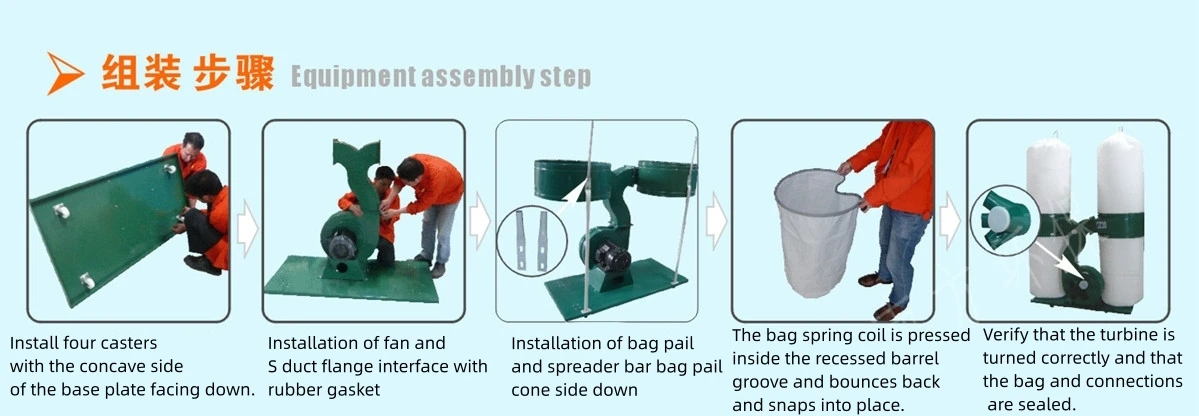

Product Details

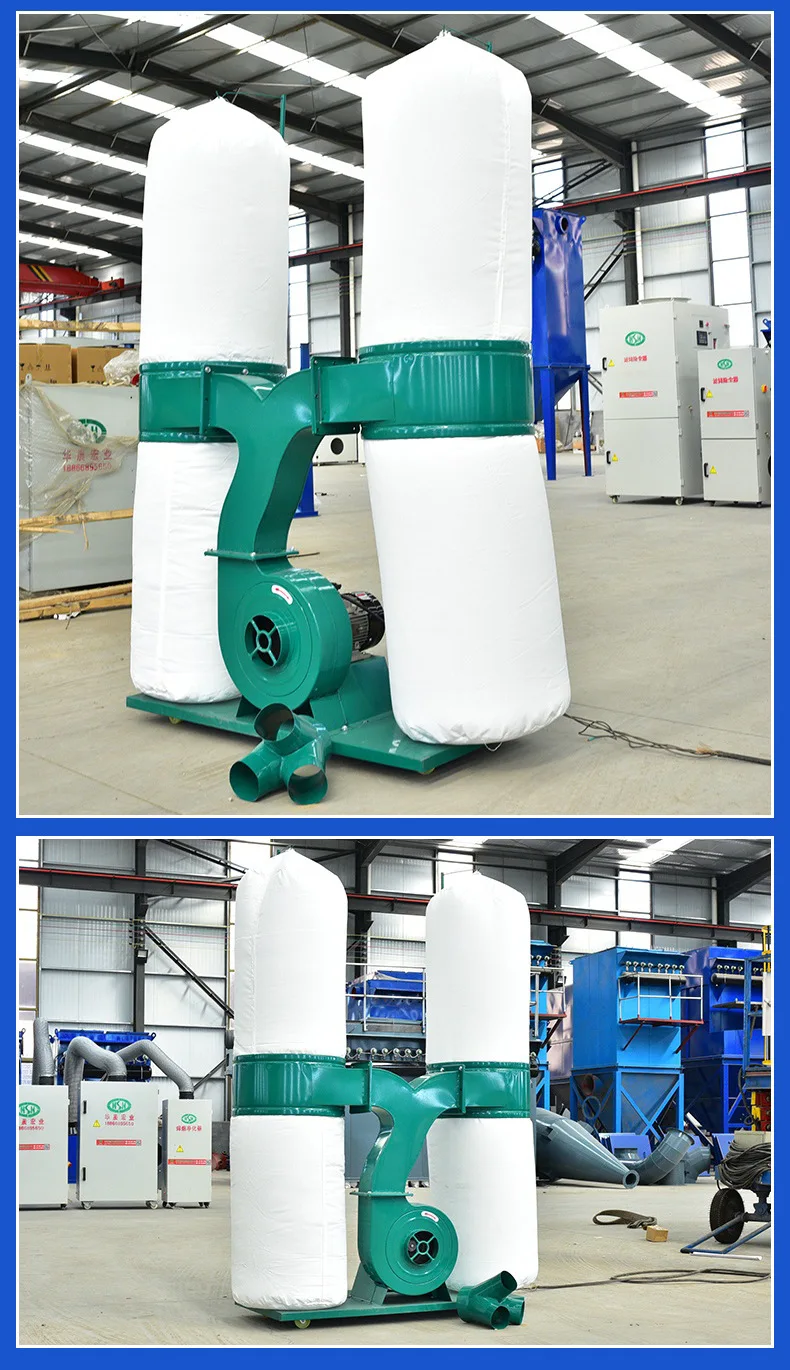

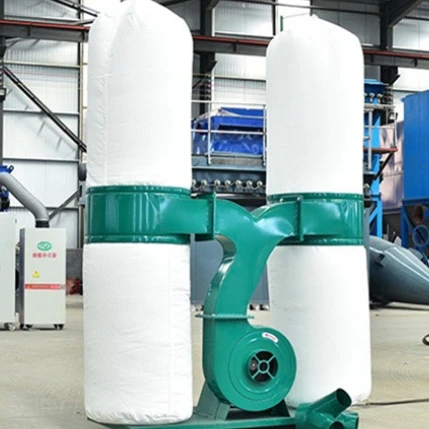

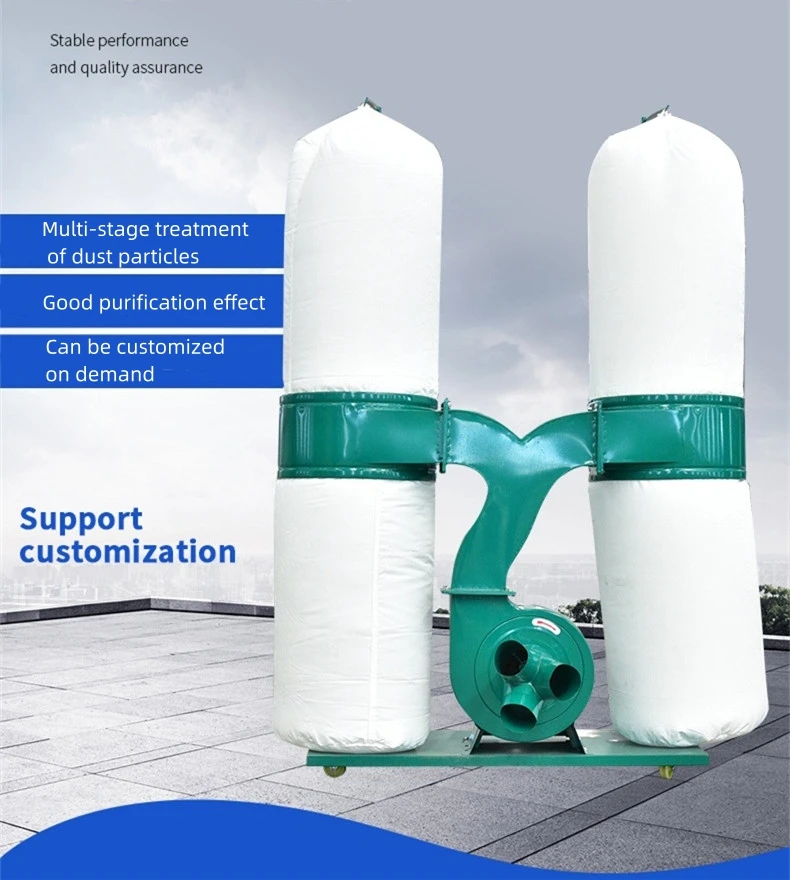

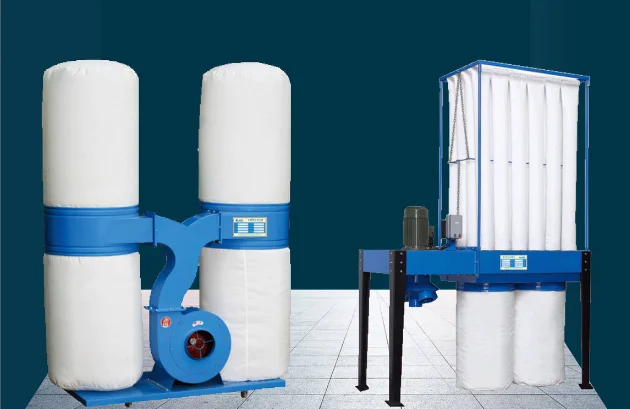

Product display

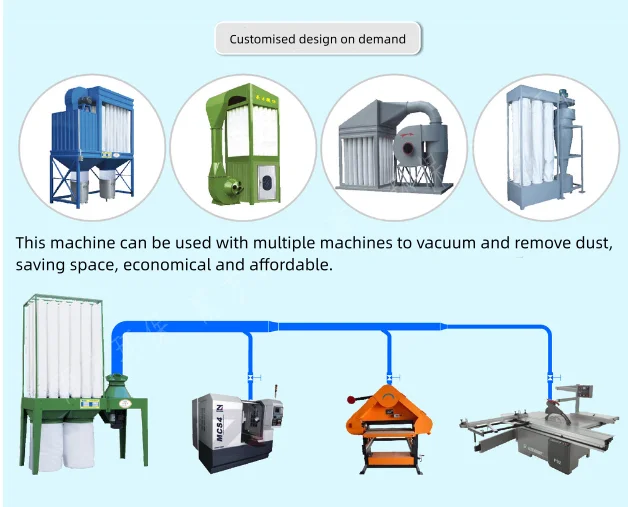

Application range

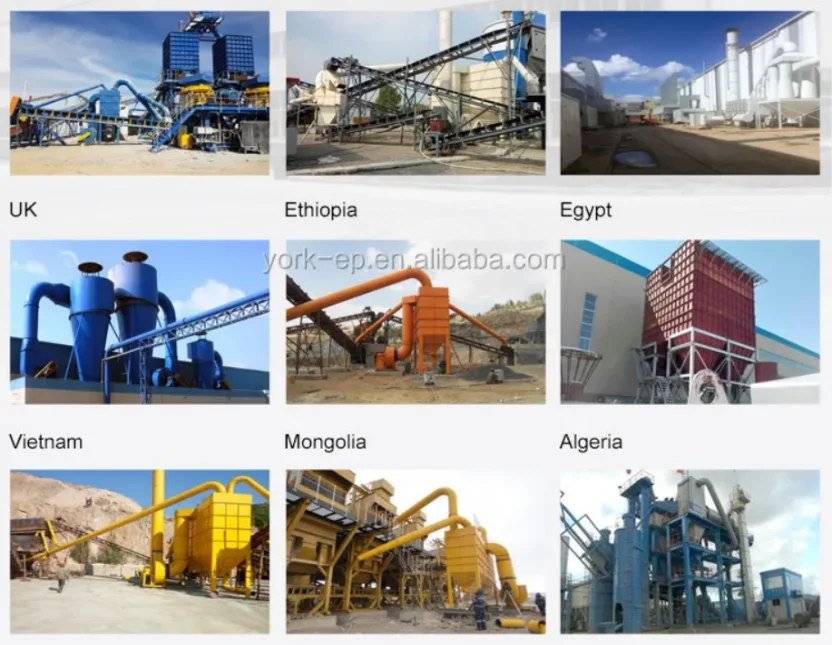

YORK Dust collector at customers’ site & Customers visit
Certifications
Company Profile

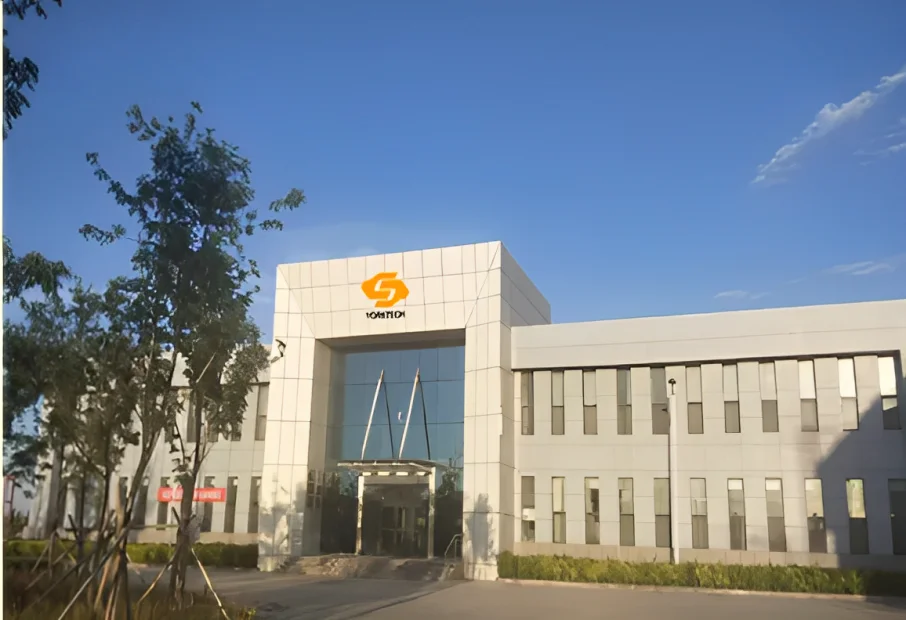

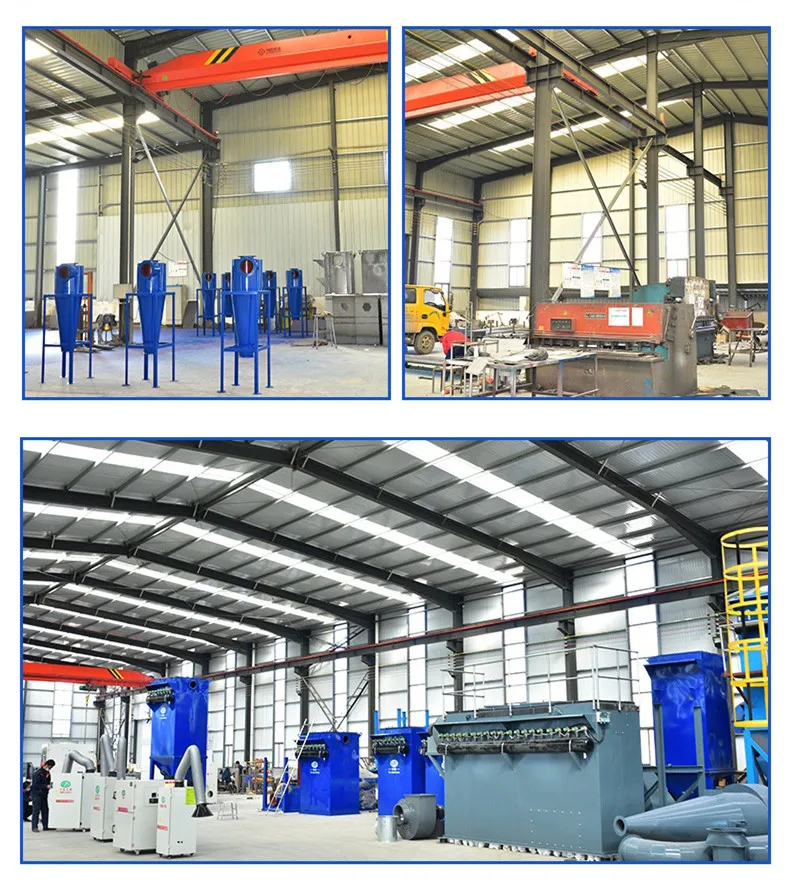

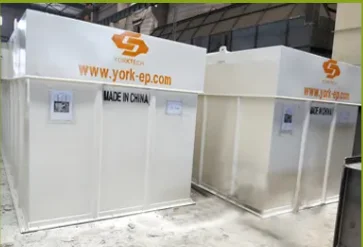

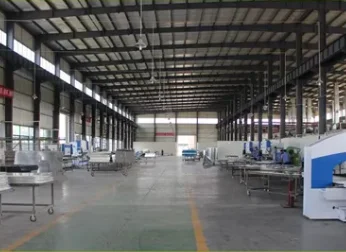

Our Factory
Our Team
Established in 2008, located in Wuxi New- district Industrial Park, in Wuxi City, Jiangsu province.
Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,
market developing and service.
YORK group own 3 subsidiary companies
1.YORK Environmental Protection Machinery, specialize in design, R&D and manufacture
all kinds of dust collector, fume extractor and duct cleaning machine etc.
Wuxi YORK is a comprehensive enterprises which integrates researching, manufacturing,
market developing and service.
YORK group own 3 subsidiary companies
1.YORK Environmental Protection Machinery, specialize in design, R&D and manufacture
all kinds of dust collector, fume extractor and duct cleaning machine etc.
2.YORK Automatic Machinery, specialize in different customized automatic equipment,
which covers food equipment and automatic assembly lines.
3.YORK Mining Machinery, specialize in different cross belt sampler, belt sampling system,
belt scale and conveyor feeders etc.
YORK own 4 factories and 2 business centers and nearly 100 employees.
We have 3 overseas offices, which are located in Saudi Arabia, Pakistan and Bangladesh.
Our products are popular all over the world.
YORK own 4 factories and 2 business centers and nearly 100 employees.
We have 3 overseas offices, which are located in Saudi Arabia, Pakistan and Bangladesh.
Our products are popular all over the world.

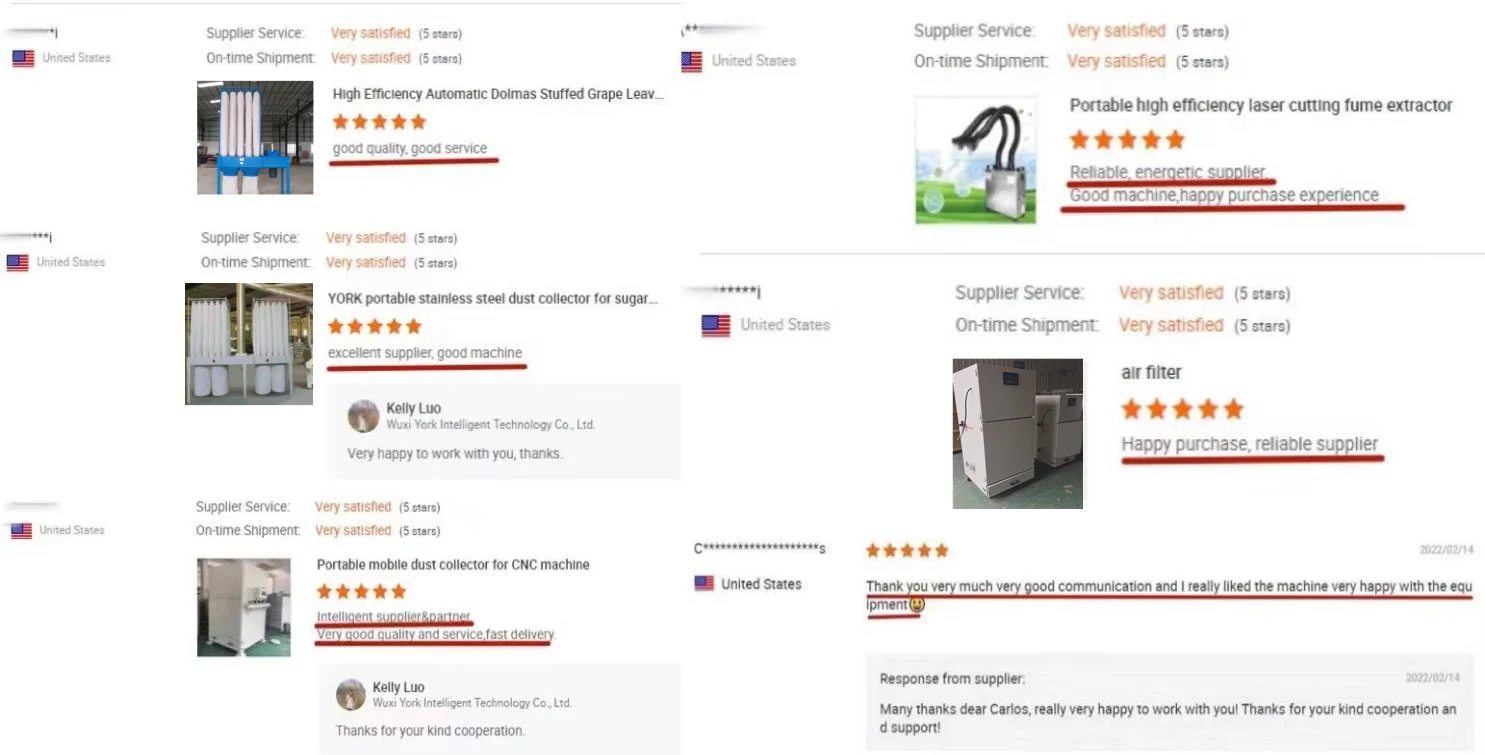

Customers feedback
