Best quality high pressure 5 gallon water bottle cleaning washing machine
- Category: >>>
- Supplier: Zhangjiagang Grandee Machinery Co. Ltd.
Share on (1600976808538):
Product Overview
Description
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

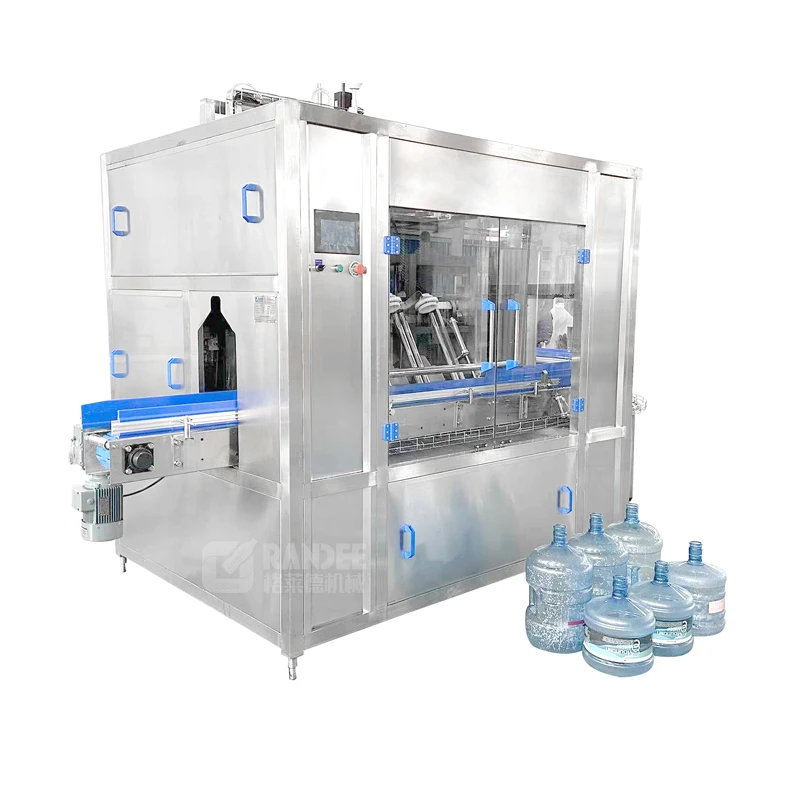

5 Gallon Rotary Washing Machine

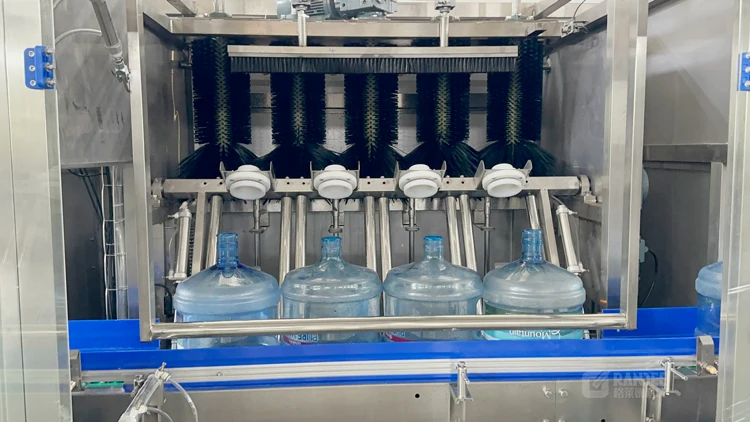

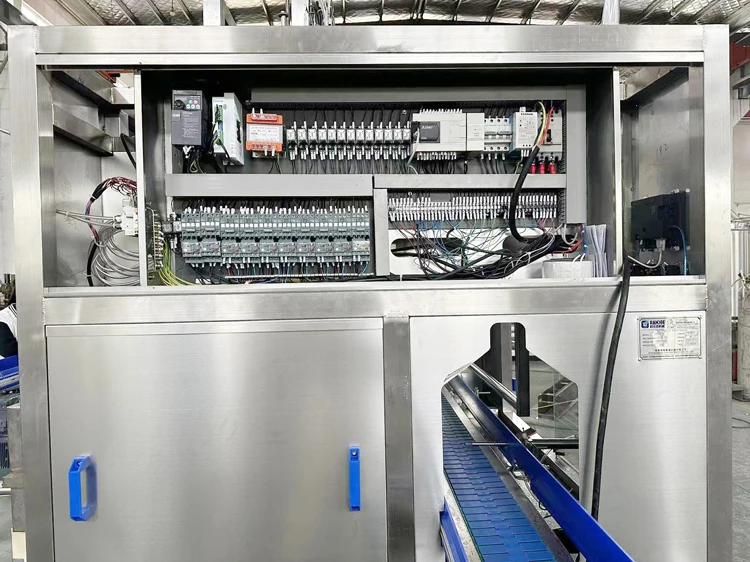

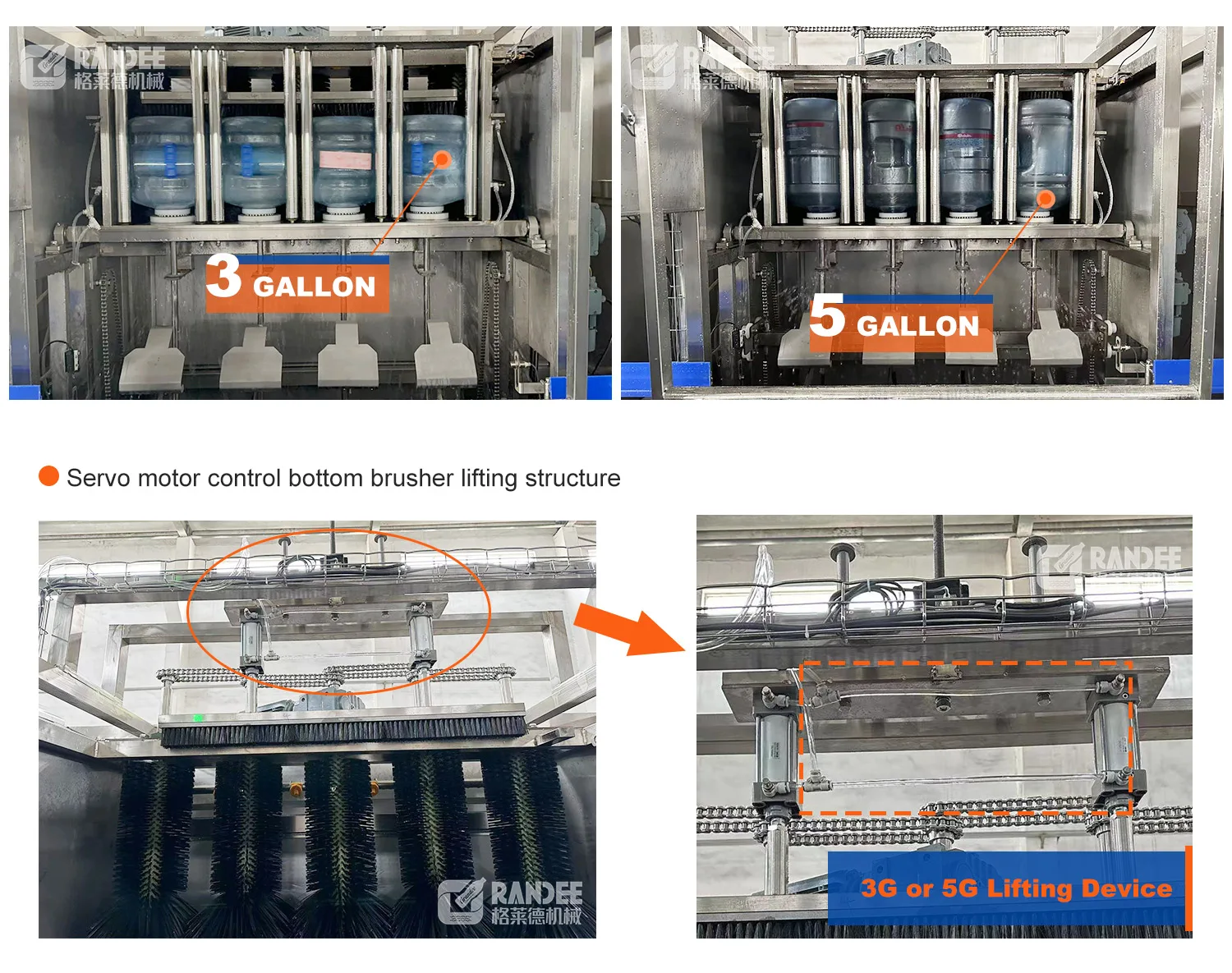

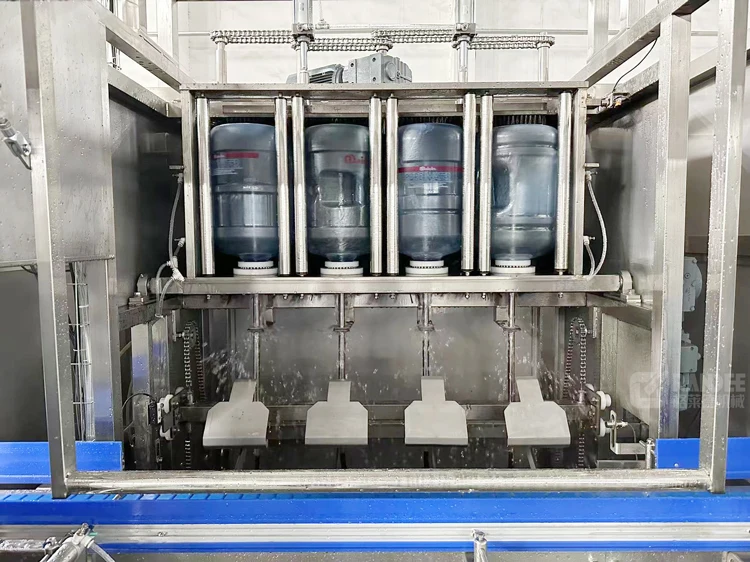

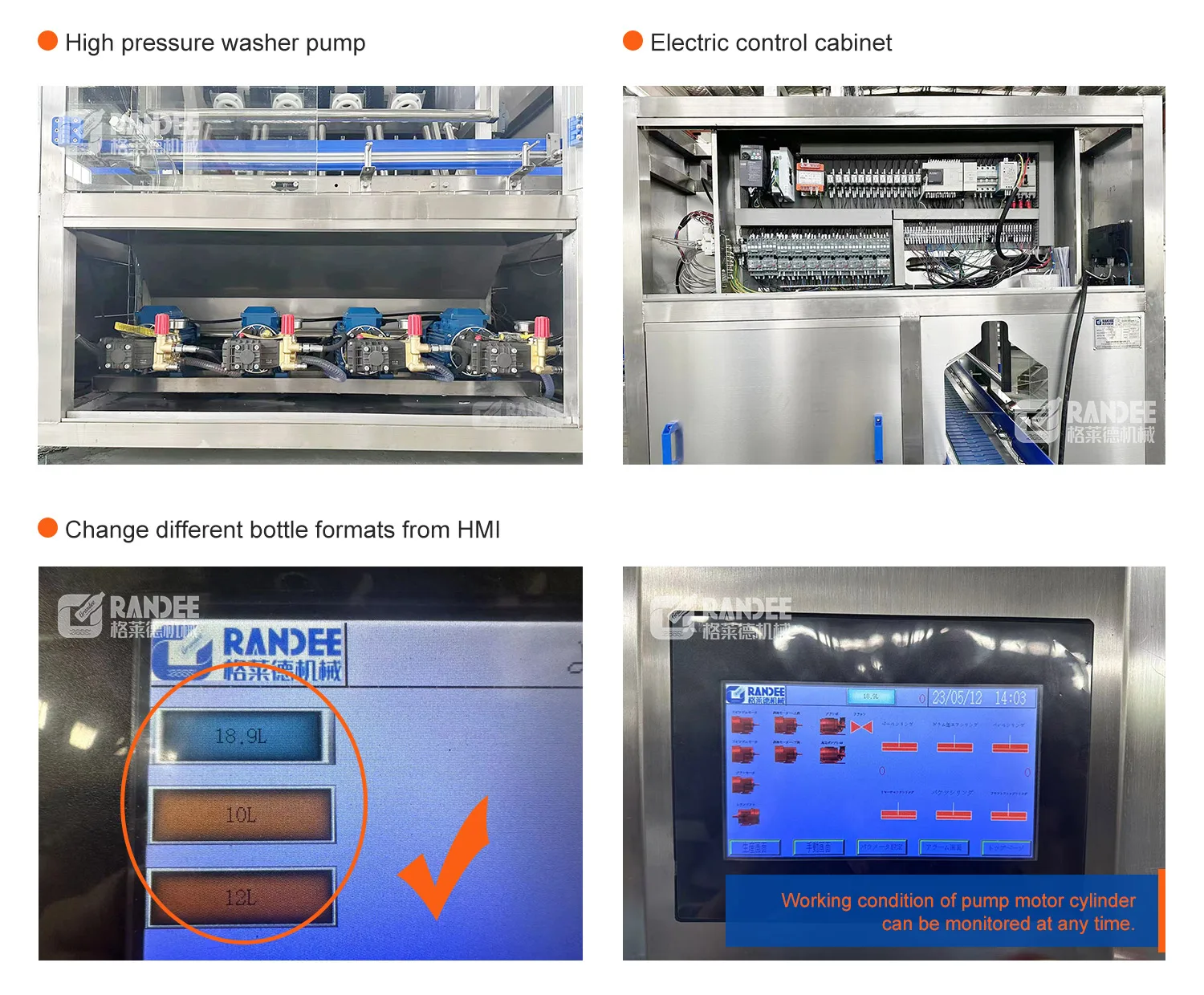

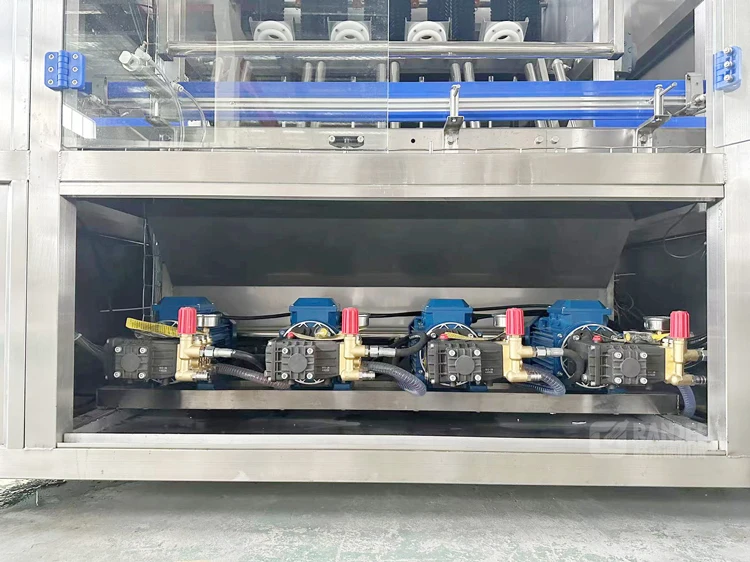

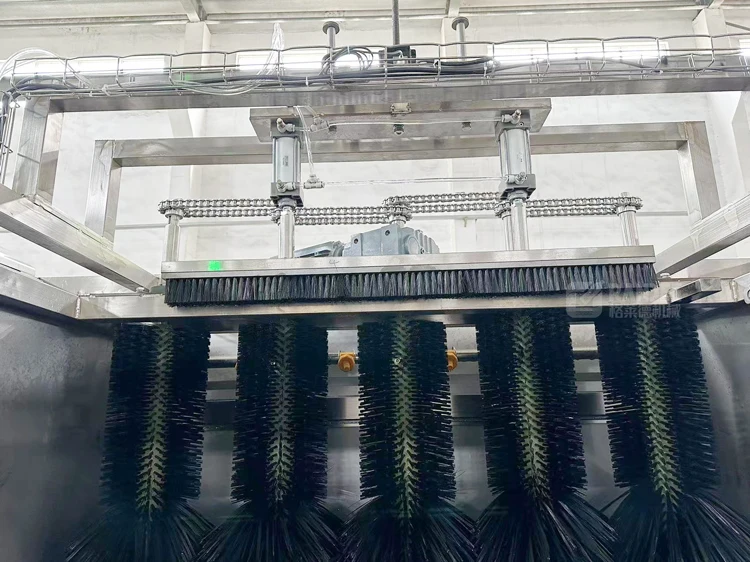

The whole machine is relatively closed to prevent water from spilling out. When the bottle is sent to the washing bottle position by conveyor belt, the manipulator send the barrel to the lifting position of the washing bottle, the lifting device will lift the bottle to the washing bottle position, the bottom brush will rise, clamping the bottle by the manipulator, at the same time the brush and high pressure pump started, continuous injection of the barrel body, the bottle rotates with the brush, completely clean bottle body, bottle neck, bottle bottom and bottle inside by brush and water. After the cleaning is completed, the lifting device and manipulator will send the bottle to the conveyor belt, the bottle is sent to the next process by conveyor belt. The whole machine is controlled by PLC and equipped with independent control electrical box.

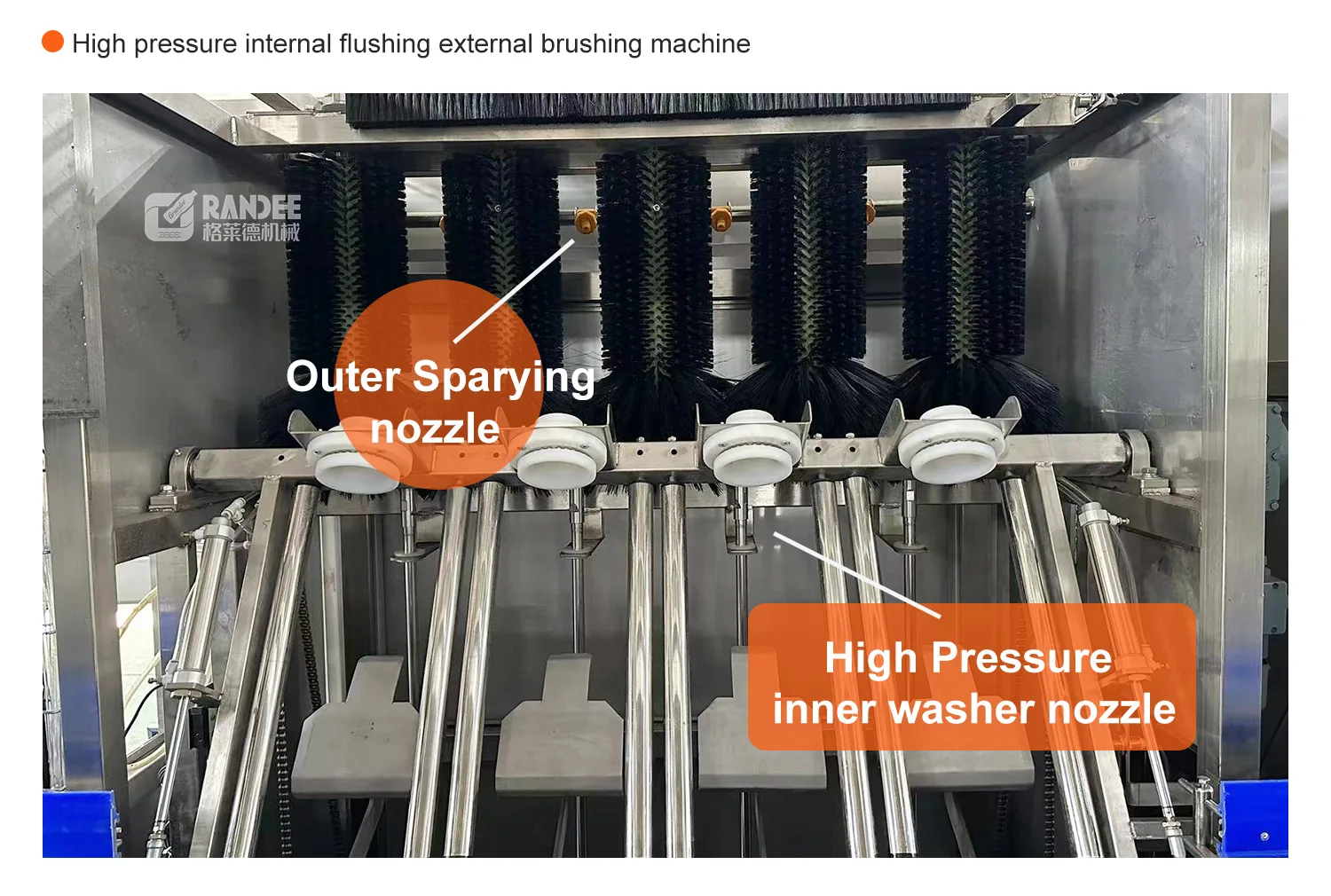

The inside brushing adopts 360° rotating high-pressure nozzle for washing, without dead Angle, it can clean the visible in the barrel and solve the problem of losing hair in the barrel. It is the best supporting equipment for automatic filling machine with high automatic, low labor cost, simple operation and convenient maintenance.
Main technical parameter
Model | STNW-2 | STNW-3 | STNW-4 | STNW-5 | STNW-6 | STNW-8 | STNW-9 | ||||||
Capacity (18.9/BPH) | 150-200 | 200-300 | 400-450 | 550-600 | 750-800 | 900-1000 | 1000-1200 | ||||||
Suitable bottle shape and size | 10L 18.9L bottle (3&5 Gallon) | ||||||||||||
Compressed air pressure | 0.3-0.7MPa | ||||||||||||
Bottle washing medium | Sterile water | ||||||||||||
Washing pressure | 0.25MPa | ||||||||||||
Numbers of high pressure water pump | 2 | 3 | 4 | 5 | 6 | 8 | 9 | ||||||
Main motor (KW) | 1.5 | 9 | 12 | 18 | 20 | 24 | 27 | ||||||
Dimension(mm) | 1870*1550*2300 | 2050*1590*2500 | 2250*1620*2500 | 2430*1700*2300 | 2750*1720*2300 | 3100*1750*2500 | 3300*2000*2500 | ||||||
Weight(KG) | 600 | 800 | 1000 | 1500 | 2000 | 2500 | 3000 | ||||||
For more information, please feel free to contact us to send an inquiry!
Turnkey Solution

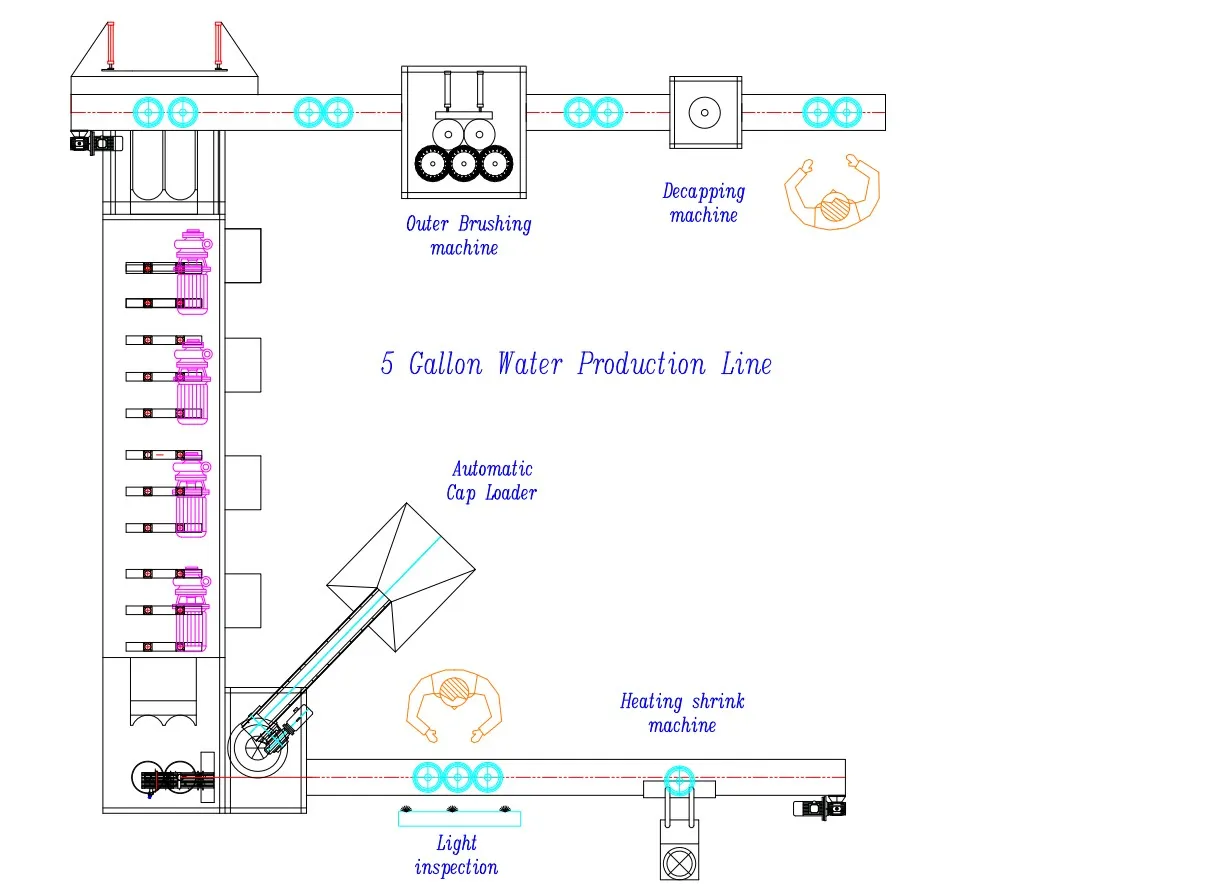

1.Decapping machine 2. bottle interior and exterior washing machine 3. 5 gallon washing filling capping machine 4. Sleeve shrink labeling machine 5. Bag packing machine 6. Palletizer
Recommend Products
High Speed PE Film Shrink Packing Machine
Packing speed: 22-28bags/min
Automatic Sleeve Shrink Labeling Machine
1. signle head or double heads available
2. Output: 150-350bottles/min
2. Output: 150-350bottles/min
Automatic PE Film Shrink Packing Machine
Speed: 8-10bags/min
Company Profile
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
We have a professional pre-sales support and good after-sales service team. They are good at communicating, expressing, and understanding customer’s needs. The average working experience is more than 10 years. They have rich experience for installation and debugging, and provide thoughtful services and solutions.
We have laser cutting, CNC machining centers, and other various processing equipment to provide customers with precise and reliable products. The ERP system provides an important resource integration path for production management and ensures production and delivery cycles.
