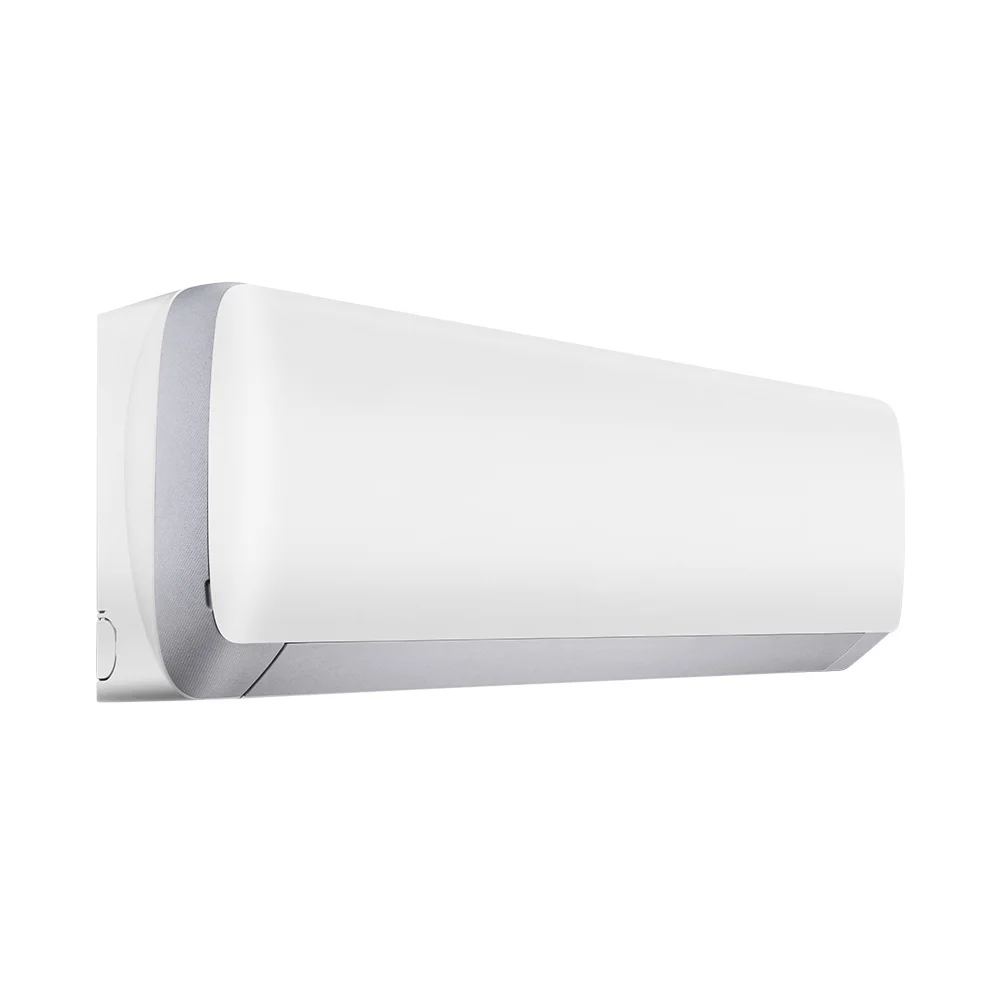

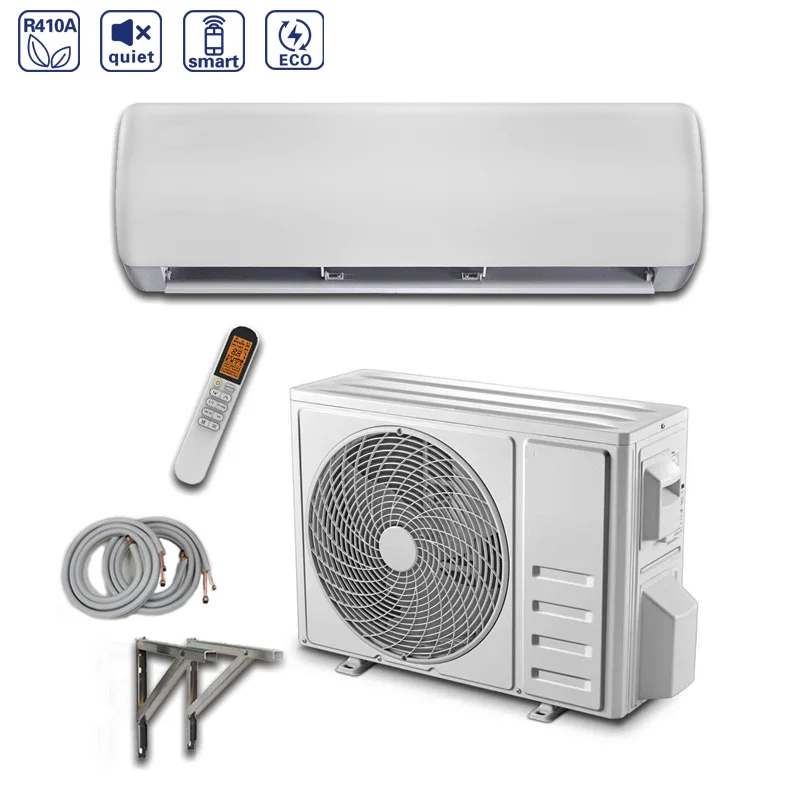

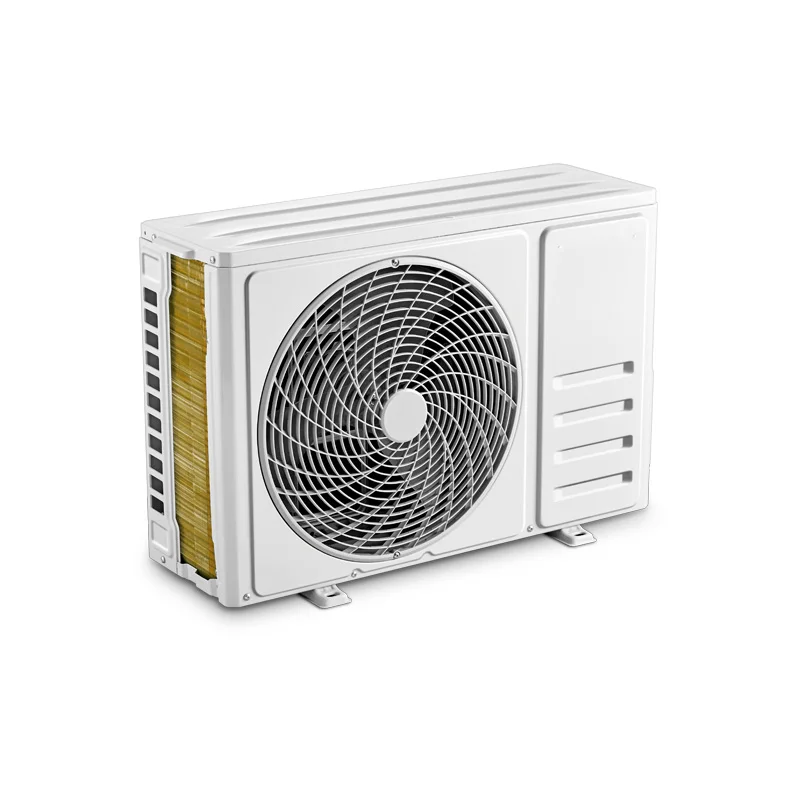

Manufacturers direct selling 220 240V mini split 50hz 60hz R410a 12000btu 1.5HP smart air conditioner for home
- Category: >>>
- Supplier: Shenzhen Midas Electronics Co. Ltd.
Share on (1600977011824):
Product Overview
Description
Power supply | Ph-V-Hz | 220-240V- 50Hz, 1Ph | ||
Cooling | Capacity | Btu/h | 12000 | |
Input | W | 1170 | ||
Rated current | A | 5.4 | ||
EER | W/W | 3.00 | ||
Heating | Capacity | Btu/h | 12000 | |
Input | W | 1170 | ||
Rated current | A | 5.4 | ||
COP | W/W | 3.00 | ||
Max. input consumption | W | 1600 | ||
Max. current | A | 7.0 | ||
Starting current | A | 26.7 | ||
Compressor | Model | PA145G1C-4FT | ||
Type | ROTARY | |||
Brand | GMCC | |||
Capacity | Btu/h | 12403/12488 | ||
Input | W | 1245/1345 | ||
Rated current(RLA) | A | 6.05/6.50 | ||
Locked rotor Amp(LRA) | A | 26.7 | ||
Thermal protector | ---- | |||
Thermal protector position | INTERNAL | |||
Capacitor | uF | 35 | ||
Refrigerant oil/oil charge | ml | ESTER OIL VG74/400 | ||
Indoor fan motor | Model | RPG20E | ||
Input | W | 45 | ||
Capacitor | uF | 1.5 | ||
Speed(Hi/Mi/Lo) | r/min | 1200 / 1050 / 800 | ||
Indoor coil | a.Number of rows | 1/2 | ||
b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
c.Fin spacing | mm | 1.2 | ||
d.Fin type (code) | Hydrophilic aluminium | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||
f.Coil length x height x width | mm | 621x84x13.37+621x210x26.74 | ||
g.Number of circuits | 2 | |||
Indoor air flow (Hi/Mi/Lo) | m3/h | 600/530/400 | ||
Indoor noise level (Hi/Mi/Lo) | dB(A) | 41/37/31 | ||

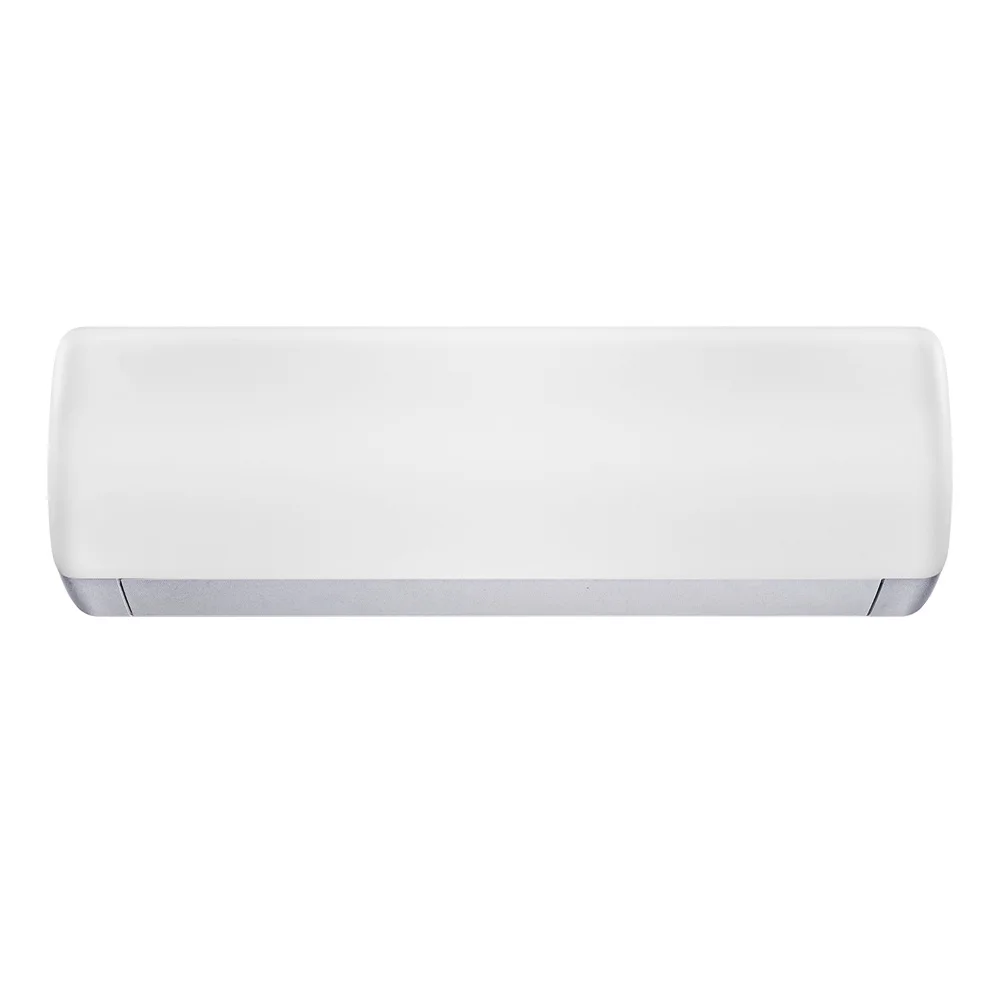

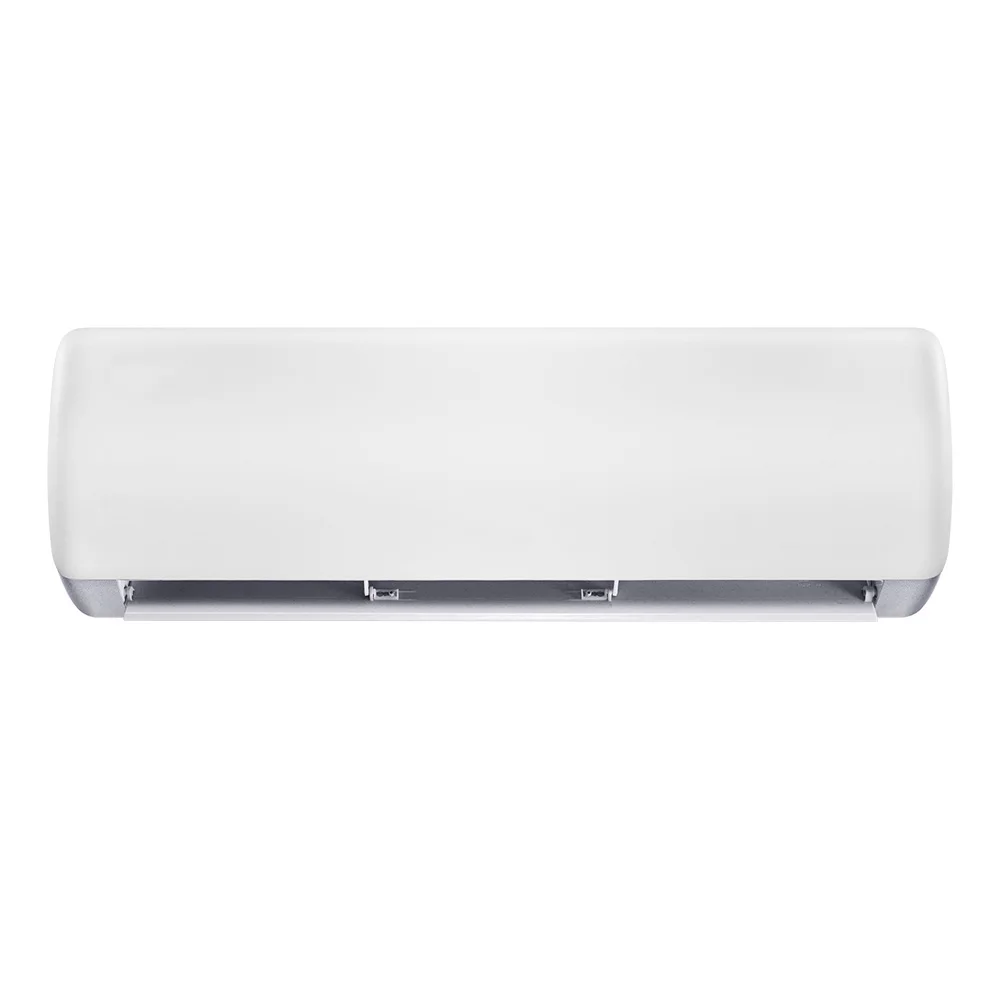

Indoor unit | Dimension(W*D*H) | mm | 800x188x275 | |
Packing (W*D*H) | mm | 865x265x350 | ||
Net/Gross weight | Kg | 8 / 10 | ||
Outdoor fan motor | Model | YDK36-6 | ||
Input | W | 70 | ||
Capacitor | uF | 2.5 | ||
Speed | r/min | 900 / -- / -- | ||
Outdoor coil | a.Number of rows | 2 | ||
b.Tube pitch(a)x row pitch(b) | mm | 21x13.37 | ||
c.Fin spacing | mm | 1.5 | ||
d.Fin type (code) | Hydrophilic aluminium | |||
e.Tube outside dia.and type | mm | Φ7,innergroove tube | ||
f.Coil length x height x width | mm | 754x504x26.74 | ||
g.Number of circuits | 4 | |||
Outdoor noise level | dB(A) | 56 | ||

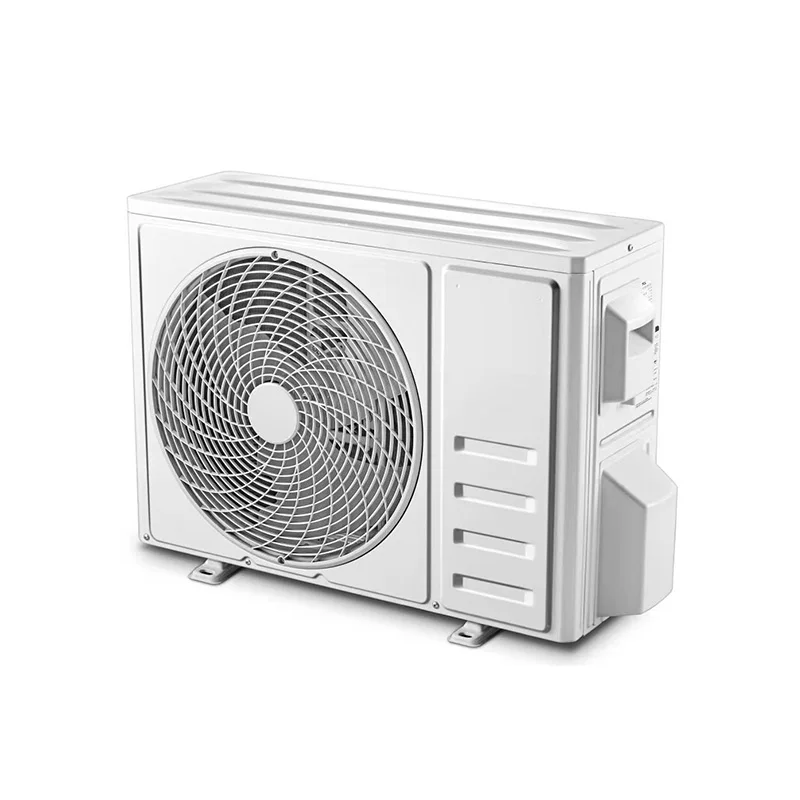

Outdoor unit | Dimension(W*D*H) | mm | 780x250x540 | |
Packing (W*D*H) | mm | 910x335x585 | ||
Net/Gross weight | Kg | 30 / 32 | ||
Refrigerant type | g | R410A/990g | ||
Design pressure | MPa | 4.2/1.5 | ||

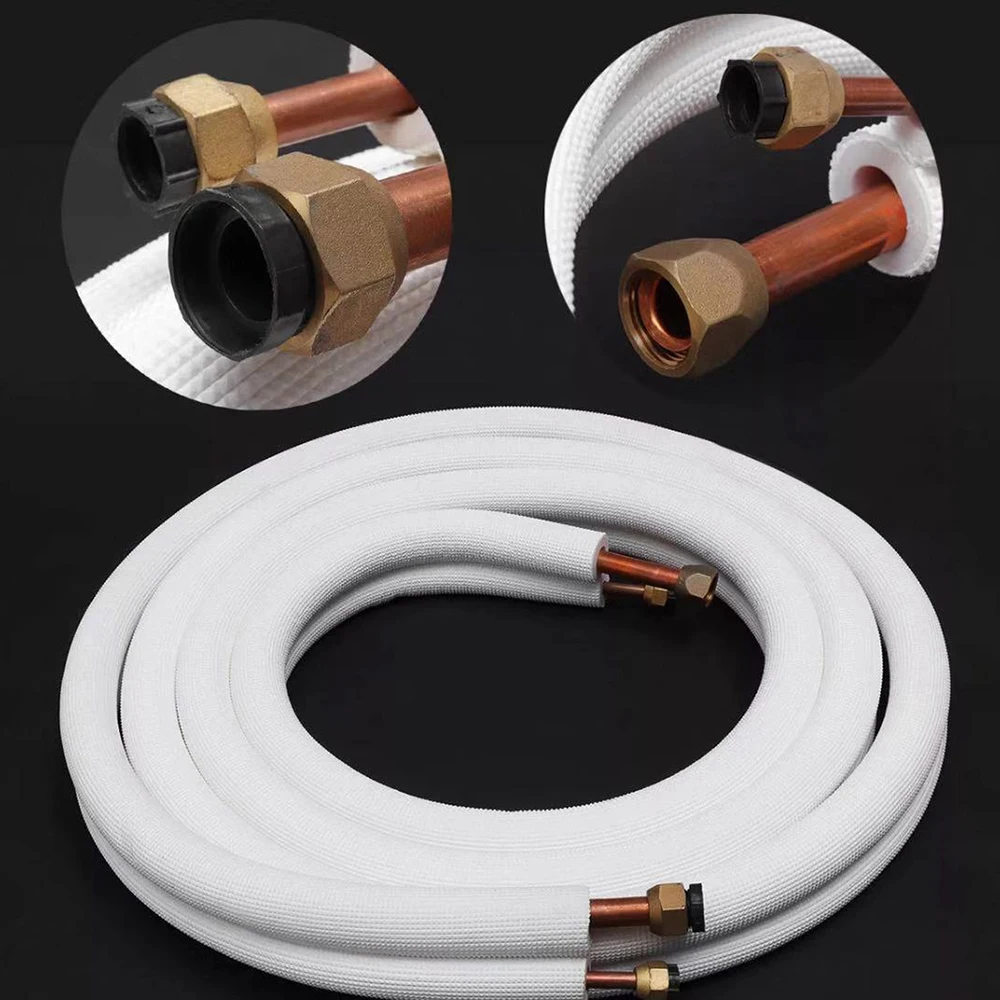

Refrigerant piping | Liquid side/ Gas side | mm(inch) | Φ6.35/Φ12.7(1/4"/1/2") | |
Max. refrigerant pipe length | m | 20 | ||
Max. difference in level | m | 8 | ||
Connection wiring | 1.5(Optional) | |||
Plug type | 1.0x3 / IRAM | |||
Thermostat type | Remote Control | |||
Operation temperature | ℃ | 17-30 | ||
Room temperature | Indoor(cooling/ heating) | ℃ | 17-32/0-30 | |
Outdoor(cooling/heating) | ℃ | 18-43/-7-24 | ||
Application area (Cooling Standard) | m2 | 16-23 | ||
Qty’per 20’ /40’ /40'HQ | 112/235/265 | |||
