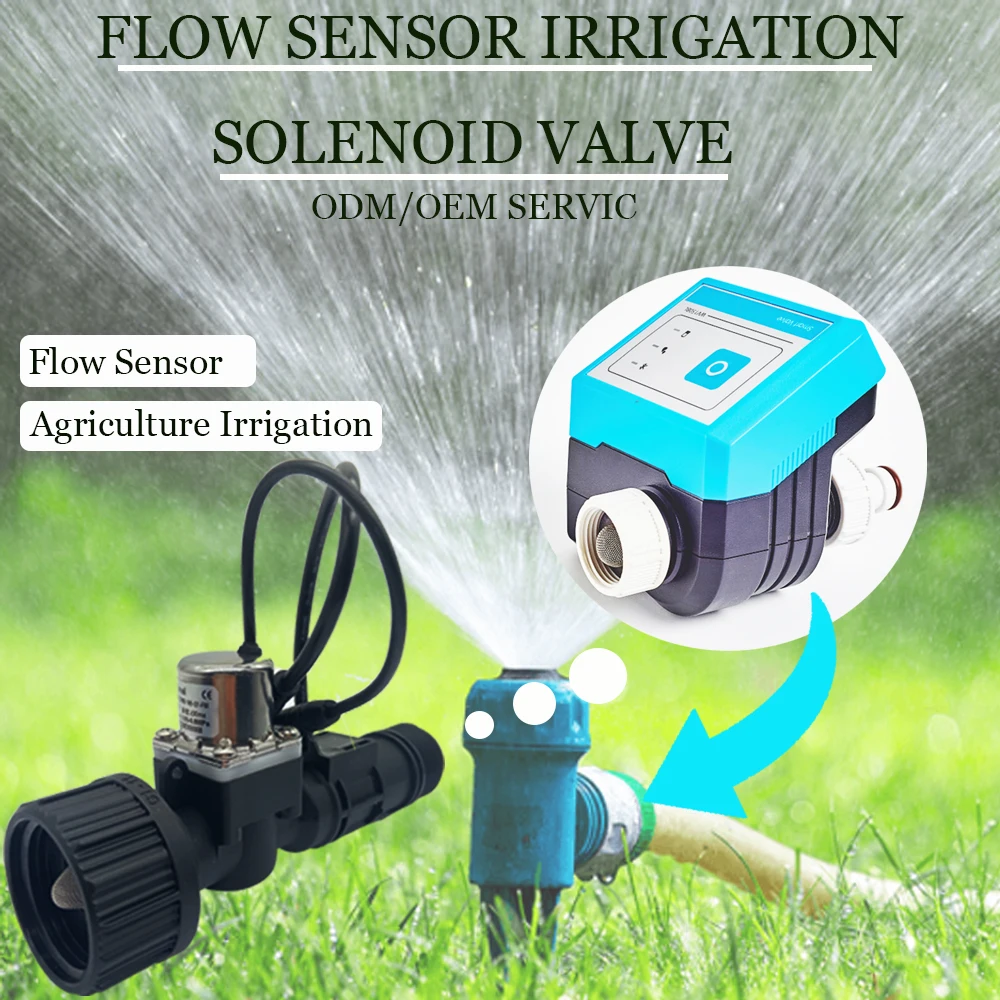

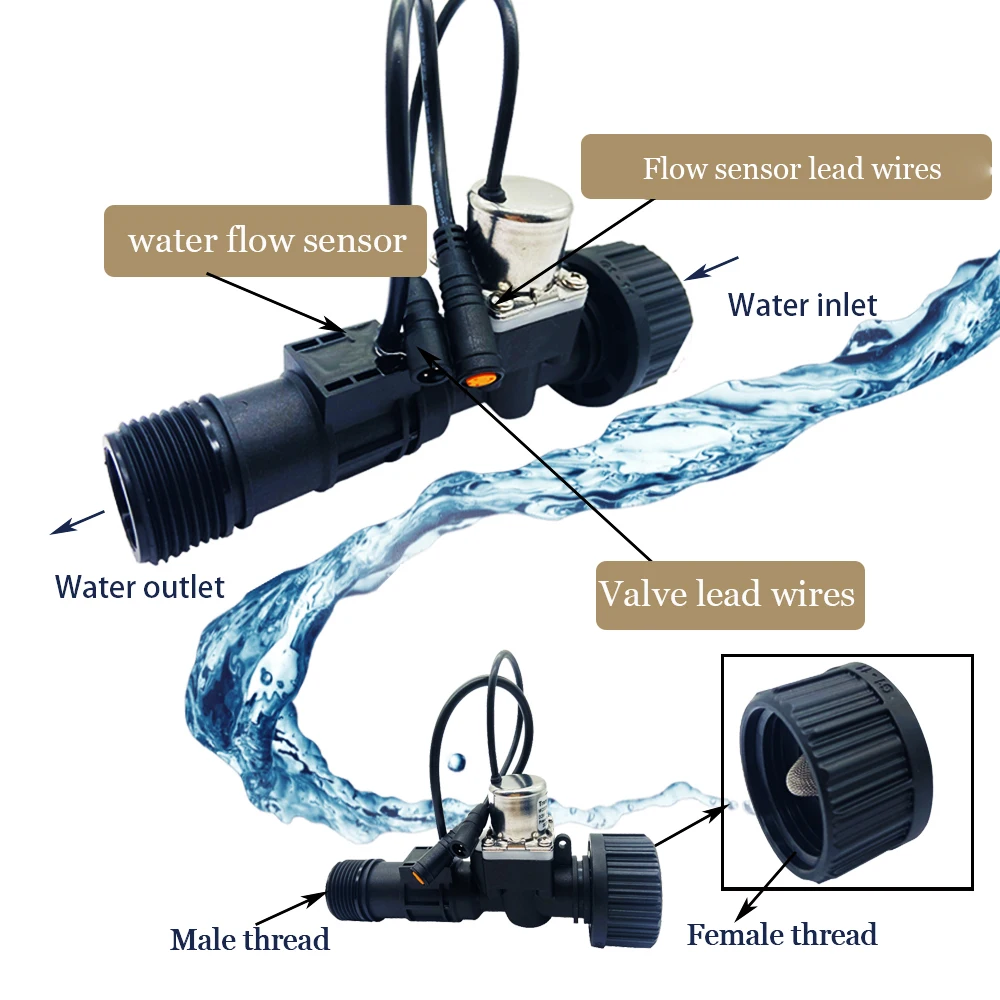

Transl latest dc 3v 6v 12v flow sensor plastic latchin agriculture irrigation water solenoid valve for irrigation water timer
- Category: >>>
- Supplier: Hubei Chuangsinuo Electrical Technology Corp.
Share on (1600977243736):
Product Overview
Description
Product Parameter
Product Name | Garden Irrigation Water solenoid valves |
Type | Custom Available |
Certification | CE UL ROHS REACH SGS |
Temperature of Medium | 1-75℃ |
Medium | Water, Air |

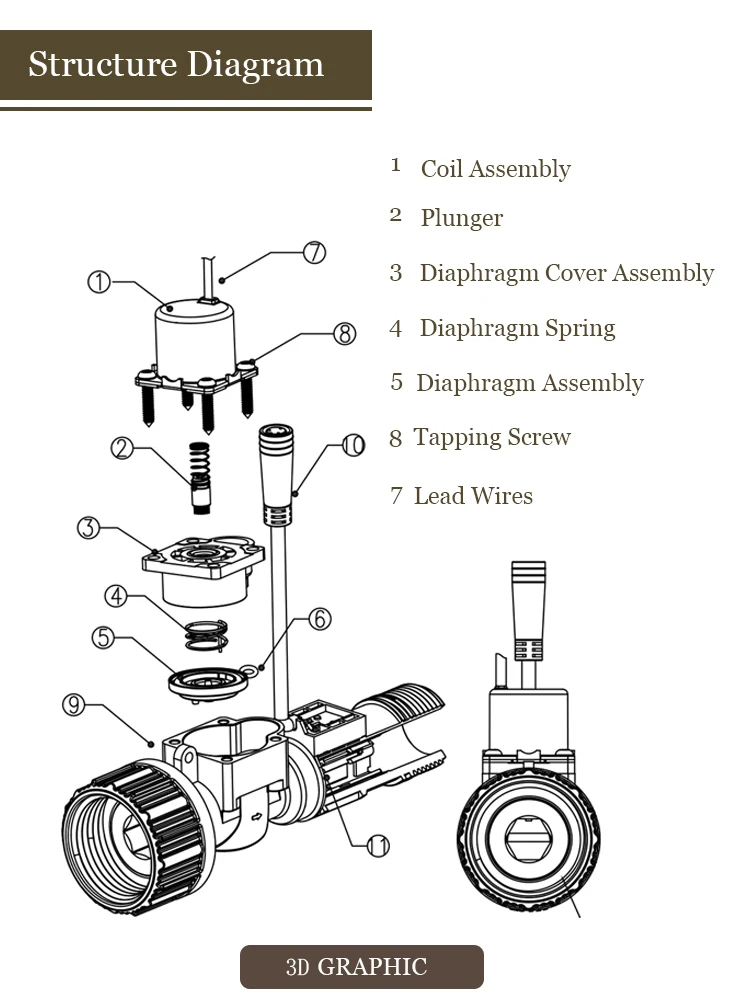

Structure | Diaphragm |
Installation Method | G3/4thread or 1 inch quick connect |
Static Pressure | 0.03-0.9Mpa |
Using Voltage | DC 4.5v-7.5v |
Switch Type | DC pulse type(positive pulse on/negative pulse off)default red to +pole |
Response Time | ON≥2.5S, OFF≥0.5S |
Main Usage | Garden Irrigation |
Material | Cuprum/Stainless iron +NBR |
Surface technology | Electroplate |

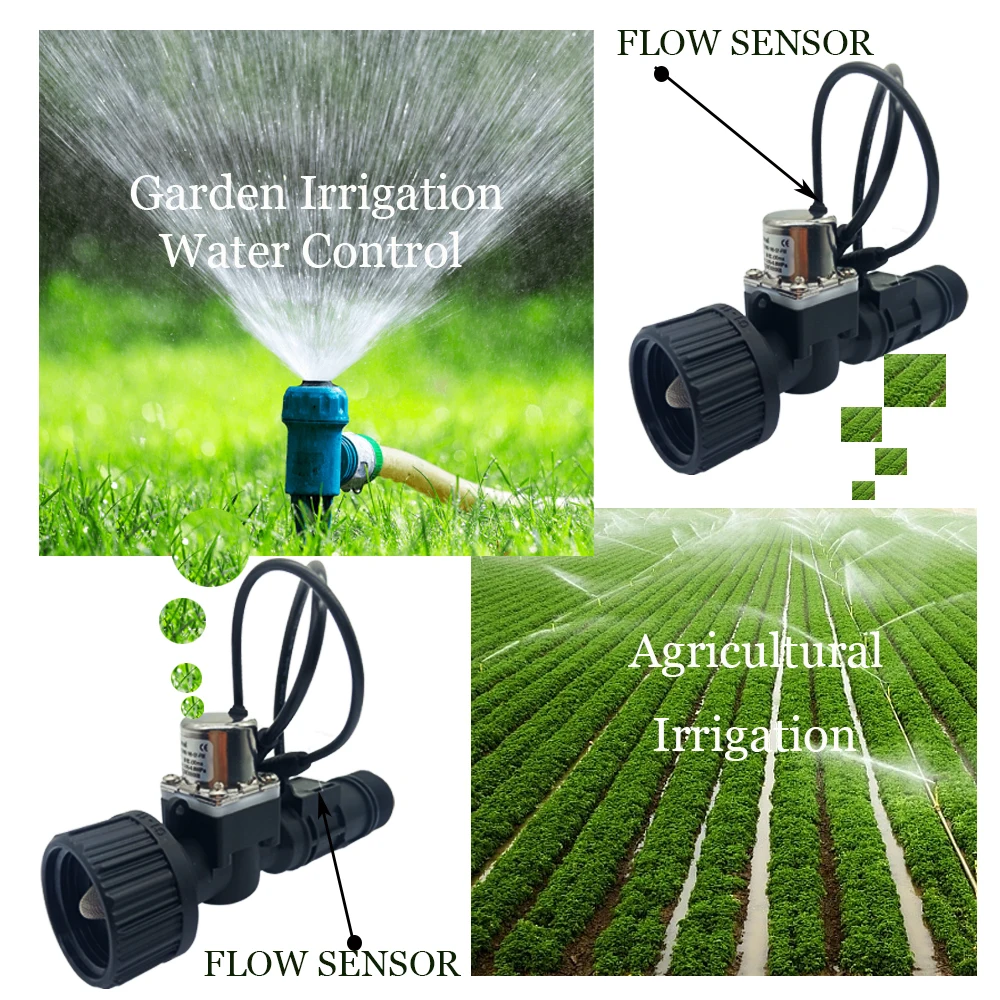

Product Applications
Main Applications of solenoid valves
Widely used in area of Automatic Home Garden Watering , Outdoor Garden Automatic Irrigation Controller, Single Outlets Tap Timer,2or4 Zone Outdoor Irrigation Sprinkler, Lawn Garden Watering , Pool Filling , Smart Water Meter, Smart Feeder , Drip Irrigation System , Green Plant Spraying, Automatic Agricultural, Municipal Garden Irrigation System,garden spray landscaping , farmland, and other fields of daily irrigation control,intelligent irrigation drip irrigation , to reduce human costs, improve the efficiency of automation, saving electricity wand water.
Performance Test
Strength Test | Water pressure resistance 1.2Mpa/5min | Work environment temperature | 1-60℃ |
Electrical Strength | The conductive part,mounting hole and non-conductive metal can withstand 500V/50Hz,leakage current 1mA,withstand voltage for 1min without breakdown | Working environment humidity | 35%-95%RH(no condensation) |
Insulation Resistance | Use a 500V megger to test the resistance between the conductive part and the non-conductive metal>=20MΩ | Storage Temperature | -5-80℃(no icing state) |
High Water Pressure Leakage | 1.0MPa,No leakage | Storage Humidity | 25%-95%(no condensation) |
Low Water Pressure Leakage | 0.02MPa,Leakage<<=0.1mL/min | Installation Direction | Vertical or horizontal direction , inclination<=15degree |
Service Life Test | >=800000 times | Allowable Pressure limit(water pressure) | <=1.0Mpa |
Quick Connector(British Standard)
British Standard: ABS engineering plastic,cold-resistance and UV resistance,high strength,the weight is about 10.3g(including
O-ring). British Standard Pipe G3/4-14thread.Vertical stripe designnon-slip easy to grasp and hold.Suitable for connection with
standard G3/4 pipe with external thread water pipeand can quickly connect with four and si minute joints.
O-ring). British Standard Pipe G3/4-14thread.Vertical stripe designnon-slip easy to grasp and hold.Suitable for connection with
standard G3/4 pipe with external thread water pipeand can quickly connect with four and si minute joints.
Quick Connector(British Standard)
American Standard: ABS engineering plastic,cold-resistance and UVresistance,high strength,the weight is about 10g(including
O-ring). Standard American NH3/4-11.56 thread Vertical stripe designnon-slip easy to grasp and hold.Suitable for connecting with
standard American NH3/4-11.5 external thread water pipe, and can quickly connect with four and six minute joints.
O-ring). Standard American NH3/4-11.56 thread Vertical stripe designnon-slip easy to grasp and hold.Suitable for connecting with
standard American NH3/4-11.5 external thread water pipe, and can quickly connect with four and six minute joints.
Related Products
Company Profile

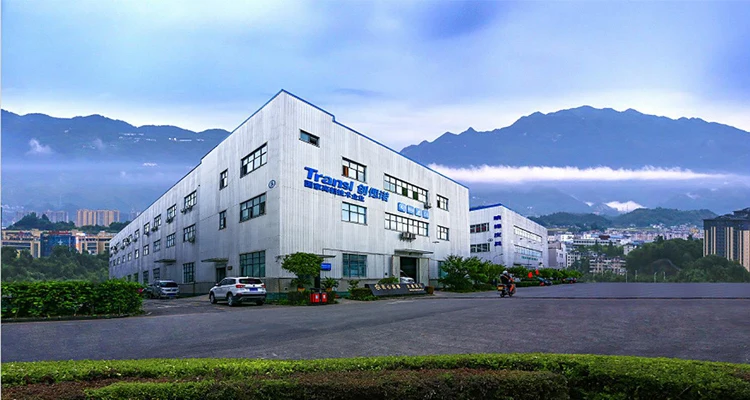

About Us
Transl is an Electronic and Mechanical Import and Export Enterprises, We committe to praviding global customers with Technical Support & Soluttions for Solenoid Coils and Solenoid Valves in the fields al Electromagnetic Applications.
Transl has been recognized by professional Quality and self-improving Innovative Spirit. Transl has passed IATF16949,ISO9001,IS014001,OHSAS 18001 Management Systems Certifications. Our products have passed
Transl has been recognized by professional Quality and self-improving Innovative Spirit. Transl has passed IATF16949,ISO9001,IS014001,OHSAS 18001 Management Systems Certifications. Our products have passed
CE,UL,ROHS,REACH,SGS and other Certifications.We have been exported to more than 80 countries and regions, Our products are widely used in Automation, Internet of Things, Water Treatment, Communications, New Energy Vehicles,Smart Bathroom,Military Aerospace,Oil,Gas Pipelines, Hydrogen Energy, Rail Transit,Ships,Medical Health,Intelligent Irrigation,Environmental Protection and other Fields. Since the inception,we have been practicing“Delight the customers, Achievements for employees, and to give back to Society"the great Mission,adhere to the"Enterprise depends on the Markets to live,Enterprise depends on the Quality to stand on,Enterprise depends on the Science and Technology to be strong. Enterprise depends on the Talented Person to be brilliant”road of scientific development, We have been National high-tech Enterprises,Specialising in Ultra-new small giant Enterprise, Civil-military integration certification Enterprise, National Superior Enterprise of Intellectual Property,Invisible Champion Cultivation Enterprise,Integration of Industrialization and Informationization Enterprises, and Demonstration Enterprise of Popular Science, Growth Project Award,Technical Transformation Award, Trustworthy Enterprise" and other honorary titles.
Research And Development
The company is actively involved in the exploration and development of electromagnetic application technology, and has a number of patented technologies to ensure the advanced technology of the product. The company developed 2.5VDC low voltage intelligent watering solenoid valve, through the special design of the electromagnetic structure to solve the industry's low-voltage driving difficulties, and is now in the industry's leading position; In addition, the company uses 0.02MM fine wire manufacturing high-quality inductor coil,for many years has been designated by the international well-known sensor manufacturers to use.
Technical Team
Our technical team is strong,with structural engineers, electrical engineers,injection molding engineers, mechanical engineers,manufacturing engineers,etc.Their education is above the bachelor's degree, with sufficient practical work experience,in addition there are several professors and doctoral advisers, the company and Hubei University of Nationalities,Wuhan University,Beijing University of Science and Technology and other well-known institutions have project cooperationThe company's theoretical calculations and practical R&D capabilities in the field of electromagnetism are at the forefront of the industry.From the development stage to the integration of our products into the global supply chain, we serve our customers according to their individual needs.

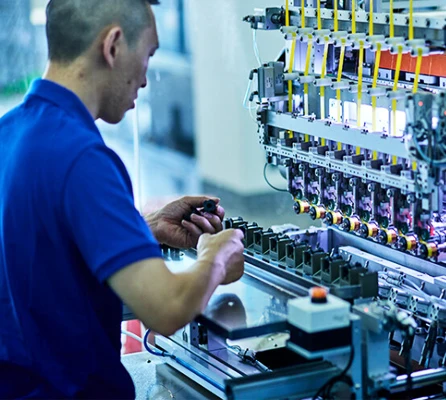

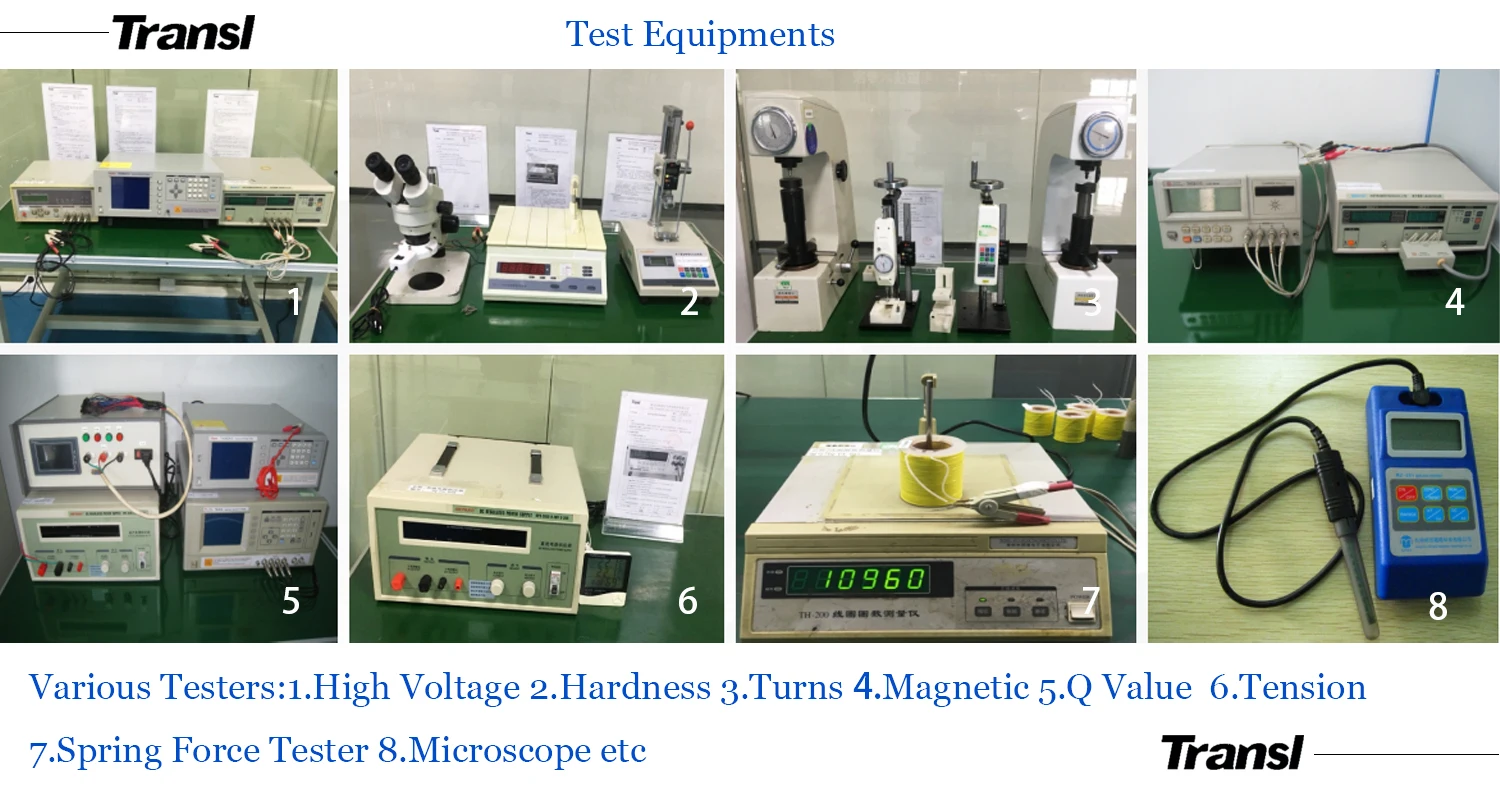

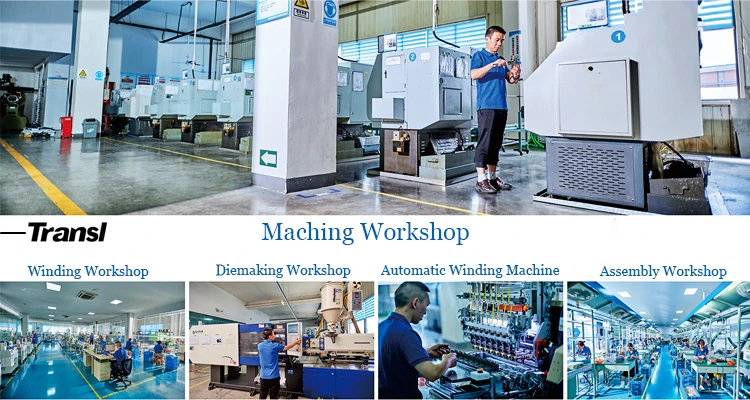

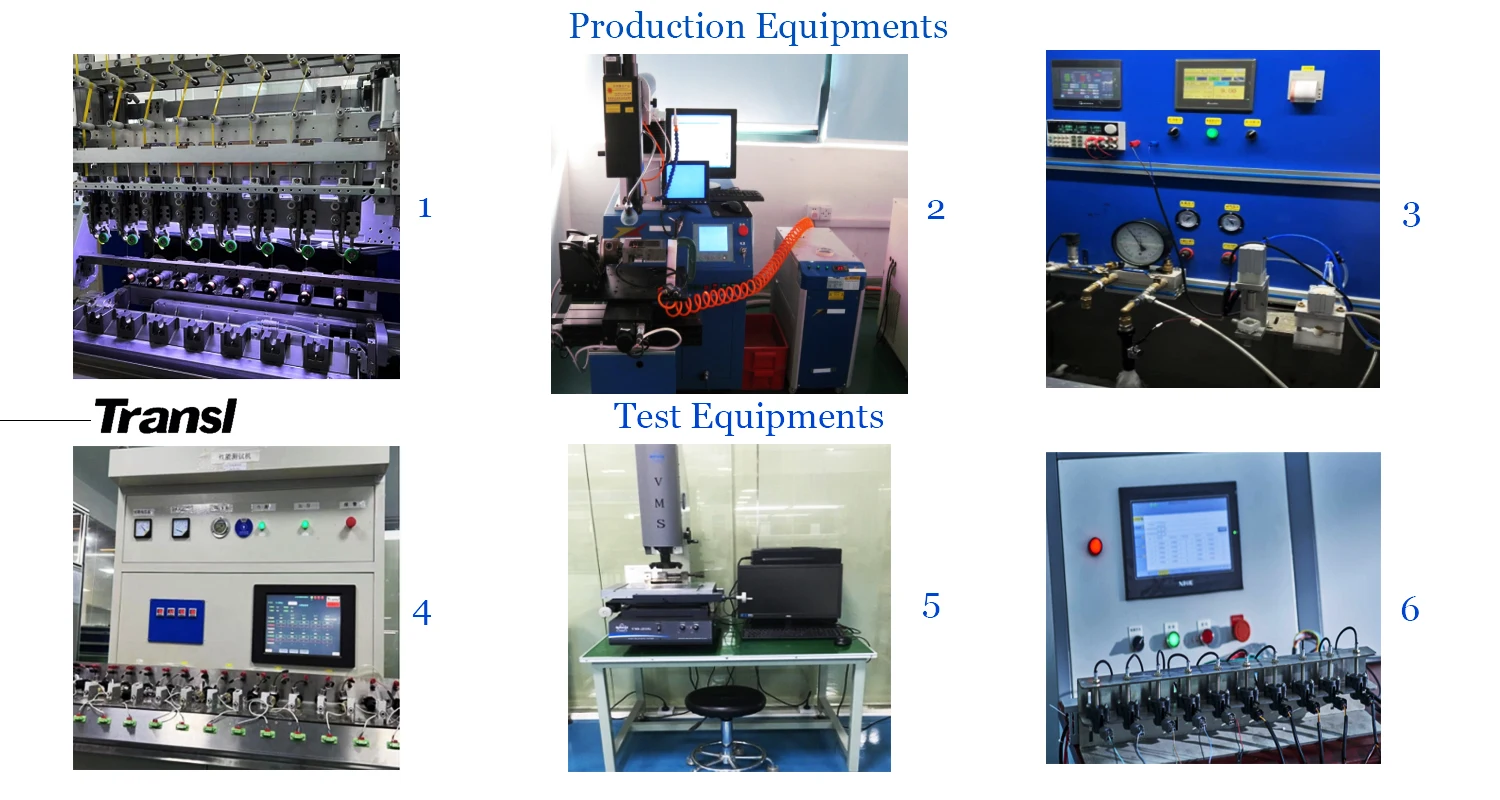

Production Equipments And Test Equipments
1.Wingding Machine 2.Laser Welding Machine 3.Water Testing Machine 4.Life Tester for Solenoid valves 5.2.5-dimensional Tester 5.
Laser Welding Machine 6.Water Testing Machine
Laser Welding Machine 6.Water Testing Machine

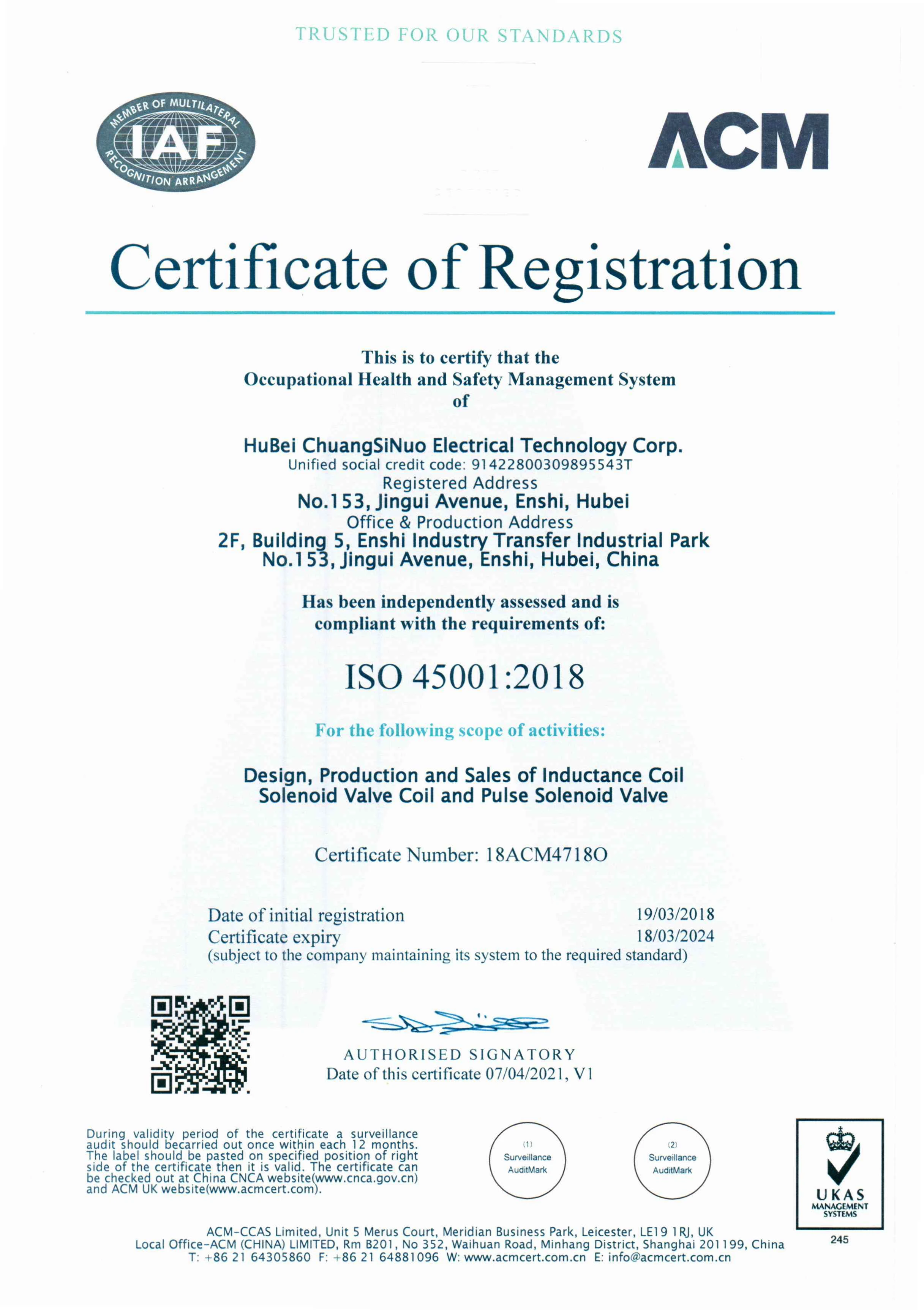

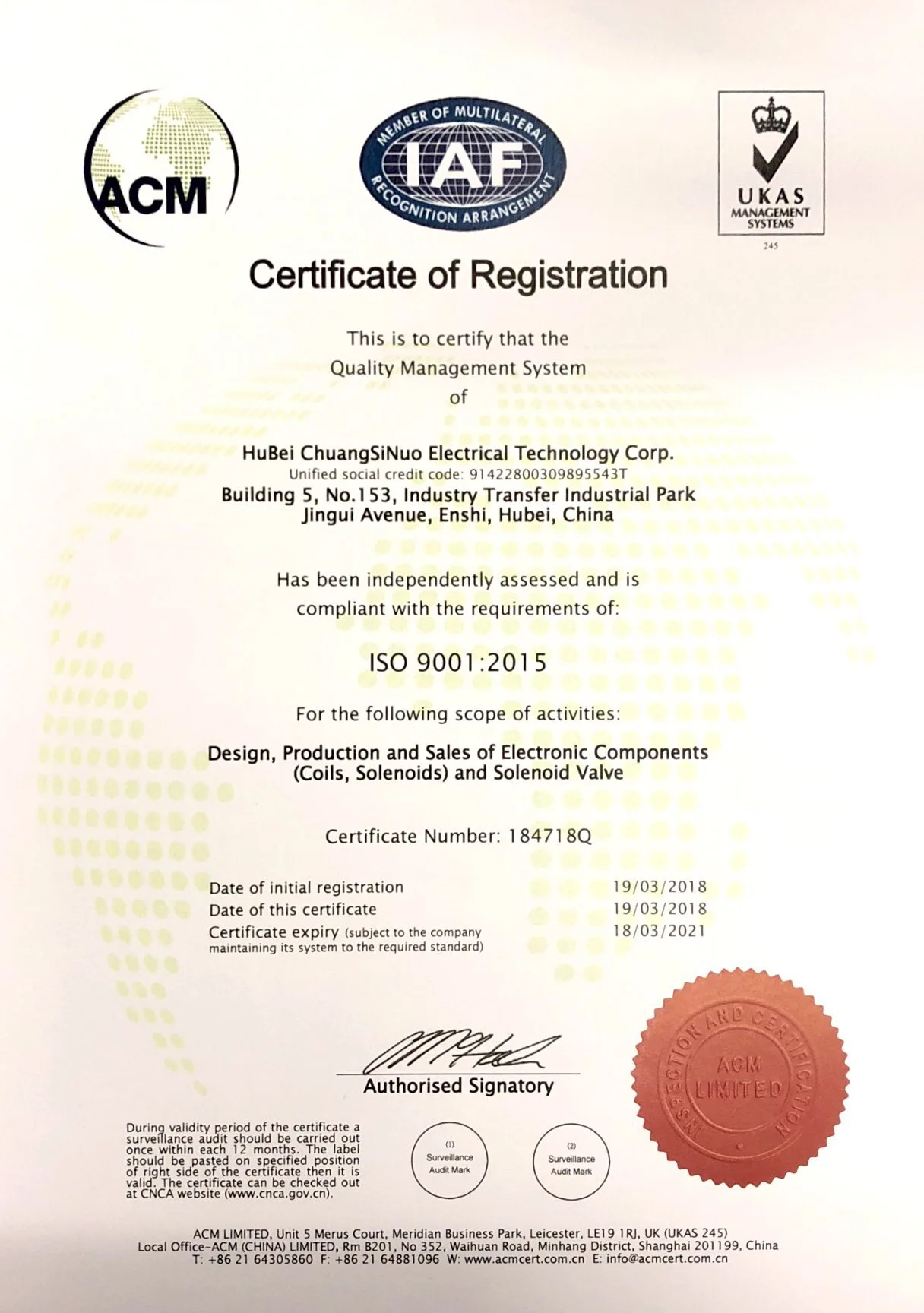

Certificates
Exhibitions And Customer Visits
FAQ
Common questions reply:
1, Are you a factory or a trading company?
Reply: We are a regular factory.
2, How many years has your company been?
Reply: more than 20 years.
3, What are your main products?
Reply: Pulse solenoid valves,Push Pull Solenoid, Tubular Solenoid, Water Solenoid Valve,
Pneumatic Solenoid Valve; Transformer Coil, Sensor Coil, Motor Coil,Printer Head Coil
4,What certification has your company and products passed?
Reply: ISO9001:2015; ISO14001:2015; OHSAS18001-2007; SGS; CE; UL;ROHS;REACH...etc
5,What is the advantage of your company?
Reply: Quick response,Excellent service attitude, Solving problems for customer
6, Can you provide free samples?
Reply: We provide free samples normally, but you should pay the shipping cost.
7, How long is your delivery time?
Reply: Samples within 7 days(if we have exising toolings), customizing toolings needs 25-30 days,
The lead time for in mass production is 15-20 days
Welcome to visit our factory any time !
1, Are you a factory or a trading company?
Reply: We are a regular factory.
2, How many years has your company been?
Reply: more than 20 years.
3, What are your main products?
Reply: Pulse solenoid valves,Push Pull Solenoid, Tubular Solenoid, Water Solenoid Valve,
Pneumatic Solenoid Valve; Transformer Coil, Sensor Coil, Motor Coil,Printer Head Coil
4,What certification has your company and products passed?
Reply: ISO9001:2015; ISO14001:2015; OHSAS18001-2007; SGS; CE; UL;ROHS;REACH...etc
5,What is the advantage of your company?
Reply: Quick response,Excellent service attitude, Solving problems for customer
6, Can you provide free samples?
Reply: We provide free samples normally, but you should pay the shipping cost.
7, How long is your delivery time?
Reply: Samples within 7 days(if we have exising toolings), customizing toolings needs 25-30 days,
The lead time for in mass production is 15-20 days
Welcome to visit our factory any time !
