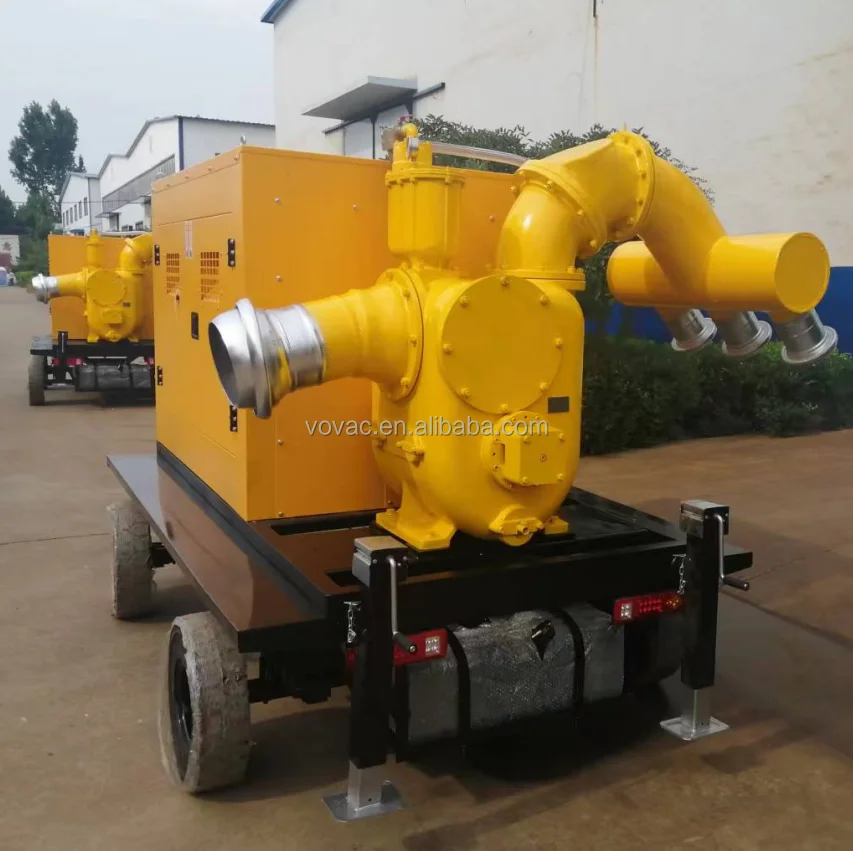

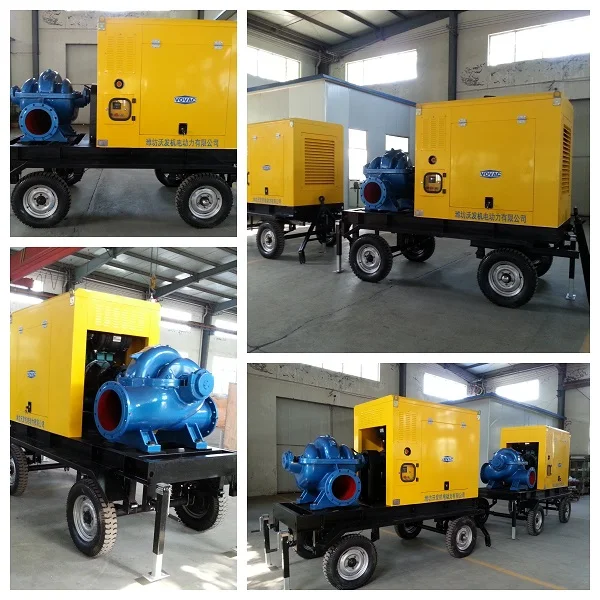

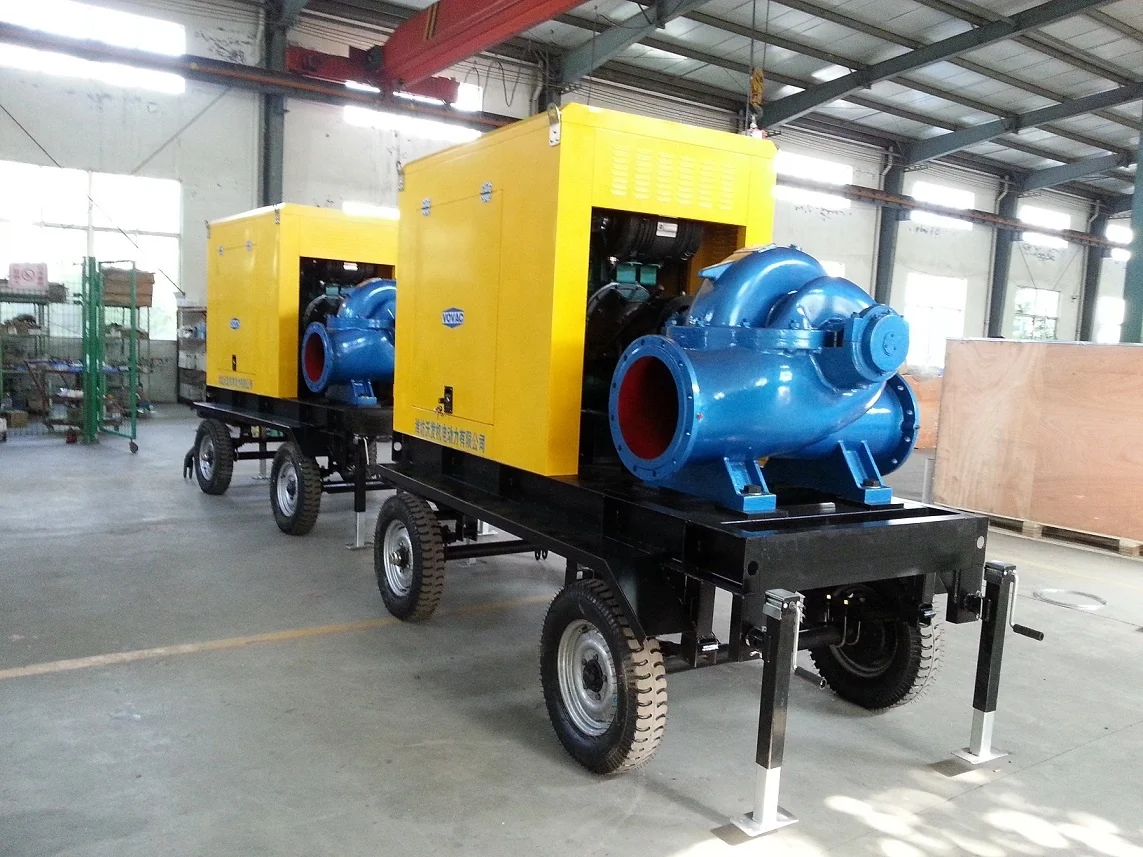

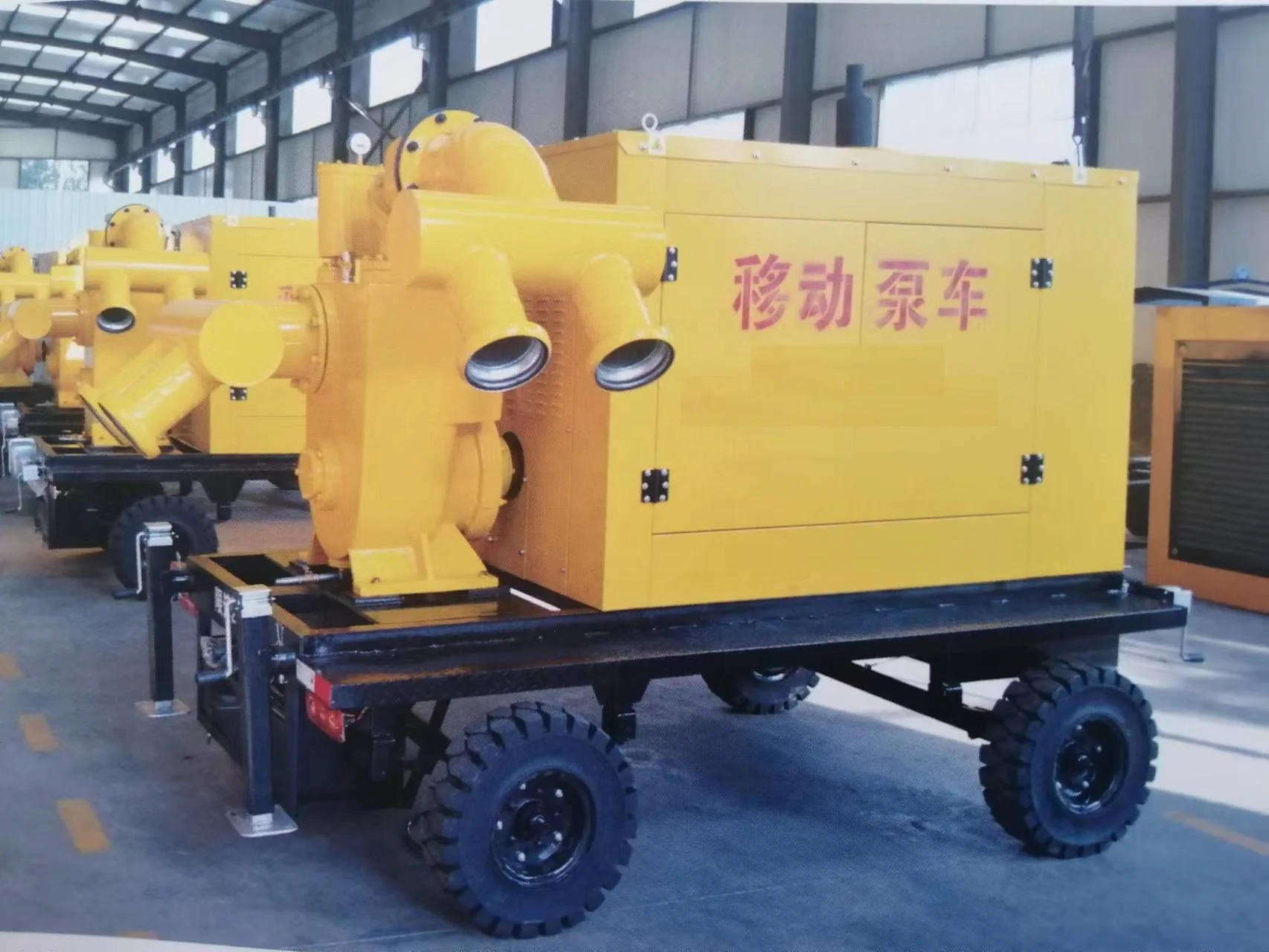

Cheap Price Trailer Big Capacity 16inch Diesel Water Pump For Irrigation or flood Dewatering pump

Product Overview

Description

Cheap Price Trailer Big Capacity 16inch Diesel Water Pump For Irrigation or flood Dewatering pump



1) Outflow: 10m3/h--10000m3/h.

2) Headlift: 5m--500m

3) Outlet diameter: 3 inch--32 inch

4) Usage:  Agricultural Irrigation, Flood drawing, industrial water supply, fire fighting, mine industry, drawing mud and so on

5) Brand: Perkins, Deutz, Ricardo, Yangdong or some Famous brand



---------------- Diesel water pump specifications











DIESEL WATER PUMP
Model of Diesel pump set	V160DPCSH01               (Q=2000m3/h     H=21m)
Rated Output	160KW
Rated Speed (r/min)	1500
Bore×Stroke	102mm×120mm
Displacement	5.9 Liters
Compression Ration	17.5:1
Starting Method	24DC Electric motor
Cooling Method	closed water cooling
Governing Method	Mechanic governing
Cylinders	6
Type	In-line, 6 Cylinder, 4 Cycle, Turbo Diesel Engine
Model Pump	12SH-13J
Type	single-stage,double-suction,centrifugal pump
Outflow	2000m3/h
Head lift	21m
Suction lift	4.5m
Shaft Power	60KW
Inlet diameter	400mm    (16 inch)
Outlet diameter	400mm     (16 inch)
Casing material	cast iron
Shaft material	Stainless steel
Impeller material	cast iron
Sealing method	Stuffing seal
Control System	display of oil pressure,rotation speed,water temperature,oil temperature etc.Display fucnctions with warning,start,stop.
Standard Equipments	Diesel engine: 1set
	Water pump: 1set
	Common base with 8hour fuel tank:1 set
	Oil filter:1set
	Fuel filter:1set
	Air filter:1set
	Control System: 1 set
	Accessary spare parts
	Technic file: 1set
Packing	Plywood case
Payment Terms	T/T30% deposit,balance before shipment
Delivery Time	15 working days after received 30%deposit
MOQ	1SET













 Note: This is our Ricardo diesel engine with water pump, this type diesel water pump have cheaper price with high quality.





Note: Above are only parts of models, if you have any detail requirements about diesel water pump, welcome to contact with me, i will choose the best solution for you.





 -------------------------------The shipping and Packaging

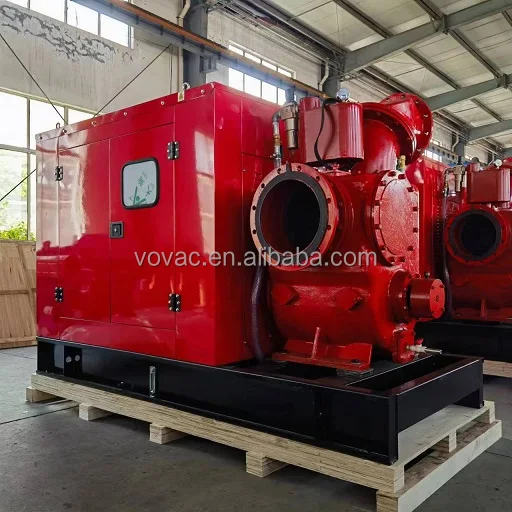

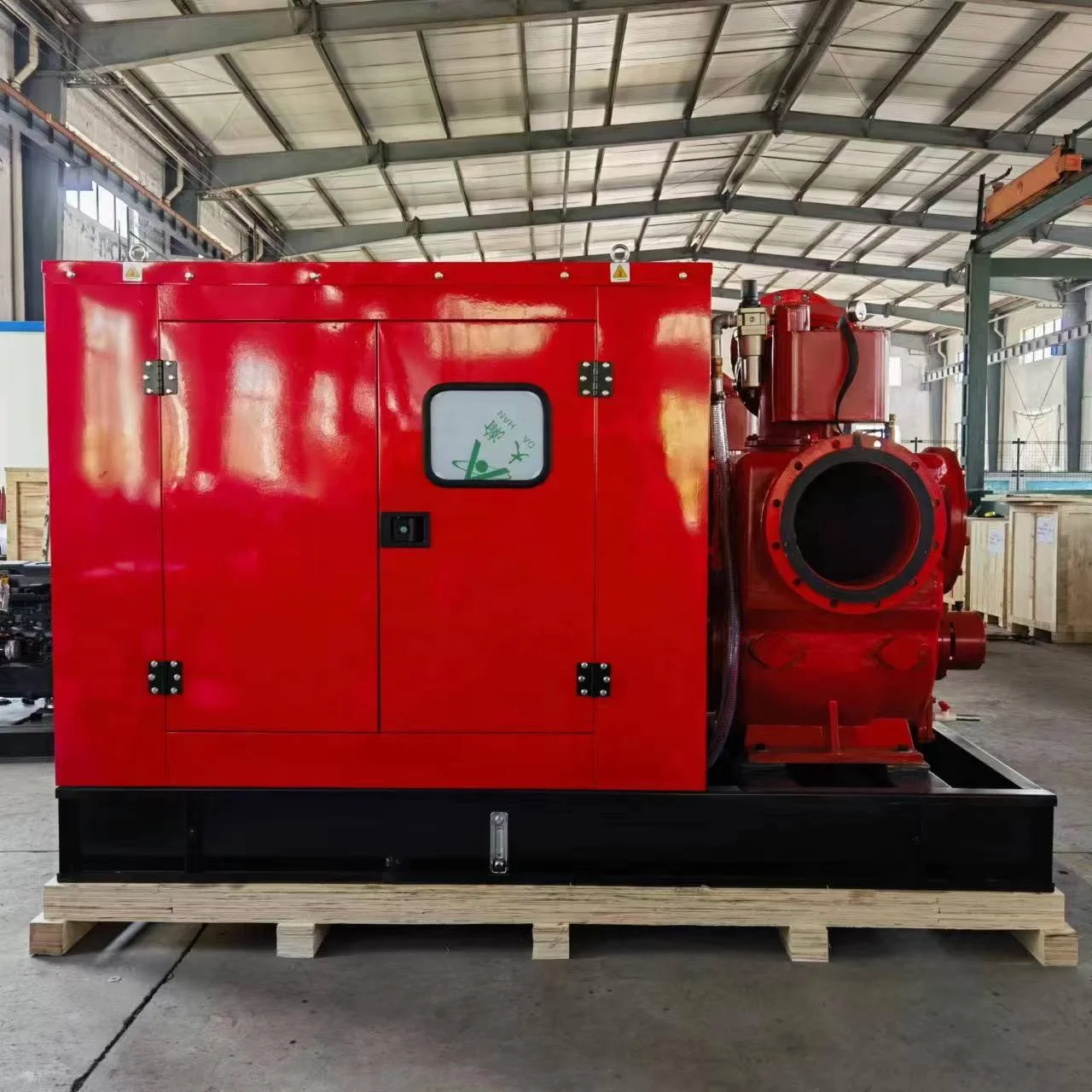

 Diesel water pump



 -----------------------------Our Factory Picture

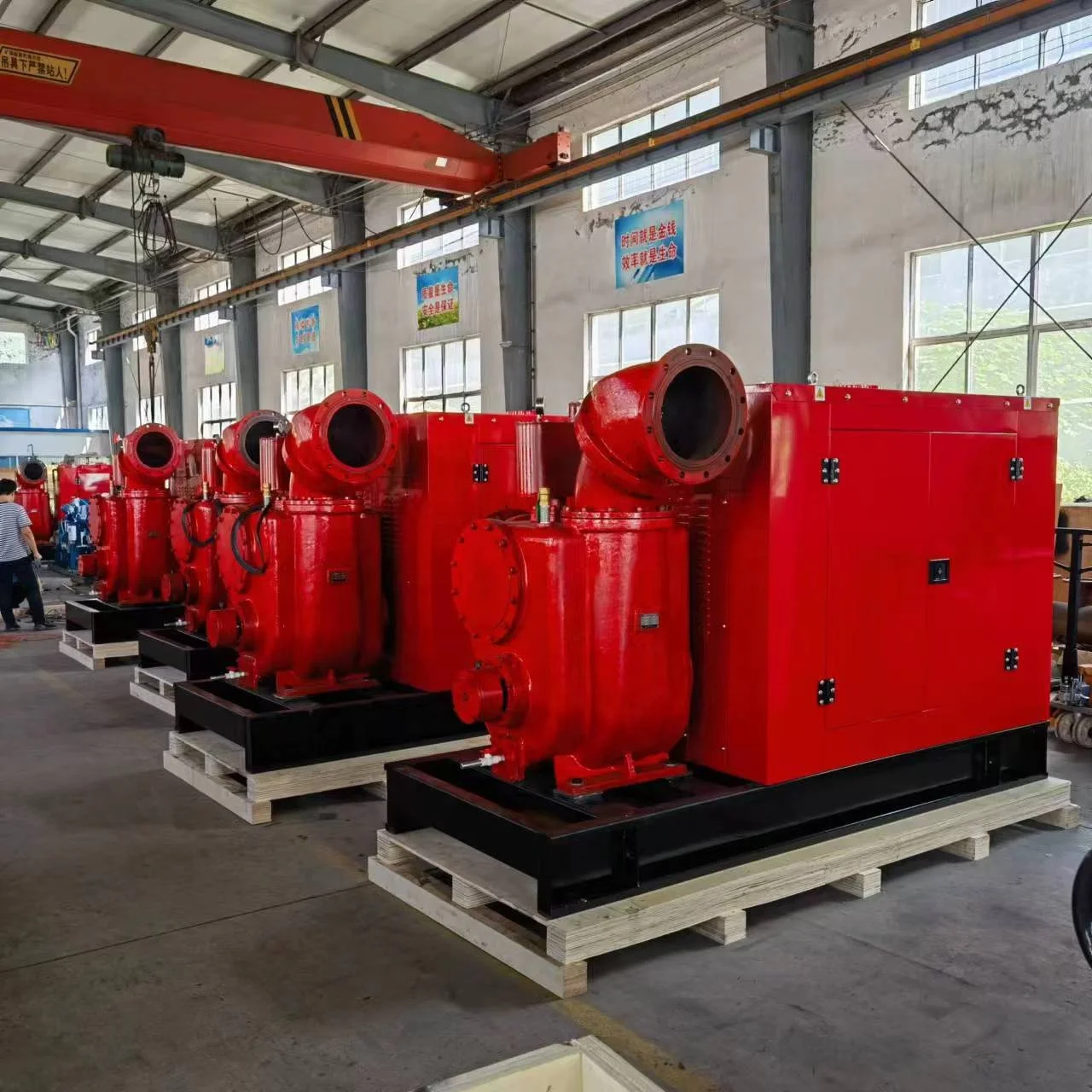

 Diesel water pump

---------------------Any requirements about diesel water pump, pls contact with me, i will choose the best solution for you

My whatsapp: 0086-13061682622
